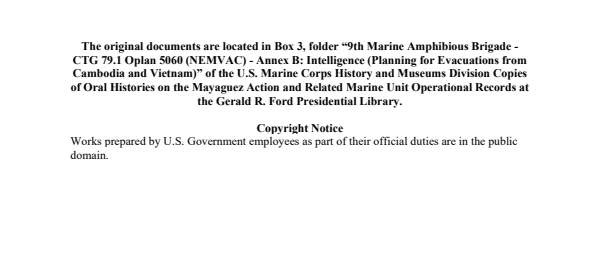

The original documents are located in Box 3, folder "9th Marine Amphibious Brigade -
CTG 79.1 Oplan 5060 (NEMVAC) - Annex B: Intelligence (Planning for Evacuations from
Cambodia and Vietnam)" of the U.S. Marine Corps History and Museums Division Copies
of Oral Histories on the Mayaguez Action and Related Marine Unit Operational Records at
the Gerald R. Ford Presidential Library.
Copyright Notice
Works prepared by U.S. Government employees as part of their official duties are in the public
domain.
DECLASSIFIED
CONFIDENTIAL
HEADQUARTERS MARINE CORPS
ROUTING SHEET (5511)
NAVMC HQ 335c (REV. 9-73)
C500228
CG 9THMAB/CTG 79.1 OPLAN 5060 ANXB INTEL 3800
MAB9
02A00275
03
B1
02V
C
DOCUMENT
FILE
ORIGI.
CY
CONTROL
SUBJECT
ORIGINATOR CONTROL NO.
NUMBER
NATOR
NO.
GP
NUMBER
DATE
ROUTING Use numbers to show order of routing
DISPOSITION INSTRUCTIONS
(COMPLETED BY ACTION OR ROUTING OFFICER AS APPROPRIATE)
OPERATION CODE
RECIPIENT MAY DESTROY (Destruction Report required)
RETURNTO HQ CLASSIFIED FILES FOR FURTHER ROUTING OR
RETENTION AS APPROPRIATE
X ORIGINATING OR OFFICE
AFFIXING ROUTING SHEET
G INFORMATION
RETENTION PERIOD ESTABLISHED BY ROUTING OFFICER AS:
A APPROPRIATE ACTION
H RETURN TO
B . - GUIDANCE
I INITIAL
MONTHS
INDEFINITE (Historical Value)
C . SIGNATURE
J DISPOSITION
UNTIL SUPERSEDED
PERMANENTLY (Record Material)
D - COMMENT
K DECISION
E RECOMMENDATION
L RETENTION
UNTIL OVERTAKEN BY EVENTS AS DETERMINED ON ANNUAL REVIEW
F CONCURRENCE
o (OTHER)
REQUEST ACTION OFFICER ADVISE RETENTION ABOVE:
SECTION
RTG.
OPR.
DATE
SIGNATURE OF OFFICER ESTABLISHING DISPOSITION cwor
HBSM3
ADDRESSEES
INITIAL
CODE
IN
OUT
REMARKS: (Entries to be signed and dated. For lengthy comments attach separate page and indicate
COMMANDANT
CMC
"Bucktag Comment Attached. Do not assign separate Control Number to Bucktag Comments.)
MILITARY SECY TO CMC
ASSISTANT COMMANDANT
ACMC
BASIC 301059
EXEC ASST TO ACMC
DIR SPEC PROJ
SPD
CHIEF OF STAFF
CS
SECY OF GEN STAFF
DC/S FOR PLANS & OPS
P
DIR PLANS DIV
PL
DIR OPS DIV
PO
Keep Confi.
MCCC
POC
DC/S FOR MANPOWER
M
DIR MANPOWER P &P
MP
cherk C/C
DIR PERS MGT MANPOWER MM
DIR PERS SERVS DIV
MS
DIR TRNG & EDUC DIV
MT
DC/S FOR &L
L
PLANS & POLICY BRANCH LPP
DC/S FOR REQR & PROG
RP
DC/S FOR AVIATION
AA
DC/S FOR RD & S
RD
FISCAL DIR
FD
DIR OF MC RESERVE
RES
INSPECTOR GENERAL
IG
DIR OF INFOSYSSPT & MGT
ISM
DIR JUDGE ADVOCATE DIV JA
DIR OF INFORMATION
PA
DIR OF HIST & MUSEUMS
HD
DIR OF INTELLIGENCE
INT
DIR OF TELECOMM
TEL
DIR OF HQ SUPPORT
HQS
LEGISLATIVE ASST
OLA
COUNSEL FOR CMC
CL
MEDICAL OFF USMC
MED
DENTAL OFF USMC
DEN
CHAPLAIN USMC
REL
JOINT CONTROL
CLASSIFIED FILES H1 HQSM-3
AJCC
AH/ERS
RETURN TO HQSM-3
DO NOT DETACH-THIS FORM IS A PERMA-
NENT PART OF THE DOCUMENT TO WHICH
MATERIAL
UPON COMPLETION OF ROUTING
IT IS ATTACHED.
ATTACHED IS
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
FR: CG, 9th MAB/CTG 79.1
500228 (c)
TO:
OPLAN 5060, ANNEX B (Intelligence) dtd
REF:
2 Jan 1975 (Copy 3 of 50)
FILE:
$
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL™
NO FOREIGN DISSEM
9th MARINE AMPHIBIOUS BRIGADE
014 75
9th MARINE
BRIG ADE
500228
MPHIBIOUS
CG 9th MAB/CTG 79.1 OPLAN 5060
(NEMVAC)
ANNEX B
INTELLIGENCE
014 75
CLASSIFIED BY CG, III MAF
9th MAB
EXEMPT FROM GENERAL DECLASSIFICATION
CONTROL NO.
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY 2
500228 COPY 3 OF 50 COPIES
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
HEADQUARTERS
9th Marine Amphibious Brigade
FPO, San Francisco 96602
2/JGM/gfm
3800
02A00275
JAN 1975
SUBJECT: ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
DISTRIBUTION: (See Annex Z to OPLAN 5060)
1. (U) Forwarded herewith is Annex B to CG 9th MAB/CTG 79.1
OPLAN 5060.
2. (U) This Annex fulfills the requirements established in
the basic operation plan and is effective for planning upon
receipt.
3. (U) ANNEX B is bound and issued separately to facilitate
frequent information updating. Changes to this Annex will be
..
issued separately; a record of changes issued to this Annex
will be recorded in the "Record of Changes", page i.
D. C. ALEXANDER
Chief of Staff
1 Encl
ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
Annex B to CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
SECURITY INSTRUCTIONS
1. (U) The long title of this Annex is Annex B (Intel-
ligence) to CG 9th MAB/CTG 79.1 OPLAN 5060. NON-COMBATANT
EMERGENCY AND EVACUATION (NEMVAC) (U) The short title
is ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060.
2. (U) The overall classification of this Annex is
CONFIDENTIAL. Request for foreign disclosure will be
submitted in accordance with OPNAV Instruction S5510. 48.
3. (C) This document contains information affecting the
national security of the United States within the meaning
of Title 18, U.S.C., sections 793-794. Its transmission
or revelation of its contents in any manner to an
unauthorized person is prohibited by law.
4. (U) Authority is granted to make extracts from this
Annex as necessary for the preparation of supporting
instructions. All such extracts shall be assigned security
classifications in consonance with the classifications
assigned in this Annex.
RECORD OF CHANGES
CHANGE
COPY
DATE
POSTED BY
NUMBER
NUMBER
ENTERED
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
i
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
TABLE OF CONTENTS (U)
CONTENTS
PAGE NO.
Security Instructions
i
Table of Contents
ii
Basic Plan
1 thru 4
APPENDIX 1, ESSENTIAL ELEMENTS
OF INFORMATION
B-1-1 thru B-1-2
APPENDIX 2, EAGLE PULL
B-2-1 thru B-2-2
Tab A--Area Study
B-2-A-1 thru B-2-A-5
500228
Tab B--HLZ Study
B-2-B-1 thru B-2-B-6
APPENDIX 3, FORTRESS JOURNEY
B-3-1 thru B-3-2
Tab A--Area Study
B-3-A-1 thru B-3-A-5
Tab B--HLZ Study
B-3-B-1 thru B-3-B-11
Tab C--Beach Study
B-3-C-1 thru B-3-C-5
APPENDIX 4, NOT USED
Not Used
APPENDIX 5, WEATHER, HYDROGRAPHY
TO BE ISSUED
APPENDIX 6, RECONNAISSANCE AND
SURVEILLANCE PLAN
TO BE ISSUED
APPENDIX 7, TARGET INTELLIGENCE
TO BE ISSUED
ii
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
2 January 1975
ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
INTELLIGENCE (U)
Ref: (a) MABO P3800.1 (SOP FOR INTELLIGENCE) (to be issued)
1. (C) MISSION AND CONCEPT OF INTELLIGENCE OPERATIONS
a. NINTH MAB MISSION: Be prepared to deploy the MAB/
MAU/BLT/ Reinforced Rifle Company/DetHML by airlift and/or
sealift into designated area to support NEMVAC operations
and assume operational control of MAU/BLT when designated
CLF of the Special Contingency Force.
b. NINTH MAB INTELLIGENCE MISSION: Collect, process
and disseminate intelligence information to support MAB
concept of operations.
C. This ANNEX provides general guidance for the
collection of intelligence; specific collection require-
ments (EEI) ; and specific information regarding probable
NEMVAC operations areas identified for MAB size force
packages.
2. (U) SITUATION
General enemy situation and characteristics of probable
areas of operation are described in Appendix 2 and 3.
Additional information on these specific areas and on the
remaining areas of PACOM can be found in current intel-
ligence reports and summaries and publications and
directives.
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-1
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
3. (U) ESSENTIAL ELEMENTS OF INFORMATION
a. See Appendix 1 (Essential Elements of Information).
b. Subordinate commands (when assigned) will prepare
collection plans to satisfy their own intelligence require-
ments. Requests for intelligence support beyond the cap-
abilities of the subordinate command will be submitted to
this Headquarters in accordance with reference (a).
4.
(C) INTELLIGENCE ACQUISITION TASKS
a. Subordinate and attached units (when assigned)
(1) All TF units will provide information as
obtained relating to EEI. See Appendix 1
(2) Task Force Ground Units (when assigned)
(a) Conduct local reconnaissance as assigned.
(b) Provide any information regarding enemy
capability to interdict lines of communication, ground
and air, from forward security positions to evacuation
points and/or to evacuation ships/airfields.
(3) Task Force Aviation (when assigned) Be
prepared to provide visual, photographic and imagery recon-
naissance as required.
(4) Task Force Engineer (when assigned) Be
prepared to provide engineer reconnaissance of LOCs.
(5) Task Force Reconnaissance (when assigned)
See Appendix 6 (Reconnaissance and Surveillance Plan) to
be issued upon assignment of specified NEMVAC operations
areas.
(6) Task Force Logistics Support Group (when
assigned). Report any information obtained regarding enemy
intentions and location of evacuees.
(7) Task Force Support Detachments (when assigned)
Be prepared to provide counterintelligence, interrogator-
translator, and sensor support to the landing force as
required.
B-2
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
b. Requests to higher units
(1) Commander, Amphibious Task Force
(a) Provide current and predicted weather
data as required.
(b) Provide information as obtained regard-
ing EEIs. See Appendix 1.
(c) Provide information as obtained regard-
ing possible evacuees in the NEMVAC operations area.
5.
(U) MEASURES FOR HANDLING PERSONNEL, DOCUMENTS AND
MATERIAL
a. In the event a combat situation arises, enemy PW's
documents and material will be handled in accordance with
reference (a).
b. Annex C (Operations) to CG 9th MAB/CTG 79.1 OPLAN
5060 provides instruction for dealing with local nationals
who may become detainees during course of NEMVAC operations.
6. (U) DOCUMENTS AND/OR EQUIPMENT REQUIRED
a. Standard maps will be designated as operation areas
are identified.
b. Maps and charts will be obtained from MAF con-
tigency stocks as required.
C. Aerial photography will be provided as obtained.
7. (U) REPORTS. Periodic intelligence summaries will
normally not be required during the course of a NEMVAC
operation. Special intelligence reports may be required
by this Headquarters as the situation warrants.
8. (U) MISCELLANEOUS INSTRUCTIONS
a. Information beyond that contained in this Annex
will be published as received and/or as specific NEMVAC
operation areas are identified.
B-3
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
b. Current information regarding an assigned area for
actual operations will be disseminated by electronic means
as rapidly as it becomes available.
BY COMMAND OF BRIGADIER GENERAL COFFMAN
D.C. ALEXANDER
Colonel, U.S. Marine Corps
Chief of Staff
OFFICIAL
Jl G. MULKEY
Lt. Colonel USMC
G-2
Appendixes:
1- Essential Elements of Information
2- Eagle Pull
3- Fortress Journey
4- Not Used
5- Weather, Hydrography (to be issued)
6- Reconnaissance and Surveillance Plan (to be issued)
7- Target Intelligence (to be issued)
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
APPENDIX 1 to ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
ESSENTIAL ELEMENTS OF INFORMATION (U)
Ref: (a) FMFM 2-1 Intelligence
1. (C) GENERAL
These are routine EEI's effective on a continuing basis
and applicable to all target areas of PACOM. Changes should
be reported as information becomes available. Specific EEI
in support of 9th MAB contigency plan should be consulted
as necessary when considering a definite area of NEMVAC
operations.
a. Routine information applicable to NEMVAC in PACOM
(1) Terrain and condition data pertaining to HLZs
in and adjoining major ecacuation sites.
(2) Beach study information in the vicinity of
coastal evacuation sites.
(3) LOC data in evacuation areas include fords,
bridges and bypasses.
(4) Airfield information to include location,
capability, POL, and security required or available.
(5) Capabilities and anticipated reaction of
friendly national military and civilian forces in the
evacuation area. Emphasize national forces assistance or
resistance to NEMVAC operations.
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-1-1
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
(6) Hostile forces OOB to include anticipated
reaction to NEMVAC operations.
b. Specific information applicable to NEMVAC op-
erations when an operational area is designated
(1) Hostile force location, strength, disposi-
tion and composition within a radius that could effect
the NEMVAC operation.
(2) Indications that hostile forces will react
to resist NEMVAC operations.
(3) Hostile force anti-air capability in the
operation area; particularly anti-helo capability.
:
(4) Location, strength and capabilities of
local national forces in the operation area to include
military, para-military and civilian forces.
(5) Local national forces reaction to NEMVAC
operations-hostile, helpful, apathetic?
(6) Local national force means to assist in
NEMVAC operations: particular attention to local trans-
portation means available-surface and air.
(7) Locations of all NEMVAC target personnel
in the operations area.
(8) Location and nature of any physical materials
to be evacuated or destroyed as part of the NEMVAC
operations.
B-1-2
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
APPENDIX 2 to ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
EAGLE PULL (U)
Ref: (a) USSAG/7AF CONPLAN 5060c (EAGLE PULL) (U)
(b) Maps: AMS Series L7016 Scale 1:50,000 Sheet
5932II, AMS Series L9010 Scale 1:12,500 PHNOM
PENH City Map.
1. (C/NFD) GENERAL
In the event that the evacuation of American nationals
from PHNOM PEHN. Cambodia, is required, the 9th MAB
could be called upon to provide Ground Security Forces (GSF
for such an operation. Reference (a) provides the basic
information upon which such an NEMVAC mission will be
affected.
2. (C/NFD) PURPOSE
This Appendix provides general intelligence regarding
the probable NEMVAC area of operations (Tab A), and
specific data on planned Helicopter Landing Zones (Tab B).
3. (C/NFD) MISCELLANEOUS
a. Evacuees. Current indications reflect some 600
US noncombat and designated alien personnel requiring evac-
uation fron PHNOM PENH. Chief, US Diplomatic Mission,
Cambodia is responsible for designating evacuees, alerting
them to evacuation, and transportating them to evac sites
within his capabilities.
b. Military Assistance. It is assumed that Cambodian
armed forces will not interfere with NEMVAC operations.
COMUSSAG will designate NEMVAC sites and have US forces
committed to support EAGLE PULL. Force requirements and
NEMVAC method of operations will be determined by USSAG in
accordance with reference (a).
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-2-1
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
C. Concept of Operations. Designated safe haven site -
U-TAPAO Airfield THAILAND. Operation options are contained
in reference (a).
d. Intelligence Support. The general data provided in
this Appendix will be augmented by the most expeditious
means available with current information on enemy forces,
local national force postures, up-dated HLZ data, etc.
TAB:
A- Area Study-Cambodia/Phnom Penh
B- HLZ Study-Phnom Penh
B-2-2
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
TAB A to APPENDIX 2 to ANNEX B to CG 9th MAB/CTG 79.1 OPLAN
5060 (U)
AREA STUDY-CAMBODIA/PHNOM PENH (U)
1. (C) CAMBODIA
a. Political. Until March 1970 Prince SIHANOUK ruled
Cambodia as a virtual dictator. Dissatified with SIHANOUK'
policy of tolerating VC/NVA presence along the RVN/Cambodia
border and concern over evidence of continuing corruption
involving the Royal Family, the Cambodian Parliament by
unanimous vote withdrew support from SIHANOUK. General LON
NOL, leader of the Cambodian army, took office as Prime
Minister, adopted a policy of anticommunism and reform, and:
declared Cambodia a Republic in October 1970. SIHANOUK fled
to China where he is currently supported by Peking in lead
ing a Cambodian government in exile. LON NOL's government
has the support of Buddhist leaders, the intelligentsia urban
group, and the military. However, the atitude of the rural
populace remains uncertain as a result of rural areas be-
ing under VC/NVA control and historic peasant ties with
SIHANOUK. In April 1971, LON NOL resigned following a severe
heart attack. Unable to find another leader, the cabinet
reportedly persuaded LON NOL to return as nominal head of the
government, while SIRIK MATAK, as delegate to the Prime
Minister, held the real executive power. In international
relations, Cambodia has continued to profess neutralism but
retain close ties with the U.S. to obtain the military
aid needed to combat the communist insurgency. Although
historically at odds with Thailand and South Vietnam, the
common threat of North Vietnam aggression has brought these
three countries together.
b. Economic. Prior to widespread insurgency, Cambodia
had a pastrol, underdeveloped but self sufficient economy
with rice and rubber as principal exports. The war has
totally disrupted Cambodia's economic life because of inter-
diction of the transportation systems. The French-
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-2-A-1
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
built oil refinery at KOMPONG SOM has been put out of
operation. Cambodia's economy is presently being sustained
by massive external economic aid--primarily US but also
SVN. With increasing insurgency pressure and withdrawal
of government forces to the major cities, the economy
is nearly totally dependent on external assistance.
C. Subversion and Insurgency. The KHMER insurgency (also
known as KHMER ROUGE and KHMER Communists) have grown from
a force of 2,000/3,000 in 1970 to current forces over
60,000. Initially subordinate to NVA command the KHMER
have taken over responsibility for anti-government combat
although dependent on the NVA for weapons and major logis-
tical support. KHMER forces have maintained the initiative
in combat against the government and control nearly 90% of
Cambodia. Government forces are essentially restricted to
the capital and a few southern cities.
d. Military Forces
(1) Ground Forces. The Cambodian National Army
(Armee Nationale Khmer-FANK) has more than tripled in size
since the ouster of SHIANOUK in March 1970. Its strength
(April-74) is estimated at 200,000 men. Current combat
effectiveness is low for two-thirds of the army and fair to
good for one-third. Since the outbreak of hostilities
with the VC/NVA in mid-March 1970, primary emphasis has
been on defense and internal security. Only limited of-
fensive capability exists due to a lack of experienced,
qualified officer and NCOs who have been spread extremely
thin throughout newly organized units. The army has
approximately 310 maneuver battalions and supporting arms
and services.
(2) Naval Forces. The mission of the Cambodian
Navy (Marine National-MNK) is to patrol coastal and in-
land waterways and to assist the army in maintaining
internal security. There are an estimated 11,000 officers
and men in the MNK. The majority of the ships are patrol
craft. The navy has not been able to effectively control
inland waterways due to KHMER insurgent opposition,
primarily along the MEKONG from the RVN border to PHNOM
PEHN. There is also a small Marine Corps which, although
B-2-A-2
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
a part of the Navy, is manned and controlled by the Army.
(3) Air Force. The Cambodian Air Force (Avia-
tion Nationale Khmer-AVNK) has over 196 aircraft in-
cluding T-28D attack/trainers. Personnel strength is
about 9,500 men. The AVNK primarily conducts operations
in support of the ground forces and has no air defense
capability. Because of low aircraft serviceability
rate due to many types of aircraft from different sources
the total role and effectiveness of the AVNK is limited.
Cambodia has no aircraft industry and is entirely depen-
dent on foreign sources for aircraft, parts and logistic
support. AVNK's future capability will increase proportion
ately with the amount of aid and training received, but
maintenance will continue to be a serious problem.
e. Characteristics of the Area. The major terrain
feature of Cambodia is vast central plain bordered on
the Northwest by steep cliffs and separated from coastal
area on the Southwest by densely wooded, rugged moun-
tains. The low, flat interior plain contains fields and
forests of varying densities, cultivated fields and scrub.
The TONLE SAP (lake) in the center of the poorly drained
western half of the plain, is fed by several sluggish,
meandering streams and seasonally varies greatly in size
and depth. Dense tropical evergreen forest covers the
mountains. Moderately dense forests occur on the in-
terior plains and hills. The widely separated areas which
form the remaining part of the uncultivated terrain are
covered with coarse tall grass, short grass, scrub, bam-
boo and pine woods. Cultivated land occupies most of the
unforested plains. Intensive wet rice cultivation is
concentrated in the seasonally flooded delta and coastal
plains. Cambodia has a tropical monsoon climate with
uniformaly high temperatures, a winter dry season, and
pronounced summer wet season. Annual rainfall varies
from about 55 inches at PHNOM PENH to over 160 inches in
the mountains. PHNOM PEN has a mean temprature of 85
degrees; maximum temprature may reach 105 degrees in
April.
B-2-A-3
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
2.
(C)
NEMVAC AREA-PHNOM PENH
a. Enemy Forces- to be issued upon commitment.
b. Friendly Forces- to be issued upon commit-
ment.
C. Operations Area. The actual area of operations
for noncombatant emergency evacuation is the capital city
PHNOM PENH. Approximately 600 persons will require
evacuation. Evacuation will be effected either by fixed
wing aircraft from POUCHENTONG International Airport or by
helicopter. In either case, safe haven areas have been
arranged in THAILAND. The former case may also involve
helicopter and troop support from the city to the airport.
B-2-A-4
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
NORTH
Vinh Linh
VIETNAM
Demorcation Line
Sino
QUANG
Quang Tri
Sépone
TRI
Saverinakhet
Muong Phine
Hue
THUS
THIEN
Da Nang
L
A
S
OLAN
O
Hoi An
%
N.W
Saravane
Tam Ky
THAILAND
Khong
Sedone
BUANG THE
Ubon
Ratchathani
Chavane
Pakse
Quang Ngai.
Warin
Chamrap
Kend
QUANG
NGAI
Champassak
Surin
Phiafay
Attopeu
KONTUM
Kontum
BINH
Siem
Khong Pang
DINH
Pleiku
Qui Whon
PLE'KO
Stung Treng
PHU
Siem Reap
Hau Bon
PM
BON
C
Tuy Hoa
MARLAC
Ban Me
Kompong Thom
Thoot
KHANI
Kratie
Purset
Kompong Chhang
Nha Trang
C.L.
Phum Sdok
Ach Romeas
06 Nghia
PHOCO
Da Lat
Cam Ranh
Phuoc Binh o
0Aⁿ Loc
NO
Tung
TAY
B30 Lcc
Nghia
O
PHNOM PENH
NINH
L.C.:
Phan Rang
Tay Ninh
BiNh
DOON
KHAN
Red
Cuong
Khien Cuong
o
Phan Thiet
Bia Hoa
Hong Ngu
*Gia) Dinn
Xuan Lec
Moc Hoa
O
SAIGON
shoukille
Kampot
Chau Phu
Ham Tan
tam
Tan An
Phuoc Le
CAD PHON
C.A
DOC
Cao Lann
Ha Tien
Long Xuyen Sa Dec
Go Cong
My The
Vung Tau
Duong Dong
DAO
Vinh
P-U QUOC
GIANG
Truc Giang
Can The
Loog
(Vietnam)
Rach Gia
KIEN HOA
VEN GIANG)
Phu Vinh
Thanh
VINH
o
International boundary
HNB
Province boundary
Khanh
*
National capital
7.
Hung
O
Province capital
B:
Da Lat
Quan Long
Bac Lieu
Autonomous municipality
IE.,
Railroad
Road
AN
XUYEN
Trail
C
25
50
75 Miles N
CONSON
0
Con Son
25
50
75 Kilometers
BOUNDARY REPRESENTATION is
NOT NECESSARILY AUTHORITATIVE
Hore 75603 10.69
B-2-A-5
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
TAB B to APPENDIX 2 to ANNEX B to CG 9th MAB/CTG 79.1 OPLAN
5060 (U) HLZ STUDY-EAGLE PULL
Ref: (a) Maps: AMS Series L7016 Scale 1:50,000 Sheet,
5932II
AMS Series L9010 Scale 1:12,500 Phnom
Penh City Map.
(b) Appendix 3 to Annex N to USSAG/7AF CONPLAN 5060c
HELICOPTER LANDING ZONE ALPHA
1. Location. Center UTM VT 908774.
2. Elevation. 5 meters.
3. Orientation-Landmarks. LZ is the NATIONAL SPORT
STADIUM located in the approximate center of PHNOM PENH 3
miles west of the junction of the MEKONG and SAP RIVERS.
LZ is surronded by an oval grandstand opening on the west
to the admin building. POUCHENTONG AIRPORT is 9 miles to
the west of the LZ.
4. Size. 120m by 200m.
5. Surface. Grass on firm loam.
6. Obstacles. Stadium on north, south and east borders
are 40 feet tall. Floodlights on four corners of the LZ
are 120 feet tall. Scoreboard at south end of LZ rises
25 to 30 feet above grandstand. Parking lot west of LZ
is also exellent landing point if empty; 100m by 250m; 50
foot tall trees in NW corner of lot; 20 foot light pole
at corner of lot.
7. Slope. Flat.
8. Local Use. Athletic field.
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-2-B-1
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
9. Exits. Unlimited for all traffic beyond stadium.
Vehicles must exit stadium on west side.
10. Adjacent Terrain. LZ is surrounded by business/res-
idential areas.
HELICOPTER LANDING ZONE BRAVO
1. Location. Center UTM VT 922747.
2. Elevation. 5 to 10 meters.
3. Orientation-Landmarks. Rectangular athletic field
oriented north-south, located approximately 4 miles from
NATIONAL STADIUM (HLZ ALPHA) on 160 degrees true. LZ is
approximately 11 miles east of POUCHENTONG AIRPORT. Ad-
jacent to hard-surface road on the west.
4. Size. 30 feet north to south; 150 feet east to west.
5. Surface. Sparse grass on firm dirt.
6. Obstacles. There is a row of 60 foot trees located
30 feet from the north edge of the LZ. A power line 25
feet tall, a ditch and a fence border the LZ on the west.
40 foot trees lie to the south of the LZ and to the east
there are 1-3 story buildings.
7. Slope. Flat.
8. Local Use. Athletic Field.
9. Exits. Unlimited; hard surface road on west side of
LZ; dirt roads to north and south.
10. Adjacent Terrain. The LZ is centered in a residential
area.
HELICOPTER LANDING ZONE CHARLIE
1. Location. Centered at UTM VT 929 761.
:
2. Elevation. 5 meters.
3. Orientation-Landmarks. Small grass, dirt LZ about 350
meters east-northeast of the American Embassy. LZ lies on
B-2-B-2
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
eastern edge of PHNOM PENH along the bank of the BASSAC
RIVER. Junction of BASSAC and MEKONG RIVERS is 1.8 miles
east-northeast of the LZ. NATIONAL STADIUM (HLZ ALPHA)
is 3.5 miles to the northwest of the LZ. The LZ borders
HIGHWAY 1 two miles north of BASSAC BRIDGE.
4. Size. 20 feet by 40 feet.
5. Surface. Grass - hard packed soil.
6. Obstacles. Triple concertina fence surrounds the LZ.
Residential area of 1-2-3 story houses on western edge of
LZ. North, south and east sides of LZ are clear.
7. Slope. None.
8. Local Use. HULE helo-pad.
9. Exits. Hard surface road on west edge of LZ. Marsh/
swamp fringe LZ on north, south and east. Numerous foot
exits available in all directions.
10. Adjacent Terrain. Well built-up residential area to
west; BASSAC and MEKONG rivers to east. Lesser built-up
area to north and south.
HELICOPTER LANDING ZONE DELTA
1. Location. Center at UTM VT 894 804.
2. Elevation. 5 to 10 meters.
3. Orientation-Landmarks. LZ is on road bases surround-
ing radio-TV tower on southwest side. LZ is on northwest
edge of city about 4.5 miles north northwest of NATIONAL
STADIUM (HLZ ALPHA). Radio-TV tower is approximately 400
feet tall.
4. Size. 10 yards wide roadbeds; 250 meters useable; T-
shape.
5. Surface. Dirt.
6. Obstacles. Radio-TV tower 400 feet tall is 100 meters
north of LZ. Trees up to 100 feet tall are about 30 meters
north of LZ. LZ (roadbeds) rise 4 feet above water/marsh
areas adjacent to road.
B-2-B-3
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
7. Slope. Flat.
8. Local Use. Future road.
9. Exits. Unlimited to south, east and west.
10. Adjacent Terrain. Residential area 200 meters from
LZ on south, east and west. Swamp/marsh 200 meters to
north and northeast.
HELICOPTER LANDING ZONE DELTA ONE
1. Location. Center UTM VT 913 804.
2. Elevation. 5 to 10 meters.
3. Orientation-Landmarks. LZ is grass traffic circle
with hard surface roads entering fron east, west and
south. SAP RIVER bridge is 200 meters east of LZ. About
50 meters northwest of LZ is an old athletic stadium;
houses have been erected inside stadium but oval grand-
stand remains. LZ is 2. 5mi. due east of radio tower at
VT 896 805 (HLZ DELTA).
4. Size. Circle 100 meter radius.
5. Surface. Grass-firm.
6. Obstacles. Circular vine trellis 10 feet in diameter
and 6 feet high in center of LZ. Hard surface road sur-
rounding LZ is bordered by 20 foot power lines, 2-3 story
residences and up to 40 foot trees.
7. Slope. Flat.
8. Local Use. None.
9. Exits. Unlimited.
10. Adjacent Terrain. Surrounded by residential area.
HELICOPTER LANDING ZONE ECHO
1. Location. Center at UTM VT 892 785.
2. Elevation. 5 to 10 meters.
B-2-B-4
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
3. Orientation-Landmarks. LZ is school athletic field
on mid-western side of PHNOM PENH adjacent to HWY 3
connecting the city and the airport. LZ is 2 miles due
south of radio-TV tower (VT 8.95 804). School buildings
around LZ are open-sided with roofs.
4. Size. 100m by 200m. rectangular with north-south
long axis.
5. Surface. Hard dirt-dusty.
6. Obstacles. One and two story buildings on east, west
and south. Hard surface road and 20 foot power lines
border LZ on north. Sheets of tin could blow loose from
building roofs.
7. Slope. None.
8. Local Use. Athletic field.
9. Exits. Unlimited.
10. Adjacent Terrain. Centered in residential area.
KHMER-SOVIET TECHNICAL UNIVERSITY is across road to north
of LZ; several 3-story buildings 50 to 75 meters north of
LZ.
HELICOPTER LANDING ZONE FOXTROT
1. Location. Center at UTM VT 906 781.
2. Elevation. 10 meters.
3. Orientation-Landmarks. LZ is athletic training field
at the Olympic site approximately 1 mile north-northeast of
the NATIONAL STADIUM (HLZ ALPHA). Oval shaped field orient-
ed north and south. Large 4-story dormitory-type build-
ings north and east of the LZ. 3-story gymnasium south
of LZ.
4. Size. 150m. by 300m.
5. Surface. Sparse grass on hard dirt.
6. Obstacles. 2 to 4 story buildings on all sides of LZ.
60 foot light poles on all edges of LZ. 20 to 40 foot
treeline borders LZ on the west.
B-2-B-5
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
7. Slope. Flat.
8. Local Use. Athletic field.
9. Exits. Unlimited secondary and hard surface roads.
10. Adjacent Terrain. LZ centered in built-up resi-
dential area of 1 to 4-story buildings.
HELICOPTER LANDING ZONE GOLF
1. Location. Center at UTM VT 886 786.
2. Elevation. 10 meters.
3. Orientation-Landmarks. LZ is athletic field at PHNOM
PENH UNIVERSITY located on western side of city. LZ ad-
jacent to HWY 3 connecting city and airport. POUCHEN
TONG AIRPORT is 6 miles west of LZ. NATIONAL STADIUM (HLZ
ALPHA) is 3.5 miles southeast of the LZ.
4. Size. Oval 150m. by 300m.; north-south long axis.
5. Surface. Spares grass-hard dirt.
6. Obstacles. 8-story University dormitories border LZ
on south and west. 120 foot light poles and trees on all
edges of LZ.
7. Slope. Flat.
8. Local Use. Athletic field.
9. Exits. Vehicle exits very limited; no restrictions on
foot exits.
10. Adjacent Terrain. Railroad to north of LZ. University
Campus to east and west. Residential area to south.
ENCLOSURE:
1-HLZ Photos
B-2-B-6
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
CG 9th MAB/CTG 79.1
FPO, San Francisco 96502
:
ENCLOSURE (1) TO TAB B TO APPENDIX 2 TO ANNEX B TO CG 9th
MAB/CTG 79.1 OPLAN 5060 (U)
HLZ PHOTOS - EAGLE PULL (U)
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY 2
B-2-B-1-1
CONFIDENTIAL
DECLASSIFIED
N
LZ "ALPHA"
--
DECLASSIFIED
908774
B-2-B-1-2
CONFIDENTIAL
DECLASSIFIED
PARKING
LOT
LE
500228"
1
DECLASSIFIED
B-2-B-1-3
CONFIDENTIAL
DECLASSIFIED
LZ ALPHA
DECLASSIFIED
ALPHA
Z7
B-2-B-1-4
CONFIDENTIAL
DECLASSIFIED
CONFIDENTIAL
N
DECLASSIFIED
LZ
CHARLIE
19L676
B-2-B-1-5
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
2
LZ CHARLIE
B-2-B-1-6
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
N
LZ DELTA
608968
B-2-B-1-7
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
DELTA
B-2-B-1-8
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
=LZ DELTA ONE
608216
TO 27
B-2-B-1-9
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
N
DELTA ONE
in 17
B-2-B-1-10
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
905781
Z
B-2-B-1-11
CONFIDENTIAL
DECLASSIFIED
LZ FOXTROT
DECLASSIFIED
FOUTHOT Z7
B-2-B-1-12
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
LZ GOLF
+
B-2-B-1-13
CONF CONFIDENTIAL
DECLASSIFIED
886786
N
DECLASSIFIED
CONFIDENTIAL
B-2-B-1-14
570977
DECLASSIFIED
N
9
27
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
APPENDIX 3 to ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
FORTRESS JOURNEY (U)
Ref: (a) CG III MAF Fortress Journey LOI/CTF 79 MSG
2923552 Nov 74 (S)
(b) DOS Consulate Gen DA NANG Evac Pln A-12 dtd 6
Aug 74
(c) TALON VISE OPLAN (to be published) USSAG/7AF
5060V
(d) Maps: L7014 VIETNAM Sheets 6540I, 6541II,
6640I, 6640IV and 6641III, 1-AMS,
1:50,000
1. (C/NFD) GENERAL
9th MAB is tasked by reference (a) to be prepared to
evacuate American nationals and associated personnel from
MR 1 of South Vietnam. This operation is to take 15 days:
from date of actual initiating directive to delivery of
evacuees at a designated haven.
2. (C/NFD) PURPOSE
This Appendix provides general information regarding
the NEMVAC area (TAB A), helicopter landing zones (TAB B),
and beach evacuation points (TAB C), as an initial op-
eration planning guide.
3. (C/NFD) MISCELLANEOUS
a. Evacuees. Reference (b) contains specific details
for the evacuation of MR 1, RVN, as envisioned by the
American Consulate General, DA NANG. This plan is updated
by DOS annually and contains pertinent data on evacuees
(1200), alert procedures and communications.
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-3-1
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
b. Military Assistance. Reference (c) is the code word
OPLAN for all RVN evacuation plans currently being developed.
Publication of these operation plans will provide support-
ing information for FORTRESS JOURNEY operations when
directed.
C. Concept of Operations. FORTRESS JOURNEY operations
currently envision a MAB size force moving rapidly to the
DA NANG area by sea or a combination of sea/air lift to
provide assistance to evacuation and ground security forces
for such an operation. CG 9th MAB/CTG 79.1 will assume
the role of CLF and GSF commander ashore. CTF 76 will
provide CATF functions and coordinate overall NEMVAC oper-
ations on the military side. The American Ambassador to
RVN will initiate NEMVAC operations and the Consulate
General DA NANG will act as his agent in MR 1. Primary
means of evacuations will be by helicopter assuming DA
NANG AIRFIELD is not open to transport aircraft. Sea evac-
uation over the beach is a possibility.
d. Intelligence Support. Utilizing this Appendix as
a starting point, intelligence updates and additional
information will be promulgated by the most expeditious
means available when NEMVAC operations are directed.
TAB:
A-Area Study-RVN/MR-1
B-HLZ Study-MR-1
C-Beach Study-DA NANG/HUE
B-3-2
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
TAB A to APPENDIX 3 to ANNEX B to CG 9th MAB/CTG 79.1 OPLAN
5060 (U) AREA STUDY-FORTRESS JOURNEY
1. (C) REPUBLIC OF VIETNAM (RVN) :
a. Political. The Republic of Vietnam (RVN) has made.
exellent progress in consolidation of effort, pacification
and other political areas vital to its security and
stability. It has limited success in mobilizing the coun:
trys fragmented political groups into a cohesive force to
compete with communists in the post-war period. The elec
tion of President THIEU to his second term has been accept
ed and he seems to be stronger now than ever before. His
opposition has been unable to organize.
b. Economic. The economy is agrarian with some 80% of
the population engaged in agriculture. Significant efforts
have been made to increase the development industry. For:
the most part, the insurgents (Viet-Cong/VC) have not dis
rupted the agarian economy as such activity would antagonize
the local populace and curtail needed food supplies. U.S.
aid is a significant factor in the economy of the RVN and
will continue to be so in view of heavy economic and mili-
tary requirements.
C. Subversive and Insurgency Factors. The mission of
the enemy in the RVN is the creation of a politico-military
climate conducive to the establishment of a communist
government. The source of communist subversion, propaganda,
agitation, terrorism, espionages and insurgency is the
communist regime in Hanoi, NVN. The operating agency is
the Central Office for South Vietnam (COSVN), positioned
along the Third Military Region (MR3/IIICTZ) /Cambodia border.
Main insurgent forces are estimated to be 177,000 VC/NVA
in combat service support units; 25,800 Viet Cong guerril-
las; and 63,800 in the political infrastructure. VC/NVA
forces maintain a low profile in the early post-war period
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-3-A-1
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
(1969-73), however 1974 has seen a steady series of gains
and daily action by NVA forces in MR 1.
d. RVN Military
(1) Ground Forces. The regular Army of the RVN
(ARVN) has a strength of approximately 481,000 (April-74).
The Regional and Popular Forces, with a combined strength
of 506,000 are a component of the ARVN. Major ARVN units
are 11 infrantry divisions, 1 airborne division, 1 Marine
division, 2 infrantry regements, 7 armord-calvary. squad-
rons, 17 artillery battalions (155/105 howitzers), and
43 ranger battalions. The Republic is divided into four
Military Regions or Corps Tactical Zones (MR or CTZ) with
a Joint General Staff exercising operational control of
all four MRs through a Corps Commander in each. Logistical
commands paralbl this regional organization. Principal
strenghts of ARVN are: combat experience; living conditions
better than general populace; arms, equipment and training
facilities are adequate. Major ARVN weaknesses are in
sufficient numbers of qualified officers and NCOs, low
education levels, and inadequate technical services)
(2) Naval Forces. The mission of the RVN Navy
(VNN) includes support of ARVN operations, interdiction
of enemy infiltration and trans-shipment on coastal waters,
amphibious and riverine warfare, SEAL/UDT operations,
river escort operations, mine countermeasures, NGFS, and
the VNN principal base is at Saigon. Personnel strength
is approximately 39,000. The main VNN training center is
at Nha Trang and includes a Naval Academy, an enlisted
mens basic and advanced technical school, English language
school, and recruit training school. VNN has a substanial
inventory of combatants, patrol craft, mine warfare craft
]
and amphibious craft. The VNN also operates 16 coastal
radar surveillance sites. RVN does not have a naval ship
construction capability.
(3) Air Force. The RVN Air Force (VNAF) has over
1,700 aircraft including jet attack, medium and light trans-
port, helicopters. There are approximately 62,000 men in
the VNAF organized into eleven wings each including attack,
transport, medical evacuation, aerial supply and recon-
naissance assets. The tactical air capability of the VNAF
is excellent for fair-weather, daylight sorties. All
B-3-A-2
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
aircraft, POL, spare parts, munitions, pilot training
and most maintenance are provided by the U.S. Principal
weaknesses are: low education levels, technician
shortages, and lack of an industrial structure to
support an air force.
e. Terrain Characteristics. The Republic of Viet-
nam has three major terrain areas: the Mekong Delta, the
coastal plain, and the Chaine Annamitique mountains. The
Mekong Delta has a flat, poorly drained surface, criss-
crossed by numerous tributaries of the Mekong River and
a dense network of canals and smaller streams. Extensive:
marshes and swamps are common. Rice paddies occupy a
large portion of the Delta region and are flooded as much:
as six months a year. Settlements and transportation lines
are situated on paddy levees. Along the coastline extending
north from Cape St. Jacques is the discontinuous narrow
Coastal Region. Although pre-dominantly level, the region
becomes rolling toward the mountains that form its inland:
border; eastward extending spurs of these mountains split
the coastal plain in many areas. Sand dunes are common
while the rest of the coastal region is planted in rice
paddies flooded four to eight months of the year. The
Coastal Region offers the best north-south natural trans-
portation routes. Inland and roughly parallel to the
coast is the Chaine Annamitique. The few roads and one
railroad (Phan Rang to Dalat) that penetrate this moun-
tain range follow river valleys. The tropical climate
of RVN is characterized by relatively high temperatures,
little seasonal variation and a summer monsoon season from
June through September. Destructive tropical typhoons
frequently strike the coast, chiefly during October and
November.
2. MILITARY REGION ONE (MRI/I CTZ)
a. Enemy Forces. To be issued upon commitment.
b. Local National Forces. To be issued upon commit-
ment.
C. Area of Operation. The NEMVAC operations area in-
cludes the sea in a 70 mile radius from MUI DA NANG light
and the coastal area 15 miles inland. The city of DA NANG
and the DA NANG AIRFIELD and harbor form the nucleus of
this area. The area and the city of DA NANG are dominated
B-3-A-3
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
NO FOREIGN DISSEM
by high ground to the northwest and west. Key terrain
features in the area are HAI VAN pass 10 miles north-
north-east of DA NANG on Highway 1; Hill 324 which is 8
miles to the west; and the bridges over the SONG CAU DO
south of DA NANG. The possibility of NEMVAC operations
from the HUE/PHU BAI area and/or from the TAMKY/QUANG NAI
area exists. Approximately 150 evacues are located in
QUANG TRI/THUA THIEN provinces and some 95 evacues are
located in the vicinity of QUANG NAI.
899008
B-3-A-4
CONFIDENTIAL
NO FOREIGN DISSEM
DECLASSIFIED
DECLASSIFIED
RVN PROVINCIAL BOUNDARIES AND CORPS TACTICAL ZONES
or
105
100'
107"
103"
147
NVN
PROVISIONAL MED ARY LINE or DEMARCATION 1994
QUANG
APPROX. AREA UNDER
HUE
NVN CONTROL
THE THEN
LADS
THI.NÃ M.NÁNO
City of Do None)
Mr
16°
8 CTZ
QUANG NAM
TAM KY
QUING TÍN
CHU LAI
QUANG NAI
15"
QUANG NGÃ
19
KONTUM
M*
If CTZ
PLESKU
2
PHÚ SÓN
LAMBODIA
PHÚ YEN
13"
DARLAC
KHANN MOA
QUANG oir
THI-XA DALAY
⑉ C12
10 Date:
12"
THI-XA CAM-BANH
12"
TUTÊN OUC
City of Com Pank
140°C LONG
AINM
NINH THUAN
IONG
18
1 Am DONC
1A. NINH
3000
IV CTZ
SINH DUONG
R
BINH-THUAN
IONG KHANH
BINH.TUYA
IF
HAU
BIEN
NGHIA
HOA
KIEN
ANH SALTON
TUONG
KIEN PHONG
CHÂU D&C
LONG AN
GIA.
PHUSIC TOT
DINH
DJNH IUONG
GO
THE " VÚNG TAU
ANG
CONG
A-DEC
City Vung Tool
mu auc
KIEN MÓA
ISLAND -
KIEN-
VINH IONG
10°
to
PHONG
106
OF
mg
n
GIANG
DINH
VINH BiNH
CHUCNG
THIN
RVN BOUNDARY DATA FURNEHED BY NGS AND JGS.
BA RUYEN
BANNH The VNCH THEO TAI utu CÚA - CUC 644 DU VA so TRANSIVNCH
BAC TIEU
AN XUYEN
PRINTED BY 66th ENGR CO. (TOPO)
Bo
APPROXIMATE SCALE 1,4,500,000
or
B-3-A-5
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
TAB B to APPENDIX 3 to ANNEX B to CG 9th MAB/CTG 79.1 OPLAN
5060 (U) HLZ STUDY-FORTRESS JOURNEY
Ref: (a) Maps: AMS Series L7014 Scale 1:50,000 Sheets
6540I, 6541II, 6640I, 6640IV and 6641III
AMS Series L909 Scale 1:12,500 DA NANG
City Map, HUE City Map, PHUBAI City Map
(b) DoS Con Gen DA NANG EVAC Plan A-12 dtd 6 Aug 74
DA NANG:
HELICOPTER LANDING ZONE "DELTA PAD" (HLZ 001)
1. Location. Centered at UTM BT 003 760.
2. Elevation. 5 meters.
3. Orientation-Landmarks. LZ is 700m. west of NGUYEN
HOANG BRIDGE adjacent to highway 543 on north. Highway QL
1 junction with Highway 543 is 100m. west of LZ. "DELTA"
in white letters on approach from east. LZ 1.5 miles east
of DA NANG AIRPORT.
4. Size. 75 yards north to south; 30 yards east ot west.
5. Surface. Asphalt.
6. Obstacles. Telephone line 50 feet high lies 100 feet
from LZ on north. 2-story buildings 50 yards south of LZ.
Power line 50 feet high lies 100 feet to west of LZ.
7. Slope. Flat.
8. Local Use. Helo-pad.
CLASSIFIED BY CG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-3-B-1
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
9. Exits. Highway 543 adjacent to north edge of HLZ.
Highway QL-1 is 100m. west of LZ.
10. Adjacent Terrain. Open marsh area to south; built-up
areas to north and west. SONG HAN to east.
HELICOPTER LANDING ZONE "HOTEL PAD" (HLZ 002)
1. Location. Center UTM BT 028 761.
2. Elevation. 5 meters.
3. Orientation-Landmarks. LZ is on north side of Highway
543 in the triangle formed by Highway 543, 541 and QL-1
immediately east of DA NANG AIRPORT. The LZ is marked by
a white 15 foot circle with an "H" inside.
4. Size. 120 yards east to west; 25 yards north to south.
5. Surface. Asphalt.
6. Obstacles. 13 feet concrete and barbed wire wall on
north edge of LZ. Road and power lines on south edge.
Residential area to east-single story homes with TV antennas.
Two-story buildings 200 feet west of LZ.
7. Slope. Flat.
8. Local Use. I CORPS LZ.
9. Exits. Hardtop Highway on all sides.
10. Adjacent Terrain. Built-up area all around. Just east
of DA NANG a Military Complex, Airfield 1.3 miles to west.
SONG HAN 800 meters east of LZ.
HELICOPTER LANDING ZONE "ARVN HOSPITAL" (HLZ 003)
1. Location. Centered at UTM BT 015 767.
2. Elevation. 5 meters.
3. Orientation-Landmarks. Medevac LZ for ARVN Hospital 1
mile west northwest of DA NANG AIRFIELD. Center of
Military Complex east of AIRFIELD.
4. Size. 30 yards by 30 yards.
B-3-B-2
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
5. Surface. PSP matting.
6. Obstacles. Five foot fence bordering LZ on North-
Telephone-Power lines 150 feet to north of LZ. No obstacles
for 100-150 feet of LZ on south and west. Single story
building 30 feet from LZ on east. ARVN ambulance motor
pool on southeast corner of LZ.
7. Slope. None.
8. Local Use. Military Landing Zone.
9. Exits. Unlimited primary and secondary roads.
10. Adjacent Terrain. Military single-story building on
all sides. DA NANG AIRFIELD to west and southwest.
HELICOPTER LANDING ZONE "SOCCER FIELD" (HLZ 004)
1. Location. Center UTM BT 027 783.
2. Elevation. 5 meters.
3. Orientation-Landmarks. Soccer stadium 100m. north of
Highway QL-1 and approximately 2 miles northeast of DA NANG
AIRFIELD.
4. Size. 120 yards north to south and 60 yards east to
west.
5. Surface. Compact, sandy loam.
6. Obstacles. Grandstand 20 feet tall and 50 feet long
west side of LZ. Road and power line on east of LZ. 100
foot water tower on southeast corner of LZ. Several 20 foot
tall trees approximately 50 yards from north end of LZ.
Trees to south of LZ.
7. Slope. None.
8. Local Use. Athletic field.
9. Exits. Unlimited primary and secondary roads.
10. Adjacent Terrain. LZ in midst of built-up area. DA
NANG AIRFIELD 2 miles to southwest. SONG HAN 1/2 mile
to east of LZ.
B-3-B-3
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
HELICOPTER LANDING ZONE "FRENCH SCHOOL" (HLZ 005)
1. Location. Center UTM BT 003 791.
2. Elevation. 2 meters.
3. Orientation-Landmarks. LZ is located 150 meters west of
SONG HAN in northeast quadrant of DA NANG. DA NANG AIRFIELD
is 2.5 miles southwest of the LZ, 1000 meters southwest of the
LZ is the DA NANG stadium (HLZ 004-soccer field).
4. Size. 110 yards east to west; 30 yards north to south.
5. Surface. Grass on hard sand, old soccer field.
6. Obstacles. Trees 30 to 40 feet tall border the LZ on
the north and south. Local residences with 30 to 40 foot
trees lie east and west of the LZ. A three-story building
is located 100 yards east of the LZ.
7. Slope. None.
8. Local Use. None.
9. Exits. Unlimited primary and secondary roads.
10. Adjacent Terrain. DA NANG STADIUM is 1000 meters
southwest of the LZ; DA NANG AIRFIELD is 2.5 miles south-
west of LZ. LZ surrounded by built-up area of DA NANG.
HELICOPTER LANDING ZONE "LZ 48" (HLZ 006)
1. Location. Center UTM BT 034 798.
2. Elevation. 2 meters.
3. Orientation-Landmarks. LZ borders SONG HAN in north-
east corner of DA NANG. DA NANG AIRFIELD is 3 miles south
southwest of the LZ. LZ is lighted on east and west sides.
Large white star painted on LZ with "STAR PAD" painted
under the star as you approach from the east. Number "48"
painted on north and south edges of LZ.
4. Size. 35 yards north to south; 7 yards east to west.
5. Surface. Asphalt.
B-3-B-4
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
6. Obstacles. Single story building 30 feet west of LZ.
Area is clear for 150 feet on north, south and east of
LZ. 6 foot chain link fence located 70 feet from LZ on the
south side.
7. Slope. None.
8. Local Use. Helo pad.
9. Exits. Unlimited primary and secondary roads.
10. Adjacent-Terrain. SONG HAN immediately to the east of:
LZ. DA NANG AIRFIELD is 3 miles south southwest of LZ.
Built-up areas of DA NANG surround LZ on north, south and
west.
HELICOPTER LANDING ZONE "CAMP HORN" (HLZ 007)
1. Location. Center UTM BT 040 784.
2. Elevation. 5 meters.
3. Orientation-Landmarks. LZ is located in Military Com:
pound on east bank of SONG HAN approximately 3 miles north
northwest of MARBLE MOUNTAIN AIRFIELD and 2.5 miles north-
east of DA NANG AIRFIELD. LZ has six large white circles
painted on it and has ground lights.
4. Size. 75 yards north to south; 50 yards east to west.
5. Surface. Macadum.
6. Obstacles. Single-story building, 25 foot palm trees
and power lines on north, south and east sides of LZ. No
obstacles to west of LZ; SONG HAN borders LZ on west.
7. Slope. None.
8. Local Use. Military helo-pad.
9. Exits. Unlimited primary and secondary roads on pen-
ninsula. One exit to DA NANG city is dual bridge at UTM
BT 040 762.
10. Adjacent-Terrain. Main city of DA NANG across SONG
HAN (500 meters wide) to west of LZ. Large military complex
B-3-B-5
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
to north northeast of LZ. Civil river front dock area to
south of LZ along SONG HAN.
HELICOPTER LANDING ZONE "CONSUL GEN. HQ" (HLZ 008)
1. Location. Center UTM BT 035 783.
2. Elevation. 5 meters.
3. Orientation-Landmarks. LZ is 500 meters west of SONG
HAN at American Consulate General, DA NANG. LZ is combina-
tion parking lot/city road/dock areas; DA NANG AIRFIELD is
2.5 miles southwest of LZ. Parking lot portion of LZ has
painted yellow parking space lines running east to west.
4. Size. 50 yards north to south; 15 yards east to west.
5. Surface. Macadum.
6. Obstacles. Immediately west of LZ is Consulate General
building and power lines. Power lines and road border LZ
on north. A 15 foot tall building is on northeast corner
of LZ. Iron pole 50 feet tall on southwest of LZ. Parking
lot portion of LZ is divided into three parts with 18 inch
tall posts with connecting chains running north to south.
7. Slope. None.
8. Local Use. Parking lot.
9. Exits. Unlimited primary and secondary roads.
10. Adjacent-Terrain. SONG HAN immediately to the east of
LZ. DA NANG built-up area on the north, south and west of
LZ. Large primary school 150 meters west of LZ; DA NANG
STADIUM is 500 meters west of LZ. DA NANG AIRFIELD is 2.5
miles southwest of LZ.
HELICOPTER LANDING ZONE "GERMAN HOSPITAL" (HLZ 009)
1. Location. Center UTM BT 027 787.
2. Elevation. 10 meters.
3. Orientation-Landmarks. Roof-top LZ, marked by large
circle with "H" in center and a red cross in each corner.
B-3-B-6
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
LZ is approximately in the center of DA NANG 500 meters
north of DA NANG STADIUM. The largest building in DA
NANG the TECHNICAL SCHOOL, is approximately 500 meters
north northwest of the LZ. The LZ is 2 miles northeast
of DA NANG AIRFIELD.
4. Size. 21 yards north to south; 21 yards east to west.
5. Surface. Cement roof of single story hospital build-
ing.
6. Obstacles. Clear LZ up to 100 yards on all sides.
A 75 foot radio tower with A/C warning lights is located
approximately 400 feet from LZ to the north.
7. Slope. None.
8. Local Use. Medical helo-pad.
9. Exits. Personnel only from LZ per se. Unlimited and
secondary roads into LZ area.
10. Adjacent-Terrain. LZ is in the center of DA NANG
city.
HUE/PHU BAI:
HELICOPTER LANDING ZONE "ALICE"
1. Location. Centered at UTM YD 764 213.
2. Elevation. 2 to 5 meters.
3. Orientation-Landmarks. LZ is located 1,000 meters
from center of the CITADEL on 142 degrees true and 1200
meters from the center of the QL #1 bridge/ PERFUME RIVER
on 085 degrees true.
4. Size. 330 yards east to west; 80 yards north to south.
5. Surface. Grass on firm soil.
6. Obstacles. No height obstacles on northwest approach
across PERFUME river. 1-2 story building compound flanks
LZ on northeast. A road lined by 30 to 40 foot trees border
the LZ on the southeast.
B-3-B-7
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
7. Slope. Flat.
8. Local Use. Helo-pad.
9. Exits. Highway 550 parallels southeast edge of LZ
and provides exit to west and east. Numerous city streets
surround LZ.
10. Adjacent Terrain. LZ is in center of HUE city on the
bank of the PERFUME RIVER. HUE CITADEL lies to northwest
of LZ across river.
HELICOPTER LANDING ZONE "BERTHA"
:
1. Location. Centered at UTM YD 778 221.
: 2. Elevation. 5 meters.
:
3 Orientation-Landmarks Sports stadium LZ 900 meters
from river junction (YD 772 227) on 160 degrees true. LZ
:
is.2,000 meters from the center of HUE CITADEL on 103 degrees
true.
:
4
Size. 130 yards east to west; 90 yards north to south.
5. Surface. Grass on firm soil.
6. Obstacles. Clear to the north; a TV tower approximately
80 feet tall is located 750 meters west of the LZ. 20 meters
south of the LZ is a stadium building and stands about 20
meters tall. At the east edge of the LZ is a set of goal
posts 10 feet tall.
7. Slope. Flat.
8. Local Use. Sports stadium.
9. Exits. City streets surround the LZ however vehicle
exit from the LZ proper is limited to the south only.
10. Adjacent Terrain. LZ is in a residential area to the
east of downtown HUE. Paddies and farmland lie to the south
and east of the LZ. The PERFUME RIVER is approximately 600
meters northwest of the LZ.
B-3-B-8
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
HELICOPTER LANDING ZONE "ETHEL"
(Small, dangerous LZ - Emergency Use Only)
1. Location. Centered at UTM YD 769 216.
2. Elevation. 5 meters.
3. Orientation-Landmarks. LZ is 1,500 meters from the
center of HUE CITADEL on 125 degrees true and 2,200 meters
from the QL #1 bridge over the PERFUME RIVER on 076 degrees
true.
4. Size. 50 meter square.
5. Surface. Uncut grass on firm soil.
6. Obstacles. LZ is surrounded by trees and one/two story
residences. To the east of the LZ is an 85 meter high tower
and telephone lines on the edge of the LZ. Telephones lines
also border the LZ on the south and west.
7. Slope. Flat.
8. Local Use. None.
9. Exits. City streets surround the LZ. Immediate vehicle
access is on the southeast side of the LZ.
10. Adjacent Terrain. The LZ lies in a residential area on
the eastern edge of downtown HUE. The CITADEL and the PER-
FUME RIVER are to the northwest of the LZ. Farmland lies
east and south of the LZ.
HELICOPTER LANDING ZONE "ELLEN"
(THAI DUONG HA airstrip - TAN MY)
1. Location. Centered at UTM YD 815 332.
2. Elevation. 3 meters.
3. Orientation-Landmarks. 5.8 nautical miles from HUE
AIRFIELD on 045 degrees true. Located on a sandspit at the
mouth of THUAN AN bay.
4. Size. 2,500 feet by 60 feet northeast to southwest.
B-3-B-9-
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
5. Surface. Asphalt.
6. Obstacles. None.
7. Slope. Flat.
8. Local Use. Fixed wing airfield.
9. Exits. HIGHWAY 551 runs southwest to HUE from the
ferry landing on the inland side of the THUAN AN bay channel.
Water exit to the sea and river exit to HUE.
10. Adjacent Terrain. Populated farm area on inland side
of THUAN AN bay channel. LZ is a end of seaward sandspit
with no immediate population centers nearby.
:
B-3-B-10
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
ALTERNATE HLZ's-HUE
HELICOPTER LANDING ZONE "HUE AIRFIELD"
HLZ is HUE airfield centered within the walls of the CITADEL.
Airfield is oriented northwest-southeast, is asphalt surfaced,
and is 700 meters long and 20 meters wide. Service buildings
and aprons are on southeast end of the field. There are no
known obstacles to the LZ. There are several roads around
the LZ, however access is limited by CITADEL walls and moat.
HELICOPTER LANDING ZONE "JANE"
HLZ is in a farm-paddy area about 450 meters from southwest:
wall of HUE CITADEL and 1400 meters from southeast end of
HUE AIRFIELD on 250 degrees true. There are no obstacles to
the LZ. There are no vehicle exits and foot access to the
LZ is limited by small streams.
HELICOPTER LANDING ZONE "MARGARET"
HLZ is in the foothill area south of the CITADEL; 2700 meters
from the southeast end of the HUE AIRFIELD on 180 degrees
true. There are no LZ obstacles and all exits are limited.
HLZ's "JANE and "MARGARET" should be utilized only if pri-
mary LZ's in HUE are not accessible. Both LZ's are protected
by terrain barriers and can be readily defended.
ALTERNATE HLZ's PHU BAI
In the event, evacuation from PHU BAI becomes necessary,
following HLZs are available:
HELICOPTER LANDING ZONE " PHU BAI AIRFIELD"
HLZ is asphalt airfield located at PHU BAI. Unlimited space
is available on the airfield and on aprons north and south
of the main runway.
HELICOPTER LANDING ZONE "ARVN CAMP"
HLZ is a helo-pad within the ARVN training center 470 meters
off the western end of the PHU BAI airfield. LZ has limited
access to QL#1 on the southwest of the camp. LZ is surrounded
by one-story buildings.
B-3-B-11
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
TAM KY/QUANG NAI
HELICOPTER LANDING ZONE "QUANG NAI SOCCER FIELD"
Center at UTM 49PBS 639 726. Dirt soccer field 100x100 yards
surrounded by residential area; two-story houses are on all
sides of LZ with 300 foot radio towers located to the north
and to the west of the LZ.
HELICOPTER LANDING ZONE "ORANGE PAD-QUANG NAI"
Existing helopad centered at UTM 49PBS 640 726. A cement area
25x60 yards adjacent to the soccer field. Three landing sites
marked with orange painted letters "QUANG NAI"
NELICOPTER LANDING ZONE " YELLOW PAD-QUANG NAI"
ARVN 2d Division helopad centered at UTM 49PBS 649 732.
LZ consists of four cement landing sites within ARVN military
compound. Pads are painted with ARVN 2d Division patch-red,
white and green and yellow background. LZ is surrounded by
fencing and temporary military structures 8 to 12 feet tall.
A. 300 foot radio tower is 500 yards east of the LZ.
ALTERNATE HLZ's - QUANG NAI
A small (15x20 yard) LZ is located at the ARVN First Field
Hospital at UTM 49PBS 631 727. This LZ has red lights at all
four corners and a large white "H" painted on it.
QUANG NAI airfield (BS 6172) may also be utilized for heli-
copter evacuation.
HELICOPTER LANDING ZONE "VIP PAD-TAM KY"
Small LZ (20x30 yards) located at ARVN Provincial Headquarters
(UTM BT 290 234) in TAM KY. LZ is identified by "VIP"
painted in white letters. LZ surrounded by fence and trees.
TAM KY airfield at UTM BT 3018 and the old airfield at UTM
BT 3024 may be readily utilized for helicopter evacuation.
ENCLOSURE:
1-HLZ PHOTOS
B-3-B-12
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
ENCLOSURE (1) to TAB B to APPENDIX 3 to ANNEX B to CG 9th
MAB/CTG 79.1 OPLAN 5060 (U)
HLZ PHOTOS - FORTRESS JOURNEY (U)
NOTE: Additional/up-dated photography will be issued as it
becomes available.
CLASSIFIED BY CG.III.MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-3-B-1-1
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
B-3-8-1-2
HLZs - DANANG, RVN
200339
CALHISSVTOEC
DECLASSIFIED
HLZ DELTA PAD
PROD DATE: 27 DEC 74
GEO COORD: 160248N 1081333E
MSN. DATE: 10 OCT 72
UTM COORD: BT 032759
MSN. NO: ORJ 3000
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
HLZ HOTEL PAD (I CORPS PRIMARY)
PROD DATE: 27 DEC 74
GEO COORD: 160251N 1081324E
MSN. DATE: 10 OCT 72
UTM COORD: BT02937604
MSN. NO: ORJ 3000
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
HLZ ARVN HOSPITAL PAD
PROD DATE: 27 DEC 74
GEO COORD: 160310N 1081236E
MSN. DATE: 10 OCT 72
UTM COORD: BT 015767
MSN. NO: ORJ 3000
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
HLZ SOCCER FIELD
PROD DATE: 27 DEC 74
GEO COORD: 160404N 1081316E
MSN. DATE: 10 OCT 72
UTM COORD: BT02727827
MSN. NO: ORJ 3000
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
HLZ FRENCH SCHOOL
PROD DATE: 27 DEC 74
GEO COORD: 160432N 1081335E
MSN. DATE: 10 OCT 72
UTM COORD: BT03287913
MSN. NO: ORJ 3000
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
HLZ CAMP HORN
PROD DATE: 30 DEC 74
GEO COORD: 160404N 1081323E
MSN. DATE: 10 OCT 72
UTM COORD: BT040784
MSN. NO: ORJ 3000
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
500228
HLZ CONSULATE GENERAL HEADQUARTERS
PROD DATE: 27 DEC 74
GEO COORD: 160405N 1081342E
MSN. DATE: 10 OCT 72
UTM COORD: BT035783
MSN. NO: ORJ 3000
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
HLZ GERMAN HOSPITAL PAD
PROD DATE: 27 DEC 74
GEO COORD: 160418N 1081315E
MSN. DATE: 10 OCT 72
UTM COORD: BT 027787
MSN. NO: ORJ 3000
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
HLZs - HUE, RVN
983009
B-3-B-1-3
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
HLZ PROVINCE PAD
PROD DATE: 27 DEC 74
GEO COORD: 162732N 1073508E
MSN. DATE: 06 JUL 72
UTM COORD: YD76072131
MSN. NO: OR 3058
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
HLZ HUE CITADEL AFLD - N. W. SECTOR
PROD DATE: 27 DEC 74
GEO COORD: 162829N 1073424E
MSN. DATE: 06 JUL 72
UTM COORD: YD74702305
MSN. NO: OR 3058
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
HLZ HUE CITADEL AFLD - S. E. SECTOR
PROD DATE: 27 DEC 74
GEO COORD: 162829N 1073424E
MSN. DATE: 06 JUL 72
UTM COORD: YD74702305
MSN. NO: OR 3058
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
HLZ TAN MY AFLD
PROD DATE: 27 DEC 74
GEO COORD: 163400N 1073803E
MSN DATE: 06 JUL 72
UTM COORD: YD811333
MSN NO: OR 3058
PRODUCED BY
USS BLUE RIDGE (LCC-19)
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
CONFIDENTIAL
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
TAB C to APPENDIX 3 to ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
BEACH STUDY - FORTRESS JOURNEY (U)
Ref: (a) Maps: AMS Series L7014 1:50,000 Sheets 6540I
6541II, 6640I, 6640IV and 6641III.
CHINA BEACH (NIS # 7)
1. Location. Centered at GEO 16-03-04N, 108-15-13E. UMT49Q BT062
763, on the coast directly east of DA NANG AIRFIELD. Slightly concave
beach 600 meters long. Left flank located at 16-02-53N, 108-15-15E; right
flank located at 16-02-02N, 108-15-10E.
2. Offshore. No offshore obstructions noted.
3. Nearshore. Two sandbars 75 yards long and 25 yards wide; the first
bears 070 degrees true at 225 yards from beach center; the second bears '160:
degrees true at 300 yards from beach center. Water overhead is 4 to 5 feet.
4. Foreshore. No obstructions noted. Berm from 5 to 15 feet high
about 60 yards from high water line exists along the beach; berm does not
hinder exits.
5. Backshore. No obstructions noted. Numerous cedar trees located
75 to 100 yards from high water line; these do not obstruct exits.
6. Trafficability.
a. Wet beach-good for personnel and all vehicles.
b. Dry beach-good for personnel and tracked vehicles; fair for
wheeled vehicles.
c. Matting is not required.
7. Exits. Personnel exits are unlimited. 100 yards north of the right
flank are three dirt roads which connect with a hard-surface, all-weather
road into the hintlerland. 200 yards south of the left flank is a paved road
connecting with the MSR into DA NANG.
CLASSIFIED BY OG III MAF
EXEMPT FROM GENERAL DECLASSIFICATION
SCHEDULE OF EXECUTIVE ORDER 11652
EXEMPTION CATEGORY (2)
B-3-C-1
CONFIDENTIAL
DECLASSIFIED
X
ASPHALT
CERM
REF PT
EXIT
0.
EXIT.
BERM
R
E
E
EXIT
S
S
S
S
HWL
HWL
GRAD 1:26
S
GRAD 1:30
S
LF
S
S
RF
S
LLW
I
I
2
2
3
I
I
LLW
1/2
3
3
3
2
3
4
2
2
2
2
2
I
I
I
I
I
5
4
5
5
6
4
4
3
4
2
2
2
2
3
2
2
2
6
5
4
6
6
9
5
4
5
6
6
5
3
6
4
5
3
½
5
7
6
9
7
6
5
7
8
5
7
DECLASSIFIED
CONFIDENTIAL
4
5
3
4
4
4
5
5
8
9
9
7
6
6
9
9
8
5
9
6
5
5
6
6
4
6
7
7
7
7
5
7
7
6
10
6
6
7
7
5
5
8
11
6
9
lo
6
7
7
6
I
"
8
8
B-3-C-3
CONFIDENTIAL
DECLASSIFIED
1/2
9
9
9
7
7
II
12
II
12
7
8
7
7
12
9
10
2
10
10
10
9
9
=
12
13
13
9
9
9
8
12
12
12
t3
2
2
13
12
12
II
II
12
"
14
15
11
10
B
13
14
15
11
11
2
14
14
13
12
12
14
15
IS
is
13
13
13
12
14
15
15
16
18
15
13
15
17
16
17
14
13
IS
14
18
17
17
17
2
15
15
16
17
18
19
18
17
18
la
17
19
is
18
IS
18
IS
15
17
3
3
A'
SCALE 1:1800
50
0
50
100
150
200
200
NO MAG. VAR.
N
DECLASSIFIED
CONFIDENTIAL
HUE
Possible sea evacuation from HLZ "ELLEN" (Thai Duong Ha Airfield). Beach
adjacent to HLZ at mouth of Thuan An bay 016 33 56 W, 107 37 58 N. Pier-
for small boats and barge operations at southwest end of HLZ. Possible to
beach LCM-6s and LCM-8s generally anywhere to southwest of HLZ.
B-3-C-5
CONFIDENTIAL
DECLASSIFIED
DECLASSIFIED
UNCLASSIFIED
CG 9th MAB/CTG 79.1
FPO San Francisco 96602
APPENDIX 5 to ANNEX B to CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
WEATHER, HYDROGRAPHY (U)
500228
TO BE ISSUED
B-5-1
UNCLASSIFIED
DECLASSIFIED
DECLASSIFIED
UNCLASSIFIED
T-9-8
TO BE ISSUED
500228
RECONNAISSANCE AND SURVEILLANCE PLAN (U)
APPENDIX 6 TO ANNEX B TO CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
FPO San Francisco 96602
I°6L WARE 476 50
UNCLASSIFIED
DECLASSIFIED
DECLASSIFIED
UNCLASSIFIED
CG 9th MAB/ CTG 79.1
FPO San Francisco 96602
APPENDIX 7 TO ANNEX B TO CG 9th MAB/CTG 79.1 OPLAN 5060 (U)
TARGET INTELLIGENCE (U)
TO BE ISSUED
B-7-1
UNCLASSIFIED
DECLASSIFIED
