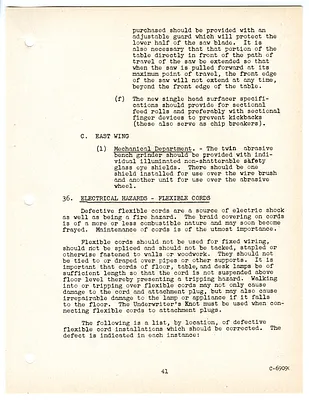

purchased should be provided with an ad justable guard which will protect the lower half of the saw blade. It is also necessary that that portion of the table directly in front of the path of travel of the saw be extended SO that when the saw is pulled forward at its maximum point of travel, the front edge of the saw will not extend at any time, beyond the front edge of the table. (f) The new single head surfacer specifi- cations should provide for sectional feed rolls and preferably with sectional finger devices to prevent kickbacks (these also serve as chip breakers) C. EAST WING (1) Mechanical Department. - The twin abrasive bench grinder should be provided with indi- vidual illuminated non-shatterable safety glass eye shields. There should be one shield installed for use over the wire brush and another unit for use over the abrasive wheel. 36. ELECTRICAL HAZARDS - FLEXIBLE CORDS Defective flexible cords are a source of electric shock as well as being a fire hazard. The braid covering on cords is of a more or less combustible nature and may soon become frayed. Maintenance of cords is of the utmost importance. Flexible cords should not be used for fixed wiring, should not be spliced and should not be tacked, stapled or otherwise fastened to walls or woodwork. They should not be tied to or draped over pipes or other supports. It is important that cords of floor, table, and desk lamps be of sufficient length SO that the cord is not suspended above floor level thereby presenting a tripping hazard. Walking into or tripping over flexible cords may not only cause damage to the cord and attachment plug, but may also cause irrepairable damage to the lamp or appliance if it falls to the floor. The Underwriter's Knot must be used when con- necting flexible cords to attachment plugs. The following is a list, by location, of defective flexible cord installations which should be corrected. The defect is indicated in each instance: C-6909( 41
