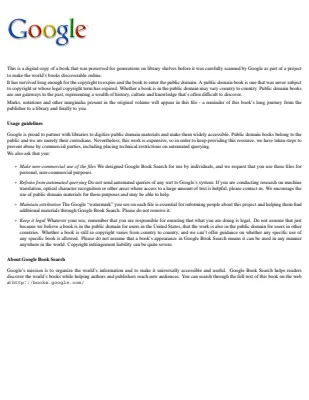

Google
This is a digital copy of a book that was preserved for generations on library shelves before it was carefully scanned by Google as part of a project
to make the world's books discoverable online.
It has survived long enough for the copyright to expire and the book to enter the public domain. A public domain book is one that was never subject
to copyright or whose legal copyright term has expired. Whether a book is in the public domain may vary country to country. Public domain books
are our gateways to the past, representing a wealth of history, culture and knowledge that's often difficult to discover.
Marks, notations and other marginalia present in the original volume will appear in this file - a reminder of this book's long journey from the
publisher to a library and finally to you.
Usage guidelines
Google is proud to partner with libraries to digitize public domain materials and make them widely accessible. Public domain books belong to the
public and we are merely their custodians. Nevertheless, this work is expensive, so in order to keep providing this resource, we have taken steps to
prevent abuse by commercial parties, including placing technical restrictions on automated querying.
We also ask that you:
+ Make non-commercial use of the files We designed Google Book Search for use by individuals, and we request that you use these files for
personal, non-commercial purposes.
+ Refrain from automated querying Do not send automated queries of any sort to Google's system: If you are conducting research on machine
translation, optical character recognition or other areas where access to a large amount of text is helpful, please contact us. We encourage the
use of public domain materials for these purposes and may be able to help.
+ Maintain attribution The Google "watermark" you see on each file is essential for informing people about this project and helping them find
additional materials through Google Book Search. Please do not remove it.
+ Keep it legal Whatever your use, remember that you are responsible for ensuring that what you are doing is legal. Do not assume that just
because we believe a book is in the public domain for users in the United States, that the work is also in the public domain for users in other
countries. Whether a book is still in copyright varies from country to country, and we can't offer guidance on whether any specific use of
any specific book is allowed. Please do not assume that a book's appearance in Google Book Search means it can be used in any manner
anywhere in the world. Copyright infringement liability can be quite severe.
About Google Book Search
Google's mission is to organize the world's information and to make it universally accessible and useful. Google Book Search helps readers
discover the world's books while helping authors and publishers reach new audiences. You can search through the full text of this book on the web
athttp://books.google.com/
LIBRARIES
633855
3
Digitized by Google
fir
tized by Go
Digitized by Google
Digitized by Google
Digitized by Google
THEN TW N Y ORK
PUTT
AST
TILDEN C
En adidas THE 40
Digitized by Google
View, showing the progress of the Works of the LONDON AND BIRMINGHAM RAILWAY,
near the Hampstead Road, in the year 1836.
A Glossary
OF
CIVIL ENGINEERING,
1
COMPRISING ITS
THEORY AND MODERN PRACTICE.
and
BY
S.C. BREES, C.E., &c.,
AUTHOR OF "RAILWAY PRACTICE."
Illustrated bg numerous
PUBLIC
LONDON:
TILT AND BOGUE, 86, FLEET STREET;
AND JOHN WEALE, 59, HIGH HOLBORN.
MDCCCXLI.
Digitized by Google
HENEW YORK
UBLICLIERARY
93485
ASTOR, L OX:ND
TILDEN FOU' DATIO: 8.
1897.
DRURY, PRINTER,
17, Bridgewater Square, Barbican, London.
жоу Walli
PLIEUR
VRARELI
Digitized by Google
PREFACE.
NOTWITHSTANDING the interest and importance which
attaches to the science of Civil Engineering in the
present day, there has hitherto existed no elementary
work sufficiently popular in its character to serve as
an introduction to the study, and at the same time
affording to the younger members of the profession a
ready means of access to the various rules and formulæ
which are in daily requisition in early practice.
This deficiency the Author has attempted to
supply. He has aimed at utility rather than origi-
nality, and claims for his work little merit or consi-
deration beyond that of comprising in a convenient
form much information, the result of his own experi-
ence or collected from sources not readily accessible.
Digitized by Google
iv
PREFACE.
In the explanations and illustrations the Author
has endeavoured to render his work strictly practical ;
for this purpose he has made frequent reference to the
various Public Works completed or in progress through-
out the kingdom. He has also availed himself of the
labours of preceding writers, and has thus, he hopes,
brought within the limits of a single volume a larger
amount of elementary information on the science of
Civil Engineering than is to be found in any work
previously published.
12, SOUTH SQUARE, GRAY'S INN.
Digitized by Google
GLOSSTRY OF
Enginerring
-
BBREVOIR, or ABBREUVOIR (in masonry), the
interstice or joint between two stones of an arch,
and which is usually filled up with fine mortar, or
cement.
ABUTMENT, a term much used in reference to
any fixed points, from whence, or by which, any support or force
is obtained; thus the extremities of a segmental arch are said to
be supported on abutments, upon which it rests, or abuts: the
extremities of a bridge are also termed abutments.
ACRE, a measure of land amounting to four square roods, or
160 square poles or perches; or 10 square chains: 4,840 square
yards also form one acre.
ADHESION, the force acting on the surface of two separate
bodies in contact with each other, which tends to bind them
together, and which is proportionate to the number of touching
Digitized by Google
8
ADIT.
points. There are two kinds of adhesion : first, the natural
attraction existing between the surfaces of unconnected bodies,
and which is said to be greater with two bodies of a similar nature
than with two of a different kind, as the force which prevents
the wheels of a locomotive engine from slipping on a road or rail-
way-(The adhesion of the wheels of the best modern locomotive
engines to the rails, exclusive of the power to drive the engine
itself, is supposed to be capable of overcoming a resistance equal
to T½th part of the insistent weight of the engine upon a level
plane, or in fine weather and 20ᵗʰ in very bad weather; and
that of common locomotives, working with vertical cylinders, to
20ᵗʰ part of the weight pressing on the rails by the driving wheels;
or, taking the friction as equal to 81 lbs. per ton, or the 263rd.
part of the weight, a load equal to 16ᵗʰ or 263th of its weight re-
spectively, or the weight acting upon the driving wheels. The
wheels of railway locomotives are sometimes coupled, which
nearly doubles the amount of adhesion. The degree of adhesion
to the surface of an ordinary road is at least ten times more than
upon a railway : that of one wheel of a road locomotive is gene-
rally found sufficient but in passing up a very steep hill another
is sometimes fixed)-which is greatest when the road or rails are
either quite dry or thoroughly wet, the surface then being most
free from obstruction when partially wet it is much reduced, as
the wheels are more apt to catch up the dust.-The other de-
scription of adhesion is artificial ; thus the surfaces of some bodies
are brought to adhere together by the use of glue and other
tenaceous substances : the adhesion between two flat pieces of
glass or brass, when smeared with grease and rubbed together,
is very great.
ADIT, DAY LEVEL, or SOUGH (in
mining), a subterraneous gallery or pas-
sage, extending from the lowest conve-
nient point in a valley through a hill into
a vein of metal, forming the entrance to a
mine, by which the water and minerals are
conducted, or the miners enter and leave
Digitized by
Google
AIR-ESCAPE-AJUTAGE.
9
it. Adits are either walled or timbered where the soil is bad,
and they do not always run in direct lines; they also only
occasionally form the entrance to the mine. The water of several
pits is frequently received by one large adit, extending many
miles. An air-shaft is also sometimes termed an adit.
The horizontal line at the upper part of the cut represents the
adit.
AIR-ESCAPE, a contrivance for passing the air from water-
pipes, without allowing the escape of the water; the air would
otherwise collect in the higher levels of pipes, and obstruct the
passage of the water.
AIR-PUMP (in reference to the steam-engine), the pump em-
ployed in drawing off the condensed water from the condenser,
communicating therewith by a pipe at the bottom; the air-pump
and condenser are usually of similar capacity, each being equal
to gth of the contents of the cylinder.-See Steam-Engine.
AIR-VALVE (in reference to the boilers of steam-engines),
a safety-valve fixed at the top of the boiler, and opening inwards,
to prevent rupture from the pressure of the atmosphere upon the
sides of the boiler, should a vacuum occur within from the steam
becoming condensed, or partially so. The valve is kept shut by
a counterweight placed at the end of a lever, in the usual manner.
There have been instances of boilers becoming collapsed by the
pressure of the air from without.
AIR-VESSEL (as applied to pumps, &c.), a chamber con-
taining air, attached to the ejection-pipe of a pump, and commu-
nicating with the pipes through which the water flows; its purpose
being to obviate any irregularity in the supply of water, which
it effects by its elastic force, the discharge is thereby rendered
constant and uniform-for instance, when the water enters, the
air within it becomes compressed, and acquires a corresponding
degree of elastic force, which it exerts upon the water as it
escapes up the pipes, thus a continuous stream is kept in the
rising main.-See Pump.
AJUTAGE, a tube fixed at the mouth of a hydraulic vessel for
regulating the discharge of water.
C
Digitized by
Google
10
ANCHOR AND COLLAR-ANIMAL POWER.
ANCHOR AND COLLAR, or GATE HINGES,
(sometimes called Collar and Clamp), the
hinges employed in hanging lock-gates, &c.
The anchor is usually let into the stone
coping, and turned down into it at each
end, and well run with lead. The collar is
made to fit the hooping on the top of the quoin-post; and is
wedged up to the anchor, as may be required, by means of
keys, as shown on cut.
ANGLE-IRONS, the pieces employed to join the
angles of iron frame-work, as boilers, &c., being
rivetted to the iron side-plates.
ANGLE OF TRACTION, the angle formed by the inclination
of the traces with the surface of the roadway.
ANGLE OF REPOSE (sometimes called the Angle of Friction),
the utmost inclination at which a carriage will stand at rest upon
a road or railway, and when upon the least increase of slope it
is put in motion by the gravity of its weight; it consequently
occurs when the gravity of the load and friction upon the road
are equal.
The angle of repose, therefore, varies according to the amount
of friction; taking the friction at 9tb. per ton makes it 1 in 250,
or about 21 feet per mile, which is generally considered the angle
of repose upon a railway; and taking it at 81 lb. per ton, gives
it at 1 in 2631, or 20 feet per mile.
The angle of repose, upon a turnpike road with a good de-
scription of carriage, is about 1 in 40, supposing the road to be
perfectly hard.
The natural angle, at which the soil of a cutting or embank-
ment will stand without slipping immediately after teaming, is
also called the angle of repose.-See Friction and Railway.
ANIMAL POWER. The power of an animal is greatest when
standing still, it will consequently support a greater load than it
can carry: upon commencing motion its power is lessened, and it
continues to decrease in proportion to the velocity of its motion;
a speed may at length be attianed at which it cannot carry any
Digitized by
Google
AQUEDUCT-ARCH.
11
load, the whole of its strength being required to keep up its velo-
city. An animal has been stated to produce the greatest effect
in a given time when moving at 3rd of its greatest velocity un-
loaded, the load being 4ths of that which it can just move.
As the mechanical effect of an animal is according to the speed
of its velocity, and the weight of the load, it may consequently
be ascertained by multiplying them together.
Most authorities rate a horse equal to five men : some state it
at six, and others at seven.-See Horse Power.
AQUEDUCT, a term applied generally, either to a series of
arches over a valley, or to a tunnel through the earth, when
either expedient is used for the conveyance of a body of water.
The ancient Roman aqueducts, some of which remain at the
present time, were constructed at a great expense, consisting very
frequently of several tiers of arches, supporting the water-way,
which was intended for the supply of the several public fountains,
baths, &c. The supply of water to Rome was considerably
greater than the present supply of London, and that of Paris is
much less than the latter. The Chirk Aqueduct, in Denbigh-
shire, on the Ellsmere Canal, by Mr. Telford; and the Lune
Aqueduct, in Lancashire, on the Lancaster Canal, by Mr. Rennie,
are among the most celebrated aqueducts of modern times. The
water-ways of modern canal aqueducts are usually formed of plates
of cast iron rivetted together. The ancient aqueducts were not used
as canals for the purpose of navigation, as those of the present
time, but for the conveyance of water for the use of the people.
ARCH, a certain arrangement of over-
lapping wedged-shaped stones or bricks,
usually commencing from two fixed points
or abutments, the beds radiating and meet-
ing in the centre, thereby forming an equi-
librium, when properly constructed, upon the
Digitized by
Google
12
ARCH.
removal of the wooden frame or centre upon which the arch is
turned.
Arches are of various shapes-as
Semi-circular.
Segmental.
Elliptical.
Polated.
The abbrevoirs or joints of all arches should be perpendicular
to the surface of the soffits.
The top of an arch is called the extrados or back, and the
underside the intrados or soffit ; the line from which they com-
mence is called the springing-line, and the first arch stones on
each side, the springers or reins, the which rest on the imposts, or
abutments. The extreme width between the springers is called
the span of the arch; and the rise of the curve in the clear, the
versed sine. The highest portion of the arch is called the vertex
or crown, and the centre course of voussoirs, the key-course.
The side portions of all arches, extending from the crown to
the springing, are termed haunches or flanks; and all arches should
be well sustained by backing, carried up on the haunches. The
walls built on the haunches are called spandrel-walls; and it is
customary to carry up spandrel-walls
with small arches turned over between
them, termed relieving arches, upon the
backing of arches of great span, for the
purpose of preventing any irregular
pressure of earth upon the same. Arches
are also either cylindrical or groined,
the former being an elongation of the same curve throughout
its length, and where intersected by other arches cutting across it
transversely, the point of junction is termed
a groin, such being described as groined
arches.
An arch, equally balanced in all its
parts, is called the arch of equilibrium,
which is of similar strength throughout, or
Groined Arch.
Digitized by Google
ARCH.
13
not more inclined to fracture in one part than in another. It is
found sufficient, in the practice of bridge-building, if the arch of
equilibrium be comprised within the boundaries of the vous-
soirs, without forming the extrados and intrados of the necessary
form, to constitute the same.-See Arch of Equilibrium.
The introduction of railways has led to numerous investiga-
tions on the best system of building arches, and very fine spe-
cimens are to be seen on most lines. The stone arch over the
River Dee, at Chester, is the largest stone arch in the world,
being a segment of 200 feet span and 41 versed sine: and the
centre arch of new London Bridge is the largest elliptical arch,
being 152 feet span and 29 feet 6 inches rise. The construction of
brick arches should approximate as closely as possible to those
of stone; in the common mode of building them the innermost
courses of bricks are laid very close, and pieces of tile or slate
are filled in the outer parts of the joints; the bricks are, in other
instances, laid in separate rings, which system remedies the want
of key in the former, but is defective from the want of connec-
tion between each ring ; it is therefore best to employ built
voussoirs, by which the key is maintained throughout the whole
thickness of the arch : this plan may be said to unite the advan-
tages of each of the former methods, and it is somewhat followed
in the construction of the arches on the Blackwall Railway, as
shown on the cut (see next page) : the lines taken through the arch
represent heading-courses laid in mortar to allow for settlement.
Brick arches, of very great span, have been lately erected : those
over the Thames, at Maidenhead, on the Great Western Railway,
are 128 feet span and 24 feet 3 inches rise, and are the largest
yet erected; they are turned in cement: the building of brick
arches in cement undoubtedly strengthens them, yet, as the
remainder of the erection is generally carried up in mortar, an
unequal settlement naturally follows, and consequent fracture,
unless a proper provision be made for the same. Elliptical arches
are therefore not unfrequently turned in mortar, from the spring-
ing to the haunches, and the remainder finished in cement ; the
Digitized by
Google
14
ARCH.
arch is thus enabled to accommodate itself at the mortar joints
to any pressure it may receive from the spandrels, or from any
sinking of the abutments, which it may do without impairing its
strength or effect; sometimes a small portion only of the centre
of an arch is turned in cement, in other cases a course of stone is
carried along the haunches of an elliptical arch to strengthen it.
There are some segmental arches on the Blackwall Railway built
of brick, with a span of 86 feet and a rise of 16 feet, which are
turned in cement in old English
bond (the most general method
of turning arches being in half-
brick rings) ; there are three
courses of bricks taken through
the whole thickness of the arch
(4 feet 3 inches) upon each side,
their lower beds and cross joints
being laid in mortar, also the three courses next the springing
of the arch. Some engineers consider it a good plan to lay in
the lower courses of the bricks dry, and grout them together, as
it gives the bricks a more equable strain.
In reference to railway arches, it may be stated, that the
Transverse Section.
Transverse Section.
Elevation of back.
Digitized by
Google
ARCH OF EQUILIBRIUM.
15
general size of the arches for occupation bridges over the London
and Birmingham Railway, is 30 feet in width and 17 feet in
height to the crown; elliptic arches being adopted, having a
rise of 9 feet, as shown on cut; and the arches under the railway
are made 15 feet wide, and of various heights, according to that
of the embankment. The arches erected over the metropolitan
roads by railway companies are required by their acts to be
30 feet wide and 18 feet high, in the vicinities of towns, which is
not too much, but 16 feet is generally sufficient for turnpike
roads. The extreme height of Temple Bar, London, is 17 feet
9 inches, which is not sufficient for some of the waggons to pass
under. A load of hay is from 16 to 17 feet high. The parlia-
mentary guage for the height of luggage upon a stage-coach is
9 feet 9 inches. Arches are also sometimes formed of iron, also of
wood. - See Arch of Equipollence, Bridge, Catanarian Curve, and
Centre of an Arch.
ARCH OF EQUILIBRIUM, an arch equally balanced in all its
parts, and capable of standing of itself without the assistance of
abutments. The accompanying sketches represent a semi-
circular arch of equilibrium, and an elliptical one, according to
the theory of Mr. Ware. In each case the intrados and direc-
c
a
e
d
b
b
a
b
e
c
V
R
b
d
tions of the beds of the several voussoirs are given, also the thick-
nesses of the crown ; therefore, by making b, c, equal in each case
to d, e, and parallel thereto, and a, c, respectively horizontal to it,
the intersection at a, a, a, a, will give the line of curve for the
extrados.
Digitized by Google
16
ARCH OF EQUIPOLLENCE-ARTESIAN WELL.
As an arch of equilibrium can stand of itself without abutments,
it consequently follows that it would be able to sustain a greater
weight than an arch formed in a different manner; yet, from the
time occupied in working the backs of the arch-stones to the
requisite form, it is seldom followed in practice.
ARCH OF EQUIPOLLENCE, an arch whose several parts are
prevented from following their natural directions towards the
centre of the earth by mutual opposition. An arch may be equi-
pollent from either of the two following causes : 1st, from the
relation of the weight of the several voussoirs forming it, as
in the arch of equilibrium (see Arch of Equilibrium) ; and
2ndly, from the continuity of the several stones alone, the thrust
from the crown being transferred from one stone to the other
until it is received by the abutments.
ARCHITECTURE, the art of constructing and building edifices :
all the several erections connected with civil engineering partake
more or less of architecture.
ARRIS, the angular line formed by the meeting of two surfaces,
constituting an edge; the term has more especial reference to
the angles of ashlar masonry.
ARROW (in surveying), a pin employed for marking the
chainage, one being placed in the ground at the extremity of
every chain.
The arrows are ten in number, and are made of large iron wire,
about 16 inches long, with a loop at the top of each, sufficiently
large to admit of the finger; a piece of red cloth is sometimes
tied thereto, that they may be readily discerned in the field.
ARTESIAN WELL, the name given to artificial fountains, ob-
tained by boring down vertically through the geological strata of
the earth with augers, or other instruments, into some porous bed,
for the procuring of water, the springs met with being nothing
more than the overflowing of the water which has fallen upon the
earth at different times and sunk beneath the surface; thus, after a
great drought, wells will frequently become exhausted. They are
usually sunk through a deep stratum of clay into one of sand,
Digitized by
Google
ARTESIAN WELL.
17
and the water often rises to a considerable height, varying ac-
cording to the elevation of the highest point of the sand, and the
amount of pressure exerted upon it by the superincumbent soil;
it is desirable to go below the sand into the chalk if it be of a
loose nature, as the fine sand is liable to be pumped away with
the water, whereby large cavities are left in the earth: there have
been many instances of wells becoming useless on this account
the chalk also abounds more with springs.
Artesian wells have been in use in the northern departments of
France and Italy for several centuries, although not introduced
into Germany, or this country, above fifty or sixty years they are
now much adopted in the metropolis, where they pass through
the immensely thick bed of the London clay, and even through
some portion of the adjacent chalk they are also in general use
at Paris. The hole is formed by chisels, gauges, and augers, a
pole being passed through the handle of the auger, and two men
work it round, one at each end, and pressing it down where there
is rock; they also turn it round and lean their weight upon it,
accordingly as may be required : another labourer is also placed
over them, who, by means of a long timber spring-beam, lifts the
pole and assists the pecking. A small tin, copper, or lead pipe,
is sometimes driven down the hole upon its completion, to ex-
clude the land springs and preserve the water pure.
The practicability of supplying large cities by water derived
solely from artesian wells is extremely doubtful; and were it
possible, other difficulties are not unlikely to arise, as the water
commonly obtained from springs is brackish or hard, and of an
objectionable quality for domestic purposes, and it partakes more
or less of the nature of the soils through which it passes the only
way of rendering it applicable to domestic purposes is by sub-
jecting it to a state of motion, and exposing it to the air and
weather for a certain period of time, the which has the effect of
softening it.
In forming wells, it may be observed that it is customary to
wall or plank the upper part, as the water will seldom rise to the
D
Digitized by
Google
18
ASHLAR-ASSISTANT ENGINE.
surface of the ground it is, in fact, usual to perform this part of
the operation first, the building of such a wall being termed
steining the well : the wall is first carried up a certain height
from the ground upon a strong curb, generally of iron ; the exca-
vators then dig out the ground on the inside, and eventually from
beneath the ring itself, upon which the whole sinks, by the effect of
gravity, and the brickwork is carried up at the top as it is lowered,
until it will go no further; another ring is then steined within the
first; if the latter should not be able to reach the proper depth the
ground is taken from beneath it, and the bricks added at this end,
which operation is termed underpinning : cast-iron tubing is also
much employed for this purpose, several lengths of it being some-
times driven. A windlass, with buckets attached, or pumps are
commonly employed to take the water from the level at which it
ceases to rise, or bottom of the well, to the natural surface of the
ground.
ASHLAR, the term applied to cut stone, which description of
masonry is principally used for the facing of structures only.
Where great strength is required the ashlaring is carried up solid
throughout : tooled work is sometimes called tooled ashlar, the
former being distinguished by the name of plane ashlar.
ASPHALTUM, a hard black substance, resembling pitch in
appearance, found in various parts of the globe; upon being
broken, the interior presents a highly polished surface, which has
led to its being used in making black varnish.
The many cements, known at the present day by the name of
asphalte, are not composed of this substance, neither are they
similar to each other in their compotent parts. The asphalte of
Seyssel is a natural combination of asphaltum, and other bitu-
minous substances, with pure carbonate of lime, in the proportion
of about 83 of the former to 17 of the latter; and it has been
much employed in France and this country for several engineer-
ing and building purposes, and has been found to answer very
well, not having been affected by either cold or heat.
ASSISTANT ENGINE (on railways), an extra locomotive em-
Digitized by
Google
ATMOSPHERIC ENGINE-BALANCE GATES.
19
ployed upon inclined planes on railways, or to assist the heavy
trains.
ATMOSPHERIC ENGINE.-See Steam Engine.
AXLE, or AXLETREE, the pivot, centre, or transverse bar, con-
necting the naves of the opposite wheels of a carriage.
The axles of roadway carriages are secured in a different man-
mer to those used upon railways : in the former they are fixed to the
carriage bearings, and the ends are fitted into boxes situated in
the centres of the naves of the wheels which revolve round the
same ; each of the wheels are enabled, by this method, to revolve
separately upon its own axis, and at different rates of speed as
may be required thus, in turning round, the inner wheels remain
stationary, acting as a centre, while the others describe a circle
round them. In railway carriages the axles are fixed immoveable
in the naves of the wheels, the bearings of the carriages being on
the outside, and merely resting upon the same.-See Friction.
BACKING.-See Arch.
BACKWATER, or SCOURING POWER, the stream of water em-
ployed in connection with harbours, to carry away the shingle
and prevent its accumulation at the mouth. They are employed
where a great quantity of water can be obtained at high tides,
large reservoirs being filled at such times, and the water is after-
wards discharged on the bar at low water.-(For observations
upon the same see Harbour).
BALANCE BEAM.-(See Lock).
BALANCE GATES, a certain de-
scription of flood-gate, much used in
Holland acting upon the following
principle, the gates are fixed on a
vertical shaft as a centre, and are
H
kept closed by the pressure of the
water against them, one side of each being larger than the other
and in order to open them, when requisite, a sluice is constructed
in the largest side, which, upon being opened, reduces the area
of this side of the gate to less than that of the other side, upon
D 2
Digitized by Google
20
BALKS-BALLASTING.
which the water consequently acts upon the gates, and opens them.
Mr. Wickstead has employed balance-gates in connection with
the works of the East London Water-works; but each side of his
gates are of equal area, a very slight degree of power is therefore
sufficient either to open or shut them, whatever the pressure of
the water may be, as they are equally balanced.
BALKS, a term applied to long pieces of foreign timber, from
about 5 to 12 inches square.
BALLAST LIGHTER, a description of open barge, employed in
removing sand, silt, or the like, from the beds of rivers, harbours,
docks, &c., which is effected by means of an iron hoop with a
leathern bag sewn round the edge of the same, and fixed to the
end of a long pole; the hoop is scraped along the bottom of the
river, the sand being thereby collected in the bag, from which it
is discharged into the barge moored along side of it.
BALLAST WAGGON, the wag-
gon employed in removing earth
in excavations, and the like, the
which hold about 2 cubic yards,
or 21, or 3 yards at the utmost,
even by piling up. If they are
filled too full they are apt to tilt they are usually used without
springs, but they are better with them, particularly for those
working on permanent rails, as the former increases the wear and
tear of the rails, and adds to the expense of maintaining the way
considerably. The cut shows an improved form of ballast waggon.
BALLASTING, or METALLING (sometimes called bottoming),
a term applied to the covering of roads generally, and to the
filling in material, above, below, and between the several stone
blocks and sleepers upon railways, &c. ; it is laid for the purpose
of keeping the road dry, as in the event of water lying upon it,
the rails invariably sink, as it causes them to rest unequally.
Ballasting is mostly composed of gravel, broken stone, or the
like, and is laid about 2 feet thick on railways, the finished sur-
face of it being usually rather more than 1 inch below the level
Digitized by
Google
BALLUSTRADE-BATH-STONE.
21
of the rails, and it is generally from 6 to 12 inches thick on
roads.
A longitudinal drain, 6 inches square, is sometimes laid within
railway ballasting, having cross drains, 15 feet apart, communi-
cating with the same, to convey the water into the side ditches.
These drains should invariably be used in excavations, and when
employed in embankments the water is led down the slopes
by drains.
BALLUSTRADE, a series of ballusters situated and fixed under
the coping of the parapet of a bridge, &c., the which are not
employed in engineering works so frequently as formerly.
BANK.-See Embankment.
BAR, a piece of timber or metal placed horizontally, and
running across from one part of any framework to another.
BAR (in navigation), an accumulation of sand or shingle at
the commencement or mouths of rivers, harbours, &c., being
formed by the action of the tides.
BARREL (of a drum wheel), the cylindrical body, or axle,
round which the rope is rolled.
BARREL (of a pump), the cylinder or hollow part of the pump
in which the piston works.-See Pump.
BARROW, a machine generally used for carrying soil in the
formation of excavations and other works at their commencement,
before a road is formed.
BASE LINES (in surveying), the main lines of a survey upon
which the correctness of the whole depends; it is therefore neces-
sary to proceed with the utmost care, in the laying out of the
several base lines of a survey.
BAT, the name given to a half or other portion of a brick.
BATH-STONE, a very serviceable sand-stone, almost wholly
calcareous, although some of it is more silicious. It is extremely
soft when taken out of the quarry, but afterwards becomes hard:
in setting the stones, it is very essential to lay them in their
natural or quarry bed, which remark may be applied to every
description of stone, although not to the same degree as with
Bath-stone.-See Stone, Slope, and Soil.
Digitized by
Google
22
BATTER-BETON.
BATTER, the face of a retaining or other wall when built in a
leaning position, the top part falling back within the line of base
walls of this description, are sometimes termed tallus walls. The
batter of a wall is either straight or curved; the latter are also
generally commenced straight from the top, the greatest degree
of curvature being given to the bottom of the wall.
The average rate of the batter of the walls upon the London
and Birmingham Railway is 21 inches to the foot, and 1 inch to
the foot for the wing walls of bridges.-See Retaining Wall.
BATTER LEVEL.-See Clinometer.
BEAM.-See Girder.
BEARINGS, as applied to carriages, &c.
The chairs supporting the frame-work of the carriage, the which
merely rest on the axles and upon the outside of the wheels of
railway-carriages; but they are fixed to the axles of all common
road-carriages.-See Arle, Waggon, and Friction.
BEETLE, a wooden instrument, or mallet, for driving piles,
being raised by the help of ropes and pullies: the term is also
applied to the rammer used for driving stones into the ground.
BENCH, or BERM, a ledge left on the face of a cutting to
strengthen the same.
Steep cuttings should always have ledges to support them, par-
ticularly in canal work, to prevent the mould from the upper
part, falling down into the water; chalk may also be executed at
a very steep inclination by their assistance. Ledges are likewise
generally made at a change of slope, occasioned by meeting with
a different soil.
BENCH MARKS (in surveying), fixed points left on the line of
survey for reference at any future time, consisting of cuts in trees,
pegs driven in the ground, and the like.
BETON, a French concretion or mortar, used in the foundation
of hydraulic works it consists of twelve parts of pozzylona, nine
of quick lime, six of sand, thirteen of stone scrapings, none ex-
ceeding the size of an egg, and three parts of iron scales from the
smith's forge ; after being well mixed and indurated together, it is
broken in pieces, and a coffer having been previously prepared
Digitized by Google
BEVEL GEAR-BLASTING.
23
it is dropped by a proper box into the same, and laid in alternate
layers with rubble stones until sufficiently elevated to receive the
masonry.
BEVEL GEAR.-See Gearing.
BLAST PIPE, a pipe employed in locomotive engines to convey
the waste steam from the cylinders up the chimney, and to urge
the fire. Its invention is generally ascribed to Mr. George
Stephenson, and it is supposed to have doubled the power of the
engines at the period of its introduction.
BLASTING, the operation of detaching and separating blocks
-of stone or earth from their natural or quarry beds, which was
usually performed in former times by the following process :
long wooden wedges were driven, in a very dry state, into holes
prepared for them, and previously well heated; a quantity of
cold water was then poured over the wedges, which, upon be-
coming thoroughly saturated, swelled and caused a fracture of
the rocks. The same effects are now generally produced by the
exploding force of gunpowder, which was first used for that pur-
pose in about the year 1820 a hole is first driven into the earth
by a jumper, or chisel, which is held in a proper direction by one
man while another strike it with a hammer, the former turning
his instrument at every blow, by which it is soon made; and it is
formed of various depths, from 1 to 3 feet, according to circum-
stances: if water appears in the hole some stiff clay is crammed
in, by which it is absorbed, and the fissures through which it
entered filled up when the hole is of some considerable size, and
of great depth, a long jumper succeeds the first, the which is
6 or 8 feet long, and pointed at both ends, with a projecting bulb
in the middle, which serves as a handle for the men to lift it up,
upon which it is dropped into the hole, and being heavy, it per-
forates into the rock : a hole, of 5 feet depth, may be formed
without much difficulty by a succession of these falls : the gun-
powder enclosed in paper is then introduced into the bottom of
the hole which is properly adapted for it; a thin copper rod is
now connected with it, and some soft impervious substance
Digitized by
Google
24
BLOCK.
crammed into the remaining part of the hole when the rod is with-
drawn, by which a vent is obtained, connecting the charge with
the touch-hole into which a fusee is dropped and lighted, which
completes the operation, when the men retire: crooked pieces of
iron are also sometimes introduced into the bottom of the hole
to assist in detaching the masses of rock. The natural stratifica-
tion of the rock is of course attended to, as a horizontal blast will
frequently bring down ten times as much as a vertical one.
The blasting of rock under water is usually performed by
the diving-bell, the communication with the gunpowder being
effected by means of a tin tube: a galvanic battery has also been
lately employed for that purpose by Colonel Pasley, and with
considerable success; a much greater degree of safety is insured
by this system of explosion.
BLOCK (stone, as applied to railways), a foundation or support
for the tracks or rails of a railway upon which the chairs are
secured Stone blocks were introduced in place of wooden
sleepers, in about the year 1800, and are now in general use
but it is not usual to place them upon embankments until suffi-
cient time has elapsed after their formation to allow for settling,
oak or larch sleepers being generally laid down in the first
instance. The blocks are about 2 feet square, and are placed in
a diagonal direction at the present time,
(which was first introduced upon the
London and Birmingham Railway),
having been previously set square, and
at a distance of 3 feet, from centre to
centre. When heavier rails are used the bearings are made
greater. The 65 lb. rails on the London and Birmingham Rail-
way are laid 4 feet apart, and the 75 lb. are made 3 feet 9 inches
in cuttings, and 4 feet 6 inches on high embankments, the blocks
being 1 feet 3 inches square.
The blocks are set or fixed by a cuddy, consisting of a stand
and a timber spring lever, say 20 feet long, by which a labourer
raises the block about 1 foot high, while the setter adjusts the
Digitized by Google
BLOCK-BOILER.
25
ballasting beneath it, and by a succession of rises and falls it is
at length brought to a solid bed, and at the level required.-See
Cuddy and Bearings.
BLOCK, a piece of wood on which a sheave or pulley is run,
and through which the rope passes.
BOILER (in steam-engines), the vessel employed for containing
the water to be converted into steam. The boilers employed at
the present time are formed exclusively either of iron or copper,
or of both, although brick and stone have been used for the same
purpose. Copper is considered the best material, its power of
conducting heat being nearly double that of iron ; a copper boiler
of only one-half the superficial contents of an iron one will ge-
nerate a similar quantity of steam. The power of copper in con-
ducting heat, according to the experiments of M. Despretz, is about
898.2, and that of iron 374.3. Iron is said to possess the greatest
cohesive strength, yet manufacturers generally construct their
copper boilers of thinner metal, on account of the greater uni-
formity in the substance of copper plates, and probably for eco-
nomy, copper being four times the cost of iron; but an old worn-
out copper boiler is worth 4ths its original value, whereas the
value of an old iron one is comparatively trifling, when the cost
of removal is deducted; copper has also been proved to be the
safest: when a copper boiler bursts, it is merely rent open, but one
of iron is often blown to pieces yet much depends upon the plan of
construction : some boilers are also formed of both, as the boiler
of a locomotive engine (the description of which will be found
under that head).
The great desideratum in the steam-engine appears to be in
the formation of a good boiler, one capable of generating the
greatest quantity of steam with the least degree of fuel, yet
perfectly free from explosion. They should be constructed with
a view to provide against rupture, or rather, that in the event
of the engine receiving a shock sufficient to rupture the boiler,
that it should occur in that part best calculated to prevent
loss and fatal accidents, particularly in those for locomotive
purposes, small boilers are therefore considered the best. If a
E
Digitized by
Google
26
BOILER.
large boiler with large tubes of separation bursts, the risk of
damage and loss of life is much greater than in the case of a small
chambered boiler, as the tubes, being small, act like so many
safety-valves, occasioning nothing more than a stoppage. The
reason of the boilers of locomotives not frequently bursting is
principally owing to the slightness of the tubes, which are thereby
the parts soonest affected in the event of any unusual strains,
when they merely let the water down upon the grate and put the
fire out-their wear is, consequently, very great; but if they were
made sufficiently strong to resist, the bursting of the sides of the
boiler might be reasonably expected, which would be attended
with great consequences.
Boilers may be described generally as being of four kinds, viz.
1st, globular; 2nd, cylindrical, with either flat or concave ends,
as the Cornish boiler ; 3rd, waggon-shaped, having semi-circular
top and flat sides and ends, the invention of Mr. Watt they are,
also, sometimes termed oblong, or rectangular boilers ; and, 4th, the
tubular, which is almost exclusively confined to locomotives, on
account of its small size and great evaporating capacity; the
shape differs from the last two, principally in internal arrange-
ment.-(See Locomotive Engine). The first and second description
of boilers are mostly employed for high-pressure engines, their
form enabling them to withstand steam of great elastic force,
although generally considered to cause a greater expense in fuel.
The waggon-shaped are those usually employed for ordinary
purposes, and compensate, by their greater bulk, for the want of
the large evaporating surface possessed by the others-they are,
also, more adapted for fuel of a slow rate of combustion, and are
therefore suitable with all varieties of coal ; yet some engineers
prefer the Cornish boilers, and maintain that they are most
economical.
The boilers of ordinary condensing engines have received
various proportions ; some engineers give a capacity of 16, and
others extend it to 25 cubic feet per horse power; perhaps a me-
dium may be the best, one-half of which should be appropriated
for water, and the other for steam ; and two small boilers are con-
Digitized by
Google
BOILER.
27
sidered better than one large one, another being also provided
as a reserve : the greatest effect has generally been produced by
allowing 41 square feet of fire surface, or that in direct contact with
the fire, and 4½ square feet of flue surface, (or the space inter-
posing between the former and the chimney-the which abstracts
heat from the flame and heated air as it passes through), to one
horse power; and one cubic foot of water is also evaporated per
hour by this arrangement. Mr. Watt allowed 5 feet of bottom
surface for the boilers of land-engines per horse power, and 3 feet
for marine ones; the space in the latter being more valuable.
About one square foot of grate surface should be allowed for
one horse power; in marine boilers grds of a foot is sufficient,
as they consume less coal per horse power than others, the space
between the grate bars and the latter being of equal width.
From 8 to 10 tb. of coke is generally allowed for each horse
power of an engine per hour, although some consume consider-
ably less: 1 lb. of coke was allowed
by Mr. Watt for the evaporation of
7 lb. of water.
B
The following is a representation
of a waggon-shaped boiler of the
Feed
usual construction :-
A, the supply-pipe from the hot
well, which terminates in the cis-
tern at the top of the feed-pipe.
Plpe
C
D
B, the cistern at the top of the
feed-pipe, having a valve fixed at
Boiler
the bottom.
C, the float, which is employed
to regulate the supply of water to
the boiler; the water is kept at the
M
same constant height by its action
upon the valve at the top of the
feed-pipe, thus -When there is not
sufficient water in the boiler the
Transverse Section.
float sinks, and pulls down the arm
Digitized by Google
28
BOILER.
of the lever a, a, to which it is attached, and thereby opens
the valve, as the counter-balancing weight b, fixed at the other
end of the lever, will only support the float when in its proper
situation in the boiler, and at the required level of the water.
A
a
a
B
N
Feed
d
*
0
T
E
I
H
G
Pipe
[
C
D
Beiler:
M
Longitudinal Section.
D, the self-acting damper for regulating the consumption of
fuel, which it effects by means of a chain connected with a
weight situated in the feed-pipe. Now as the force of the steam
acting upon the surface of the water forces a portion of it up the
feed-pipe, so is the weight within it raised or depressed, varying
according to its pressure; the which motion is communicated to
the damper, which opens or closes the aperture of the flue of the
furnace accordingly, whereby the draught, and consequently the
fire, is regulated : the damper is so adjusted as to exactly balance
Digitized by Google
BOLTS.
29
the weight when the latter is immersed in the water to a suitable
depth.
E and F, the gauge-cocks.-See Gauge-cocks.
G, the steam-gauge.-See Steam-gauge.
H, the safety-valve. This valve can be regulated by the en-
gineer.-See Safety-valve.
I, the internal or atmospheric safety-valve, opening inwards,
and fixed in the top of the man-hole or inlet into the boiler, for
the purpose of cleaning. See Air-valve.
K, the lock-up safety-valve, which cannot be regulated by the
engineer. A pipe is shown at the top which leads the steam that
escapes into it to the flue, or into the air, as the case may be.
The steam passes from the boiler through the steam-pipe a
valve being placed in it, called a throttle-valve, L, for regulating
the amount of steam to the cylinder.
M, the furnace-bars.
N, the flue.
There are steam-engines which work with a pressure of 18or20tb
upon a square inch of the boiler, and others which have upwards
of 200 lb. : but it does not follow that the steam in the cylinder
is of equal pressure, it may not be one quarter of that; a reserve
is therefore always ready, the supply being regulated, in stationary
engines, by a contrivance termed the governor, which operates upon
the throttle-valve, and by the engineer in locomotives; which
process is sometimes called wiredrawing the steam. The strength
of low-pressure boilers should be twice the regulated pressure on
the safety-valve ; and high-pressure boilers should be proved to
at least three times their working power.
BOLTS (iron), the pieces of iron used for secur-
A
ing framing together, and much employed in
timber-work; they are formed of wrought iron,
either square or cylindrical, with a square head at
one end and a screw and nut at the other; a plate
of iron, termed a washer (A, in the cut), being
interposed between the surface of the wood and
A, the Washer.
Digitized by Google
30
BOLSTERS-BOND.
the head and nut, to protect the former from damage during the
process of screwing up.
BOLSTERS, the pieces of timber used in the construction of the
centres of arches, and running across from one rib to another,
for the purpose of supporting the voussoirs. A piece of timber,
employed in a somewhat similar manner to a corbel, is also termed
a bolster; the which are much employed in timber bridges.-See
Bridge.
BOND, the union or tie of the several stones or bricks forming
a wall. The great principle in all bond is to provide against
settlements: the vertical joints of a course should, therefore, be
exactly midway between those below-in other words, break joint
with them; and in no case should the joints of one course be
carried up over those of the one below it.
The bricks or stones lying lengthways, in the longitudinal
direction of the wall, are called stretchers; and those placed length-
ways across the wall, headers.
Bond may be described ge-
nerally to be of two kinds,
viz. English and Flemish. In
English bond the courses are
alternately all headers and all
Old English Bond.
stretchers, and when the backs of each course are laid alternately
header and stretcher, it is
called Flemish Bond; this de-
scription of tie is also known
by the name of header and
stretcher, particularly in stone-
Flemish Bond.
work.
Old English bond is much the strongest, the tie being con-
tinued throughout, yet Flemish bond seems to be preferred,
simply on account of its external appearance; the tie is confes-
sedly inferior to the former, arising from its shortness; a far
greater number of vertical joints in the interior of the walls is also
consequent upon this plan, whereby the walls are rendered more
Digitized by
Google
BONNET-BOUNDARIES
31
liable to split longitudinally, the face-work not being tied into
the interior. English bond may likewise be described as the
simplest in execution, and the least wasteful. The Romans em-
ployed bond of this description in their brick buildings.
The term perbend, or thorough, is applied to the heading stones
forming a wall, when they are carried through the whole thickness,
and the term binder, when they reach through only a part of that
distance.
BONNET, a hole formed in iron pipes, and furnished with a
sliding lid, for the purpose of cleaning out the inside when
requisite.
BOOMS, the pieces of timber connected with fender-piles, and
employed to protect coffer-dams and the like from the effects of
shocks from vessels, &c. : they are usually secured to the piles
by chains, and rise and fall with the tide.
BONING, the operation of finding a line parallel with the
horizon without the use of an instrument, but by means of the
eye only. It is much practised by workmen in building walls,
filling in earth, and the like.
BORING, a vertical sinking, made in the earth by an auger, or
other instrument, for the purpose of obtaining water, instead of
sinking wells, and for other purposes.
Borings are required to be made on the line of a proposed
railway or canal, previous to drawing up the necessary specifi-
cation and estimate of the works, including the cuttings, founda-
tions for bridges, &c.
BOTTOMING.-See Ballasting.
BOULDER PAVING, a description of paving consisting of round
pebbles or boulders.
BOULDER WALLS, walls composed of boulders and flints set
in strong mortar.
BOUNDARIES (in surveying). In making a survey, the boun-
daries of the counties, parishes, and the several estates, are
required to be marked correctly thereon; in ascertaining which,
it is generally found necessary to procure the services of local
parties well acquainted with the same.
Digitized by
Google
32
BOW-STRING BRIDGE-BRAKE.
In the case of property divided by hedge and ditch, the brow
of the ditch is generally the boundary ; which, of course, forms the
line to be measured. In some districts the roots of the quicks,
or the foot of the bank, forms it : a width of 15 links is usually
allowed for a hedge and ditch, and 6 links for ditches between
neighbouring estates, and 7 for those nearest roads, &c., i. e. from
the roots of the quicks.
BOWSTRING BRIDGE, or TENSION BRIDGE, a kind of suspen-
sion bridge, the roadway being suspended from wrought-iron
rods; but, instead of the usual suspension chains, cast-iron seg-
ments are thrown across the ravine, or river, as the case may be,
the which are rested on proper abutments upon each side.
Mr. Leather, C.E., was the first who applied this principle on
an extensive scale, the two bridges erected by him at Leeds
being after this plan, the which have a very elegant effect, and
fully answer the purpose intended; they each consist of two seg-
ments, the carriage-way being situated between them, and the
footways are on the outside.
The Monk Bridge was executed first, the span of which is
112 feet; the other, erected at Howslett, is the largest, being 152
Bridge at Howslett.
feet span, and the rise of the arch is 33 feet, the total height
above the level of the water is 43 feet, the width of the bridge is
33 feet, and its cost did not exceed £4,200.
BRAKE, or CONVOY, the drag applied generally to the wheels
of carriages to check their velocity in passing down hills, by
means of friction. The brake attached to railway carriages con-
sists of a piece of wood, which is pressed upon the rim of the
wheels of the carriages by a hand lever, worked by the brakesman.
The brake of the tender alone affords a sufficient resistance to
stop a train under ordinary circumstances. The term is also used
Digitized by
Google
BREAKWATER.
33
in reference to the contrivance for arresting the motion of machi-
nery, which is effected generally by a simple or a compound lever
pressing forcibly upon the periphery of a broad wheel, fixed upon
one of the shafts or axles of the machine.
BREAKWATER, a kind of artificial embankment, dike, or ram-
part, formed of large stones, and erected for the purpose of
protecting the entrances of harbours, also roadsteads, from the
effects of violent winds, by breaking the force of the waves of
the sea ; the shipping, moored behind them, laying perfectly
secure.
The most celebrated works of this description are those of
Cherburg, in France, and Plymouth, in this country.
That of Cherburg was the first executed, having been began
in the year 1783: the building of the wall was commenced upon
upright cones of timber, and each cone was intended to have been
about 150 feet diameter at the base, 60 feet at the top, and about
60 or 70 feet high, the depth of water, at spring-tides in the line
in which they were sunk, varying from 56 to 70 feet; they were
also intended to have been filled with stones to the top, and after
allowing some time for settling, the masonry was intended to have
been commenced upon them; but a few of these cones only were
constructed, when, in consequence of the difficulty of the under-
taking, the whole was covered with large stones, thrown in at
random. This breakwater is 10 feet above the highest tides, and
has a roadway or platform, 20 feet wide, on the side next the
shore, a parapet wall being built upon it, on that next the sea.
The Plymouth breakwater was commenced in 1812, from the
plans of Messrs. J. Rennie and Whitbey. It is composed of
blocks of stone, 11 to 2 and 3 tons weight, and consists of a central
Plan of Plymouth Breakwater.
part, 1000 yards long; and two wings, each 350 yards long, di-
rected towards the sea, and forming angles of 158° with the
F
Digitized by
Google
34
BREAKWATER GLACIS-BRICK.
centre portion. A transverse section taken through the break-
water shows an average base of 290 feet, and the breadth at the
Section of Plymouth Breakwater.
top is 48 feet, with an average depth of water, at low spring-
tides, of 36 feet; the side next the sea is sloped in the pro-
portion of 1 perpendicular to 7 horizontal, and the side next the
land is 1 to 5; these sides were not intended originally to have
had so great a slope, but, in consequence of the violence of the
waves during its construction, it was thought proper to increase
them, as executed.
A, A, high-water spring-tides. B, B, low-water spring-tides.
D, the foreshore.
BREAKWATER GLACIS (some-
times termed storm pavement), the
stone paving next the sea, in
pier erections: they are mostly
laid upon a slope, or curved, the
Section showing the Breakwater Glacis.
stones being of sufficient weight to resist the action of the sea.
BREASTS, the name given to the bushes connected with small
shafts or spindles.
BREAST WALL, a wall built up breast-high, as a parapet wall,
or a retaining wall, placed at the foot only of a slope.
BRICK, an artificial preparation of clay, sand, and ashes, burnt
in a kiln, or clamp, and used for building, and for other pur-
poses ; good brick earth is also sometimes found in a natural state.
A good brick is about 84 inches long, 41 inches wide, and
21 inches thick, when burnt.-(The Act of Parliament which
regulates the size of bricks, states, that they shall not be less than
81" X 4" X 21").
Brickwork is measured in London by the rod, and was taken
from the original standard of 161 feet cube, which gives 272₫
Digitized by
Google
BRIDGE.
35
square feet of 1½ bricks brickwork, or work 11 bricks thick,
as the superficial contents of 1 rod of reduced brickwork. There-
fore, as the standard thickness of a brick wall is 13} inches,
there are consequently 306 cubic feet in a rod of brickwork, and
a standard rod will require about 4,500 bricks, allowing for waste ;
but it depends on the closeness of the joints and the size
of the bricks, as they sometimes vary a trifle; and 1 rod of brick-
work will take 1½ yards of chalk lime, or 1 yard of stone lime, and
2½ yards of sand with stone lime, or 2 yards with chalk lime,
for the mortar: 1 foot of reduced brickwork will also require
17 bricks.
As brickwork is generally measured by the yard in the country,
it is therefore the general custom of engineers to adopt the latter
measure : there are 11½ cubic yards in a rod.
Bricks are usually burnt in clamps, or stacks, in the vicinity of
London, flues being made in the interior to contain the fuel, and
they take from twenty to thirty days burning; but they are burned
in conical erections in the country, termed kilns, which will burn
about 20,000 at a time, consuming less fuel and occupying less
time than the former method, 48 hours being sufficient for the
burning of them in kilns.
London stocks, also those of Manchester, are the most durable.
Suffolk bricks are very celebrated for their light colour and
even form, also for their close texture, which renders them nearly
twice the weight of common bricks. The softest and most porous
bricks made in this country, are those of the midland counties.
BRIDGE, a very common engineering expedient employed for
passing over rivers, canals, and roads. Rivers of great width were
not often crossed by bridges formerly, but ferries were usually
established, at convenient spots, for the purposes of communi-
cation (the scites of most river bridges were formerly occupied by
ferries), and shallow streams were commonly forded. The erec-
tion of a bridge over a river occasions a great increase of traffic
in the line of route, as may be naturally anticipated, in common
with all schemes for facilitating conveyance.
Digitized by
Google
36
BRIDGE.
The bridges employed in modern times
are constructed after various methods, but
arches are mostly used. In most cases the
road is carried over at once by stone or brick
arches, or by iron or wood beams thrown
across and trussed, according to the span ;
the road is sometimes suspended from in-
verted bows by rods, being usually formed
of iron, the which are supported upon stone
piers at each end, and from thence carried
down and secured in the ground, which are
called iron suspension bridges-as the Menai
bridge; this description is generally adopted
where the span is very great. In other in-
Elevation of Menai Bridge.
Elevation of Bridge near Chalk Farm.
Digitized by Google
BRIDGE.
37
stances the road is suspended by rods, or otherwise, from trussed
ribs or girders occupying the space of the parapet walls, the which
are termed bow-string, or tension bridges ; as the bridge over the
Regent's Canal, near Chalk Farm, on the London and Birmingham
Railway. The two bridges over the River Aire, near Leeds, may
also be cited as bridges of the latter description.
Among modern bridges may be mentioned the Rialto Bridge,
over the Grand Canal, at Venice, which was commenced in 1588,
by Michael Angelo, and is considered to be a very beautiful
structure.
I
Elevation of the Rialto Bridge.
The bridge across the Seine, at Neuilly, built between the
years 1768 and 1780, by Péronett, is a very celebrated struc-
ture ; it is a level bridge, consisting of five elliptic arches, each
of 128 feet span, and 32 feet rise.-See next page.
Waterloo Bridge, London, by Mr. John Rennie, is considered
a masterpiece, it was commenced in 1810, and is also a level
Details of one of the Arches and Centreing of Waterloo Bridge
Digitized by Google
38
BRIDGE.
bridge, having nine arches, each 120 feet span, and 35 feet rise,
and it is 42 feet 4 inches wide between the parapets.
London Bridge, by the same engineer, is a fine work, and,
together with the last-form excellent specimens of masonry, being
Elevation of one of the arches of Neuilly Bridge.
Transverse Section of ditto.
Centre Arch Enlarged of Southwark Bridge.
Digitized by Google
Elevation of Waterloo Bridge.
Elevation of London Bridge.
BRIDGE.
Digitized by Google
Elevation of Southwark Bridge, and Plan showing Iron-Framing.
39
40
BRIDGE.
constructed of granite. This bridge consists of five elliptic arches,
the centre one is the largest elliptic stone arch at present erected,
being 152 feet span, and having a rise of 29 feet 6 inches above
high water-mark; the two arches next the centre are each 140 feet
span and 27 feet 6 inches rise, and the abutment arches, each
130 feet span, and 24 feet 6 inches rise the width between the
parapets is 53 feet.
Southwark Bridge, London, also by Mr. Rennie, is a magni-
ficent bridge, it is formed of cast-iron, supported by granite piers,
and consists of three arches, the centre one being 250 feet span,
and the side arches 210 feet; the piers are 24 feet thick, and it is
42 feet wide between the parapets: and Blackfriars and West-
minster Bridges (which are now undergoing repair), also Vauxhall
Bridge, are very extensive works.
The stone bridge over the Clyde, at Glasgow, erected by
Mr. Telford, is considered to possess great merit, having seven
segmental arches, the centre one being 58 feet 6 inches span, and
10 feet 9 inches versed sine.
Timber bridges have been much more generally employed
since Mr. Kyan's invention for preserving timber, as the material
offers very great advantages. In wooden bridges of small span,
the pieces running from pier to pier are termed sleepers, or string-
pieces, the which sup-
port the cross-joists,
on which the planking
is laid : small pieces
of wood are some-
times introduced un-
der the string-pieces
to shorten the bear-
Small Timber Bridge.
ing, which are termed bolsters, or corbels.
A system of forming bridges and viaducts by laminating
timber arches, has been lately introduced by the Messrs. Green,
upon the Newcastle and North Shields and Tynemouth Rail-
ways. The Ouse-burn Viaduct is 108 feet high, and consists of
Digitized by Google
BRIDGE.
41
five arches, each 116 feet span, with two
stone arches at each end, 45 feet span; and
the Wellington Dean consists of seven arches,
each 120 feet span, the height up to the
roadway being 82 feet. The piers and abut-
ments are of stone, and each arch consists of
three segmental ribs, each rib being com-
posed of thirty 3 inch deck deals, being
two deals in width and fifteen in height;
they vary in lengths from 20 to 45 feet :
the first course is formed of two deals in
width, as before stated, bent over a light
Elevation of Glasgow Bridge.
Details of Centre Arch, and Centreing.
TITLE
G
Digitized by Google
42
BRIDGE.
centre; the next course consists of one deal and two half ones,
and so on, until the whole rib is formed, the ends breaking
joint with each other; and they are connected together by 3 inch
Elevation of Centre Arch of the Wellington Dean Viaduct.
oak-trenails, each passing through three of the deals; a layer of
brown paper, dipped in boiling tar, is placed between the joints
to prevent the wet from injuring them, and the timbers are
bedded tightly on it; the ends of each rib are let into cast-iron
shoes, which are fixed to the springing-stones of the masonry,
and the which are secured with four long iron bolts and run with
lead, and the three ribs are connected together by diagonal braces
and iron ties; the spandrels are framed as shown in the cut, and
the whole of the timber is prepared with Kyan's patent prepa-
ration. The Messrs. Greens state the expence at considerably
less than one of stone; they have also applied the same "principle
with a more durable metal, viz. iron, the bars being grooved and
tongued into each other.
The wooden bridge, erected by Mr. Bull, over the River
Calder, at Mirfield, Yorkshire, for the use of the leading-horses,
is also worthy of notice: it is 147 feet 6 inches span, and
11 feet versed sine; the arch is composed of two ribs of fir
Digitized by
Google
BRIDGE.
43
timber, with cross stays and diagonal braces, the whole well
bolted together.
Bridge at Mirfield.
There have been several arches of large span executed with
timber, in Germany and in America-as the Schuylkill Bridge,
at Philadelphia, of three arches, the centre one of which is 195
feet span, and the side ones 150 feet; also, the upper Schuylkill
Bridge, of the same city, consisting of one arch, 340 feet span,
the rise being only 20 feet, the which is the largest arch in the
world.
The floods form the principal difficulties to guard against in
bridges connected with rivers and canals; and their effect upon
the nearest adjacent bridges and arches should be carefully
ascertained previous to deciding upon the width of the arches
or openings of the intended works. The traffic should be
considered next, and sufficient width left for it between the
parapets.
The number of bridges required for a railway varies in almost
every instance. There are about two in a mile on the Liverpool
and Manchester Railway, exclusive of the viaducts. The pro-
portion of bridges on the Leeds and Selby Railway is about
21th; but the London and Birmingham does not average 11
bridges 'per mile. The mean of nearly 100 railways have been
found to average 21 bridges per mile.
The term bridge is also applied to any horizontal beam sup-
porting something.-See Arch, Bow-string Bridge, Draw-bridge,
Iron-bridge, Suspension-bridge, Swivel-bridge, and Catanarian Curve.
BUFFER-HEADS.-See Buffing Apparatus.
BUFFING APPARATUS, a contrivance for receiving the shock
G 2
Digitized by
Google
Elevation of Schuylkill Bridge. Longitudinal Section.
BRIDGE.
Digitized by Google
Elevation of the Upper Schuylkill Bridge. Longitudinal Section.
BUFFING APPARATUS.
45
of a coalition between railway carriages, con-
sisting of powerful springs and framing.
The buffing apparatus, first used upon
the Liverpool and Manchester Railway,
consisted of elliptic iron springs, or bows,
of several thicknesses, placed transversely
:
across the middle of the frame-work of the
carriage which received the shock of what-
ever blows or jirks the buffer-heads might
receive, by the aid of rods communicating
with the same, to which method the following
has been considered an objection :-If the
several carriages are not loaded equally, the
frames do not range upon the same level
with each other ; and when this is the case,
the buffer-heads consequently do not strike
Section of Bergin's Buffing Apparatus.
each other in the centre, whereby the rods
become bent, and the whole apparatus is
liable to get twisted to remedy which,
Mr. Bergin, of Dublin, contrived an im-
proved buffing apparatus for the carriages of
the Dublin and Kingstown Railway. - See
cut.
It is supported upon the axles of the
wheels, and is totally unconnected with the
frame of the carriage, whereby it does not
partake of the rise and fall of the latter,
according to the weight acting upon the ver-
tical springs; and two strong iron rods are
passed through the whole length of the car-
riage, which rest upon small rollers, to which
the buffer-heads are attached, spiral springs
being wound round them, which receive the
effect of all shocks, by the help of collars
formed upon the rods, and the introduction
of stops to the springs.
Digitized by Google
46
BURN-BUSH.
a, a, are plates of sheet iron, 1ˢσth of an inch thick, and placed
3 inches apart from each other (being fastened together by
rivets) ; they rest on turned bearings on the middle of the axles,
and are fixed to an iron frame, i, i, i, i, which rests against the
cross sheaths, k, k, k, k, and framework of the carriage, but are
not attached to it. g,g, are strong iron rods, passing from one
end of the frame to the other, the buffer-heads, h, h, with the
dragging-chains attached, being fixed at each extremity ; these
rods pass through the hollow tubes, d, d, d, d, resting upon rol-
lers, f,f,f,f, which enables them to move backwards and forwards
with freedom. e, e, are the collars which compress the springs
and b, b, are the axles of the wheels.
This system is found to answer very well, although there are
several modifications of the former description of spring in
successful operation, as the following; and Mr. Booth's patent
draw-links are now always employed to conduct the carriages
together (see Draw-link). A patent has lately been taken out by
Mr. Burstall for a pneumatic carriage-spring, railway-buffer, and
elastic-drag, the elastic properties of air being taken advantage
of for the same ; a flexible vessel, as catouch, is placed, air tight,
in a metal cylinder, when the shocks of the buffer-heads are
communicated to these elastic springs by means of piston-rods
and pistons.
BURN, a provincial name for a brook.
BUSH, a piece of metal, usually made of hard
brass, and fitted into a plumber-block, in which
the journal turns ; they are also sometimes
termed pillows, and the blocks, pillow-blocks.
The guide of a sliding rod is also termed a bush,
thus :-A, the piston-rod ; B, B, the bush.
Digitized by
Google
BUTTERFLY VALVE-CANAL.
47
BUTTERFLY VALVE, a description of clack-valve.-See Clack-
valve.
CAISSON, a large water-tight floating-box, used for the purpose
of putting in the foundations of the piers of bridges, &c., which
system is generally employed in rapid rivers: a suitable pit is
first dug, to receive the caisson and after one or two experiments
are made, to ensure that they perfectly suit each other, it is per-
manently sunk, and the masonry commenced from within it (the
top of the cassion being above high water-mark), and carried up
level with the water, when, by a contrivance, the sides are re-
moved, and the pier is left resting firmly upon the bottom grating;
and they should be protected by sheet-piling all round, similar
to the piers of most river bridges. The bridges of Westminster
and Blackfriars were built on caissons; but coffer-dams are gene-
rally employed at the present time, as the foundations of both
the above bridges appear defective, and are now undergoing
repairs.
CAMBER, a term applied to the rise given to girders and beams
in their centre, as an allowance for the sinking, which usually
occurs after being hoisted and fixed.
CANAL, an artificial cut in the ground, prepared for the recep-
tion of water, with which it is supplied, either by means of rivers
or springs, &c., thereby constituting a means of internal commu-
nication, the which is principally confined to the conveyance of
heavy articles.
Canals were not unknown to the ancients, although their re-
vival in modern times is comparatively recent; they were not
used in this country, at least since the time of the Romans, until
the year 1755, from which period they have spread throughout
the whole kingdom; and the competition, presented at the present
day by the several railways, has given a great impetus to im-
provements upon them; the boats have been improved, and new
machinery employed at the locks, in order to accelerate the
traffic. Locomotive engines have also been tried, to propel the
boats upon the Forth and Clyde Canal, by Mr. Macneill, and have
Digitized by
Google
48
CANAL.
given every satisfaction : the engine runs upon a railway laid
down upon the towing-path.
The water-slopes of canals
can be constructed with a less
slope than ordinary earth-
work, by reason of the sup-
port which they receive from
the water, a proportion of 1½
to 1 is generally found suffi-
cient; and the water is pre-
vented escaping by puddle-
gutters and side lining, laid
about 2 or 3 feet in thickness :
where the canal is in embank-
ment, bottom and side puddles
are necessary, thus (see cut) ;
Section of a Canal in Cutting. A, A,A, the Side Puddles.
Section of a Canal on Level Ground. A, A, A, the Bottom and Side-lining.
and where it is in cutting, or
upon a level with the ground,
vertical puddles on each side
are generally sufficient; as
shown on cut.
Brooks are carried across
canals by culverts; or, in
the case of water being re-
quired for its use, and the
brooks afford clear water, it
may run into a side basin
to settle, and from thence
passed into the canal, by pro-
per sluices.
The sides and bottoms of a
canal are sometimes obliged
to be walled throughout,
owing to the filtering nature
of the soil, the which is after-
Digitized by Google
CANAL.
49
wards lined over with good earth, to protect it from the effects
of the boats, hooks, &c
In the practical execution of canals, a contrivance, called a lock,
is usually resorted to, in order to convey the boats from one level
to another; the several distances between them being termed
reaches.
The resistance upon canals is generally allowed to be in pro-
portion to the square of the velocity, provided the depth of
immersion remains the same; but if the vessel rises up in the
water by reason of the velocity, the resistance is lessened: thus,
in some recent experiments made upon canals, it was found,
that, after a certain speed, the power of draught was dimi-
nished instead of increased, which was caused by the gradual
rise of the boat out of the water, owing to its particular con-
struction. A like effect is also supposed to take place with
steam-boats.
The power of draught of a horse upon a canal has been stated
to be from 20 to 30 tons, at about two miles an hour; and a
horse can draw a greater weight on a wide canal than on a
narrow one, viz. about ¹ᵗʰ more.
The following Table will show the cost of conveying goods
and passengers upon canals, at different rates of speed, accord-
ing to Mr. Macneill's tables :-
Rate of
Cost of
Resist-
General
Aggregate charges.
Description of
speed,
Cost of
boat-hire,
in miles
ance,
haulage, per ton
&c.
expenses
per ton,
per mile.
per ton
per ton
boats.
Useful load,
Gross load,
per
in lbs.
hour.
per mile.
per mile.
per ton per mile.
per ton
per mile.
d.
d.
d.
d.
d.
Slow boats
21
2.73
0.18
0.32
0.86
1.36
1.02
Fly boats.
4
7.07
0.5
0.66
2.34
3.5
2.275
0.275 per
1.08 per
10. per
Swift boats
10
56.8
passenger,
9.7
passenger,
ton.
3.5 per ton.
13.25 per ton.
H
Digitized by Google
50
The following Table gives the comparative cost of goods and passengers on canals and upon
railroads, both with horse and locomotive power on the latter :-
reception of a shaft or axle, in which the latter revolves.
CARRIAGE, a seat formed in any framing, and adapted for the
CANALS.-HORSE POWER.
RAILWAYS.-HORSE POWER.
RAILWAYS.-LOCOMOTIVE POWER.
Rate of speed in
miles per hour.
Resistance, per
ton in lbs.
Cost of
Cost of
haulage and
conveyance,
boat-hire, per ton
per ton
per mile.
Rate of speed in
miles per hour.
Resistance, per
ton per mile.
Cost of
Cost of
haulage and
conveyance,
carriages, per ton
per ton
Rate of speed in
miles per hour.
Resistance, per
ton in lbs.
Cost of
Cost of
Charges of
haulage and
conveyance,
conveyance,
carriages, per ton
per ton
per ton
per mile.
per mile.
per mile.
per mile.
per mile.
per mile.
CARRIAGE.
*
21
0.5d.
1.36d.
8.5
0.565d.
1.065d.
{
1.065d.
2.73
21
0.75d.
1.65d.
8
8.5
1.565d.
4
7.07
1.16d.
3.5d.
4
8.5
1.127d.
3.627d.
12
8.5
0.727d.
2.138d.
3.5d.
Haulage.
0.275d. per
1.08d per
0.25d. per
1 to 1.5d.
0.25d.
0.675d. per
1d. to 14d.
Digitized by Google
10
56.8
passenger,
passenger,
10
8.5
passenger,
per pas-
per
passenger,
per pas-
3.5d. per
13.25d. per
2.24d. per
senger,
20
8.5
senger,
senger,
ton.
ton.
ton.
15d.perton
0.73d.
2.855d. per
12.37d.
per ton.
ton.
per ton.
See Lock, Lock-gates, Clough, and Elbow.
CARRIAGE-CEMENT.
51
CARRIAGE (railway). The carriages employed on railways are
built in a variety of styles, and are usually mounted on wooden
frames situated above the wheels, the bearing of the axles being
on the outside of the same; high wheels are, therefore, very in-
convenient: they are connected together by a draw-link, or
chain. The patent draw-link, by Mr. H. Booth, is now much
employed; the carriages are also protected from the effects of
shocks that might result from their striking against each other
by the buffing apparatus.
The employment of low-bodied carriages is a great preven-
tative of serious accidents, as they preserve their equilibrium
better than high ones; they are, therefore, particularly suitable
to viaduct lines, as the Greenwich Railway, where they are
upon Curtis's improved plan, the bodies being suspended from
the springs, instead of being placed on them a less draught is
also produced upon the engine by them, as a train of low-bodied
carriages will approach nearer the line of traction, which is situ-
ated at the level of the rails.
The first-class railway carriages are extremely convenient, and
costly: perhaps those on the Great Western are the most perfect,
being from 18 to 21 feet long, and 8 feet wide, and of sufficient
height for a person to walk about in; the second class are not so
well fitted up and the third class, when employed, are generally
open at the top and sides.-See Axle, Bearings, Buffing Apparatus,
Wheel, &c.
CATANARIAN CURVE, the curved line, described by a chain,
cord, or other flexible body, when hanging freely from two fixed
points, whether they be horizontal or not; which form of curve
is considered by some mathematicians to be the best for arches
generally.
CATCHWATER DRAINS, drains laid along the side slopes of
cuttings, the which generally run in an oblique direction, and
convey the water into a culvert or cross drain.
CAUSEWAY.-See Road.
CEMENT, a composition of several mineral substances, natu-
Digitized by Google
52
CENTRES.
rally combined or artificially prepared, which become hard upon
mixture with lime and a small portion of water. Every kind of
stone-lime, when well burnt, becomes a very durable cement ;
and none other was used in this country until the introduction of
roman cement, which is now very extensively employed.-See
Lime, Hydraulic or Water-lime, and Roman Cement
CENTRES (of arches), the wooden frames or moulds used in
the construction of arches, for the support of the voussoirs or
arch-stones, during the course of execution.
The construction of the centres of bridges over rivers is of
great importance. In cases where a communication is not re-
quired under the arches during the execution of the works, the
centres may be constructed with a level tie-beam, which lessens
the difficulties attending the same exceedingly ; but it is gene-
rally necessary to form them in such a manner that the navigation
shall not be impeded : where head-room is left above the spring-
ing of the arches, such centres are termed cocket-centres.
The following cut represents the form of centre used in the
construction of Blackfriar's Bridge :-
Elevation of one of the ribs, forming the centre of Blackfriar's Bridge.
The centres used in the construction of bridges were formerly
removed piece by piece upon the completion of the arches: the
practice of "striking them" (as technically termed) by driving
wedging-pieces between two striking-plates fixed in each side, is
employed at the present time, which has the effect of lowering
the centre, whereby the arch is left standing without support ;
Digitized by
Google
CHAIN.
53
thus it may be gradually eased in every direction simultaneously,
which prevents any unequal pressure or strain. The best way of
supporting the striking-plates, upon which the whole of the
framing rests, is by struting, or raking-pieces resting upon sills
laid upon the top of the footings.
The system of supporting centres by rows of piles driven in
the bed of the river should not be resorted to, unless the span of
the arch is of such extent as to prevent any other mode of ex-
ecution, or the foundation is particularly safe ; but even then
the work is likely to suffer, unless the framing is exceedingly
well balanced and secured together.
Mr. M. I. Brunel has recently succeeded in erecting an arch
without centres of any kind.-Upon the piers being built, the
ribs, by his method, must be carried forward from each side at
the same time, whereby the equipoise is preserved; and when
those of opposite abutments arrive sufficiently near to each other,
the key-stones must be fixed ; the bricks, of course, to be set in
cement, and iron hooping or lathing is intended to be laid
between the courses.-The experimental arch above alluded to
was carried out a distance of 60 feet, it would, therefore, have
formed a segmental arch, 120 feet span, the rise being no more
than 11 feet ; and the whole was ,built from above by hanging
scaffold.
The angle of friction of ordinary cut stone is about 30° with
the horizon; when laid in thin tempered mortar it is from about
34° to 36° ; and with very porous stones laid in full mortar it is
nearly 45° ; therefore a centre is unnecessary for those voussoirs
laid at a less inclination than the above respectively, while
those exceeding it must be duly supported until the key-stones
are set.
CHAIN, or LAND, CHAIN, a measure used in measuring land,
Digitized by
Google
54
CHAIR.
consisting of a number of links connected together by rings.
Gunter's chain, which is that generally used, is composed of 100
links, and is equal to 66 feet or 4 poles in length : one square
chain is 10,000 links, or 16 poles; and 10 square chains 100,000
links, or 160 poles make one 1 acre.
The chain should invariably be stretched out on level
ground and measured, previous to commencing operations, by a
10 feet rod, and if found too long, corrected by removing some
of the rings or shortening the links, the corrections being made
equally from each end, and from the centre: if any considerable
error exists it should be distributed equally over the ten divisions
of the chain. It is also customary with some surveyors to mark
out a chain correctly on some convenient spot, as a standard to
refer to from time to time. Chains, double the length of
Gunter's, are also used, and preferred by some, on account of
their expediting the work and 50 feet, also 100 feet chains,
may be advantageously employed in a survey, as for streets, roads,
canals, and railways, where the superficial contents are not the
immediate motive for the survey, it being necessary to return to
the 66 feet chain in reducing the quantities to acres.
CHAIR (railway), a pedestal or socket, of cast-iron, used upon
railways for receiving and securing the rails, and generally
weighing from 12 to 20 lb. each.
The chair for receiving the ends of two
rails is termed a joint, or double chair; and
these are of larger size than the others,
which are called single, or intermediate chairs.
The chairs are fastened to the blocks by oak
trenails and iron pins : a hole, 2 inches in
diameter, being first drilled in the block, into
Chair on the Birmingham Railway
which the oak trenails are driven a 1 inch hole is then bored in
the latter by an auger, and the iron pin passed through the seat of
the chair and drove securely into the trenail, a piece of felt being
introduced between the seat of the chair and the block, to ensure
a firm bearing. When sleepers are employed, the chairs are
secured to the sleepers by means of iron spikes.
Digitized by
Google
CHAIR.
55
It is very desirable to get such a form of chair as will adapt
itself to any settlement of the block without deranging the rail,
by either forcing it up or down. Mr. Nicholas Wood, in his
Practical Work on Railways, states, that none of the many
chairs at present in use, which receive the ends of the rails in
their sockets bodily, effect this. A rail which merely rests on
the chair at a single point, partly obviates it but a mere pin,
passing transversely from one cheek of the chair to the other,
and through the rail, will best accomplish it. This formed an
excellent mode of securing cast-iron rails, as they were made
in lengths equal to the bearing between each chair only; but
it is unnecessary with wrought-iron rails, except at joint chairs,
in which case the rails must be halved and lapped at the ends,
to allow of the passing of the pin through each of them; although
square jointing is employed on most lines of railways, being the
cheapest.
The chairs should be formed as little wider than the rails as
possible, by which they would be more likely to escape the wheels
in the event of an engine running off, and consequently concussion:
and the means adopted to confine the rails within the chairs should
be as simple as possible: the most general plan of securing
them at the present time, is by driving a key, in a horizontal
direction, within the space between the cheek and the rail an
Section.
Elevation.
Plan.
iron key was originally used, but
one of oak has been found to answer
the purpose best; although there are
many other varieties of chairs and
View of chair.
fastenings.
Mr. Robert Stephenson took out a patent, in 1833, for the
following chair, the principal improvement in which consisted in
Digitized by
Google
56
CHALK.
the self-adjusting seat for the rails to rest on, and the mode of
fastening the same ,-
Fig. 1.
Figure 1 is a plan of the chair, &c., a a
z
being the rail.
Figure 2 is an end elevation.
a
Figure 3 represents a transverse sec-
tion of the chair, b b being the pins
through which the cottars are passed to
secure them ; and c the segmental bear-
Plan.
ing-piece, which lays loose in a socket prepared for it in the
bottom of the chair.
Figure 4 is a perspective view of a joining, showing the halving
of the rails.
Fig. 2.
Fig. 3.
Cross Section.
Elevation.
Flg. 4.
View of joining of rail.
CHALK, a calcareous earth, of very soft substance and of a fine
white colour, with a yellowish tint when mixed with iron. It is
generally found in thick beds, nearly horizontal, with thin layers
of flints intervening, and containing a great quantity of dis-
organized matter. Mr. Kinman gives the following analysis of
chalk when in a pure state :-
3 of water.
53 " lime.
42 " carbonic acid.
2,, alum.
100 total.
Digitized by Google
CHEEKS-CHIMNEY
57
The Tring cutting, on the London
and Birmingham Railway, is taken
through this material, in which many
Elevation of top.
fossils were discovered.
Chalk will stand at a very steep in-
clination, if executed in steps or ledges.
Lime prepared from chalk is very
serviceable for building purposes, al-
though it is not generally considered
equal to stone lime; but Dorking, and
other excellent limes, are obtained from
chalk quarries
CHEEKS, those parts of machinery
which are double, and enclose other
parts.
CHIMNEY, a long funnel or aper-
ture, erected for the purpose of draw-
ing off the smoke from a furnace, and
the like, which operates as follows, viz.
as the column of air in the chimney
becomes heated, and consequently
rarified, its specific gravity or weight
is thereby reduced, when it effects an
escape at the top of the chimney, cre
ating a draught up it from the furnace
and the higher the chimney the greater
will be the power of draught. The dense
black smoke, so often seen escaping
from chimneys, is composed of a quan-
tity of unconsumed fuel; it is, there-
fore, a great object to prevent this waste,
A
by consuming the smoke in the furnace,
the pernicious effects of it upon the at-
mosphere is also thereby removed.
In erecting chimneys, from 70 to 90
I
A, A, Level of the Rails.
Digitized by Google
58
CHIPPING-PIECES-CLACK-VALVE
feet high, it is a common rule to make them 20 inches square at
the top for each horse power of the boiler, giving an area of 400
square inches and the draught is not improved by increasing
the height much beyond 40 or 50 yards, unless the width be
increased in a similar ratio.
The two chimneys connected with the stationary engines that
work the Euston-square plane, on the London and Birmingham
Railway, are 132 feet 4 inches high, and have a very elegant
effect; they are nearly 13 feet in diameter at the base, and about
5 feet 6 inches at the top, and the greater part of each is carried
up in 1½ and 2 bricks only, the bases being rather more (see cuts).
CHIPPING-PIECES, the projecting pieces of iron cast on the
faces of iron framing, when intended be rested against each
other ; the chipping-pieces, therefore, become the points of
contact.
CHOCK, a filling in piece, or loose block of iron or wood, in
any machine or contrivance.
CIRCUMVERENTER, an instrument, used in surveying, for
taking angles by means of the magnetic needle, and employed
where great accuracy is not required, excepting in the line of the
permanent direction of the needle.
The magnetic needle is enclosed in a compass-box, which is
mounted on a pivot in the head of a three-legged stand, the cir-
cumference of the box being divided into 360 parts, or degrees,
and the latter is furnished with two sights on opposite ends of
the meridian line, or 180°.
In taking the angle between two objects with it, the box is
turned until one of them is seen through the sights the number
of degrees to which the south end of the needle points is then
noted, and the box is again turned until the second object is seen,
when the degrees pointed to by the needle are again noted, and
the difference between the two numbers is the quantity of the
angle.
CLACK-VALVE, a valve much employed in hydraulics, con-
sisting of a circular piece of leather covering the bore of the tube
Digitized by
Google
CLAYING-COAL-MINE.
59
in which it is fixed, and moving by a hinge,
sometimes consisting of metal, at other times
of leather. When two semi-circular valves of
this description are employed, and attached to a
bar placed across the tube, it is called a butter-
fly valve, which is considered an improvement on the common
clack-valve.
CLAYING, the operation of puddling.-See Puddle.
CLINOMETER, or BATTER-LEVEL, an instrument employed in
measuring the slopes of cuttings and embankments; it consists
of a quadrant graduated to degrees, and fixed at the end of a flat
bar which is laid along the slopes, and an index turns upon the
centre of the quadrant to which a spirit level is attached; there-
fore, upon the bar being laid lengthways across the slope, and
the level set horizontally, the angle of the same will be indicated
on the quadrant, as the latter partakes of the motion of the rod.-
See Slope.
COAL-MINE. The working of coal-mines differs from stone
quarries, inasmuch as the latter are generally laid open to the
light, and worked from pits at the surface; while those of the
former are worked by means of shafts, which are sometimes of
very great depth, the coals being drawn up to the surface of the
ground by a steam-engine. There are no instances in this country
of coal-measures, or beds, lying sufficiently near the surface to
be laid bare and worked in open day ; nor are they met with in
the sides of hills, where the mines could be pushed forward in a
horizontal direction.
The method of working coal-mines differs throughout the king-
dom, being regulated by the various local circumstances and
customs; and that class of civil engineers, who devote their atten-
tion exclusively to the subject of coal-mines, are designated
coal or colliery viewers.
In the Newcastle coal-field the amount of capital necessary to
work a mine varies from £10,000 to £15,000; they are gene-
rally leased from the proprietors, the lessees being termed
12
Digitized by Google
60
COAL-MINE.
adventurers the extent of the mine is marked out on the surface
of the ground, the coal has then to be won, i. e. obtained pos-
session of. The risk attending the winning of a field of coal is
very great quicksands are frequently encountered in sinking the
shaft, and great quantities of water occur at certain parts of the
stratification, generally at about 250 or 300 feet, which is
dammed back by tubes, or iron pipes.
The shafts vary in depth from 40 or 50 to 1,000 or 1,200 feet
besides the working shaft, another is also required to draw up
the water and ventilate the mine, and these are independent of
ventilating-shafts, which are required at every 100 yards distance.
The weight of water drawn up is frequently ten times greater
than that of the coal. A steam-engine is fixed at the pit's mouth
to draw up the coals, and they are also employed below in deep
mines with very great advantage, in which case the shaft goes
only a part of the way down, when inclined planes are made to
the bottom, the which are worked by another steam-engine, fixed
at the top of the plane. The coal is worked in galleries laterally,
or in the direction of the seams; pillars being left to support
the top strata, forming the roof. In Staffordshire the whole of
the coal is removed, and the roof allowed to fall in, precautions
being taken for the safety of the miners : sometimes the roof does
not give way, in which case immense vacant spaces or voids are
left, which, in course of time, become filled with water, to the
imminent danger of the adjoining mines, as they may acciden-
tally open into one : mines have frequently been drowned by this
circumstance.
The presence of fire-damp is another fearful occurrence to
which coal-mines are subjected; the coal, in its natural bed,
contains a great quantity of free uncombined gas, which is dis-
engaged by the action of the air occupying the place of the
strata excavated, and on account of its being relieved from the
great pressure exerted upon it by the latter the lower the strata
the greater will be the quantity of gas evacuated, as it partly
escapes from the upper beds by means of the fissures a great
Digitized by
Google
COCK-COFFER-DAM.
61
escape of gas takes place under ordinary circumstances, as it is
in continual process of distillation from the lower coal-measures,
and it accumulates in all the fissures of the stone where it
acquires a highly condensed state; these fissures are frequently
many miles in extent; and if the miners cut across one of these,
or approach sufficiently near, the elastic force of the compressed
gas causes an eruption, when it rushes out with immense force,
and in vast quantities: these currents are termed blowers, and
have been known to continue in action from two to three years.
Naked lights in mines are wholly inadmissible, as, upon the
approach of a candle, the gas instantly explodes with a report
like gunpowder, often causing lamentable accidents. Light was
formerly obtained in mines by steel mills; a small steel wheel,
about 6 or 7 inches diameter, was moved with great velocity, and
a piece of flint was presented to it, when a stream of sparks was
emitted; the light thus obtained was very feeble, and not alto-
gether free from accidents with certain gases. The safety lamp
of Sir Humphry Davy is now universally employed, which
consists of a vessel for the reception of the oil, and a cover of
fine wire gauze enclosing the wick, which is generally locked on
to prevent its removal; upright frame wires surround the cover,
terminating at the top by a sort of cap, in which there is a ring
for carrying it. The principle of the davy, as it is called by the
miners, consists in the circumstance of fire-damp not exploding,
under any degree of heat, provided flame is not present; and the
fact discovered by Sir Humphry, that flame could not pass
through short tubes of very fine bore, which the gauze may be
said to represent. The lamp subsequently received some im-
provement in the shape of reflectors placed above it, whereby the
light was concentrated.-See Mine.
Cock, a sort of revolving valve, fixed in a pipe, for the pur-
pose of stopping the passage of any fluid through it when
required.
COFFER-DAM, a water-tight enclosure, used in putting in the
foundations of bridges, sea and river walls, &c. (which are en-
Digitized by
Google
62
COFFER-DAM.
circled by the same) when the work cannot be done between the
tides, on account of the water constantly covering the site.
Coffer-dams are
either of a cir-
cular, oval, or
oblong form, and
consist of one or
more close rows
of sheet piling,
rising above high
water-mark, and
bolted transversely toge-
Plan of the Coffer-Dam used for the Piers of Staines' Bridge.
ther, having a large body
of clay well punned be-
tween each row, with
stays, raking-piles, and
braces, at the back of the
same, to support the
pressure of the water on
the outer side. Upon the
completion of the dam,
the water enclosed by it
is pumped out, and the
Portion of the Coffer-Dam used for the Piers of London Bridge.
foundations carried up.-See Piles.
Section of the Coffer-Dam and Wall of the New Houses of Parliament.
Digitized by Google
COGS-CONICAL WHEELS.
63
CoGs, the teeth employed on wheels and racks in machinery,
constituting their means of action.
CoG-Wheel, a wheel having a number of cogs placed round
its circumference.
COKE, a mineral charcoal, a fuel much employed for steam-
engines; it is obtained by burning coal to a red heat, in heaps,
properly covered, to prevent exposure to the air: the bitumen,
and other gaseous substances, are thus drawn off, leaving a
cinder behind, such as is left in the retorts employed in gas-
works.-See Fuel.
COLLAR, or GLAND, a term applied generally to a circular
piece fitting into another, for the purpose of holding it in its
place, as a metal plate screwed down upon the stuffing-box of a
cylinder to keep the former in its place.
COMPASS, an instrument for determining the angle of any
particular object with the meridian, which is effected by looking
through sights placed on the margin of the instrument, and then
reading off the degrees and minutes pointed to by the needle,
the which gives the angle formed with the magnetic meridian;
the variation of the same at London, with the true meridian,
being about 231 degrees westward of north at the present time.
CONCENTRIC ENGINE.-See Rotatory-Engine.
CONCRETE, an artificial cement, principally employed in the
foundations of structures: it is composed of good lime, gravel,
and sand, in the proportion of about 1th to }th of lime, and it
should be laid in about 12 inch layers or courses, and pitched
down by barrows from a height of 10 or 12 feet, and it should
not be disturbed until properly concreted and set, when it may
be levelled, the footings laid upon it, and the walls carried up.-
See Foundations.
CONDENSING ENGINE.-See Low-pressure Engine.
CONDUIT, a passage, pipe, or canal, for conveying water, or
any other fluid.
CONICAL VALVE.-See Safety-Valve.
CONICAL WHEELS.-See Bevel Gear.
Digitized by
Google
64
CONSTANT-CONTINUOUS BEARINGS.
CONSTANT (railway). The term constant is applied to certain
fixed quantities, both in nature and art, the which are supposed
to be conclusive, as the height which a body falls in a second of
time, the ratio of the circumference of a circle to its diameter,
and as applied to railways; it refers amongst others to the pro-
portion which the tractive power necessary to move a train
bears to the weight of the latter, which is stated at 280 to yoo,
varying according to the perfection of the carriage and railway
experimented upon.-See Railway, Adhesion, and Angle of
Repose.
CONTINUOUS BEARINGS, the method originally employed of
laying rails, in this country, consisting of longitudinal sleepers
secured to transoms.
The system of continuous timber bearings has been con-
siderably improved, and much used in America, where it has
been found very suitable, on account of the abundance of timber
in that country, and the scarcity of iron.
The plan of forming the line of the Great Western Railway
may also be described as a return to this system. The longi-
tudinal or continuous bearings being from 5 to 7 inches in depth,
and 12 to 14 inches in breadth, and laid down in about 30 feet
lengths, securely bolted to cross transoms, 6 inches broad by
9 inches deep. There is a double transom at the joinings of the
longitudinal beams, and a single one between them, thus they
are single and double alternately. Piles of beech are driven
within each tract at nearly midway between the rails, 10 inches
diameter, and 12 feet long, to which the transoms are secured
by horizontal bolts; and there are, therefore, two piles to the
double transoms (which are situated between them), and the same
number to the single ones. When the piles and timbers are
properly fixed and secured together, sand, or fine screened
gravel, is beat or packed underneath the longitudinal bearers,
until the spaces between the piles are forced upwards, and a firm
bed is obtained; and the rails, weighing about 44tb. per yard,
are then laid. Mr Nicholas Wood, in his excellent Work upon
Digitized by
Google
CONVOY.
65
Mode of forming the Great Western Railway.
Longitudinal Section.
Plan.
Transverse Section.
Railways, states, that the whole
stability or superiority of this rail-
way over other wooden railways,
depends entirely "upon the retain-
ing power of these piles."
CONVOY (to railway carriages).- -
See Brake.
Details of Rail.
K
Digitized by Google
66
COPPER MINE-COUNTERBALANCE
COPPER MINE. The principal copper mines in this country
are those of Cornwall, some of which are of prodigious extent,
and the metal is contained in veins, termed lodes, which are gene-
rally inclined, sometimes considerably so; they are generally
from 3 to 6 feet wide, but occasionally much more. After a
vein has reached a certain depth, generally somewhat considerable,
it gradually diminishes in size, and is not pursued any farther
by the miners.
The consolidated mines of Cornwall are by far the most ex-
tensive in Europe, and are of wonderful extent and depth, being
1,652 feet from the surface, which is the deepest excavation in
the kingdom; the amount of the several shafts exceeds 20 miles
of perpendicular excavation, and the various levels, or ways
driven from them, amount to about 47 miles; the machinery con-
sequently required for drainage and other purposes exceeds any
similar combination in the world.-See Mine.
CORE, the internal mould or body upon which a tube or pipe is
cast, by which the hollow or hole within is formed.
CORNICE, a collection of mouldings, used in bridges and other
works, being plain or enriched, according to circumstances
they are sometimes executed with projecting blocks in the lower
part, when they are called blocked cornices.
COTTAR.-See Key.
COUNTER, a contrivance connected with a steam-engine, for
the purpose of showing the number of strokes that are made in a
given time: it consists of a train of wheel works, resembling that
of a clock, and so contrived that at each stroke of the piston-rod
a small detent is moved one tooth; it is very useful for regu-
lating the consumption of fuel.
COUNTERBALANCE, or COUNTERBALANCING WEIGHT, a weight
employed to counterbalance the vibrating parts of machinery
upon their axes, causing them to turn freely, by which a very
little power is required to put them in motion, as the counter-
balancing weight of a drawbridge, &c. A lever, acted upon by
any force, is also frequently returned to its position by a counter-
Digitized by
Google
COUNTERFORT-COWL.
67
balancing weight, as in the case of the beam of a single acting
steam-engine, &c.
COUNTERFORT, a pier or buttress, generally applied at the
back of retaining walls in modern civil engineering, for the sup-
port of the same, and likewise for the purpose of forming a tie to
the material at the back of the wall. Counterforts are also some-
times carried up upon the face of a wall.
COUNTERSUNK, the term applied to a screw, or other con-
trivance, when the bead is let in flush with the surface of another
body in which it is secured the head is bevelled round on the
underside, and the hole is similarly cut to suit it.
COUPLINGS, the means employed of communicating the action
of one machine to another; thus, where several machines are put
into operation by the same steam-engine, the means of stopping
any one of them, and of again restoring its motion without inter-
fering with the others, is effected by couplings, of which there
are many descriptions. The couplings mostly used are sliding-
boxes, which move longitudinally upon shafts or axles, and
engage or lock a shaft which is at rest with one in motion some-
times they are provided with projecting teeth, called clutches, or
glands, which catch on other teeth or levers, and thus lock the
shaft together; at other times they have bayonets or pins, adapted
to enter holes, and the connection is sometimes produced by the
force of adhesion only, the surfaces being flat, or conical : the fast
and loose pulley is, perhaps, the most simple plan, which consists of
two parallel band-wheels on the same axle, one of which is fast
upon it, and the other loose. A common band may also admit of
either motion or rest, accordingly as it is rendered tense or loose.
The force of the steam in a locomotive engine usually acts
upon two wheels only; when all four are influenced by it, it is
done by coupling the other two to the driving-wheels.
CowL, a wire cap, covering the top of a locomotive engine
chimney, and intended to prevent the escape of lighted flakes of
fuel, &c., being made of various shapes, although not employed
upon all railways.
Digitized by
Google
68
CRAB-CRANE.
CRAB, a small portable crane, used for raising materials, &c.,
as the ram of a pile-driving machine, &c.
CRADLE, or COFFER, the frame-work employed in perpen-
dicular lifts, for holding the boats, and conveying them from one
pond to the other.-See Perpendicular Lift.
CRAMP, a metal tie, used for securing the several stones of
a wall together. Cramps. are not much used in engineering
works, as the masonry is generally solid, and the blocks laid in
large sizes, which, therefore, do not require them. Copper is the
best material for them, particularly when occurring externally
but iron is generally employed. A vertical cramp is termed a
dowel, or plug; and each description of cramp should be well run,
and covered with lead.
CRANE, a machine employed at wharfs, warehouses, &c., for
raising and lowering goods, materials, &c., consisting of a long
projecting arm, called the jib, having a pulley at the extremity
of the same, over which the rope or chain passes, by which the
goods are raised, the other end being taken round a barrel
attached to the foot of the jib. The great desideratum is the
turning of the barrel with the least degree of power; and there
have been various plans for effecting the same. The handle of a
crane, called the vinch, should not be less than 2 feet 11 inches,
or 3 feet from the
ground; and the
jib should have an
angle given to it
of about 45 de-
grees.
The annexed
a
f
f
cut represents an
elevation of one
of the cranes em-
ployed on the
k
g
g
E
Regent's Canal
wharf:-
Digitized by Google
CRANK-CROSSING-POINT.
69
a is an upright pillar of cast-iron, firmly fixed in a foundation
of masonry, in the head of which there is a pin which supports
the jib b, and forms a pivot, round which it turns. d, d, are two
struts supporting the extremity of the jib, the lower ends resting
on a collar, which is suspended from the jib by iron rods, f,f,
and passes all round the pillar. The barrel is supported by side
frames, g; and k is the toothed wheel, whereby the barrel is
put in action, which is turned by a winch and pinion. The
crane is turned round on its pivot by the winch m, which ope-
rates on an intermediate wheel and pinion, and thereby turns the
lower pinion n, which works in a wheel o, fixed in the base of
the pillar.
CRANK, a short arm or lever, fixed to the shaft of any machine,
and set in motion by a connecting rod proceeding from some
other part of the engine, which has a reciprocating motion to and
fro, by which it is conyerted into a rotatory one. Large fly-wheels
are required to be fixed to the shaft where one cylinder is used,
and a continuous motion is required, as they carry the crank
round the dead points by reason of their greater weight and
leverage. A crank usually con-
sists of two limbs joined together
by a pin, termed the crank-pin.
As the cranks of locomotives
are very liable to fracture, straight axles are sometimes employed,
and the wheels are turned by a connecting rod fixed to them on
the outside. Some manufacturers cut the entire crank and axle
out of a solid piece of iron, which reduces the liability of acci-
dents much.-See Steam-Engine and Steam-Boat.
CROSSING (on a double line of railway), the necessary arrange-
ment of rails to form a communication from one line to the other.
They are similar in construction to sidings, having switches and
crossing-points.-See Siding.
CROSSING (level).-See Level-Crossing.
CROSSING-POINT, or FIXED POINT or POINT-PLATE (in rail-
way sidings), the points where one rail crosses another, which
Digitized by Google
70
CROSS-STAFF-CULVERT.
are fixed or immoveable, suitable grooves being left for the pas-
sage of the flanges of the carriage wheels on either trackway.-
See Siding.
Plan and Sections of the Fixed Points used on parts of the London and Birmingham Railway.
CROSS-STAFF (in surveying), a rod shod with iron, upon the
top of which a rectangular cross is fixed, for the purpose of
setting off offset-lines square with the principal ones, and similar
purposes. It is also frequently divided into ten links, and used
for a rod for measuring the offsets, instead of the chain.
CROWN, or CONTRATE WHEELS, a wheel employed for con-
necting the motion of one axis to another,
situated at right angles to it, thus—
Conical wheels are more frequently em-
ployed for the same purpose, on account
of their possessing less friction.
CUDDY, a three-legged stand, forming a fulcrum, upon which
a long pole is placed, which is used as a spring lever, and
employed to lay railway blocks.-See Block (stone as applied to
railways).
CULVERT, a drain carried under a road, railway, &c., and
generally constructed of either stone or brickwork.
Digitized by Google
CURVE.
71
Culverts are sometimes used for conveying the water of brooks
from the high side of a road to the lower. It is necessary, after
fixing the best situation for a culvert, to ascertain the quantity of
water that is likely to run in the direction of its course, previous
to determining the
size of the bore.
Figure 1, repre-
sents a cross sec-
tion through a cul-
2
vert.
Figure 2, the
half plan.
Figure 3, eleva-
3
tion of mouth.
Figure 4, the
longitudinal sec-
tion.
CURVE, a term applied to a bend in a line of road, canal,
or railway.
Turnpike roads should be formed as straight and direct as
circumstances will allow, and without any sudden bends; but
they are frequently obliged to wind round a hill in order to get
up it, and a similar expedient is employed in the construction of
canals, to preserve the low level.
Sharp curves on a line of railway are highly objectionable, as
the centrifugal force arising upon them has a tendency to throw
the train off the rails: they should never be laid down with less
than 4ths of a mile radius; notwithstanding, many expedients are
resorted to of obviating the difficulties attending them : the fric-
tion is also increased, on account of the flanges of the carriage
wheels rubbing upon the sides of the rails. The peripberies of
the wheels of railway-carriages are always enlarged in diameter
next the flanges, being made slightly conical, which compensates,
io a certain extent, for the extra length of the curve of the
outer rail. The tires of the wheels are usually made about
Digitized by
Google
72
CUTTING-D SLIDE-VALVE.
1 inch more in diameter on the outside than on the inside, the
breadth of the same being 31 inches; and 1 inch is allowed upon
each side of the rails, in fixing the wheels to the axles for play,
by which they are not strained in passing along the curves.
An engine, with wheels 3 feet diameter, and of the above de-
scription, will turn a curve 1th of a mile radius, provided the
outer rail is elevated sufficiently to counteract the centrifugal force,
by causing a gravitating power towards the centre of the curve
The degree of elevation necessary to balance the load depends
upon the velocity with which the train is moving; upon a curve
4ths of a mile radius, and traversed at a rate of 10 miles an hour,
it should be .07 of an inch; and at 15 miles an hour .20 of an
inch ; at 20 miles .36 of an inch ; but they are frequently elevated
much more in practice. The least objectionable situation for
curves on a railway is at the extremities of the line, and the foot
of an inclined plane is the most dangerous, more particularly if
any portion of it should be in tunneling the objection also
increases with the speed of the train.
A rise of 16 feet per mile upon a curve of 4ths of a mile
radius, reduces the speed of a locomotive to nearly one-half; yet,
there is a curve of 4ᵗʰ of a mile radius on the Bolton and Leigh
Railway, which is daily passed at a speed of 30 miles an hour,
and with perfect safety.
CUTTING, a name applied to excavations.-See Excavation.
CUTWATER, the lower portion of a pier separating two arches
of a bridge crossing a river; they are usually formed of stone,
and pointed in front, for the purpose of dividing the stream,
whereby it is carried away from the foundations, and of cutting
the ice in frosty weather.
D SLIDE-VALVE (in steam-engines), a valve
b
much employed for opening and shutting the com-
munications with the steam cylinder, particularly
E
in locomotive engines : its action will be readily
understood by the cut. a is the steam-pipe;
C
b, the upper passage; and c, the lower passage to
Digitized by
Google
DAM.
73
the cylinder; d being the passage to the condenser or chimney,
as the case may be; and E represents the slide-valve.See Four-
way Cock.
Dam, or WEIR, a water-tight contrivance, for the purpose of
supporting a body of water, and preventing filtration.
A dam usually consists of a wall, or mole, erected across a
river or stream, for the purpose of raising the level of the water
by confining it, and which is employed for various purposes, as
for irrigation and for ornamental purposes; also for impelling
machinery, as water-wheels, in which case the wheel is not
placed in the current, but is mostly situated upon one side of the
stream, the water being conveyed to it by a channel from the
upper level, and after having passed over the wheel it finds its
way to the lower level of the river by another channel, and the
requisite head of water is constantly kept up by means of the
dam, which is furnished with proper means of passing off all
surplus water when the supply is greater than required.
Dams should be erected at the broadest parts of rivers, in order
to secure a sufficient reservoir of water, as some mills, when at
work, require more water than the ordinary run of the stream can
afford ; by means of these basins the supply is thus rendered
regular, and the intermitting nature of the current obviated: the
water that accumulates in the night is also preserved by them.
The reservoir of a mill is called the mill, or dam-head: and the
larger the surface the better will it operate, but*a great depth is
unnecessary; the water should run freely over the dam when not
required, or in the event of floods, the channel to the mill being
provided with side walls and sluices.
Timber framing is very frequently employed in the construc-
tion of dams; but masonry is better, and, of course, the requisite
precautions must be taken to prevent any
leakage of water from above. A thick bed
of puddle should be laid next the upper side
of the water, protected by a layer of gravel.
Lower Level.
Upper Level.
Dams are usually made in the form of a
L
Digitized by Google
74
DAM.
segment of an arch on the plan, and the face of the dam wall
should be plumb, or battered down very gradually, and the
lower level, or foot, being properly paved or planked. In cases
where the fall is considerable, it is frequently divided into more
than one dam: they are also sometimes constructed upon a
moveable principle, and are removed in flood seasons.
The following is a representation of a dam, as generally con-
structed:-
Elevation of a portion of the front of
Dam Wall.
Plan of Superstructure.
Upper Level.
Lower Level.
Section of Wing Wall.
Digitized by Google
DATUM-LINE.
75
Transverse Section through Dam, showing Wall, &c.
Section of another method of forming the Dam Wall.
DATUM-LINE, the base or horizontal line of a section, from
which all heights and depths are calculated, and which is de-
termined by the level, and bears reference to some fixed point
in the line.
The level of Trinity high water mark, as fixed in the year 1800,
is usually taken as a datum in the vicinity of the metropolis; and it
is often observed by engineers, that the adoption of one general
datum for England and Wales would be very advantageous.
High water spring-tides form a good datum, as giving an idea of
the possibility of draining the line of country, marked on the
section. In extensive operations the mean level of the sea may
be taken, which, according to M. De la Laude's method, and
adopted in the Trigonometrical Survey of England, may be
obtained by taking the level of low water, and deducting there-
from 3rd of the height the tide rises." The section may be made
to refer to any other datum-line that may be required, differing
from that to which a drawing may be plotted, by ruling a line
above or below it, of the requisite difference in level; and by the
same rule it is much easier to plot each portion of a section to a
L 2
Digitized by
Google
76
DEFLECTION.
datum-line of its own, and afterwards rule the proper datum-line
of the entire survey parallel to it, and in its proper situation.
DEFLECTION, a term applied to the degree of bending of any
material when exposed to a transverse strain. If a body be sup-
ported at both ends, and loaded in the centre, a certain deflection
always takes place, which is proportionate to the weight. When
the elastic force of the material exceeds the straining force of the
material, the amount of deflection is directly proportionate to the
pressure, and will remain only as long as the weight is upon it,
and the body experimented upon will instantly regain its original
position, upon the removal of the weight; but when the load is
the greater power, the deflection gradually increases, until a per-
manent alteration of form ensues, and at length a fracture occurs,
if the load be very great, or in the event of its being increased.
Mr. Tredgold gives 6.83 tons as the degree of elasticity, or
amount of strain, which a square inch of cast iron will bear,
without permanent alteration and Professor Barlow assumes the
tension of wrought-iron, or power to resist tension of wrought-iron
bars, at 10 tons per square inch.
The deflection, and consequently the strain, of railway bars,
or rails, are considered by Professor Barlow as nearly the
same, whether the load be in motion or at rest when every
thing is well fixed and secure (as demonstrated by some
experiments of his on the strength of iron made at Wool-
wich, and some experiments on rails made on the Liverpool
and Manchester Railway): but as strains are frequently thrown
on the rails, which produce a strain equal to double that which
belongs to the load in question-in other words, a waggon will
sometimes lurch, and throw all the weight on one side-he
therefore considers, that until greater perfection is obtained in
railways, a strength of bar, more than double that required for
the mere strain, must be provided; and the above experiments
show that it must be 10 or 20 per cent. beyond the double; thus,
for a 12 ton engine, a strength of rails equal to 7 tons would be
necessary, according to the present distribution of the weight,
Digitized by
Google
DEGREE-DIVING BELL.
77
but with greater accuracy of construction, a heavier engine
might pass over the same rails-say an engine of 14 or 16 tons.
It was found, in prosecuting the experiments, that the blocks
also yielded at the time of a train passing over them, which de-
pression, or disturbance of the block, amounted to from .019 to
.021 of an inch when securely fixed ; and with hanging and loose
blocks it was double, or even triple. And taking one-half of
this as resolvable to the middle of the rails brings the deflection
of bars, with weights moving over them, to about that of rails
with equal weights resting upon them.
DEGREE (in geometry), the 360th part of the circumference
of a circle, all circles being supposed to be divided into that
number; it is denoted by a small near the top of a figure,
thus, 36°; each degree is again subdivided into sixty parts, called
minutes, and denoted by a mark, thus, 25'; and those are again
subdivided into sixty parts, called seconds, denoted thus there-
fore, 36°, 25', 20", means thirty-six degrees, twenty-five minutes,
and twenty seconds.
DEPÔT, or STATION (on railways, &c.). This term is applied
to the commencement and termination of a railway, &c.; also to
stations for the taking up and setting down of passengers or
goods. The additional quantity of rails required for the stations,
sidings, &c., of a railway, is very great; it amounted, on the
London and Birmingham Railway, to of the total quantity
required.
The receptacles for tools and materials on the side of a rail-
way, or road, are also termed depóts.
DIAGONAL, a term applied generally to a right line drawn
across any figure, from the vertex of one angle to the vertex of
another, or across from one corner to the other.
DIVING BELL, an apparatus employed for under water works,
somewhat resembling a large barrel without a bottom, or a bell, as
the name implies, and is usually of about 5 feet in height, and
the same in width, in the clear.
Diving bells are mostly formed of very thick cast iron, and in
Digitized by Google
78
DOCK.
one piece, whereby they are air-tight the weight of metal causes
the bell to sink readily, and its substance protects it from acci-
dents; the top has an opening disposed for the reception of a
supply of air: thick lenses are also fixed in the upper part to
admit light. It has been thought that many under water works,
at present executed by means of coffer-dams, and other con-
trivances, may be effected by the help of diving bells, by which
a great saving would be made and there have been instances of
their being employed for such purposes. The piers of the Lary
Bridge were carried up by means of wooden diving bells, under
the direction of Mr. Rendel, although the stream was very
rapid.
Dock, an artificial enclosed basin, formed for the reception
of shipping, of which there are three descriptions, viz. wet docks,
or docks for the reception of ships at all states of the tide
dry docks, so called from their being left dry when the tide is
out; and graving docks for the repairing of vessels.
Wet docks consist of very extensive basins, communicating
with some large river or harbour, by means of locks, and a
proper depth of water is always kept up in them, so that vessels
are afloat at all times of the tide. The entrance to wet docks is
by a basin, with lock and pier-head at its entrance; and this
entrance basin is generally connected by locks with two different
docks, viz. an import, or one appropriated for ships in loading
and an export dock, for vessels going out, the quays of which are
generally surrounded by warehouses, for the reception of goods.
The wet docks, at Eiverpool, were commenced in the year
1708, and they extend, at the present time, to a distance of above
two miles along the banks of the River Mersey, and in front of
the town, presenting a most striking effect. The Hull docks were
commenced in 1774; and docks were also commenced at Bristol,
and at Leith : but there was no dock in the metropolis, or accom-
modation on the Thames, until nearly half a century after a wet
dock had been constructed at Liverpool, which is partly ac-
counted for by the superiority of the port of London as a natural
Digitized by
Google
DOCK.
79
harbour when compared with that of Liverpool. The West India
Docks, which were the earliest in London, were commenced in
the year 1800, in which the import dock is about 2,600 feet in
length, and 400 in breadth, covering an area of nearly 25 acres ;
and the export dock is of the same length, by 500 feet in breadth,
comprising nearly 30 acres. There are, also, other wet docks
connected with the establishment their depth of water is 25 feet,
at spring tides, and the whole will contain 600 vessels, from
250 to 500 tons burthen the warehouses are noble buildings
the tobacco warehouse is the most spacious erection of the kind
in the world, being capable of containing 2,500 hogsheads, and
the vaults underneath will hold the same quantity of wine it is
said to occupy a space of 4 acres, and is all under one roof.
The London, East-India, and other metropolitan docks, are also
very fine docks. St. Katherine's Docks were opened in 1828,
and are convenient, on account of their close connection with
the centre of the city. The machinery employed at the several
docks, consisting of cranes, railways, &c., is also very ingenious
and perfect. The depredations carried on upon the River Thames
previous to the construction of the docks, was immense, they
may, therefore, be said to have been of considerable benefit : the
ships, also, now lie in perfect security from the effects of storms,
while their cargoes are being shipped or unshipped, and the river
is kept clear of obstructions, comparatively speaking.
, Graving docks are prepared for the reception of vessels that
require repairing; they are also known by the name of repairing
docks, and are formed of dimensions merely sufficient to admit of
one vessel, although sometimes large enough for two ; they are
furnished with a pair of gates next the river or entrance, to keep
the water out, the vessel being floated in at high water, when the
water is withdrawn by the tide, and the sluices connected with it
are shut, and any that may be left within it, is pumped out proper
shores or props having been previously placed against the sides
of the vessel to support it.
A description of floating graving dock is employed in the
Digitized by
Google
80
DOUBLE-ACTING INCLINED PLANE-DRAINAGE.
United States of America, consisting of a hollow vessel or
box of framed work, upon which the vessel to be repaired is
floated, the water is then pumped out from the interior of the
hollow vessel, when it gradually rises, lifting the former out
of the water, and leaving the bottom exposed to view. There
are, also, other methods for effecting the same end practised
there.
DOUBLE-ACTING INCLINED PLANE (on railways).-See Self-
acting Inclined Plane.
DOUBLE-RAILED INCLINED PLANE, an inclined plane having
two lines of rails upon it.
DRAIN, or DITCH, a trough for receiving the water drained
from a road, or railway.-See Ballasting, Culvert, Embankment,
Excavation, Fencing, and Railway.
DRAINAGE (for agricultural purposes), the process of diverting
and drainingthe water off from bogs, marshes, and lands, subject
to be flooded from heavy rains; also for recovering land from the
sea. It is recorded, that the drainage of the extensive marsh,
which reached from the Thames to Camberwell hills, was con-
tinued by the Romans, until, by drains and embankments,"
they recovered all the low land in Southwark and its vicinity
and the general method resorted to at the present time is some-
what similar, viz. by cutting trenches to a certain depth below
the surface, to carry the water to the lower levels, forming em-
bankments to support it, &c.
According to Dr. Anderson, of Edinburgh, swamps and
morasses arise in consequence of the water attracted from the
atmosphere, by the summits of hills and mountains, which pene-
trate through the porous strata, of which they are formed, until
its course is arrested by a stratum of clay, or other impervious
material, where the water accumulates and stagnates, and at
length forces its way upwards through the soil, forming bogs and
marshes in the valleys at the foot of the hill. And he recom-
mends that a trench be cut along the base of the hill, extending
to the substratum of clay, or other body, which impedes the escape
Digitized by
Google
DRAINAGE.
81
of the water, and it can then be conveyed away by another drain :
faggots or stones may be piled over the trenches, so that the run
of water is not disturbed. In cases where the top soil is of very
great depth, and the water does not rise in the ditch, he recom-
mends boring for the clay until it is reached, when the water will
rise into the ditch. He is supported in this opinion by Mr.
Elkinton, who bestowed great attention to the subject about the
same time.
In every level country where there is not sufficient fall to carry
off the water, mechanical means are obliged to be resorted to, as
pumps, syphons, and the like : pumps driven by windmills were
very extensively used for this purpose in Lincolnshire formerly
but steam-engines are now substituted, and with considerable
advantage. The amount of mechanical power necessary to drain
fen land is not so great as commonly imagined, as there are not,
generally speaking, any natural springs to' encounter; therefore,
upon the upland water being enclosed by embankments, and carried
into the rivers in their vicinities by catch-water drains, nothing
more remains to be removed but the water that descends from
the clouds, which has to be raised to the higher level, where it
is run off; the lift varies according to the height of water in
the river, which is influenced by the tides, floods, &c., but it
seldom exceeds 3 or 4 feet, to which about 18 inches must be
added, on account of the water lying in drains, and consequently
below the level of the ground. The land recovered is generally
of a rich and fertile nature; it also possesses the advantage of
irrigation; thus, when the country is dry, the sluices from the
rivers may be opened, and the earth moistened. The effect
produced by windmills would be quite sufficient if they could be
depended upon : but steam is preferable, as it generally happens
that in cases of much rain there is but little wind the latter are
also always ready, and have been found to be the cheapest,
taking all things into consideration.
Mr. Joseph Glynn, C.E., has demonstrated the comparative
facility of recovering fenny lands, by drainage, in a very satis-
M
Digitized by
Google
82
DRAINAGE OF MINES.
factory manner : he employs cast-iron wheels to raise the water
from the lower levels, which are termed scoop-wheels, and are
situated in the ditches; these carry the water upwards, being
turned by a steam-engine.
In reference to marine drainage, it may be stated, that mere
lands reclaimed at once from the sea can seldom be of much
value for agricultural purposes, sand materials being naturally
the general deposit; but the finer and lighter soils, which are
constantly driven down from the alluvial tracts by the tidal pro-
cess, should be first arrested, the which forms a fruitful supersoil.
There are instances existing of portions of a country being now
covered by the sea, which was once dry land and a vast quantity
of vegetable matter may be allowed to have accumulated upon such
ground, provided the action of the shingle has not reached it ;
and cases of this kind may be considered as forming exceptions
to the above rule.-See Sewerage, Scoop-wheel, &c.
DRAINAGE OF MINES, the getting rid of the water within the
bowels of the earth, arising from springs, and other natural
causes; and for the purpose of facilitating mining operations.
The drainage of mines forms a subject of immense importance,
the power employed to accomplish the same being frequently
ten times greater than that required in conveying the minerals up
the pit the system pursued is regulated by local circumstances.
In mountainous countries, and wherever practicable, the method
of draining by means of a day-level, or subterraneous channel,
is adopted, extending from the lowest part of the mine to the
adjacent valley; in other cases, an adit is used as far as possible,
and steam-engines employed to pump the water up the remaining
portion; and in flat countries steam power is obliged to be used
for conveying it the whole of the beight up to the surface. The
depth of the pump shaft is usually divided into lifts, which, if
possible, should not exceed 25 or 30 fathoms, a cistern being
placed at each, and the water is raised alternately from one to
another; the diameter of the pump is regulated by the power
required, and varies from 8 to 16 inches, or 18 at most, and the
Digitized by
Google
DRAINING TILES-DRAW-LINK.
83
length of the stroke is from about 6 to 8 feet, which it should
never exceed.-See Adit and Mine.
DRAINING TILES, the hollow tiles employed in the formation
of embankments, to carry off the water to the side drains, being
let into the earth, or placed one upon another down the slopes:
they require frequent attention, owing to the settling of the soil,
A row of drain tiles should be carried through the mounds of
fencing at about every 100 yards distance, to convey the water
into the side ditches.
DRAUGHT (in masonry) the chisel-dressing at the angles of
stones, which are generally made as a guide for the regular
levelling of the several surfaces.
DRAUGHT (in mechanics), the power or force required to put
any machine in motion-as a horse-mill, or a coach, waggon,
boat, or other vessel.
The depth of water necessary to float a ship, or other vessel,
is likewise termed the draught.
DRAW-LINK (railway), a contrivance for securing the several
carriages of a train together. The patent railway draw-link, in-
vented by Mr. Henry Booth, of the Liverpool and Manchester
Railway, is now very extensively used; it consists of a double-
working screw, a a,
which is attached
to the hooks at the
ends of the car-
c
riages by two long
Mr. Booth's Patent Draw-Link.
links, b b, which are spirally threaded, to receive the screws;
and the carriages are screwed up close together until the buffer-
heads, d d, touch each other, by means of a lever, c c, fixed in
the middle of the screw ; the springs of the several carriages are
thus brought into constant play, and an equal elastic pressure is
produced at starting, in lieu of the sudden shocks, of such
frequent occurrence previous to its introduction. There is a
weight at the end of the lever which keeps the cottar constantly
suspended, by which the screws are maintained in their proper
places.-See Buffing Apparatus.
M 2
Digitized by Google
84
DRAW-BRIDGE.
DRAW-BRIDGE, or LEAF-BRIDGE, a certain description of bridge
thrown across a cut or ravine, and constructed in such a manner
as to be capable of being raised up and down when required ;
they were much employed in ancient military engineering, being
used for crossing the moats surrounding fortifications : one of the
ends of the platform of the bridge answered as an axis, upon
which the other part turned, strong chains being fixed to the
same, by which it was raised; and a kind of balance, termed
plyers, was employed in effecting the same, which consisted of
two long timber levers, about twice the length of the bridge,
and joined together by other diagonal pieces, and they acted as
a counterpoise, and swung on the jambs on each side.
Drawbridges are not much used at the present time, having
been superseded by swing, or swivel bridges, in civil engineering
works.
The drawbridge over the Ravensbourne, upon the London
and Greenwich Railway, is one of the most recent instances of
Drawbridge on the Greenwich Railway.
its application, where it was erected for the purpose of allowing
craft to pass through the creek, and it consists of two framed
leaves meeting in the centre, upon which the rails are laid ; these
leaves are lifted by the aid of chains, fixed at the point of junc-
tion, and carried over piers at each end, with counterbalancing
Digitized by
Google
DREDGER-DROUGHT.
85
weights fixed at their other extremities. There is also a small
foot drawbridge built on one side of it, for passengers. Another
bridge is also lately erected at Selby, over the River Ouse, on
this principle, for the passage of the Hull and Selby Railway.
DREDGER.-See Ballast Lighter.
DREDGING, the operation of removing the sand, silt, and the
like, from the beds of rivers, harbours, docks, &c., which is
effected by means of a dredger, or ballast-lighter. See Ballast
Lighter.
The constant dredging of large rivers, for the purposes of
navigation, is a very expensive process, and should be applied in
confined positions only, or where it is imperatively necessary,
in order to secure a certain depth of water against the inroads of
the sea; but it is employed to great advantage in the removal
of shoals intercepting the beds of rivers.
DRIFT, DRIFTWAY, or HEADING (in mining, and excavating),
a square horizontal passage, or boring in the earth, between the
shifts or turns, sufficiently large to allow of a man passing through,
they are generally employed in forming tunnels, and driven
through from one shaft to the other, to ascertain the nature of the
soil, and for other purposes. A driftway is sometimes made on
the top or back of a tunnel, from one shaft to another, to assist
the ventilation.
DROP, a machine employed for lowering coals from railway
straiths into the vessels below; they are of a similar principle to
perpendicular lifts, and are much adopted in the north of Eng-
land, the waggon being placed upon a moveable cradle, to which
counterbalancing weights are attached; and the balance is so
contrived that scarce any force is required to effect its ascent or
descent, although a brake is attached to conduct the waggons:
the cradle is suspended from a falling frame or leaf, which is
projected forwards as may be found necessary, by which it is
brought directly the vessel.
DROUGHT, a scarcity of water on canals, &c., for the purposes
of navigation, and other uses; the term is also used as the op-
posite to flood, and signifies a dry season, or a want of rain, &c.
Digitized by
Google
86
DROVE-DIKE.
DROVE, a narrow channel or drain, much used in the irriga-
tion of land.
The term, drove, also refers to a description of tooling applied
on the faces of hard stones.
DRUM, or ROPE ROLL, a hollow cylinder or barrel fixed on an
axle, around which either single or endless ropes or bands are
passed, for the purpose of communicating motion to other parts
of the machine. The drums used on the inclined planes of rail-
ways are generally formed of cast-iron, the rope being wound
round their peripheries, by which movement the trains are con-
veyed along the line.
Drums are also frequently connected with machinery, being
fixed on the main shaft, and leather belts are usually passed
round them.-See Inclined Plane.
DRY ROT, a term applied to that rapid decay in the interior
of timber, by which its substance is converted into a dry powder,
which issues from minute circular cavities, resembling the borings
of worms. Timber once affected can never be restored there
remains no choice but to cut away such parts. It is supposed
to arise principally from the timber being used before the interior
is perfectly dry; and it also occurs from being placed in con-
fined and close situations where there is not a sufficient current
of air.
There have been many attempts to prevent the occurrence of
the dry rot, but Kyan's patent preparation is considered the
most successful, and it is very generally employed as a preven-
tative for the same.
DRY Dock.-See Dock.
DIKE, a term sometimes used in the same sense as embank-
ment, with this difference, that a hydraulic embankment, and
one impervious to water, is alluded to; thus, a considerable por-
tion of Holland is preserved, by works called dikes, which is
rendered necessary by such parts of the cou being below the
level of the sea; the consist of a mound, properly sloped on
each side, on the top of which there is a road, and a sort of reed
is planted on the banks next the sea, which serves to strengthen
Digitized by
Google
DIKE-EARTHWORK.
87
them, and the continual deposit of sea warp that takes place
further assists them : a second dike is sometimes formed behind
the first, as an additional security, the space between them
serving as a canal to carry off extraordinary floods.
DIKE (mining), a name applied to a kind of faulty vein when
occurring of some extent, and which are generally found in a ver-
tical position, intercepting and disturbing the regular strata of
the earth; they sometimes consist of clefts or fissures, and extend
a considerable distance, being called, according to their ele-
ments, as whin dikes, basaltic dikes, &c. ; at other times they
are merely filled with clay, having foreign substances imbedded
therein.
The occurrence of dikes frequently occasions great difficulty
and expense in mining operations, both on account of the trouble
of working them out, and their sometimes containing water, when
the works are frequently inundated.
DYNANOMETER, an instrument invented by Mr. Macneill, and
used for measuring the amount of force required to draw either
carriages or boats.
This instrument has received various improvements; but even
now it answers very indifferently upon railways, and it gives no
test whatever of the amount of atmospheric resistance (which is
supposed to be considerable at high velocities) on account of
being situated between the engine and train, as the locomotive
receives the force of the air, but does not communicate it to the
dynanometer.
EARTHWORK, a term applied to cuttings, embankments, &c.
The several methods employed in executing earthwork at dif-
ferent parts of the country are very similar. The earth, after
being dug, is conveyed by wheelbarrows at the commencement;
and waggons, running upon rails, (usually from 30 to 50tb. per
yard) are employed as the work proceeds; six teaming-places
may be made where the slope equals 2 to 1, which greatly ex-
pedites the work ; if less, four only can be made : a flat slope
can, therefore, be executed, in a certain proportion, quicker than
Digitized by
Google
88
EARTHWORK.
a steep one. If time is an object, the tip end of an embankment
should be made wider than it is intended to be finished, to admit
of more roads upon it; and as the work proceeds it may be re-
duced to the required width, and the soil from it thrown down
the slopes: a certain width may, in fact, be allowed for it at the
bottom of the embankment. The time of executing an extensive
embankment may be reduced one-half, by forming it in two
stages, as the works of each may proceed at the same time; and
the difference in level is got over by inclined planes on each side,
for the use of the waggons the teaming is thus progressing on the
upper and lower one at the same time. 800 to 1000 cubic yards
is said to be the utmost that can be excavated and led to em-
bankment, or teamed, in one day, under ordinary circumstances ;
although this amount has been exceeded upon some occasions :
thus, 1,600 have been moved per day at a steep cutting, on the
Manchester and Leeds Railway, and that for many weeks to-
gether. The waggons hold about 2 cubic yards : 2½ or 3 yards
is the utmost they can hold, even by piling up.
The most rapid method of executing earthwork on railways, and
the like, is by throwing a part of the excavation to spoil, taking
it out from the higher side all throughout the length, by means of
barrows worked by horse gins, instead of removing it from the
ends, the embankments being constructed from side cuttings
this, of course, forms the most expensive process of procedure,
although land may sometimes be found suitable for it, which is
termed sideling ground. The prices of earthwork vary according
to the nature of the soil, locality, and extent of the work; the
price with an average material may be stated at 9d. per cubic
yard, which includes excavating, and teaming a distance of
1 mile to the embankment with a lead of about 2 miles, it is about
11d. ; and 3 miles 1s. 1d. When the lead exceeds 1½ miles, a
locomotive may be advantageously substituted for horses in the
teaming.
It is generally desirable to lay down the cuttings and embank-
ments on a line of railway, canal, &c., equal or similar in cubic
Digitized by
Google
EARTHWORK.
89
contents. There are about 16,000,000 cubic yards of excavation
upon the London and Birmingham Railway, I°σths of which are
used for the embankments, and 11ᵗʰ laid as spoil banks, or spread
over the country.
The amount of earthwork of an engineering undertaking is
obtained from the section, the height of the embankment and
depth of the cuttings being marked thereon; and the contents
are calculated on the supposition, that " the area of any cross
section in sideling ground does not differ from the area of a
similar section on level ground;" therefore the section, being
taken along the centre of the line, affords a true criterion of it.
The contents are usually found, by Mr. Macneill's tables, which
he calculated upon the prismoidal formula, viz., that the cubic
contents of a solid figure (such as an embankment) is equal to
the areas of each end added
to four times the mean area,
and the sum multiplied by
the length of the prismoidal
divided by 6," thus: sup-
Longitudinal Section of Embankment.
pose the number of cubic
yards in the embankment,
represented in the cut,
were required (and the cut-
tings are obtained in a
Transverse Section of Embankment.
similar manner), enter the dimensions in the book, thus :
Base 30 feet, slope 21 to 1.
Height in
Tabular
Distance in
Contents.
feet.
numbers.
yards.
0
=23.46
x 200
=4692
20
86.42
200
17284
30
44.44
200
8888
0
30864
Area of embankment 30864 cubic yards.
N
Digitized by Google
90
EARTHWORK.
The column, headed "Tabular numbers," is that derived from
the tables; but they may be calculated without them, as fol-
lows :-
Height of end 20 multiplied
20 height of highest end
Slope
2.5 ] together.
0 ditto of other
100
2) 20
40
Mean height 10
50.0
Slope 2.5 multiplied together
Base
30 added
50
80.0
20
Multiplied by 20 height
25.0
Area of end = 1600.0
30 base added
55.0
Multiplied by 10 mean height
550. middle area
4
2200 = 4 times middle area
1600 = area of end
6) 3800 feet
3) 633.33
9) 211.11
23.456 yards
Distance 200.
in yards
Area of A 4691.200 cubic yards
Digitized by Google
EARTHWORK.
91
Height of lower end 20 feet : the area consequently same as
last = 1600.
Height 30
30 height of highest end
Slope 2.5
20 ditto of lower ditto
150
2) 50
-
60
25 mean height
75.0
2.5
Base 30
125
105.0
50
30
62.5
Area of higher end 3150
30 base
92.5
25
462.5
1550
2312.5 middle area
4
9250.0
3150.0 area of higher end
1600.0 ditto of lower ditto
6) 14000
3) 2333.33
9) 777.77
86.418
200.
Area of B 17283.600 cubic yards
N 2
Digitized by Google
92
EARTHWORK.
Height of end 30 feet: the area consequently the same as
last = 3150.
30
0
3) 30
15 mean height
2.5
75
30
37.5
30 base
67.5
15
337.5
675
1012.5
4
4050.0
3150
6) 7200
3) 1200
9) 400
44.444
200.
Area of C 8888.800 cubic yds.
Summary of Contents.
A
4691.200
B
17283.600
C
8888.800
Area of embankment 30863.600 cubic yds.
Digitized by Google
ECCENTRIC WHEEL-EDGE RAILWAY.
93
ECCENTRIC, or ECCENTRIC WHEEL, a contrivance employed
in mechanics, and in very general use, for working the valves of
steam-engines, consisting of a wheel situated upon the main
shaft, but fixed out of its centre; it is placed in a brass ring,
which fits it loosely, and rods are connected with the ring, and
secured to a lever at the other end; an alternating motion is,
therefore, given to the rods as the eccentric wheel turns round
with the shaft, by which the valves are opened and closed.
EDGE RAILWAY, a certain description of roadway, consisting
of a succession of iron bars or girders, properly supported, upon
which the peripheries of the carriage wheels revolve; a flange,
projecting 1 inch, being formed on the inner edge of the wheels,
to prevent their getting off the rails.
Edge-rails succeeded plate-rails, having been first used in
1785; the inconvenience arising from the dust laying on the
latter probably led to their introduction originally, although the
many other advantages possessed by them might not have been
contemplated at the time, as the form of edge-rails is certainly
very superior, combining the least expenditure of material with
the greatest possible strength, and the friction upon them is less
than upon tram-rails.
The first public railway laid with edge rails was constructed
by Mr. Jessop, at Loughborough, in 1789; and they were origi-
nally made of cast-iron, in 3 or 4 feet lengths, with a flat base at
each end, in which holes were left for the insertion of pins,
by which they were secured to the sleepers, and cast-iron
chairs were ultimately adopted for this purpose; they were
also bowed on the under side, technically termed fish-bellied,
which form edge-rails retained until very recently, the head
being made about 21 inches wide, and rounded; a cross section
taken through the centre of a rail showed a greater thickness of
metal at the upper than at the lower part. The rails were after-
Digitized by
Google
94
EDGE RAILWAY.
wards formed of wrought-iron, consisting at first of merely flat
bars of iron, from 1 to 2 inches square, or bars 1 or 2 inches by
3 inches, which were found to damage the peripheries of the
wheels of the carriages considerably, from their narrow shape and
want of an upper table or head (neither case hardening the wheels,
nor wrought-iron tires being invented at that time) and they
continued to labour under this disadvantage until 1820, when
Mr. Birkenshaw, of the Bedlington iron-works, invented a way of
rolling and manufacturing iron rails of a fish-bellied form, and
with heads complete, similar to the most approved cast-iron rails.
The increased velocity of the trains upon public railways have
rendered wrought-iron rails absolutely necessary, and they are
almost invariably employed at the present time. Cast-iron rails
are also becoming less used every day upon private railways, as
they are brittle, and apt to snap upon a sudden shock, and the
wear is greater upon them, the interior of the rail not being so
hard as the surface, arising from the more rapid cooling of the
metal of the exterior: thus, when the surface of a cast-iron rail is
worn through by the wheels of the carriages, the decay increases
considerably. Wrought-iron rails can also be manufactured in
longer lengths, by which a less number of joinings are required.
The wear and tear of the surface of the rails upon the Liverpool
and Manchester Railway, were stated by Mr. Dixon, the resident
Elevation showing a Parallel Edge Rail. A, Section of same.
B
Elevation showing a Fish-bellied Edge Rail. B, Section of same.
engineer, at 1σth of a tb. per yard per annum; and it is remark-
able, that good malleable rails do not oxydize when in use upon
Digitized by Google
EDUCTION PIPE-ELBOW JOINTS.
95
a line of railway, although similar rails, thrown down at random
by the side of the line, will lose weight continually.
The rails originally laid down upon railways were very light,
viz., about 35 lb. to the yard, but experience has shown the ad-
vantages of heavy rails : parallel rails, or rails having the top and
bottom webs parallel, are almost universally adopted at the
present time, in preference to the fish-bellied, although there are
10 miles of the latter on the London and Birmingham Railway;
there are also 25 miles of 65 lb. parallel rails, and the remainder
is laid with 75tb. parallel rails, the tables or webs being usually
of similar size, and about 21 inches in width, and rounded off;
and they are made in 15 feet lengths. The meeting of the
several lengths of the rails in edge railways are usually formed
with butt joints, or, in other words, with square joints, being the
cheapest: half-lap joints are sometimes used, but diagonal joints
may be considered the best. There are several
descriptions of edge-rails in use, some of which
may be found at different parts of this work.
The side cut represents the "Croydon rail,"
which is screwed down on a timber beam, and therefore has a
continuous bearing throughout.- - See Railway, Tram Railway,
Chair, &c.
EDUCTION PIPE (in steam engines), the pipe through which
he steam escapes after fulfilling its duty.
ELBOW, the name given to an abrupt turn in a river, frequently
caused from the action of the current upon one of the banks,
which thereby becomes washed away, when the silt is thrown to
the other side, where it forms an elbow. They are usually re-
medied by erecting a rough stone dike across the concave side
of the river, whereby the current is turned; or by a wing dam,
as it is termed, built to the requisite height, which diverts the
water into the proper course.
ELBOW JOINTS, those voussoirs of an arch which
form part of a horizontal course; as A, A, in the
cut.
A
Digitized by Google
96
EMBANKMENT.
EMBANKMENT (sometimes termed filling), artificial banks, or
mounds of earth.
The employment of embankments
for the protection of low country from
encroachments of the sea, and the
overflowing of rivers, is of great anti-
quity, having been constructed by the
Babylonians and Egyptians for the
preservation of their cities, the which
were mostly built on level plains; the
water also afforded a means of irri-
gation, which the nature of the soil
required; and the utility of embank-
ments was not lost sight of by the
Romans: but very little attention ap-
pears to have been bestowed upon them
Section of a Railway Embankment, a Culvert being shown beneath it.
during the middle ages, in common
with roads and canals, and their re-
vival may be dated at about the same
period as the latter. The embankments
of the River Thames are supposed to
be of great antiquity.
The embankment on any engineering
work should be carried up with great
care, and in regular concave layers
in other words, it should be gradually
filled in towards the centre, which will
give the sides an inclination to lean
inwards and prevent their slipping:
the water being properly run off, a
high embankment is best formed by a
succession of lifts, or stages, at least
two in number, as the soil is more
liable to slip when carried up to the
intended height at once.
Digitized by Google
ENGINE.
97
A large drain is required to be made at the top of all cuttings, on
the high side of the ground, to cut off the land springs, and prevent
the water running down the side slopes, and a smaller one is dug
on the lower side, which should be continued along the foot of
the embankment, communications being made from one side to
the other under the latter, by means of culverts, as circumstances
may direct. An embankment of moderate height, and formed of
good materials, as chalk or gravel, will consolidate in about two
or three years; but one formed of slippery clay, and of lofty pro-
portions, will require ten years to elapse before it is thoroughly
settled, up to which period wooden sleepers should be employed
upon it, and the line may afterwards be relaid with stone blocks.
The embankments of roads and approaches to bridges, &c., are
sometimes formed with a layer of fagots, or brushwood, at the top,
to receive the ballasting.-See Earth-work, Dike, Slope and Slip.
ENGINE, the name given to all machines and mechanical con-
trivances for producing, increasing, or regulating the power
required for the accomplishment of any purpose. Most engines
may be described as consisting of three parts: 1st, the starting
power, by which the whole is put into motion, which bears
no analogy whatever to the end attained, which is termed the
prime mover; animal power, also water, steam, and even air, gas,
and gunpowder, have been applied as prime movers; it would
be represented in a steam-engine by the boiler and contingent
works, by which the steam is produced. 2nd, That portion con-
stituting what is commonly called the engine, and to which the
ingenuity of man is most frequently directed : thus, steam may
be the motive power in two different machines, but one may be a
reciprocating, and the other shall be a rotatory engine. And 3rd,
the machinery which absolutely performs the operation required,
by which the object is attained, the motion being conveyed to it by
that division of the engine last described : thus, in a steam-engine
for pumping water, the pumping apparatus would represent it.
Mr. Murdoch, Mr. D. Gordon, and others, have made various
experiments with highly compressed air, with a view of making
0
Digitized by
Google
98
ENGINE-HOUSE-EXCAVATION.
its power of expansion available, and using it as a prime mover
instead of steam. Mr. M. I. Brunel also obtained a patent for
certain mechanical arrangements for obtaining power from certain
fluids, and for applying the same to
various useful purposes, and he gave
the preference to carbonic acid gas;
but the high pressure at which his en-
gine was obliged to work, viz., 30 at-
mospheres, formed a great difficulty,
and he could not keep it sound and free
from leakage. It has also been ima-
gined by some, that electro-magnetism
will some day compete with steam as a
motive power.
ENGINE-HOUSE, the house or shed
erected over and about a steam-engine,
which is constructed to suit the pur-
poses of same.
Section of a Railway Excavation.
ENROCKMENT, a term applied to the
stone filling upon breakwaters, and the
banks of rivers, underneath quays or
harbours, &c. It consists of large mas-
ses of broken stones thrown in at ran-
dom, and of sufficient size to resist the
current.
ESTUARY, an arm of the sea.
EXCAVATION, a term referring to a
cutting through the earth, when con-
structed on the surface. The method
formerly adopted of forming an exca-
vation, was by working at the face, and
bringing the soil out in lifts, but it is
not followed at the present time in
extensive works, particularly where
time is an object, the plan of running
Digitized by Google
EXPANSIVE ENGINE-FANNER.
99
a gullet through at once being mostly practised, and the soil is
thrown down into the waggons from above : in removing the earth
it is frequently dug out from beneath, when wedges and spikes are
employed in falling it from above.
A line of railway. or canal, should be laid out in such a manner
that the cubic contents of the cuttings should be of similar amount
to the earth required for the embankments.-See Earth-work and
Embankment.
EXPANSIVE ENGINE, a steam-engine in which the expansive
power of the steam is taken advantage of and employed, instead
of being dismissed at full power into the air or condenser, as
the case may be. Mr. Watt availed himself of it, by cutting off
the steam before the end of the stroke, which was finished by the
power of expansion of the steam that was let into the cylinder.
There are also engines in which two steam cylinders and pistons
are employed, both of these being connected to the same beam;
in one the steam works at full force, and is afterwards discharged
into the other, which is of a larger size, where it acts a second
time by its expansive force this plan was first practised by Mr.
Hornblower, and it succeeded very well; but the engine was
rendered more complex and expensive. Mr. Woolf also em-
ployed the same plan, but with high pressure steam, together with
a condenser; and engines of this description are yet used in some
parts of the kingdom.
FACE OF A STONE, that part of a stone forming the front or
vertical face.
FACING (in hydraulic earth-work), a layer of common mate-
rial or soil, laid over the lining or puddle, and upon the
bottom and sloping sides of a canal or reservoir. The facing is
useful at the period of execution, as it retains the puddle in its
proper position during the working in ; and it also affords a
protection from the pole hooks of the bargemen after the works
are completed.
FANNER, a contrivance of vanes or flat discs revolving round a
centre for the purpose of creating a draught, by producing. a
0 2
SIN25
Digitized by
Google
100
FALLING SLUICES-FELT.
current of air. This principle has been applied to some loco-
motives in place of the blast-pipe; as to the Novelty," by
Messrs. Braithwaite and Erickson, which competed for the pre-
mium at the opening of the Liverpool and Manchester Railway,
and to Mr. Hancock's patent road locomotive.
FALLING SLUICES, a certain description of flood-gates in
connection with mill-dams, rivers, canals, &c., and which are
self-acting, or contrived to fall down of themselves, in the event
of a flood, whereby the water-way is enlarged.
FATHOM, a measure of vertical distances, and employed in
marine and mining operations, comprising a depth of 6 feet.
FEATHER-EDGED, a term referring to any wrought substance,
in which the work is materially reduced in thickness towards
the edge.
FEEDER (sometimes called a carriage or catch drain), a term
applied to a small canal, cut, or channel, by which a stream or
supply of water is conveyed for the use of a canal; feeders
either convey the water into the reaches, or take it direct
to the reservoir at the summit level, and are usually furnished
with sluices and waste weirs, like ordinary canals.
FEED PIPE (of a steam-engine), the pipe employed for con-
veying the water to the boiler. The feed pipes of land engines are
usually supplied by a cistern situated above the boiler, operating
by the weight of the water, but in locomotive and other high
pressure engines, the boiler is supplied by a force pump worked
by the engine, and acting against the force of the steam.
FEED PUMP, the force pump employed in supplying the boilers
of steam-engines with water.-See Feed Pipe.
FELLOES, the covered pieces of wood forming the circum-
ference of the wheel of a carriage, which is generally made in six
or eight pieces, placed end to end, into which the spokes are in-
serted-See Wheels, &c.
FELT, a fabric of hair and wool worked into a firm texture, and
much employed upon railways; a piece of it is cut into the
same shape as the seat of the chairs, and introduced between the
Digitized by
Google
FENCING-FENDER.
101
under side of the same and the upper surface of the blocks, to
secure a firm hold, being previously well soaked in tar.
FENCING, a system of enclosure for the protection of roads,
railways, and other works. The fencing upon railways should be
situated upon the top of the mound formed from the excavation
of the ditches, and the water collected in the latter should be
properly diverted into the adjacent water-courses, and it should
consist of good oak or larch posts, placed about 9 feet apart, and
3½ feet from the surface of the bank, with a scantling of 5 inches
by 31 inches, the posts which go below the ground being well
charred; the rails should have a scantling of 31 inches by 11
inches or 2 inches, with a prick-post or stay, to support them
between the posts, 5 feet long and 3 inches by 1½ inches; the
joining of the rails and posts should be secured by iron hooping,
some strong iron wires should be filled in next the ground in
grazing lands, and quicks may be planted on the slopes of the
mound. The total cost of fencing of this description will gene-
rally be about four or five shillings per running yard, including both
sides of the line. Stone is also sometimes employed as fencing
in localities where it is plentiful and adjacent to the line. The
accompanying cut represents the fencing used on the London and
Birmingham Railway.
B
Elevation.
Section.
A, shows the slope when in Embankment. B, shows the slope when in Exeavation.
FENDER, or FENDER PILES, the timbers placed in front of a
quay wall, or other work, to protect it from injuries by vessels.-
See Quay.
Digitized by
Google
102
FERRY-FLOATING BRIDGE.
FERRY, the method commonly employed of crossing rivers
previous to the general introduction of bridges; the sites of most
of the river bridges of the present time were formerly occupied
by ferries.
FIELD-BOOK (levelling).-See Levelling.
FIELD-BOOK (surveying).-See Surveying.
FILLING, or FILLING IN.See Embankment.
FISHED BEAM, a beam bellying on the underside.
FIXED ENGINE (railway).-See Stationary Engine.
FLANCHE, or FLANGE, a projecting piece, or table,
forming part of an iron girder or framework; ; the flanges
of one casting are generally placed flat against those of
another, and holes are drilled through each for the pas-
sage of bolts, whereby they are secured together.
FLANK WALLS, the wing or return walls of a bridge or lock.
FLASHES (upon navigable rivers), a description of sluice,
erected for the purpose of raising the water over any shoals while
craft are passing.
FLOAT, or WATER GAUGE, a body partially suspended and
partly floating upon the surface of the water in steam boilers,
being usually a piece of Yorkshire paving-stone; and employed
to regulate the supply of water to the boiler by operating upon
the valve at the top of the feed-pipe, and the water is kept at
the same constant height through its agency. The height of
water in the boilers of locomotives and marine engines, is ascer-
tained by means of gauge-cocks and glass tubes, as floats will only
act with stationary boilers. Gauge-cocks are also becoming
much used for land engines.-See Boiler.
FLOAT-BOARDS, the boards fixed to undershot water-wheels to
receive the falling stream, and to paddle-wheels, being the means
whereby they act.
FLOATING BRIDGE, a certain description of steam-vessel, em-
ployed for ferrying passengers and goods across rivers, and the
like.
The Torpoint Floating Bridge, by Mr. Rendell, is one of the
Digitized by Google
FLOATING CLOUGH-FLY WHEEL.
103
last built, and consists of a large flat-bottomed vessel, of a width
nearly equal to its length, the engines being situated in the centre.
Drawbridges are fixed at each end, by which carriages may be run
on board by the horses, and the leaves are slightly raised during
the passage, forming a sort of barrier. The bridge is guided by
two chains laid across the bottom of the river, and secured upon
each side to counterbalancing weights placed in deep wells, and
they rise and fall according to the strain upon the chains, which
are, therefore, never so tight as to interrupt the navigation, or
so loose as to allow the bridge to make leeway and miss the
landing-place: they also pass over guide-wheels fixed at each
end of the vessel. The scheme has been found to answer well,
there being two bridges employed at the same site, running
alternately each for the space of one month.
FLOATING CLOUGH, a moveable dam, or machine, used for
scouring out channels or inlets. It is constructed of timber,
and upon being floated to the required spot, is sunk, the flaps
connected with it are then let down upon the banks on each
side, an iron scraper being fixed thereto; its action is effected
by the force of the tide, which pushes it along, when it clears
away all obstructions in its course, and the action of the tide is
afterwards employed to bring it up again.
FLOATING HARBOUR, a breakwater, composed of large masses
of timber, anchored and chained together in certain positions,
which rise and fall with the tide. The same principle has also
been applied to the piers of marine erections.
FLOOD, or TIDE-GATES, or SLUICES, the gates employed in
the admission of water from the sea or from a river, as the
tide rises, &c.
FLY, or FLY WHEEL, a heavy wheel employed in machines
for equalizing the motion and increasing the effect, revolving
upon an axle, after the same principle as a counterbalancing
weight.
The fly-wheels of steam-engines are of large diameter, and are
used to conduct the motion round the dead points, or such parts
Digitized by
Google
104
FOOTINGS-FOUNDATION.
where the crank has the least effect; and they are only suitable
in stationary engines, on account of the inconvenience that would
arise from their great size and
weight: it is therefore customary,
in motive engines, both those of
land and of water, to employ two
engines, or rather cylinders, as they
are each supplied from the same
boiler, and one piston is employed
in full force while the other is pass-
ing the centre, whereby they mutu-
ally assist each other : thus, when
Fly Wheel.
one has finished its upward motion and is upon the turn
downwards, the crank connected with it has a tendency to
stick on the top, and just at that moment the crank of the other
is in full play upwards, so that a continuous and nearly uniform
motion is consequently attained; and engines so constructed are
called reciprocating engines, the cylinders being placed in a ver-
tical position in marine engines, and laid horizontally in modern
locomotives. A rotatory engine is the only one that can give
a uniform rotatory motion, as the course of the cranks in the
former kind occasions an unequal motion, which may be readily
perceived and sensibly felt, particularly in motive engines.
FOOTINGS (of walls), the projecting courses of stones or bricks
at the bottom of all walls, which are laid for the purpose of resting
the buildings firmly upon its base, and as a precaution against
partial settling or sinking.
FORESHORE.-See Breakwater.
FOUNDATION, the superstructure upon which all erections rest,
depending entirely upon the nature of the bottom, or subsoil. In
the case of good firm ground, as rock, hard clay, or gravel, very
little attention is required, except to rest the structure upon it square
and regular throughout; when the soil is of a loose or yielding
nature-as soft clay, common earth, or boggy earth-recourse
must be had to artificial means of consolidating it. York land-
Digitized by
Google
FOUR-WAY COCK.
105
ings, also timber sleepers and planking,
Plan.
were formerly very generally employed
for the foundations of large buildings,
together with strong chain-bond laid
in the footings of the walls; but con-
crete is the favourite expedient re-
sorted to in the present day, upon
Piles.
Sleepers.
which the footings are laid, and the
walls carried up.
It is generally necessary to drive a
row of sheep piles next the foundations
of walls adjoining the sea, or rivers,
and marshy soils, &c., to keep the
water off, and prevent any lateral
Pier.
yielding of the soil below the foun-
dations, the space between the piles
being well puddled in; and in very
marshy, or watery ground, the whole
superstructure is obliged to be con-
structed on a timber platform, supported
by piles and sleepers. The accompa-
nying cut represents the foundation of
one of the piers of Staines Bridge.
FOUR-WAY Cock (in steam-engines),
a description of valve much used for
passing the steam to the cylinder; it
was invented by Leopold in about the
year 1720. The accompanying sketch
shows a vertical section of it. A, is the
communication with the steam-pipe;
B, the passage to the upper end of the
cylinder; and C, that to the lower end
Section.
D being the passage to the condenser,
or the escape into the air, as the case may be. By merely
turning the plug or centre a quarter of a revolution, the action
P
Digitized by Google
106
FREE-STONE-FRICTION.
is reversed, and the steam, instead of
entering the lower part of the cylinder,
will be on its passage to the upper one,
and that last received into it will be
A
escaping at D.
FREE-STONE.-See Sandstone.
FRICTION, the obstruction or resistance
offered by the rubbing of the several parts
of an engine or machine against each other, upon the appli-
cation of the force necessary to put the same into action, by
reason of which a great part of their power is lost, and the several
parts of the machinery become worn and defective.
It arises from various causes, such as the roughness, inequality,
or imperfection of the opposing surfaces, and from the interposi-
tion of dust, moisture, &c., between them; also from the action of
gravity, and the adhesion of the several parts together : the
degree of friction is also regulated by the amount of rubbing sur-
faces in contact.
As it is highly necessary to reduce the friction of engines to as
small an amount as possible, they should therefore be constructed
with as little rubbing surface as practicable, and oils or other
unctious substances introduced between the parts in contact.
The resistance arising from the surface of roads has been con-
siderably reduced of late years ; the substitution of a rolling mo-
tion, as the motion of carriage wheels, for a sliding one, as that of
a sledge, was found to reduce the friction very considerably at the
period of its introduction; but the foremost plan for effecting the
same is by means of iron railways, laid along a road prepared to
receive them; tramways and pavedways may also be mentioned,
and the many excellent common roads recently constructed
throughout the kingdom; the carriages employed respectively
upon each, have also received many important modifications.
The friction or resistance of the wheels of carriages arises, first,
from the friction of attrition, or the pressure of the bearings upon
the axles supporting them, as in roadway carriages, or that of the
Digitized by
Google
FRICTION.
107
axles against the bearings resting upon them, which support the
carriage, as in railway carriages ; and, secondly, from the rolling
friction, or the resistance offered to the revolution of the wheels
by the roadway, the amount of which depends principally upon
the degree of smoothness and hardness of the surface over which
the wheels are run ; and the resistance of the road being so much
reduced on railways, that presented by the axle of the carriage
consequently forms by far the greater portion : it is, therefore,
very important to keep up a constant supply of lubricating matter,
in order to reduce it as much as possible, as before described.
Oil unguents are best for light weights, a thicker composition
being used for heavy machinery.
The resistance of a good level railway to the peripheries of the
carriage wheels does not exceed 1000th part of the insistent
weight, while upon common roads the average is about the 25th
part of the same, or 40 times that of the railway; but the friction
of the axle is much the same with both roadway and railway car-
riages, depending upon the degree of accuracy of the model.
The following shows the result of Mr. Macneill's experiments
to determine the proportion of friction due to the road, and to the
axles of roading carriages :-
Weight of
Power required
waggon and load
to draw the
Resistance of the
Resistance of the
axles.
surface.
in pounds.
waggon.
13.0
2240
31.0
23.6
7.4
10.6
16.2
2800
52.0
29.5
22.5
13.3
19.5
3360
70.0
35.4
34.6
15.9
2.7
3920
91.0
41.3
49.7
8.6
At an early stage of railroad communication, the chairs, or
bearings resting upon the axles, were made very narrow, under an
erroneous idea of reducing the friction, being only 1 ₫ inches in
2 P
Digitized by
Google
108
FRICTION.
length, and less than the diameter of the axles in breadth but
they are now made 3 inches long and upwards. Brass bearings
present the least friction ; but as they are usually formed narrower,
nothing is gained in this respect by them. The bearings were
also formerly situated upon the inner side of the wheels but they
are now placed on the outside, and the stage or frame-work of
the waggon is elevated above the wheels, projecting beyond them
on each side: the wheels are thus protected by the bearings,
which are also made very strong and, as the ends of the axles are
not required to be as large in diameter as the middle portion, the
friction is consequently reduced, compared with bearings on the
inner side of the wheels—(an axle 3₫ inches diameter need not be
above 2 inches on the outside of the wheels). The various im-
provements in carriages and carriage wheels have also tended
to reduce the amount of friction.
Mr. Wood, after numerous experiments on the friction of
carriages," comes to the following conclusion, viz. :-
" That in practice we may consider the friction of carriages,
moved along railways, as an uniform and constantly retarding
force, both with respect to velocity and weight.
" That there is a certain area of bearing-surface compared with
the insistent weight, and the friction is in strict ratio with that
weight."
The area of bearing-surface in the axles of carriages, cal-
culated to give the minimum of friction, he found to be 1 inch to
every 98 tb. of the insistent weight. Mr. Peter Lecount, in his
work on Railways, states, that this should not exceed 90 tb. per
square inch, nor the length of bearing much less than twice the
diameter of the axles.
The total amount of friction upon a railway depends upon the
weight of the carriages, or the weight contained within them, and
is in the same proportion that the amount of rubbing action bears
to the weight ; and, taking all contingencies, it may be generally
considered to average about 2}₀th part of the weight of the load,
or 9 lb. per ton ; i. e. a weight of 9 lb., hung over a pulley, will
Digitized by Google,
FRICTION.
109
draw one ton: thus a train, weighing 55 tons, will require a
power of draught equal to 495 tb. to convey the same upon a
level; but, it varies according to circumstances. The friction is
much increased where ropes, attached to a fixed engine, are used
to conduct the trains, when it bears different proportions to the
load, according to the diameter of the axles and peripheries of
the running sheaves or friction-rollers on which the ropes runs.
Mr. Walker, C.E., in his Report to the Directors of the Liverpool
and Manchester Railway, in 1829, takes the friction of the ropes
at 2ⁿᵈⁿᵈ part of their weight; but it is considerably increased by
bad weather. Messrs. R. Stephenson and J. Locke, in their reply
to same, state it at 1½ᵗʰ.
The comparative resistance upon different descriptions of roads,
may be classed as follows: :-
Per ton.
Part of the load.
On the best wrought-iron edge rails
81 to 9tb
284 to 2to
On common ditto, in bad repair
14
1
100
On the best cast-iron tram-rails, when
newly laid down and swept clean
12
1
187
On common ditto, in a dusty state
25
1
90
On the old wooden railways
30
1
75
On well made pavement
33
1
08
On a broken stone road, upon a rough
pavement bottom
46
1
To
On a broken stone surface upon a bot-
toming of concrete, formed of Parker's
cement and gravel
46
*
1
49
On a broken stone surface, laid on an
old flint road
65 * 35 1
On a gravel road
147
*
1
15
* These are according to Mr. Macneill's experiments; but
the carriage employed not having been of good construction they
may be taken at much less, particularly the friction of pavement
indeed it is questionable whether a pavedway, newly laid and
swept clean, would amount to above half that stated.
Digitized by Google
110
FRICTION.
It is singular that while the surface fric-
tion has been so much reduced, scarce any
attempts have been made to reduce the fric-
tion of the axles of the carriages. Mr. Coles'
patent anti-friction railway carriages cer-
tainly form an exception, and are worthy the
consideration of the profession. The run-
ning wheels have anti-friction wheels bearing
upon their axles, and these wheels again
Mr. Cole's Patent Anti-Friction Railway Carriages.
have smaller anti-friction wheels bearing
upon them in a similar manner; the axles of
the upper ones are fixed, and do not revolve
with the wheels, but the middle and lower
axles, with their boxes, or collars, work up
and down in a groove of the framework of
the carriage, and the whole weight of the
load and frame is borne off by the upper
friction wheels. Mr. Coles states, that they
would reduce the friction at least 1°0ths, and
consequently effect an immense saving of
propelling power, also wear and tear, and
lubricating matter.
FRICTION ROLLER.-See Sheave.
FUEL (in reference to steam-engines), the
material employed in converting water into
steam. Those substances which receive
and retain heat until wholly or partially
consumed, are the most suitable for steam-
Elevation.
engines, provided they emit neither smoke
nor deleterious effluvia. Coal is the fuel
Details of Wheels.
mostly used for ordinary engines; but coke is
generally employed in locomotives at the
present time, as it is particularly well
Section.
adapted for them, it is preferable to coal in
many respects; although the latter is yet
Digitized by Google
GABLE-GAS-WORKS.
111
employed upon some of the colliery lines in the North of
England, as the Leicester and Swanington Railway. Coke also
packs well, and, being of a light substance, the air from the
fire-grate passes through it freely ; neither does any smoke
arise from its combustion, which forms so great an objection
with coal.
The coke used upon the London and Birmingham Railway is
made upon the works, and consists nearly of pure carbon. The
coke obtained from gas-works is objectionable, as it contains but
a very small portion of carbon, and a considerable quantity of
sulphur, which is very destructive to the metal of the boiler ; coal
also possesses the same injurious property, and this likewise forms
a considerable objection with peat fuel : anthracite coal, or stone
coal, although it is composed of nearly pure carbon, and produces
neither flame nor smoke, is not well adapted for locomotives
on account of its density, the draught of air through the fire-box
being of the utmost importance to the power of the engine.-
See Locomotive-Engine and Steam-Engine.
GABLE.-See Roof.
GALLERY, the term given to a certain description of under-
ground excavation; thus coal-mines are worked in galleries or
levels, and tunnels are sometimes worked by horizontal shafts,
which are called galleries (the vertical being generally em-
ployed). A tunnel is projected through the cliffs at Dover,
upon the South Eastern Railway, which is being formed by this
method, and the galleries are intended to be left open for light
and ventilation.
GASOMETER.-See Gas-works.
GAS-WORKS, the buildings in which gas is manufactured.
The introduction of coal gas for the lighting of towns and
cities is of very modern date, although it is probable that the
discovery was known for some considerable time previous. Mr.
Murdock was the first who conceived the use of coal gas as a
means of affording light by night; and he accordingly fitted up
his house and offices, at Redruth, Cornwall, with it, in the year
Digitized by
Google
112
GAS-WORKS.
1792 and, subsequently, his residence in Ayrshire: he also par-
tially lighted the manufactory of Messrs. Boulton and Watt, near
Birmingham, in the year 1798 and upon a public illumination,
in 1802, it was exhibited at the Soho, and succeeded so well
that public attention was drawn to the subject; and a company
was formed, in 1804, for the purpose of manufacturing it, called
the National Light and Heat Company." Their first essay
was made in Pall-mall, in the year 1807 which was for some
years the only street lighted with it. But while gas was struggling
with public prejudice in the metropolis, it was making great way
in the provinces; and at length, in consequence of the success
attending it, the old oil lights became abolished as public lights
throughout most parts of the kingdom.
The manufacture of gas is conducted in large buildings erected
for that purpose the coal from which the gas is to be obtained
being placed in iron vessels, termed retorts, of which a great number
are employed; and a large building is appropriated for them, called
the retort house. The retorts are usually of a shape, thus—
Cylindrical retorts were originally used, and are at
the present time in some manufactories; they are laid horizon-
tally in ovens, in groups of 5, 6, or 7 together, the furnaces being
placed beneath ; the mouth of each projects out from the oven,
and a cover is screwed over it, air-tight, after the introduction of
the coals : the gas is conducted by pipes from the retorts to the
hydraulic main situated above them; the latter is also placed
horizontally, and is generally half-full of the tar and water eva-
cuated from the gas: the pipes from the retorts dip a few inches
into the tar, by which all return of gas is cut off; the gas then
passes through condensers, which consists of a quantity of iron
tubes, placed vertically and bent in a serpentine form, and at the
lower part of each turn syphon-pipes are fixed, by which the
deposited matter is drawn off: these pipes are sometimes placed
in cold water to cause a more rapid evacuation, whence the name
condenser was given to them. Upon the gas being cleansed from
all palpable and visible impurities, those of a more latent nature
Digitized by
Google
GAS-WORKS.
113
have to be removed, viz. the sulphureted hydrogen, which is
produced from the sulphureous substances contained in the coal,
which is of a most injurious nature; this is effected by the inter-
position of lime, which possesses the property of abstracting it
from such a combination, and it is performed in vessels termed
purifiers, in which there is a quantity of lime mixed with water,
to a sort of semifluid state, through which the gas is driven, and
thence passes out, thoroughly purified; the lime is kept in a
proper state of mixture, and prevented settling by an agitator, of
somewhat the shape of a roller, placed horizontally and kept
turning round by a steam-engine, or other power : and several
purifiers are employed, through all of which the gas passes in suc-
cession. The renewal of lime takes place continually, as a certain
quantity of lime will only purify a certain quantity of gas; the
gas from common coal requires a quantity of lime equal in weight
to Toth that of the coal from which it is produced, and with the
best coal 3rd of the quantity is sufficient.
The gas is from thence passed into a large vessel, termed a
gasometer, from whence the main pipes are supplied; it is of a
cylindrical form, covered at the top and open at the bottom, and
is placed in a pit, or tank, filled with water; friction-rollers are
fixed upon the top edge, upon the inner sides of which the gaso-
meter slides up and down, being suspended by a chain fixed at
the top, where a pulley is situated; the chain then passes over
another pulley at the side, and the lower end is attached to a
weight. These chains are unnecessary in large gasometers, as
their weight is not increased in the same proportion as their
capacities; thus a large gasometer will remain suspended of
itself; if very large, it will require a weight to keep it down.
There are two pipes at the bottom of the tank, through one of
which the gas enters, and through the other departs, for the sup-
ply of the main pipes. There are gasometers capable of holding
the immense quantity of 60,000 cubic feet of gas; and there are
sometimes as many as twenty of them connected with a gas-work.
Upon the gas being turned on into the pipe for the supply of the
Q
Digitized by
Google
114
GATES.-GAUGE OF WAY.
city, the gasometer begins to sink, and the pressure exerted is felt
at the same moment throughout an extent of many miles.
It is customary, in most works, to measure the gas as it passes
into the gasometer, which is effected by a very ingenious instru-
ment, termed a meter. The flow of gas in the pipes is required
to be steady and regular, and proportioned to the number of
lamps burning; and accordingly as that number is increased or
diminished at certain times of the night, so must the supply be
adapted. There are men employed at the works during the
night to regulate it, and who are informed of the state of the
consumption, by pressure gauges connected with the main.
A self-regulator, called a governor, is employed at some esta-
blishments for a similar purpose.
The pipes are of various sizes, and are formed of cast-
iron, and generally made with a socket at one end only, the
small end of one pipe being inserted into the socket end of
another, and the joints are finished by molten lead. The mains
connected with the gasometers are about 18 inches diameter, the
pipes are laid as nearly straight as circumstances will admit of,
with a slight fall, and all deposits are collected from time to
time, and removed. A pipe, 1 inch in diameter, affords a light
equal to 100 mould candles of six to the pound.
A gas obtained from oil has also been employed for the pur-
pose of lighting towns, &c., which affords a stronger light than coal
gas, but it is considered more expensive, and therefore not much
used; the necessary process, however, is much less complicated.
GATES (of locks and sluices).- - See Lock-gates.
GAUGE-COCKS, the cocks usually connected with the boilers
of steam-engines, for the purpose of ascertaining the height of
water in the boilers, and which are always used with motive-
engines: Eglass tubes are also sometimes employed for the same
purpose, and floats are commonly used for regulating the supply
of water to the boilers of fixed engines.
GAUGE of WAY (as applied to railways), the width in the clear
between the top flanches or rounded rims of the rails. It is very
Digitized by Google
GEARING-GIRDER.
115
necessary, in the practical working of railways, to keep standard
iron gauges, from which all those employed on the line should be
made ; viz., one of the width between the rails, and another of the
space between them.
The gauge of way generally employed and that adopted on the
London and Birmingham, Grand Junction, and other great lines of
railway, is 4 feet 81 inches; but it is made 7 feet on the Great
Western. The Irish Railway Commissioners recommend 6 feet
2 inches; and some of the Scotch railways are laid at 5 feet
6 inches.
GEARING, a series of toothed wheels for conducting motions in
machinery generally. There are two sorts of gearing in common
use, viz. spur gear, and bevelled gear
(sometimes called conical wheels).
The former consists of teeth ar-
ranged round either the concave or
convex surface of a cylinder, in the
Spur Gear.
direction of radii from the
centre of the wheel, and are of
equal depth throughout ; but
in bevelled gear the teeth are
placed upon the exterior peri-
phery of a conical wheel, and
convex towards the apex of the
cone, in which direction they
Bevelled Gear,
are gradually diminished.
GIBS, pieces of iron used
in connection with keys.-See
Key, Cottar, or Cottrel.
GIRDER, the name given to both timber and iron beams when
resting upon walls or piers at each end, and employed for the
purpose of supporting a superstructure or any superincumbent
weight, as a wall, floor, or the roadway of a bridge, &c. A gir-
der, employed to carry the superincumbent part of an external
wall, is also known by the name of a bressummer, and is gene-
rally rested upon oak posts.
Digitized by
Google
116
GIRDER.
When a beam is loaded beyond its proper limits, it continually
yields to the load, although slowly, until at length it breaks; and
if the load approaches very near to the breaking weight, the time
occupied will not be very considerable. Buffon states, that a
beam should not be loaded with more than 3rd of the weight
which would be required to break it. The strength of beams is
as the square of their depths, as proved by some experiments by
Mr. Fairburn, who placed three cast-iron beams, of No. 2, Carron
iron, upon supports, having bearings of 4 feet 6 inches; they
were each 1 inch broad, and 1, 3, and 5 inches deep respectively,
and which broke with 452 tb., 3,843 lb., and 10,050 tb weight
respectively, which is very nearly in the proportion of 1, 9, and 25.
A girder will bear 31 times more weight when placed with the
table downwards, as 1, than when it is placed upwards, thus, T.
As girders of sufficient scantling to span lengths of from 24 to
30feet, and upwards, are difficult to be procured, it is customary
to apply trusses to such, when they are called trussed girders. It
is supposed by some engineers, that merely sawing a beam in two,
lengthways, and bolting the pieces together in a different relative
situation to what they were previously, adds much to its strength ;
in other cases wrought-iron truss bolts are placed between them,
by which either iron or oak struts are made available to strengthen
the beam, and prevent its sagging, or bending in the middle.-
See Cuts.
Trussed Girder.
Section.
Plan.
The term built beam is applied by some writers to a beam com-
posed of several pieces-as the one represented below.
Built Beam.
Digitized by Google
GLAND-GRADIENT.
117
GLAND, or COLLAR.-See Collar.
GNEISS.-See Granite.
GOVERNOR, or CONICAL PENDULUM, the contrivance connected
with some machines for regulating their
motion.
The steam governor consists of an upright
spindle, which is put in motion by the en-
gine, and from which two balls are sus-
pended by rods; these partake of the motion
of the spindle, and the balls fly off from it,
accordingly as it is rapid or slow, by reason
of the centrifugal force, in consequence of
which the upper portion of the contrivance
is either elevated or depressed, which operates
upon the throttle-valve, and regulates the
supply of steam to the cylinders; thus, if the
engine is going too fast, the governor checks
The Steam Governor.
it, by partly closing the throttle-valve; but if too slow they fall
down, and allow more steam to pass.
The governor was first applied to the steam-engine by Mr.
Watt, although it had been in use for other machines sometime
previous; as to water-mills and wind-mills, the governors of
which may be described generally as acting upon a similar prin-
ciple.-See Steam-Engine.
GRADIENT, a term indicative of the proportionate ascent or
descent of the several planes upon a railway; thus, an inclined
plane, 4 miles long, with a total fall of 36 feet, is described as
having a gradient of 1 in 5863rds, or 9 feet per mile. These
slopes are also called by the general name of gradients; although
the difference between a gradient and an inclined plane is not
very clear; the former is, however, understood to allude to a
slope of small inclination only, while the latter refers to a
steep one.
Clivity is a more appropriate term than gradient, as suggested
by Mr. Macneill and its derivations, acclivity and declivity, are
very comprehensive and significant.
Digitized by
Google
118
GRANITE-GRAVITY.
The following Table of Gradients, by Mr. C. Bourne, C.E.,
may be found useful :-
Per Mile.
Per Chain.
Per Mile.
Per Chain.
1
ft.
II
1
in
5280
=
.15 of an in.
31
ft.
=
1
in
170.3
=
4.65 of an in.
2
=
"
2640
=
.30
32
=
"
"
165.0
=
4.80
"
3
=
1760
=
.45
33
=
"
160.0
=
4.95
"
"
"
4
A
"
1320
=
.60
"
34
=
"
155.3
=
5.10
"
5
=
1056
=
"
.75
"
35
=
150.8
=
5.25
"
"
6
=
"
880
= .90
"
36
=
146.6
=
5.40
"
"
7
754.2
= 1.05
37
"
142.7
=
"
5.55
"
"
8
=
660.0
= 1.20
38
=
5.70
"
138.9
=
"
"
"
9
=
"
586.6
= 1.35
39
=
"
135.4
=
"
5.85
"
10
=
528.0
= 1.50
40
=
132.0
=
6.00
"
"
"
"
11
=
"
480.0
= 1.65
41
=
128.8
=
6.15
"
"
"
12
440.0
= 1.80
42
=
125.7
=
6.30
"
"
"
"
13
"
406.1
= 1.95
"
43
=
"
122.8
=
6.45
"
14
=
377.1
=
"
2.10
44
=
"
120.0
=
6.60
"
"
15
=
352.0
=
2.25
45
=
"
117.3
=
"
"
6.75
"
16
=
330.0
=
"
2.40
114.8
"
46
=
=
6.90
"
"
17
=
"
310.6
= 2.55
47
=
112.3
=
"
7.05
"
"
18
=
"
293.3
= 2.70
48
=
"
110.0
=
7.20
"
"
19
277.9
=
2.85
49
=
107.7
=
"
"
"
7.35
"
20
H
264.0
=
"
3.00
105.6
"
50
=
=
"
7.50
"
21
=
"
251.4
= 3.15
51
=
"
103.5
=
"
7.65
"
22
=
"
240.0
= 3.30
52
=
"
"
101.5
=
7.80
"
23
=
229.5
=
3.45
53
=
"
99.6
=
"
"
7.95
"
24
=
"
220.0
= 3.60
"
54
=
97.8
=
"
8.10
"
25
=
"
211.2
= 3.75
55
=
"
96.0
=
"
8.25
"
26
=
"
203.1 = 3.90
56
=
"
"
94.3
=
8.40
"
27
=
"
195.5
= 4.05
"
57
=
92.6
=
"
8.55
"
28
=
"
188.6
= 4.20
"
58
=
91.0
=
"
8.70
"
29
=
"
182.1
=
4.35
"
59
=
89.5
=
"
8.85
"
30
=
"
176.0
= 4.50
"
60
=
"
88.0
=
9.00
"
GRANITE, a very hard durable silecious stone, and one much
used for engineering purposes; the essential ingredients of which are
felspar, quartz, and mica, which are scattered irregularly through-
out it: gneiss is composed of similar particles, but disposed in
beds. Grey granite is more generally employed than red, on ac-
count of the difficulty of working the latter, from its excessive
hardness. Aberdeen granite is considered superior to that of
Cornwall, as it abounds more with quartz; the latter has more
felspar in its composition.
GRAVING Dock.-See Dock.
GRAVITY (as applied to railways), a term referring to the
extra weight acquired by a train of carriages when upon planes not
perfectly level or horizontal; or, in other words, to the downward
pressure, which force is in proportion to the clivity of the plane.
If the train is proceeding up the plane, great additional power
is necessary to overcome the gravity compared with that required
Digitized by Google
GRILLAGE-GROUTING.
119
upon the level portions of the line, particularly if the same degree
of velocity is to be maintained. Upon a plane 1 in 50, the re-
sistance by gravity is 44.80tb per ton; and upon 1 in 90 it is
24.83 lb. per ton, which, on a train of 60 tons gross, amounts to
1493 lb., and is sufficient force to propel a train amounting to 186
tons upon a level if, on the contrary, the train is descending
the plane, the gravity assists them.
It is customary to shut off the steam of an engine in descending
steep planes, the gravity being sufficient to propel the train, and
it is moreover checked by the brake accordingly as may be
required.-See Inclined Plane.
GRILLAGE, a term applied to the sleepers and cross beams
supporting a platform, upon which some erections are carried up,
as piers, in the case of marshy or watery soils, whereby an equal
bearing is given to the foundation. In the event of clay being
employed as a grillage, instead of timber, it should be 4 or 5 feet
in substance, and spread in layers, and well rammed in between
the heads of the piles.
GROIN, a frame-work usually of wood, and constructed across
a beach between high and low water-mark, and perpendicular to
the general line of same, for the purpose of retaining the shingle
already accumulated on the spot, or to obtain more from the sea :
they usually consist of piles and planking, land-ties, &c.
GROINED ARCH, an arch cutting across another arch in a
transverse direction; the point of juncture being termed a groin.
It has been said that the groined arch is the most stable of all
arches, and, therefore, capable of being executed with a very
small rise, provided the abutments are sufficiently strong to sup-
port it; yet groined arches are but seldom used in modern works,
whilst the cylindrical appear to have been carried almost to as
great an extent as practicable.-See Arch.
GROUTING, a description of mortar used in brick and storie-
work, composed of quick lime and a portion of fine sand, em-
ployed in a thin liquid state; it is poured into the upper beds
and internal joints of the work.
Brickwork should be well grouted every four courses.
Digitized by
Google
120
GUDGEON-HARBOUR
GUDGEON, the term applied to the extremity of a horizontal
shaft or axle, when it turns in a collar. It is customary to
make the gudgeons of smaller diameter than the other portions
of the shaft, for the purpose of reducing the friction as much as
possible.
GULLIES, a term sometimes applied to iron tram-plates or rails.
GUTTER, a trough for carrying off the water from any works.
The trenches dug for the reception of puddling are also termed
gutters, which are usually formed about 2 or 3 feet in thickness,
and wider at the bottom than at the top.-See Canal.
HACKING (in walling), an objectionable plan, practised by
workmen, when one of the courses of a wall can-
not be carried up of equal depth throughout its
length for the want of stones sufficiently large for
A
same. The hacking consists in dividing the remain-
ing portion into two courses ; the end stones (A, in
cut), being frequently notched to receive the stones of the lesser
courses.
HALF-TIDE Dock, a basin connecting two or more docks, and
communicating with the entrance basin.
HARBOUR, or HAVEN, the name applied generally, to a port,
or to the entrance of a port, where vessels may lay at anchor,
sheltered from storms.
It is highly necessary that harbours should possess a good en-
trance, consisting of firm ground, free from rocks, so that a ship
may not be liable to founder, also of width and depth of water
sufficient to float the largest vessels; if surrounded by lofty hills
and mountains, it is an advantage, as they are then screened from
the effects of high winds, and when their situation is far inland,
they are secure of bombardment from the sea.
The entrances to some ports are formed with good harbours na-
turally, but artificial means are obliged to be resorted to, in some
cases, to render them safe, by enclosing a certain space from the sea,
in such a manner as to form a shelter to the shipping. The works
consist of two curved arms, called piers or jetties, which are built
in a suitable position to counteract the peculiar local effects of the
Digitized by Google
HARD.
121
winds, and afford a free ingress and egress to vessels at the mouth.
They are also sometimes formed by the building of isolated walls,
called breakwaters, instead of jetties, and likewise by the fixture
of large masses of floating timbers, called floating breakwaters,
which rise and fall with the tide.
Harbours are generally furnished with a lighthouse, to direct
ships at night, also with numerous buoys, moorings, posts, &c.
A backwater, or scouring power, is usually connected with the
entrance of a harbour, and which should be so situated that the
force may act in the direction of the tidal wave, forming a small
angle with it, and it should on no account approach a right angle,
which has the effect of impeding the shingle, as may be frequently
observed, when a bar is soon formed and, by the same rule, the
mouth of a river, crossing a tide wave at right angles, will also
cause a bar ; this principle of action, therefore, should not be over-
looked in the construction of harbours and sea embankments and
it may be further remarked, that in carrying the necessary works
into execution, the commencement should never be opposed to
the tidal wave, but if possible run in the same direction and the
greatest care should be taken that the motion of the shingle
be not opposed, but rather diverted, as depositions of it are sure
to occur unless efficient remedies are adopted. Shingle has been
known to acquire an extent of area equal to nearly 20 square
miles in the course of two years, the same being from 5 to 8 feet
deep, even where there has been a powerful stream of backwater.
A close investigation of local circumstances is of the utmost
importance, previous to determining the precise site of a harbour
-comprising the peculiar features of the coast, the effect and ge-
neral action of the tides, and nature of the deposits-since the
erection of piers and other works must influence the movements
of the shingle on the beach in some way.-See Backwater and
Isolated Harbour.
HARD, a term signifying a ford or passable place in a river, or
fen, consisting of a hard bottom of gravel, which is supposed, in
some cases, to have been brought there for the purpose of forming
R
Digitized by
Google
122
HATCH-HIGH-PRESSURE.
a passage across : they are not often met with now, having been
removed on account of their impeding the navigation in dry sea-
sons, and increasing the floods in wet ones.
HATCH.-See Lock Gates.
HEAD OF WATER, a term signifying a regular height of water
in any stream or basin, and intended for the supply of mills, foun-
tains, and the like they are usually supported by banks of earth,
in a similar manner to dams.
HEADING.-See Drift.
HEADING COURSE (in masonry and brickwork), a course con-
sisting of all headers, or stones, bricks, or the like, laid length-
ways across the whole thickness of a wall-See Bond and Stretch-
ing Course.
HEADWAY, a name sometimes applied to the clear height under
the arches of bridges, tunnels, &c.-See Arch.
HEDGEHOG, a machine for removing mud, silt, &c., from
rivers and streams.
It is in shape somewhat similar to a road or garden roller,
consisting of a wheel revolving on an axle, to which drawing shafts
are fixed. Timber stocks are projected from the cylinder with
iron spades bolted thereto, which act upon the bottom of the
river, clearing away all obstructions.
It is generally attached to the stern of a barge which is drawn
by horses; sometimes the barge is moored, and the machine
moved backwards and forwards by means of leading blocks and
chains; mechanical purchase being obtained by means of the
barge.
HEWN STONE, a term applied to stone when reduced to the
required form, by means of a mallet and chisel only.
HIGH-PRESSURE, or Non-Condensing ENGINE, an engine
in which the cylinders are worked by the elastic force of the
steam alone, without the aid of a vacuum-it is consequently of
very great power; and the engine is also light, compact, and
cheap, compared with others, from the circumstance of the whole
of the condensing apparatus being dispensed with. The loco-
Digitized by
Google
HIP-HORSE POWER.
123
motive engines in general use are all constructed upon this
principle.
From the circumstance of the steam of non-condensing engines
being of such very high pressure, and their great evaporating sur-
face, the fire is required to be kept at a greater heat than usual
with other engines; the repairs, therefore, become exceedingly
heavy, and their durability comparatively short in comparison
with the latter.-See Steam-Engine and Locomotive Engine.
HIP.-See Roof.
HOARDING, the name given to the wooden boarding enclosing-
any building operations.
HOLLOW QUOIN (in lock-gates), the re-
cess made in the walls of locks at each end
for receiving the gates, which are properly
hollowed out to fit the shape of the quoin-
posts.-See Lock-Gates.
HORSE PATH, or TRACK, the name some-
times given to the towing-path by the side
of a canal, or river, where horses are used for towing ; they were
formerly made only on one side of canals, but are now frequently
on both, and about 8 or 10 feet wide.
HORSE POWER, the power or force which a horse generally
exerts, which is compounded of his weight and muscular strength;
the weaker and heavier horse will overcome a resistance which
the stronger and lighter horse cannot, provided the excess of his
weight exceed, in the smallest degree, his deficiency in strength.
A horse drawing in a mill, or machine of any kind, should be
allowed a track of sufficient diameter to exert his power to the
greatest advantage ; it ought not to be less than 40 feet for full-
sized horses; and where such an extent cannot be obtained,
horses of reduced size should be employed, in order to corre-
spond with the contraction of the track : it has been ascertained
that a horse loses grds of his effective strength when removed
from a 40 feet track-circle to one of 19 feet; and a horse works
to the greatest advantage when the line of draught inclines a
Digitized by
Google
124
HORSE POWER.
little upward to his breast, making a small angle to the horizontal
plane.
The amount of force exerted by a horse is generally reckoned,
in mechanical calculations, equal to 33,000±., raised 1 foot high
per minute; and if continued throughout the whole day of 8
hours, amounts' to 150tb. conveyed a distance of 20 miles, at a
speed of 21 miles an hour : but some engineers consider 125tb. a
sufficient load for an ordinary horse, although, according to Mr.
Bevan's calculations (deduced from the effects produced by
horses in several different ploughing matches) 160lb., raised at a
velocity of 2½ miles per hour, is the average of their power; but
much depends upon the size and muscular strength of the horses
employed, and the mode of shoeing, fitting of the collar, line of
draught, and other circumstances.
The power of horses decreases with the velocity of their speed
thus, taking 125tb., moved twenty miles a day, at a rate of 2½
miles an hour, or 2,500±b., conveyed 1 mile, as the daily perform-
ance of a horse (which is the power assigned to a horse by Mr.
Nicholas Wood), and allowing for the friction of railway car-
riages at 8½tb. per ton, gives nearly 300 tons, conveyed 1 mile, as
the power of a horse upon a railway. And as the friction of a
stage upon a turnpike road, when loaded, amounts to 83tb. per
ton (according to Mr. Macneill's experiments), and calculating
it to weigh 2 tons, would give 42tb. as the share of each of the
4 horses, the rate of travelling being about 10 miles an hour ; and
supposing they average 13 miles per day, which is taking the
utmost, the total force exerted by each horse, per day, is equal
to 546tb., conveyed 1 mile : now, applying this force upon a rail-
way, as in the former instance, reckoning the friction again at
8½tb. per ton, gives 64 tons moved 1 mile; their relative efforts at
21 miles, and 10 miles, an hour, are, therefore, in the proportion
of 300 to 64.
The belief that locomotives will one day compete with horses
upon common roads is becoming very general in the scientific
world: how far this is correct time will show ; but the superiority
Digitized by
Google
HORSE RUN.
125
of locomotives over horses, upon railways, is very evident : yet as
it is necessary that the trains upon a railway should start at cer-
tain fixed periods, whether they have full loads or not, they
consequently become expensive with light ones.
The following Table S hows the comparative expense of locomo-
tives and horses as a motive power upon railways :-
HORSES.
LOCOMOTIVE ENGINE.
Rate of
Charges of
Rate of
Charges of
speed,
Cost of
conveying goods
speed,
Cost of
conveying goods
in miles
haulage, per ton
and
in miles
haulage, per ton
and
per
per mile.
passengers.
per
per mile.
passengers.
hour.
hour.
d.
d.
d.
d.
21
0.56
1.65 per ton
8
0.375
1.065 per ton
per mile.
per mile.
4
0.9
3.627 per ton
12
0.5
3.5 per ton
per mile.
per mile.
4d. per pas-
1d. to 11 per
0.25 per
1d. to 13d.
senger.
passenger.
passenger.
per passenger.
10
20
2.24 per ton
18. 3d. per ton
0.73 per ton
12.37 per ton
per mile.
per mile.
per mile.
per mile.
The expense of conveying goods by horses, at 2½ miles an hour,
is about the same as by locomotives at 12 miles, therefore, where
speed is of no consequence, horses may be preferred ; as a horse
railway can be executed for a much less sum than a locomotive
line. There are many railways, in the North of England, where
horses still continue to be used.-See Canal.
HORSE RUN (in earthwork), a contrivance for drawing up the
loaded wheelbarrows from the bottom of deep cuttings for rail-
ways, docks, &c., by the assistance of a horse, which walks to and
fro, instead of round, as in a horse gin. The horse runs, em-
ployed at the deep chalk cutting at Tring, on the London and
Birmingham Railway, were worked by two horses, the which
pulled a loaded wheelbarrow from the bottom, a man guiding it
up the plank by means of the handles ; and, in descending, he
Digitized by
Google
126
HORSING BLOCK-INCLINED PLANE.
merely attached the rope to the barrow, and the friction of the
tackle offered sufficient resistance to let him down the plank with
safety.
HORSING BLOCK, a square timber framing, used in forming
excavations for raising the ends of the wheeling planks.
HUB, a block of wood employed to stop the wheels of car-
riages, and prevent their progress by gravity, or any acquired
momentum: they are used upon railways with great advantage.
HURRIES, a term sometimes applied to a timber framing, or
stage, erected on the quays of harbours, and navigable rivers, and
at the extremity of railways connected with coal-pits, spouts
being fixed at the end of the hurries, down which the coals are
discharged and shot at once into the hold of the ships.
HYDRAULIC ENGINE, the term applied to all machines which
receive motion from the weight or impulse of water, and to
engines employed in raising water, &c.
The term, however, bears more immediate reference to a
machine, somewhat resembling the steam-engine, in which the
piston is impelled by a column or head of water, instead of by
the force of steam.-See Pump, Water-wheel, &c.
HYDRAULIC, or WATER LIME, lime which possesses the pro-
perty of hardening, when used in water operations. A small
mixture of burnt clay, with the lime, during the process of
burning, will give it this quality ; also brick, or tile dust, or poz-
zolano, the latter being very valuable for hydraulic works.
ICE-BOAT.-A boat employed on canals to break the ice in
frosty weather; it is usually heavily laden, and protected by iron
bows and keel. The improved ice-boat, which forms an inclined
plane under the ice, and rents it upwards instead of thrusting
downwards, as in the ordinary boats, has been found very effica-
cious in practice. A man steers the ice-boat from the towing-path,
by means of a long shaft attached to a pole projecting over the
stern. Ice-boats are, however, only applicable when the ice is of
but little thickness, or to clear it away after a thaw.
INCLINED PLANE, one of the mechanical powers or con-
Digitized by
Google
INJECTION ENGINES-INTERMEDIATE SPACE.
127
trivances by which the raising of heavy bodies is much facilitated,
as a plane inclined to the horizon sustains but a portion of the
weight of any load that may be resting on it ; thus, if the
plane be 6 feet long, with a rise of 1 foot, and a load of 6 tb. be
placed upon it, and a cord passed from the same over a pulley
at the top of the plane, and parallel thereto, then a weight of
1tb. fixed at this end will balance the load: if the height is
2 feet, 1 lb. will balance 3 tb. ; but the total amount of power
required to move a body up a hill is the same that is required
to lift it up a height equal to the degree of altitude that it is
moved up the hill; thus, the power to run a carriage, weighing
2 tons, a distance of 12 yards up a rise of 1 in 12, is similar to
that which would be required to lift it up 1 yard.
The term is indicative of all planes not perfectly horizontal
(of a higher level at one end than the other) ; but when ap-
plied to railways, it is generally understood to refer to steep
inclinations only, as the Euston-square inclined plane, of 1 in 86,
on the London and Birmingham Railway, and the Box inclined
plane, of 1 in 107, on the Great Western Railway, at Bath.
Inclined planes should not have an uniform slope or clivity,
but they should be laid with a greater fall at the higher than at
the lower end, towards which it should gradually diminish. The
velocity acquired at commencing the descent will thereby be
counterbalanced by the gravity increasing as the carriages ap-
proach the extremity of the plane.-See Steam and Self-acting
Inclined Plane.
INJECTION ENGINES, those steam-engines in which the steam
is condensed by an injection of cold water into the cylinder, as
most condensing engines at present in use. Mr. Samuel Hall's
patent engines effect the condensation without any injection,
which system is considered to be the most perfect; the presence
of air into the condenser is also prevented by it.
INLET, a term applied to an opening into a drain or culvert.
INTERMEDIATE SPACE, the centre space or distance between
each line of rails, on double lines of railway, which varies on
different lines. It is frequently made the same as the width
Digitized by
Google
128
INVERT-IRON.
between the rails, or 4 feet 81 inches ; although it is increased to
6 feet on the London and Birmingham and other Railways.-
See Railway, &c.
INVERT, or INVERTED ARCH, a term applied to an arch when
placed in an inverted position, the intradoes or soffit of the arch
being below the axis or springing-line they are much employed
in the foundations of buildings, and are turned between piers and
the like, to connect the whole together, whereby the bearing of
the foundations is rendered regular and even throughout : they
are also used for the purpose of excluding water.
IRON, a very hard and durable metal of a bluish white colour,
very malleable and elastic.
Iron is considered to be the most important of the mineral trea-
sures of the United Kingdom after coal ; but it is not often found
in a natural state, as the ore is generally diffused in immense
beds, and is converted, by chemical means, into pure metal.
Sweedish and Russian iron have long been held in high esti-
mation on account of their being smelted by charcoal furnaces.
Pit coal is obliged to be used in this country for that purpose,
owing to the scarcity of wood (the period of its first application
was in the year 1619) : notwithstanding, the best English chain
cable iron is very little inferior to foreign iron.
Iron is of two kinds, viz., the cast, or moulded, and the wrought,
or forged; the latter is employed for all purposes where strength
and stiffness to resist a pull or stråin laterally is principally
required cast-iron, on the contrary, is mostly used in a vertical
position, and is not to be depended upon as a tie, unless cast of
very large proportions; it is also much used for engineering pur-
poses, in such situations where it would be difficult to apply
wrought iron, as for the ribs of bridges, &c. ; also for ornamental
purposes, arising from the facilities which it presents, being capa-
ble of taking almost any shape.
The manufacture of iron received a vast impulse at the period
of Watt's great improvements in the steam-engine, on account of
the increased demand thereby occasioned: this new power was
also employed in improving the blast in the furnace.
Digitized by
Google
IRON.
129
There is nothing particular to distinguish common iron ore
from common stone, excepting its greater weight and it is worthy
of remark, that the fuel required for its reduction generally
accompanies it the ore is principally found in coal measures, and
in connection with limestone, both of which are used in the ope-
ration. The metal is obtained from the ore, by a process termed
smelting. It is first broken into moderate-sized pieces, and roasted,
or baked by a method very similar to the burning of bricks by
clumps, being formed into heaps about 30 feet long, 15 feet
broad, and 5 feet high, with sloping tops: a thick layer of coal is
placed at the bottom, and intervening layers are also laid within ;
the whole is then ignited, and left to burn for four or five days,
and when cool, the ore is taken to the smelting furnace, which is
a brick or stone building, in the form of a tower, from 40 to
50 feet high it is filled with ore, and a mixture of coke and
limestone, in the proportions of about 3 of ore to 4 of coke, and
1 of limestone.
The accompanying sketch represents a blast furnace upon the
most simple and approved principle. The interior portion, marked
A, is built of fire-bricks; it is fed at
the top, through the hole B; the fire,
situated at the bottom is forced in
by the powerful aid of the blast-
pipe, which is worked by a steam-
engine; an opening is left at the
bottom, for the escape of the metal
into a receiver, C, upon its acquir-
ing a state of fusion; and it is con-
ducted into sand-moulds, laid upon
the ground, of the pattern required, or into furrows made in
sand: the large mass, which sets in the main one, being called by
the workmen a sow, and the lesser ones, pigs-this sort being
known by the general name of pig, or crude iron. The furnace is
never allowed to cool, but fresh ore is continually poured in at
the top, as may be found necessary ; in the event of repairs being
S
Digitized by Google
130
IRON BRIDGE.
required, it is blown out : the coke not only serves as fuel, but it
attracts the oxygen from the ore, and enters into combination with
the iron in a state of pure carbon : the limestone assists the smelting
as a flux upon the earths in connection with the ore, as flint and
clay ; the which rise and float upon the surface, and are termed
scoria, or slag.
The hot air blast is now used in preference to the cold air blast,
as a great saving is effected by it; a large portion of the heat being
absorbed by the cold air, which occasions an unnecessary con-
sumption of fuel : coal has also been successfully employed in
some instances, in place of coke.
Wrought iron is prepared from the cast, the pigs being again
subjected to the furnace, melted, and run into moulds, by which
the remaining extraneous matter, as earth and oxydized iron, is
got rid of; this process being repeated until the iron clots to-
gether upon being stirred, forming soft pasty lumps, when it is
taken out and beaten by the large forge hammer, which is worked
by a steam-engine ; and when the metal is compressed into cakes
of about 1 inch in thickness, they are placed in another furnace,
and softened and shaped into bars, the ends being welded together
and the operation is completed by the entire bars being again
placed in the furnace, softened, and beat under the forge hammer :
by this process, the metal is freed from all carbon, oxygen, and
earthy ingredients; and instead of being brittle and easily fusible,
it is now possessed of great tenacity, ductility, and malleability.
IRON BRIDGE, a description of bridge formed of cast iron, and
employed in situations where the width or span is very great,
compared with the rise being preferable, in such cases, to those
of stone.
Iron bridges consist, generally, of ribs thrown across, having
iron plates filled in between them, as described under the general
head of Bridge."
The first iron bridge was constructed in the year 1779, and
erected over the Severn, a little below Colebrook Dale, at a
part of the river where the stream was narrow, and, consequently,
Digitized by
Google
IRRIGATION OF LAND.
131
rapid: the span of the ribs is 100 feet 6 inches, the spandrels
being filled in with metal rings; but owing to the piers not
having been sunk sufficiently deep to ensure a firm foundation,
nor strong enough to resist the internal pressure of the ground,
which was of a slipping nature, the masonry became thrown out
of the perpendicular, and, consequently, much damaged; and the
form of the ribs being nearly semi-circular, they did not offer much
resistance to this pressure; whereas, had they been segments,
their power of withstanding it would have been much greater.
The success of this experiment was, however, fully acknowledged
and appreciated, although the ribs are now mostly executed in
flat segments.-See Bridge.
IRRIGATION OF LAND, the operation of applying water to
land, for the purpose of agriculture.
Irrigation is a process but little practised in this country,
owing to the soil not requiring it; although it generally forms a
part of the system of drainage in low lands, the requisite works
for enclosing the water serving the purposes of both; and by
storing it up in dry seasons, the sluices have only to be opened to
flood the whole of the lower level.-See Drainage for Agricultural
Purposes.
The irrigation of land may be described, generally, as being of
three kinds first, simple flooding, usually termed flooding and
warping; secondly, surface irrigation ; and, thirdly, subterraneous
irrigation. The first has long been practised, being an evident
imitation of nature in the overflowing of rivers; it consists in the
floating of a quantity of water over the land, and is generally
practised with grass land; and when it is charged with soil, or
any alluvial matter, it is called flooding and warping ; the warp is
very serviceable, and increases the fertility of the land consider-
ably; it also tends to raise the surface of the soil. The second
description, or surface irrigation, is executed by open cuts or
channels traversing the surface of the land, by which the water
is conveyed to the roots of the grass. This system, also, is of
great antiquity, and, being simple, it has continued in use up to
S 2
Digitized by
Google
132
ISOLATED HARBOUR.
the present period. The meadows around Salisbury have been
watered in this way from time immemorial, where these nume-
rous cuts also assist the drainage, there being much water in the
neighbourhood. The third kind, or subterraneous irrigation, is of
more modern date, and constitutes the most approved plan, being
more convenient, and requiring the least quantity of water of any.
It is effected by a system of main drains, having covered gutters
connected with them, and placed in the sub-soil, the former
communicating with a main conduit, or feeder, proper sluices being
attached, by which the water is discharged when required.
Irrigation by Liquid Manure is a subject well deserving the at-
tention of the profession, no practical plan of effecting the same
having yet been devised, although it is much adopted on the
Continent, and there are occasional instances of it in this country,
as in the neighbourhood of Edinburgh, where it is employed on
grass land, and succeeds exceedingly well.
ISOLATED HARBOUR, a harbour of refuge, built independent
of the coast, and con-
nected to it by a bridge,
under which the shin-
gle is allowed to pass ;
the inclination of the
shingle to travel on-
wards, even through a
very contracted chan-
nel, gave the idea of
this plan of construc-
tion; and by keeping
the mouth of the har-
bour in sufficiently
deep water, no cause
will operate to diminish the depth, impede the silt, or stop it up.
The above is a plan of an isolated harbour upon the system of
Mr. William Tait, C.E., who has devoted considerable attention
to the possibility and expediency of constructing them; the arrow
Digitized by
Google
JIB-KEY.
133
represent the direction of the tidal current and the dotted line,
the course of the prevailing south-west wind.
JIB, the projecting frame of a crane, from which the weight or
goods are suspended.
JOGGLE, a term applied to a particular
description of joint; thus, to the joint
connecting two stones, or other bodies, in
such a manner that they cannot slip away
from each other without tearing the joggle
or joint asunder. A separate piece of
hard stone, called a joggle, is sometimes
introduced at joints of stones exposed to
great strains, thus-See Cuts.
JOINT, the connection or juncture of separate bodies, but
applying more particularly to vertical joinings, as in stone-work
those situated horizontally being termed beds.
JOINT CHAIR, the chair which secures the jointure of two
railway bars together. They are generally made larger than
other chairs.-See Chair.
JOISTS, the timbers employed in supporting the flooring of
warehouses, and other buildings.
JOURNAL, the name given to that portion of a shaft which re-
volves on a support situated between the power applied and the
resistance.
KEY, COTTAR, or COTTREL, a wedge-shaped or taper-
ing piece of iron or wood, which
is driven firmly into a mortice
prepared to receive the same, to
B
A
tighten and secure the several parts
1
B
18
of any framing or contrivance toge-
ther, as a rail to a chair, &c., thereby
forming a fastening. When a key is
A, A, the Keys. B, B, B, B, the Gibs.
passed through a timber beam, or two or more pieces of metal
placed side by side, it is customary to clasp them together by
irons, termed gibs, previous to inserting the keys.
Digitized by Google
134
KEY STONE-LEVEL.
KEY STONE.-See Arch.
KING, or CROWN Post.-See Roof.
KYAN'S PATENT PREPARATION, a process of preserving timber
from the dry rot, recently invented by Mr. Kyan, consisting of a
solution of corrosive sublimate, in which the timber is immersed,
whereby the primary element of fermentation is neutralized, and
the fibre of the wood rendered indestructible. It also effectually
seasons the timber, occupying a space of only two or three
months instead of from two to six years, which is usually con-
sumed in laying it to dry, by the common method; and it also
protects it from the ravages of insects.
The preparation has become generally employed for railway
sleepers, and for all timbering employed in engineering works,
which, from their exposure to the weather, are very liable to pre-
mature decay.
LAND SLIP.-See Slip.
LEAF-BRIDGE, or HOIST-BRIDGE, a certain description of bridge,
consisting of two opening leaves, and much used formerly, although
very seldom employed at the present time.-See Drawbridge.
LEAT, an artificial channel for conducting water for the work-
ing of water wheels, and for other purposes.
LEGGERS, the name given to the men employed in conveying a
barge through a canal tunnel, by means of pushing with their legs
against the side walls.
LEVEL, the name given to a tract of low marshy land, or
morass, as the Bedford Level, which is the receiver of the waters
of nine counties, and which extends into six counties; viz., Nor-
thamptonshire, Huntingdonshire, Cambridgeshire, Lincolnshire,
Norfolk, and Suffolk and comprises about 400,000 acres of
low land, encompassed in all directions: it therefore becomes
very difficult to provide a sufficient outlet to the sea to carry
the water off. The works connected with levels are of great im-
portance, and frequently possess extensive embankments and
sluices.-A canal, or any particular portion of one, is also termed
a level-See Drainage for Agricultural Purposes.
Digitized by Google
LEVEL.
135
LEVEL, or GALLERY (in mining). This term is much used in
reference to coal mines, and the levels are usually distinguished
from each other by their depth, and are designated 40 fathom, or
50 fathom levels, accordingly.
LEVEL (spirit). The spirit level is an instrument for mea-
suring the rise and fall of the surface of the ground, and used in
taking the section of a hill, or proposed line of road, canal, or
railway, consisting of a spirit level fixed to a telescope, with
screws to adjust it horizontally. The eye of the observer is
directed to the object-glass of the telescope, when he observes the
height at which the horizontal wire crosses the staff. It is necessary
to employ great care in adjusting the instrument, as every thing
depends upon the accuracy with which it is performed. Sup-
posing the primary adjustment of the telescope and level together
to be correct, the rendering the whole horizontal is easily accom-
plished by bringing the bubble to the centre of the glass tube.
The eye-piece of the telescope must be drawn out until the cross
wires appear perfectly distinct, and the screw, acting upon the
diaphram containing the wires, must be turned until the smallest
gradations are perfectly visible; when any wavering motion
appears in either the wires or the staff, parallax is said to exist,
which must be removed before any observations are taken.
The Y level" is the oldest instrument used for this purpose;
but Troughton's Improved" forms a great improvement upon
same. Gravatt's Level," so named from the inventor Mr. Wm.
Gravatt, C.E., is at present the favourite instrument among engi-
neers, as it possesses very important advantages over others.
The term level is also applied to a perfectly horizontal plane, or
line, i. e. a line drawn between any two points which are equidistant
from the centre of the earth.-See Levelling and Levelling Staff.
LEVEL, or PAVED CROSSING (on a railway). Level crossings
occur where a railway crosses roads upon the same level ; in which
case the rails are protected by iron frames and paving.
Level crossings, although of frequent occurrence formerly, are
very seldom made at the present time, on account of their prohi-
Digitized by
Google
136
LEVELLING.
bition upon highways and turnpike roads, and the accidents
sometimes occasioned by them ; also the expense of gate-keepers,
to attend them.
LEVELLING, the operation of finding a line parallel with the
horizon, from which the rise and fall of the ground may be duly
measured, the which is attained by the aid of instruments, on the
principle of it being perpendicular to the direction of gravity ;
but although the horizon is apparently a right line, and level, yet,
in point of fact, it is not so, but is a segment of the earth. The
globe is an oblate spheroid, flattened at the poles; the polar
diameter being 7,808, and the equatorial, 7,924 miles; and a
distance of 1 mile upon its surface, gives a depression of 8 inches
below the visible horizon due to curvature; at 2 miles, it is
4 times that quantity, or 32 inches; and at 3 miles, 9 times, or
73 inches, and so on, increasing in proportion to the square of
the distance ; but this fall is slightly reduced by the effects of the
refraction of the atmosphere, which incurvates the rays of light
proceeding from objects near the horizon in the direction of dis-
tant parts, raising them upwards; in other words, the points of
observation appear higher than they really are ; this rise may be
taken at 1th of the curvature, and therefore deducted from it. In
ordinary levelling operations, the influence of both curvature and
refraction are counteracted by taking observations at equal dis-
tances from each side the instrument, when they are each simi-
larly affected, and thereby nullified, their influence in extensive
trigonometrical surveys only being calculated and allowed for.
Levelling is usually performed by means of an instrument
termed a level, and with levelling staffs, the operation being com-
menced by the staff-man setting up the staff at the starting point
of the proposed line of section ; the observer then fixes his level at
a suitable distance beyond it, either upon the line, or on one side
of it, whichever is most convenient; he then adjusts his instru-
ment, and takes a sight at the staff, noting the same in his field-
book, the staff-man now proceeds forward, and upon arriving at a
suitable point in the line, the observer turns his level, and takes
Digitized by
Google
LEVELLING.
137
another observation, noting it as before; and the former sight is
denominated the back sight, and the latter the fore sight ; and they
are placed in the book, thus—
B.S.
F.S.
7.32
5.20
Sometimes several successive fore sights are taken without altering
the position of the level, in which case the fore sights become
alternately back sights to the succeeding observations, as-
B.S.
F.S.
7.32
5.20
5.20
2.30
2.30
9.22
It may be remarked that the position and height of the level is
immaterial, and any trifling error in the adjustment is also rec-
tified by placing it about midway between the stations. If the sec-
tion be required for an especial purpose, it is necessary to number
the stations, and chain the distances; which are entered in chains
and links miles are marked in the book thus-
CH. LKS.
40.00
60.00
70.00
85.00 = 1 Mile
12.00
the surplus 5 chains being carried on to the next length of
7 chains, making it 12 chains.
It is essential to hold the chain as nearly horizontal as possi-
ble, and not along the surface of the ground. Of course, in run-
ning check levels for the purpose of merely ascertaining the
general correctness of a section, it is unnecessary to go over the
ground in the same line, or to measure it; the comparative level
of the several bench marks only being regarded; they may run
down a turnpike road, if considered the most convenient.
T
Digitized by Google
138
LEVELLING.
The following is a good specimen of a field-book, and will ex-
plain the method of proceeding:-
Number of
Station.
Distance.
Total
Distance.
Back Station.
Fore Station.
Rise.
Depression.
Total Rise.
Total
Depression
Observations.
ch.lks.
ch. lks.
ch.lks.
ft.
ft.
ft.
ft.
1
23.60
{
Above Trinity Datum.
No. 1, (B. M.) centre of
1to2
3.50
3.50
6.26
5.30
.96
24.56
new road to (width
2-3
4.60
8.10
7.50
8.35
.85
23.71
40 ft.)
3-4
7.55
15.65
9.10
4.25
4.85
28.56
4-5
2.30
17.95
7.69
5.40
2.29
30.85
No. 5, corner of planta-
5-6
9.16
27.11
2.17
4.30
2.13
28.72
tion.
6-7
7.45
34.56
7.50
8.96
1.46
27.26
7-8
4.18
38.74
9.28
7.49
1.79
29.05
The following cut represents the section of the above, the hori-
zontal scale being 4 inches to the mile, and the vertical 100 feet
to the inch :-
Centre of new road.
Corner of plantation.
24.56
23.77
28.56
30.85
22
2726
29.05
Datum.
Line.
No. 1
2
3
4
5
6
7
8
The 1st column gives the number of the station; the 2nd, the
length or distance between the sights; the 3rd, the total distance
from the first station ; the 4th, the height of the back sight; the
5th, the height of the fore sight; the 6th and 7th gives the
difference between the height of the sights, the rises being
placed in the 6th, and the falls in the 7th column; the 8th and-
9th gives the reduced or total level above or below the first
station or datum line, the total rises being reduced in the 8th,
and the falls in the 9th column; the 10th, or last column, is left
for notes of the crossing of roads, rivers, &c., and to enter the
bearing of the line of levels; also any necessary observations upon
the local nature of the country, soils, &c., may be advantageously
Digitized by Google
LEVELLING.
139
placed therein. It is occupied in the diagram by memoranda of
the situations of the stations.
The line parallel with the horizon, mentioned at the commence-
ment of this article, is called the datum line, and is generally on a
level with the high water spring tides (Trinity datum), or low
water spring tides, or some other fixed mark, or at the level of the
first station, or 50 feet, or 100 feet, below it.-See Datum Line.
It may be remarked, that in common with all surveying opera-
tions, the correctness of the instrument should be proved by expe-
riment, and the chain should also be measured previous to com-
mencing; a strong stand is also desirable for the level, with legs
formed out of whole pieces, instead of being joined in the centre,
as frequently made. When the instrument is adjusted, and the
observations are proceeding, the movements around it should be
very few, and carefully made, particularly when situated on boggy
ground, as they are very likely to throw the whole out of adjust-
ment; and, for the same reason, the telescope should be capable
of turning upon the application of a very small degree of force.
In plotting out the work and drawing the section, it is cus-
tomary to adopt a larger vertical scale, compared with the hori-
zontal, in order to show the inequalities of the ground plainer.-
See Section.
A section is always commenced and finished at a bench mark,
consisting of some fixed object, (See Bench Marks). If none should
exist on the line of survey, it is necessary to make some, for the pur-
pose of reference at any future time, and for continuing, checking,
or deviating from the line of levels, if found necessary therefore,
upon the spirit level being fixed, the difference between the
bench mark and the first station forms the commencement, the
level of the bench mark being entered first, in the column of total
rises, or total falls, as the case may be (although the first station
should be situated at a bench mark if possible): if, at the close of
a day's levelling a good bench mark cannot be found, a stake
may be driven into the ground as a temporary bench mark, of
which no notice need be taken in the field-book.
T 2
Digitized by
Google
140
LEVELLING STAFF-LIGHT-HOUSE.
In the event of meeting with obstructions in the line, as woods,
lakes, forbidden property, &c., the levels must be taken round them:
if the distance should extend far, and the opposite side cannot be
seen, the plan must first be taken, then plotted, and the proper di-
rection of the line marked upon it, also measured and set off on the
ground, by which the levels may be readily carried round; and
upon arriving at the ultimate point, the original bearing of the
line must be taken, which will give the true direction of the line
of section. Lakes, ponds, woods, and buildings, may be readily
passed, by setting off a right angle, and continuing the line until
it clears the obstruction; next set off another right angle, and
again another, which carries it into the line of section; the length
of the second line must, of course, be equal to that of the first line
set off.See Level (Spirit).
LEVELLING STAFF, a graduated rod or staff, which is advanced
alternately with the spirit level, denoting by the graduations
bisected by the latter the rise or fall between any two points.
The improved levelling staff with inverted figures, which ac-
commodates itself to the inverting telescope, whereby the figures
may be read off by the observer in their proper position, tends
much to prevent errors, and facilitates the operation. Two staffs
are sometimes used which are moved on alternately, one being
applied for the back, and the other for the fore observation.
LIFT-WALL, the cross wall of a lock chamber.
LIGHT-HOUSE, a certain erection, generally in the form of a
tower, built upon or adjacent to dangerous rocks, for the purpose
of warning ships of their situation or along the sea coast, as land-
marks, lights of various descriptions being introduced upon the
top at night : a gallery, or balcony, usually runs round the lantern
on the outside. Light-houses, of a similar description, are also
frequently erected at the extremity of one of the arms forming
the entrance to harbours, for the purpose of guiding the vessels
in and out during the night, &c., which are generally called
" harbour lights."
The present Eddystone Light-house, which is situated at the
Digitized by
Google
LIGHT-HOUSE.
141
entrance to Plymouth Sound, and was commenced in 1756, by
Mr. Smeaton, is one of the most celebrated, presenting a fine
specimen of scientific construction, being situated upon an exten-
sive reef of rocks, known by the name of the "Eddystone," the
scene of many shipwrecks, about 91 miles from the Ram-head, or
nearest point of land.
Elevation of the Eddystone Light-house.
It is built upon an inclined piece of rock, upon which the
foundation stones are stepped down. The height to the top of the
cupola is about 86 feet at the highest level of the rock or head-
Digitized by Google
142
LIGHT-HOUSE.
land point, and about 94 feet at the lowest level ; the building
is carried up solid as high as there was any reason to suppose
it was exposed to the heavy stroke of the sea, viz. to 35 feet
4 inches above its level, and 27 feet above the top of the rock, or
common spring tide high water-mark the entrance is about
half-way up the latter, and the ascent is made by a well stair-
case in the centre; the sides of the stones forming the courses of
this portion are worked into one añother, thus
Plan of the 14th Course.
oak vertical wedges were introduced into grooves
prepared to receive them in the masonry,
whereby the stones were secured from the effects
of the sea, during the intervals the works were
obliged to be left; each course was likewise
secured to the one below it by oak trenails,
which were driven through the upper course, entering 9 or 10
inches into the one beneath it, and these trenails were again split
and wedged to secure their safe purchase, as the violence of the
waves was such, that the mortar from the beds and joints of the
stones forming the upper courses were washed away when the works
were left during the intervals of stormy weather; these courses
were further secured together by marble joggles or plugs, which
were introduced between the beds of the stones, and well wedged
and flushed with mortar. The next portion, extending to the cap
of the pillar, forming the surface of the balcony, or gallery, round
the base of the lantern, is carried up in stone walling, varying in
thickness from 2 feet 4 inches at the bottom to 1 foot 6 inches at
the top, which is arched over in masonry, and there are three in-
termediate floors between them, a well-hole being left in the centre
of each for communication, which is effected by means of ladders
and 2 tier of strong chain-bond is laid in each floor in the middle
of the walls, the several joints of the stones of this portion of the
building have grooves worked into them, into which thin pieces
of marble are joggled they are also well cramped together,
and a wall, about 6 feet 6 inches high, and 1 foot 2 inches thick,
is carried up above the capping, upon which the lantern rests.
Digitized
by
Google
LIME.
143
The Bell-rock Light-house, erected also on a dangerous reef in
the Frith of Forth, by Mr. Stevenson, and finished in the year
1811, is another excellent specimen. It is 42 feet in diameter at
the base, and 13 feet at the top, the total height being upwards of
100 feet.
Section of the Eddystone Light-house.
LIME, a valuable substance much used in building, and for
other purposes, being the most essential ingredient in all ce-
ments; it forms one of the primitive earths, although never found
native, or in a state of purity, but is always combined with acids,
Digitized by Google
144
LIME STONE-LINING.
particularly carbonic, in which it exists in prodigious quantities:
marble, limestone, and chalk, are all carbonates of lime, and gypsum
is sulphate of lime. Lime may be prepared from any carbonate
of lime, as limestone, or chalk, calcined or well burnt in kilns for
some time to a white heat, by which the carbonic acid and acid
contained in those substances are expelled, and the earth is left
in a fragile mass, having very little coherence, and is therefore
easily reduced to powder, when it is called quick lime, in which
state it shows a great disposition for water; upon applying which
it instantly swells and cracks, producing a considerable degree of
heat (it will absorb one quarter of its weight of that fluid, and
yet appear dry), it then falls into a fine white powder, when it
is called slack lime.
Stone lime is generally used for engineering works, and the
harder the stone the better is the lime produced from it. Brown
stone lime is said to be the best for all kinds of cements, although
blue lias lime is considered by some to be superior, as it
stands the action of water exceedingly well it was used by Mr.
Smeaton in building the Eddystone Lighthouse, where it has suc-
ceeded after all other limes had failed. Good chalk lime, although
said to be inferior to stone, is yet much esteemed. Lime should
always be kept under an enclosed shed, particularly chalk lime, as
it suffers considerably from exposure to the air: the efficacy of
lime also depends materially upon being well burnt, after which
process it should be used as soon as possible.-See Hydraulic Lime.
LIME STONE, or CALCAREOUS STONE, the stone from which
lime is produced.-See Stone and Lime.
LINING (in canal and other hydraulic works), a term applied
to puddle laid along the bottom and upon the sloping sides of
canals, whereby it prevents the water from escaping; it is usually
laid about 2 feet in thickness. A small portion of water will
always percolate through the banks of canals immediately after
their formation, but it gradually subsides as the soil consolidates.-
See Canal.
LINK, a certain portion of a chain. Gunter's chain, which is
Digitized by Google
LOCK.
145
that usually employed in surveying, contains 100 links, each
measuring, with the connecting rings, 72 1922 inches.
Lock, or HYDRAULIC Lock, a small lock of modern inven-
tion, and of frequent occurrence in the line of a canal; also at
the entrance of docks, basins, &c., constituting a contrivance for
passing boats from one level to another.
Locks are provided with gates at each end, and are made suffi-
ciently large to receive the largest boats navigating the canal
upon which they are constructed. The upper portion of the canal
is generally called the upper pond, and the other the lower pond,
the difference between the levels being termed the lift of the lock
(which varies from about 3 to 12 feet-the greater the lift the
more water is consumed) ; that portion of the lock enclosed by
the gates is called the lock chamber, the size of which is regulated
by the boats employed upon the canal. A (in the sections) repre-
sents the level of the upper pond, and B that of the lower ; C is
the lift wall, and D, D the side culverts. The lock chamber
should be rather wider than the boats used upon the canal, and
the utmost care is necessary to prevent the water from the upper
level making its way below, and rising up through the bottom of
the lock, and undermining the works; the bottom is constructed
with an inverted arch, to counteract any defect of this kind, the
which also excludes any humidity in the soil, and diffuses the
weight of water equally throughout. The recess into which each
leaf of the gate turns is termed the gate chamber the gate post,
hung in the hollow quoin, is called the quoin or heel post, and the
other the mitre post. The bottom framings, against which the
gates are shut, are called mitre sills, and are distinguished as
upper mitre sill and lower mitre sill.
The portions of a lock at each extremity of the lock chamber
are termed bays, and are either fore or tail bays accordingly, they
are usually finished with circular wing walls, extending to the
full width of the canal, and carried down below the bottom of the
same ; and bumping apparatus is sometimes formed against the
latter, by which they are protected from any shock of the boats
U
Digitized by
Google
Longitudinal Section of a Lock.
146
A
B
E
Plan of a Lock.
A
LOCK.
Lower Pond.
LOCK CHAMBER
Upper Pond.
Digitized by Google
LOCK GATES.
147
or boat-hooks grooves are generally
A
made in the head and tail bay walls,
for the insertion of stop planks, to
B
shut off the water when repairs are
necessary.
When a boat is required to be
Transverse Section.
passed from the higher to the lower
level, it is first floated into the lock chamber, and the upper
gates closed; the water is then allowed to escape from the lock
chamber to the lower level, which is effected either by paddles
formed in the gates, or by side culverts; the boat being thus
sunk to the lower level, the lower gates are opened, and it is
taken through : and the boats are passed up by a similar process,
only reversed. Some locks are constructed sufficiently large
to allow of two boats being passed up or down at the same time
and others effect the same by two distinct chambers.
LOCK-GATES, or HATCHES, the framed gates employed on
rivers and canals, for penning back the water, which consist of
two leaves, and are opened either by means of balance-beams,
situated on the top of the gates, or by boat-hooks a large gate
running upon wheels is opened by means of a windlass and
chain.
The gates of a lock are termed either upper or lower gates,
according to their situation; they are generally formed of strong
oak framing, the upright frame, or posts, at each side being called
quoin or heel posts, and the others mitre posts, according to their
situation, and horizontal pieces are framed into them, termed
rails; their tops are finished by long heavy beams, termed balance-
beams, which are for the purpose of opening and shutting the
gates, these rest upon the quoin posts, and are morticed into the
mitre posts; strong planking is nailed or trenailed on to the leaf
framing, which is sometimes laid in a diagonal direction, and
a slight foot bridge is usually formed on the top of the gates.
The quoin posts rest upon an iron pin, which turns in a socket
secured to the platform, and the upper part is enclosed by an
U 2
Digitized by
Google
148
LOCK GATES.
iron collar, connected with irons fastened to the stone curb, and
usually denominated anchor irons.
It has been found by experience, that lock gates, in common
with all timber framing, stand better when secured together
without the aid of irons, by means of dove-tailed tenons, wedges,
and pins, as iron soon affects those parts in immediate contact
with it.-See Anchor Irons, and Paddle or Clough, &c.
Elevation of Inner Side of a Lock Gate.
G
Plan of Gates, showing Platform, &c.
A, A, the balance-beams, by which the gates are opened
and shut.
Digitized by Google
LOCK SILL-LOCOMOTIVE ENGINE.
149
B, B, the clap-cill and frame.
C, C, the cross bearers, resting upon plates, and upon which
the planking is laid.
D, D, the rails or framing of gates, to which the leaf planking
is secured.
E, the upper diagonal planking.
F, the bottom planking.
G, the elm sheet-piling, for protecting the platform.
H, H, the quoin, or heel posts.
I, I, the mitre, or meeting posts.
Lock SILL, or CILL, the bottom framing against which the
gates are shut.-See Lock.
Lock-WEIR, a weir furnished with a lock, for the transport of
boats from one level to the other.
LOCOMOTIVE ENGINE, a motive steam-engine constructed on
the high-pressure principle, and adapted to run on roads and
railroads, being employed in conveying passengers and merchan-
dise along the line.
Locomotive engines differ considerably from other steam-
engines in their mode of construction, as numerous modifications
from the latter became necessary to render the machine suitable
for a rapid transit; the foremost of which is the combining of the
engine and boiler together, the boiler is also formed of much less
dimensions in proportion to its power, and the size of the cylinders
are reduced; the several parts of the framing is also secured
together in a stronger manner than usual, whereby the whole is
rendered proof against the sudden shocks and strains to which it
is subjected; the motion of the piston-rod is transferred to the
wheels, either by connecting rods fixed upon one of the spokes of
the wheels, or it is effected by cranks fixed upon the axles, which
thereby cause the wheels to revolve: the latter system is the
most convenient and direct, and is in almost general use ; although
the crank, being subjected to very great strains, is rather liable
to fracture, the former may consequently be considered to be the
strongest method.
Digitized by Google
150
LOCOMOTIVE ENGINE.
The honour attached to the inventor of the locomotive engine
is undoubtedly due to Mr. Trevithick (although Mr. G. Stephenson
has the credit of perfecting it) ; the first one having been con-
structed by Trevithick and Vivian in about the year 1802, which
was tried upon the common roads. It was supposed at the time,
but erroneously, as experience has since shown, that the wheels
did not possess sufficient power of adhesion to the road to impel
the engine forward; and various contrivances were consequently
attempted in other engines to increase the same by the aid of
propellers or levers, whereby it was pushed along, and which acted
upon the ground somewhat similar to the feet of horses: among
the foremost of these was Mr. Gurney's common road locomo-
tive, as originally constructed; the propellers being afterwards
found useless, were removed, although they have been described
as forming the chief peculiarity of his patent. Mr. Gurney's car-
riages obtained a very great share of public patronage and con-
sideration : indeed they have been the most successful of any.
Trevithick and Vivian also constructed another modification of
their patent steam-engine, and applied it upon a very indifferent
tramway, where it realised all that could be reasonably expected ;
it was worked by only one cylinder, which was placed vertically ;
and it got over the centres or dead points by the momentum of
the carriage when in motion.
The first public railway, worked by locomotives, was the
Stockton and Darlington, by Mr. G. Stephenson, which was
opened in 1825 the locomotives were worked by vertical cylin-
ders, the motion being communicated to the wheels similar to
the last-mentioned engine, and all four wheels acted upon it by
means of an endless chain running round cog-wheels fixed on the
axles. Although far from perfect, these continued to be the
most effective engines at work, until the opening of the Liverpool
and Manchester Railway ; and all engines, up to this period, may
be described, generally, as being of very poor construction,
having one flue passing through the boiler, and returned again to
the fire-box (the Trevithick plan of boiler), at which end the
Digitized by Google
LOCOMOTIVE ENGINE.
151
chimney was situated; and a greater velocity than 8 miles an
hour could never be attained by them, owing to their small extent
of evaporating surface : they did not possess 14ᵗʰ the power of
the present locomotives.
The directors of the latter railway having, in the year 1829,
offered a premium of £500 for the best locomotive engine, gave
the first stimulus to the subject, the stipulations and conditions
being as follows:-viz., " To consume its own smoke; to be
capable of drawing three times its own weight at 10 miles an hour,
with a pressure on the boiler not exceeding 50tb. upon the square
inch; the whole to be proved to bear three times its working
pressure-a pressure gauge to be provided; to have two safety-
valves, one locked up : the engine and boiler to be supported on
springs, and rested on six wheels, if the weight should exceed
41 tons; height, to the top of the chimney, not to exceed 15 feet;
weight, including water in boiler, not to exceed 6 tons, or less, if
possible: the cost of engine not to exceed £550." The Rocket"
engine, by Messrs. Booth and Stephenson, proved the successful
one, in the boiler of which tubes were introduced for the first
b
b
00000000
0000000
000000
0000
Elevation and Section of the "Rocket" Locomotive Engine.
Digitized by Google
152
LOCOMOTIVE ENGINE.
time, which greatly increased the evaporating powers of the
engine, and formed a considerable improvement.
a, the fire-box, which is surrounded with water on every side,
except that perforated for the reception of the fire tubes.
b, the boiler in which the steam is generated, containing 25 fire
tubes.
c, one of the side pipes for conducting the water from the
boiler to the casing round the fire-box.
d, one of the steam cylinders.
e, the chimney by which the smoke and condensed steam
escapes.
f, one of the connecting rods for communicating the motion of
the piston-rod to the driving wheels.
g, one of the eduction pipes, through which the steam escapes
into the chimney, after performing its office in the cylinders.
h and i, the safety-valves.
The boiler of the 'Rocket" locomotive was 3 feet 4 inches
diameter, and 6 feet long, having flat ends; the lower half was
kept constantly filled with water, and 25 copper tubes, of 3 inches
diameter, were passed along its whole length, and fixed water-
tight, the further ends of which were open to the chimney, and, at
the other ends, to the furnace (the tubes employed in locomotives
at the present time are of much smaller diameter, but three or four
times the number of the Rocket"). The upper half of the boiler
was appropriated as a reservoir for steam : the square furnace-box,
was 3 feet long by 2 feet broad, and 3 feet deep, the fire bars laying
at the bottom of it; the surface exposed to heated air, or flame,
from the furnace 117.8 square feet ; the whole of the furnace was
enclosed in a casing, except the bottom and the side next the
boiler; and the space between the furnace and the casing was
3 inches in the clear, and kept constantly filled with water: there
was also a pipe from the side of same, which communicated with
the underside of boiler, and another pipe was fixed at the top of
it, which conducted the steam from it into the boiler. The cylin-
ders had a stroke of 16½ inches, and were placed in a diagonal
Digitized by Google
LOCOMOTIVE ENGINES.
153
direction upon each side at the extremity of the boiler, each
working a wheel of 4 feet 81 inches diameter. The principle of
generating steam was by the exhausting power of the chimney,
assisted by the impulse of the steam from the cylinders, which
escaped from them into the chimney by two pipes, one on each
side, called the ejection pipes.
Tons.
cwt.
qrs.
lbs.
The engine weighed
4
5
0
0
Tender, with water and coke
3
4
0
2
Two loaded carriages attached
9
10
3
26
Total weight in motion
17
0
0
0
The evaporating surface of the boiler was three times the extent of
the former engines, which weighed upwards of 71/2 tons, to which
its success is mainly attributable; it evaporated 114 gallons of
water an hour, and consumed 217tb. of coke in that time, and it
attained a speed of 29 miles an hour, and an average velocity of
141 miles an hour.
Although locomotives have since been considerably modified,
yet the above engine has formed the basis of all the many great
improvements which have taken place in them. The cylinders
have been removed from the outside of the boiler to the inside,
and the piston rods placed underneath, instead of on the outside
of the wheels; they are also connected with the latter by means of
cranks placed upon the axles of the driving-wheels at right angles
with the same; a warm air chamber has also been made at the
upper end, and a blast-pipe introduced in the chimney, whereby
the draught of the furnace is considerably increased.
It was soon after found, that by constructing engines of greater
size, the increased evaporating powers would make ample amends
for the additional weight, and a strong desire was accordingly
manifested of having heavier engines on the Liverpool and Man-
chester Railway, but owing to the rails not being sufficiently
strong to carry them, they were found objectionable; and there
X
Digitized by Google
154
LOCOMOTIVE ENGINES.
was accordingly a constant struggle between light and heavy en-
gines for some time, but the line being now relaid with heavier
rails, they are exclusively used. The locomotives in general use
at the present time, upon public lines of railway, weigh from 9 to
13 tons, and are mounted on six wheels, which are frequently
coupled to increase their power of adhesion. The framing of the
engine is usually placed on the outside of the wheels, but Mr.
Bury places the framing of his engines on the inside, by which he
reduces the length of the axle, and consequently increases its
strength. The slide-valves are shifted by the engineer by means
of the connecting rod, or hand-gear, at starting and stopping an
engine only when at work, the engine performs it. A larger pro-
portionate passage is required for the entrance of the steam in
locomotives than in stationary condensing engines; the usual
velocity of the piston being about 440 feet per minute, or double
that of the latter, when running at a rate of 25 or 26 miles an
hour: they move at 700 feet per minute, when moving at 40
miles an hour; a proportion of 14th the area of the cylinders is
considered the best for the area of the steam port.
The power of a locomotive engine varies according to the
velocity with which it is propelled, and it cannot be estimated in
the same manner, as other engines, viz., taking the actual force
upon the piston and the velocity of its motion, as it is very diffi-
cult to ascertain the effective pressure of the steam upon the
piston, in consequence of its often differing very considerably from
that in the boiler, and on account of the large amount of resistance
of the waste steam, owing to the great velocity with which the
piston moves. The only true method of determining the power of
a locomotive is, therefore, by experiment.
The extent of power of a modern locomotive engine, having
12 inch cylinders, and an 18 inch stroke of piston, has been stated
at about 38 or 40 horse power at high velocities upon a level
plane, and 70 to 80 horse power at a slow rate of speed and their
general performance has also been estimated by other engineers at
from 30 to 40 tons, moved at the rate of 15 miles an hour; accord-
Digitized by
Google
LOCOMOTIVE ENGINES.
155
ing to which the following Table shows the load it will have at
different inclinations at plane:-
Gross load in Tons, which a Locomotive Engine,
Gross load in Tons, which a Locomotive
Inclination
Engine, capable of taking 40 tons
of
capable of taking 30 tons at 15 miles per hour,
will drag at the under-mentioned Velocities,
at 15 miles per hour, will drag
in miles in an hour.
at the under-mentioned Velocities,
Planes.
in miles in an hour.
Miles.
Milea.
Miles.
Miles.
Miles.
Miles.
Miles.
Miles.
Miles.
Miles.
10.
F2.
14.
16.
18.
12.
14.
16.
18.
20.
Level
53.4
45.
34.28
26.25
20.
60.
45.70
35.
26.66
20.
1 in 4480
50.85
42.57
32.62
24.97
18.97
57.1
43.5
33.3
25.3
19.
1 in 2240
48.51
40.87
31.12
23.85
18.15
54.5
41.5
31.8
24.2
18.1
1 in 1120
46.5
39.07
29.77
22.8
17.32
52.1
39.7
30.4
23.1
17.3
1 in 1000
43.56
36.75
27.97
21.45
16.27
49.
37.3
28.6
21.7
16.3
1 in 900
42.9
36.3
27.6
21.15
16.12
48.4
36.8
28.2
21.5
16.1
1 in 800
41.7
35.15
26.77
20.47
15.6
46.9
35.7
27.3
20.8
15.6
1 in 700
41.25
34.05
25.95
19.87
15.07
45.4
34.6
26.5
20.1
15.1
1 in 600
39.
32.85
24.97
19.05
14.55
43.8
33.3
25.4
19.4
14.6
1 in 500
37.05
31.2
23.77
18.22
13 87
41.6
31.7
24.3
18.5
13.9
1 in 448
35.61
30.0
22.87
17.47
13.27
40.
30.5
23.3
17.7
13.3
1 in 400
33.75
28.8
21.97
16.8
12.75
38.4
29.3
22.4
17.
12.8
1 in 350
32.7
27.37
20.85
15.97
12.15
36.5
27.8
21.3
16.2
12.1
1 in 300
31.44
25.8
19.65
15.07
11.47
34.4
26.2
20.1
15.3
11.4
1 in 250
28.2
23.77
18.57
13.87
10.57
31.7
24.1
18.5
14.1
10.6
1 in 200
25.11
21.22
16.12
12.37
9.37
28.3
21.5
16.5
12.5
9.46
1 in 150
21.36
18.
13.65
10.5
7.95
24.
18.2
14.
10.6
8.
1 in 100
17.55
14.77
11.25
8.62
6.58
19.7
15.
11.5
8.78
6.58
It is generally considered injudicious to work an engine regu-
larly to the utmost of its power; the load should, therefore, be
always a-little less than it is capable of drawing, to allow for the
variation of level in the line, and other contingencies; and extra
power may yet be obtained, if required, for the inclined planes, by
partially stopping the flow of water into the boiler at the time of
passing up, which increases the power of the steam, although not
to much extent. The water lost by the steam blown away in a
locomotive and other steam engines is replaced by an equal
quantity of water at each stroke of the piston, being supplied by
small force-pumps from the tender, and worked by the engine.
Engines are generally oiled by means of syphon wicks, or by
cocks and tubes; and the engine-man should carefully examine the
oil cups and syphon wicks previous to starting, also the water-
gauge and the other parts of the engine; and, as he sets her
x 2
Digitized by Google
156
LOCOMOTIVE ENGINES.
agoing, should try the hand-gear and force pumps; the condensed
steam-cock should be kept open as long as possible, and not
shut until just before the train starts. During running, the water-
gauge should be tested by the gauge-cocks, if considered neces-
sary, and the cocks should always be turned before the supply
pumps are used.
The locomotives may be frequently observed running up and
down a line of railway for a short distance in the vicinities of the
engine-house and depôts; this is for the purpose of pumping the
water from the tender into the boiler, the supply pumps, as before
stated, being worked by the engine ; it is obviated, in some cases,
by the locomotive being placed upon the circumference of large
wheels situated beneath the line, instead of upon the rails, when
the only effect produced is the turning of these friction wheels, the
locomotives remaining stationary.
The boiler forms the limit to the power and speed of a locomo-
tive, as each stroke of the piston consumes two cylinders-full of
steam, the same causing one revolution of the wheels; a certain
quantity of steam, may, therefore, be said to represent a certain
number of feet travelled over; and the cylinders are generally
capable of more work if a greater quantity of steam could be sup-
plied to them the diameter of the pump and feed-pipes are also
not sufficiently large to feed the boiler at very high velocities,
which consequently causes a lack of steam the boilers of station-
ary engines, on the contrary, may be enlarged without difficulty,
if the engine requires it.
Nearly one-third of the power of locomotive engines is absorbed
in preparing to move a load, and it is the same for great as for small
loads; the wear and tear of the engine also bears the same ratio
and the current expenses, as that of the stations, the sum for
direction, wages of engineers, attendants, &c. ; it is, therefore, of
the utmost importance that the goods and passengers upon a rail-
way should be conveyed in large masses.
The consumption of fuel of locomotives is regulated by the
load; with a full load it amounts to about 1ᵗʰ of coke per ton
Digitized by
Google
LOCOMOTIVE ENGINES.
157
per mile, taking the gross weight (the quantity of water evapo-
rated is rather less than 1 of a gallon per ton), and the consumption
of it is nearly double with a light load.
The following cuts represent Mr. Robert Stephenson's Patent
Locomotive Engine :-
no
N
23
E
D
num
o
End Elevation. Scale @ of an inch to the foot.
Digitized by Google
Digitized by Google
09600
on
3
o
o
000000
0
000000000
00
0 o c 0 or a 0 - c o o 0 o c 0 0 0
D
o
©
0
o
o
D
00 DO o o o 0 D D D 0 c 2 C D o c o © 0 000
0 o 0
3
o
0
one
00000090000 0 0000m 0
00
o
0
Side Elevation, with the Tender attached. Scale I of an inch to the funt.
0
o
D
0
0
D
4
0
pood
D
0
0
o
3
0
0200
.
$
3
:
,
Mr. Robert Stephenson's Patent Locomotive
a
o
0
0
0
0
o
0
o
0
D
c
0
©
©
0
or
©
o
o
0
0
a
.
e
0
0
o
-
0
0
M
a
.
name .
0
00000000 000
e
0
0
a
$
LOCOMOTIVE ENGINES.
1388
Digitized by Google
LION
11
N
A
Internal Fire Box
Steam Entrance
External FireBox
Longitudinal Section, showing Construction. Scale i of an inch to the foot.
P
Safety Valve
Boiler
Steam : Pipe
-
F
Boiler
Man Hole
Steam Prpe
Damper
Smoke box
Blast Prps
Chimney
lind
Y
05
1599
LOCOMOTIVE ENGINES.
-
160
LOCOMOTIVE ENGINES.
Mr. Robert Stephenson's Patent Locomotive.
Steam Entrance
H
W
R
R
0
Internal Pine Barn
C
Transverse Section taken through Smoke-box. Scale I of an inch to the foot.
A, the fire-grate, which is situated at the bottom of the internal
furnace-box.
B,B, the feed-pumps which supply water to the boiler, which
are worked by an arm attached to the piston-rod.
Digitized by Google
LOCOMOTIVE ENGINES.
161
Chimngy
Damper
/
Blast Pipe
DUE
CYLINDER
CYLINDER
Transverse Section taken through Smoke-box.
C, C, the suction-pipes to same.
D, the gauge for regulating the height of water in the boiler.
E, E, the gauge-cocks for trying the same.
F, the lock-up safety-valve, over which the engineer has no
controul.
Y
Digitized by Google
162
LOCOMOTIVE ENGINES.
G, G, the blow-off cocks, through which the water is blown
when the boiler undergoes cleansing.
H, the regulator, which is fitted to the steam-pipe, by which
the engineer regulates the supply of steam to the cylinders as
may be required.
I, I, the slide-valves forming the communication between the
steam-pipe and the cylinders.
K, K, the steam-chests in which the same work.
L, one of the cylinder covers, which are fixed air-tight.
M, one of the piston-rods.
O, the steam-dome or cover, being placed over the steam-pipe.
P, one of the connecting-rods, which is attached to the last by
means of cross-heads.
Q, Q, the cranked axle.
R, R, the driving-wheels.
S, S, the eccentrics and accompanying gear for reversing the
motion of the engine.
U, U, the principal or outside framing, upon which the springs
W, W, are fixed, the framing employed within it being termed
the inside framing.
X, X, the pet-cocks, for ascertaining the flow of water in
the suction-pipes.
Y, Y, the cocks to let off the priming water from the cylinders;
another cock is also connected with the blast-pipe for a like
purpose.
Z, the steam-whistle, for giving signals as occasion may
require.
The modern locomotives take about 8tb. of fuel to evaporate
1 cubic foot of water (which is nearly the same that is required by
stationary engines) ; as much as 18tb. were consumed by the old
locomotives to accomplish the same, owing to their evaporating
surface being considerably less. The cost of a locomotive engine
and tender is about £1,200, and the annual repairs are stated
at £800.
There have been several locomotives constructed, with a view
Digitized by
Google
LOCOMOTIVE ENGINES.
163
to their running on common roads, as before stated, which are
necessarily of much less weight than those employed on rail-
ways, and they usually possess a greater degree of power in pro-
portion to their weight. Mr. Gurney was among the foremost in
Mr. Gurney's Patent Road Locomotive, with a Carriage attached to it.
introducing them he proposed having the carriage containing the
passengers attached to the propelling carriage, or engine, and he
considered that if his conveyance was employed instead of horses
the total weight upon the road would be about the same in either
case thus, supposing the average weight of 1 horse to be 10 cwt.
it would give 2 tons as the weight of 4, which is about that of his
propelling engine, and the passenger-carriage (containing 18 per-
sons) would be of the same weight as the stage-coach drawn by
the horses; but as horses cannot work above 1 or 11 hours per
day, from 25 to 32 horses are constantly required to work 8 hours,
or the length of time a locomotive may be readily run per day,
which number of horses it may therefore be said to be equal to ;
although his engine is calculated to be of only 12 nominal steam-
engine horse power : notwithstanding, where a speed of 4 miles an
hour only is required, horses are the cheapest. If the engine is
employed to draw carriages, as represented in the above cut, they
should not exceed 3 tons, nor the engine 2, or 21 tons. An engine,
with a carriage, can turn a circle of 10 feet inner diameter, and be
stopped within 6 or 7 yards. The ordinary pressure on Mr.
Gurney's boiler is 70tb per square inch; it consequently blows
with that pressure, and generally lifts the valve: when the carriages
stop, it is sometimes increased to 100, and 130 is the greatest
Y 2
Digitized by
Google
164
LOCOMOTIVE ENGINES.
pressure it is liable to be subjected to ; 20tb. is also the utmost pres-
sure on the piston : the danger of the boiler of a road locomotive
bursting is not so great as that of the horses running away. Mr.
Gurney has thrown out an idea of adopting a locomotive, both for
high and slow velocities, by a very simple contrivance; viz., by
using wheels 5 feet diameter, when the load is light, and a great
degree of speed is required, and substituting smaller ones, when
the load is heavy, say 2 feet 6 inches diameter, and a slow velocity
only is necessary ; the power with the latter would be double that
of the former, but they would travel at only half their velocity.
An advantage is gained by quick travelling, as the momentum
assists in overcoming the inequalities of the road, in a similar
manner to the action of a fly wheel. One of Mr. Gurney's loco-
motives, weighing 2 tons, drew 11 tons, inclusive of the engine, the
road being hard and good, although it undulated. The width of
the tires of the wheels were originally 2 inches, but he has
found 31 inches a more advantageous width, particularly for the
roads.
Mr. Hancock's common road locomotive was the first publicly
run upon a road for hire, which occurred in the year 1831 ; in
which case the engine was adapted for the reception of passengers,
and was capable of containing 16 persons, independent of the
engineer and guide; the machinery being situated behind the car-
riage, and the weight was about 31/2 tons, without passengers,
and exclusive of the engines, boilers, coke, water, &c. The
inventor states, that it requires about 20 minutes to get up the
Mr. Hancock's Patent Road Locomotive.
steam, the same consuming
1 bushel of coke, taking in
water according to circum-
stances-say every 8, miles,
and about 7 or 8 cwt. at a
time ; the carriage can be
turned in little more than 10
feet, and stopped in a much
shorter space than a coach; the pressure of the steam in the
Digitized by
Google
LOCOMOTIVE ENGINES.
165
boiler is much the same as in Mr. Gurney's, but he has worked it
at a greater pressure. The fire is blown by a rapid current of
air produced by a fanner, which is turned rapidly round by the
engine, instead of the draught being effected by a high chimney.
One driving wheel is generally found sufficient; but, on slippery
roads and steep hills, both hind wheels are connected with the
engine; he has accomplished 1 mile up hill, at a rate of 17 miles
an hour.
It may be very fairly stated, that the several unsuccessful
attempts that have been made to introduce locomotives upon
common roads, have not been caused by any imperfection in their
mode of construction, neither are there any practical difficulties
connected with them that could not be surmounted their failure
is wholly attributable to the obstacles which beset them, both
public and private; and until these are removed, it is in vain to
expect perfection, or even a partial fulfilment of the duties required
from engines for such purposes.
A select committee of the House of Commons were appointed
to investigate and report upon the subject of steam carriages,
(road locomotives) in the year 1831, and, after examining several
eminent engineers, came to the following conclusion :-
" That sufficient evidence has been adduced to convince your
Committee,-
" 1. That carriages can be propelled by steam on common
roads at an average rate of 10 miles per hour.
2. That, at this rate, they have conveyed upwards of 14
passengers.
" 3. That their weight, including engine, fuel, water, and at-
tendants, may be under 3 tons.
" 4. That they can ascend and descend hills of considerable
inclination with facility and safety.
" 5. That they are perfectly safe for passengers.
" 6. That they are not (or need not be, if properly constructed)
nuisances to the public.
" 7. That they will become a speedier and cheaper mode of
conveyance than carriages drawn by horses.
Digitized by Google
166
LODE-MASONRY.
8. That, as they admit of greater breadth of tire than other
carriages, and as the roads are not acted on so injuriously as by
the feet of horses in common draught, such carriages will cause
less wear of roads than coaches drawn by horses.
9. That rates of toll have been imposed on steam carriages,
which would prohibit their being used on several lines of road,
were such charges permitted to remain unaltered."
LODE (in mining), a vein containing metal.-See Mine and
Copper-mine.
Low PRESSURE, or CONDENSING ENGINE, a steam-engine, in
the cylinder of which a vacuum is formed, whereby the pistons are
worked; they are considered to be the most economic for ordi-
nary purposes, and are, therefore, in very general use.-See
Steam-Engine.
MACHINE, an instrument employed to regulate motion, or to
increase either its velocity, or its force, the term is, therefore,
more particularly significant of the contrivance interposing be-
tween the natural force and that employed in fulfilling the end
desired, as to a water-wheel which is situated between the
water and the apparatus for grinding corn, or for pumping water,
as the case may be. The tackle connected with most contrivances
are also known by the general name of machinery. It is a general
axiom in mechanics, that whatever a machine may gain in velo-
city, it loses in force; and, vice versa, no instrument effecting a
saving in both time and force.-See Mechanical Powers.
MARINE ENGINE.-See Steam-Engine.
MASONRY, a term applied to all works, either prepared or ex-
ecuted in stone.
It may be classified generally under three heads; viz., 1st,
plane ashlar, or cut masonry 2nd, hammer-dressed masonry;
and, 3rd, rubble or rough masonry; and there are several va-
rieties of each practised in different parts of the country. Ashlar
masonry consists of fair cut stones, and is mostly used for the faces
of buildings, when it is well bonded and crumped together; but
ashlar for engineering purposes is generally laid solid throughout,
particularly where great strength is required.
Digitized by
Google
MECHANICAL POWER-MILL.
167
The cutting or working upon the several faces and beds of
stones is called dressing, and such stones are described as wrought.
The term hammer-dressed is applied to masonry, when merely
squared and picked by the hammer, and this is more particularly
adapted for hard stones. Tooled, or droved, is another very gene-
ral description of dressing for hard stones, the surfaces being
worked in parallel perpendicular flutes: when the tooling is
worked irregularly, it is described as random tooled; when on the
contrary, they are worked by a chisel or narrow tool, it is called
boasted, or chiseled; the surface is also sometimes nicked or cut
with a small tool, when it is said to be pointed.
Rubble masonry is composed of stones merely axed on the face,
and laid according to circumstances; thorough stones being occa-
sionally introduced.
Brickwork is sometimes brought under this head, being de-
scribed as brick masonry.-See Ashlar, Rubble-work, and Pinning-in.
MECHANICAL POWER, the term applied to the force produced
by any machine for the accomplishment of any particular purpose.
It may be said to form the measure of all other forces, as it bears
reference to the degree of power exerted or required; thus,
steam, water, man, and horse power, are all represented by cer-
tain amounts of "mechanical power."-See Animal Power and
Horse Power.
MECHANICAL POWERS, the simple agents employed in pro-
ducing mechanical power, of which all machines are composed;
the application of them constituting the science of " Mecha-
nics."
The mechanical powers are usually divided into six classes
Viz., the lever, the wheel and axle, the pulley, the inclined plane,
the wedge, and the screw.
METALLING.-See Ballasting.
MILE, a land measure of distance, extending 1760 yards: 80
chains also make one mile.
MILL, a machine employed in pulverizing any substance, as
that of grain, whereby it is formed into flour, which is usually
Digitized by
Google
168
MINE.
accomplished by rubbing it between two hard substances, consist-
ing generally of stone, and termed mill-stones; the operation being
effected by the aid of machinery.
All descriptions of wheel-work at the present time are known
by the general name of mill-work, originating, no doubt, from the
circumstance of this being one of its first applications.
MINE, a term applied generally to underground works, or ex-
cavations, when made for the purpose of obtaining metallic ores,
and other minerals.
The body of the earth, as far as investigated, consists of
numerous strata, or beds, of various substances, differing exceed
ingly from each other in their appearance, specific gravity, che-
mical qualities, &c., and the strata of the same district frequently
varies considerably at very short distances the same description
of stratum also sometimes occurs in countries far apart. The
strata are traversed in all directions by cracks, or fissures, which
are supposed to have been originally open chasms, but which
are now mostly filled by substances differing from that of the
accompanying rocks: when they contain minerals, or any kind
of metal, they are called metallic veins, lodes, or courses, which are
only met with in what are denominated primitive rocks, as granite
and slate, and they are usually found in a slanting position,
running from east to west, and of various thicknesses and extent.
When a vein runs of an uniform thickness, and in a straight line,
it is called a rake; if its course is extended and swelled out in
some places, and contracted in others, it is termed a pipe vein,
the wider parts of the vein being termed floors the vein is some-
times divided into branches, when it is said to take horse : in some
cases a cross grain occurs, throwing it 10 or 20 feet out of its
course, by lifting or heaving a portion of it up; and a vein is
sometimes run to a mere thread, and at length completely lost,
appearing again at a distance. When a vein falls, it is said to
dip, the reverse being called the rise. The miners apply the name
of passable metals to any soft easy materials, as free-stone, and
the like; and when a stratum lies in an inclined position, and ulti-
Digitized by
Google
MINE.
169
mately terminates at the surface, it is said to crop out. It is
rather remarkable, that a less quantity of water is encountered in
mines under the sea than in ordinary excavations. There are
coal-mines extending for miles under the sea along the coast,
which are perfectly dry.
Transverse Section.
Longitudinal Section of a Metal Mine.
The perpendicular line shows the shaft, and the inclined lines
(in transverse section) the metallic lode; the several horizontal
lines being the galleries. The adit is represented by the level line
at the upper part of the cuts.
Mines are entered by three different methods, viz.-1st, by
vertical shafts or pits, similar to wells; 2ndly, by day-levels, or
adits, which are galleries carried from the side of a valley into
the mine; and, 3rdly, by inclined planes, or rather inclined tun-
nels, from the natural surface into the mine, which is a medium
between the two former : they are generally laid with rails, and
are sometimes very steep, being worked by water-wheels, or
steam-engines. The working of mines was conducted originally
in a very simple manner; and only such of the ore that could
be easily removed was regarded. Tin is the first metal recorded
by historians as having been worked in this country, which pro-
bably occurred from its near connection with the surface of the
earth. The ore is seldom found pure, although gold, silver, cop-
per, and other comparatively soft metals are frequently met with in
a state of purity; it is therefore probable that they were sought for
and discovered before iron. Doubtless, but iron, which is a very
Z
Digitized by Google
170
MITRE-MORTICE.
plentiful metal, was also worked very early, although it very rarely
occurs in a pure state. The vast mountains of metallic ashes and
cinders in the neighbourhood of Ashton, near Birmingham, and
other places, are supposed to be of very ancient origin, and to have
been deposited from the earliest period of civilization in this coun-
try. Lead was also early discovered from its striking appearance,
and its laying near the surface. Copper is comparatively of modern
discovery in this country, not having been worked longer than a
century, owing to its generally laying at a greater depth than tin,
which rendered it difficult to reach without the aid of proper
machinery and tackle, which was not obtained until a compara-
tively recent period.
Strata, or beds of coal, of the best quality, are extremely
plentiful in this country, more so than in any other part of the
globe; and it is to this circumstance, that our great advance over
other countries in the manufacturing arts is to be traced and
ascribed.-See Coal Mine, Copper Mine, &c.
MITRE, the diagonal juncture of two substances, as of wood,
stone, &c.
MITRE DRAINS, or CROSS MITRE DRAINS, the drains laid
within the metalling of roads to convey the water to the side
drains; they are usually placed about 60 feet apart, and filled up
loosely with flints.
MITRE SILL -See Lock.
MOLE.-See Breakwater.
MORTAR, a cement used for building purposes, composed of
lime, sharp coarse sand, and the hair of cattle, which should
be thoroughly mixed together in a pug-mill, with a small portion
of water, in the proportion of 1 of lime to 2 of sand, and well
chafed: the lime ought to be used as fresh as possible, and
should be kept under an enclosed shed ; it should also be employed
as stiff as practicable, and the bricks or stones well saturated
with water, if possible, particularly in hot weather.-See Lime,
Brick, &.
MORTICE AND TENON, a description of joint used in wood-
Digitized by Google
NATURAL BEDS-OBLIQUE ARCH.
171
work. The extremity of
one piece of timber is let
into the face of another
piece, a tongue being formed
at the end of the piece to
be let in, which is called a
tenon, and the hole cut in
the face of the other is
termed a mortice.
NATURAL or QUARRY BEDS (of stone), the position in which
the laminæ lays in the quarries. It is highly necessary that all
stone, particularly soft freestone, should be laid upon the walls
in its natural, or quarry bed, parallel with the horizon; when a
stone is enclosed on each side, it may be set with its laminæ
perpendicular to the face of the wall, as it cannot then flake off
through exposure to the atmosphere or frost.
NAVIGATORS, the name given to men working upon canals, rail-
ways, &c. A tall man is considered to be worth more wages than
a short one, inasmuch as he possesses a greater length of leverage.
NON-CONDENSING ENGINE-See High Pressure Engine.
NUT (of a screw), a piece of iron used in connection with a
bolt, which is pierced with a cylindrical hollow, throughout which
a spiral groove is formed, corresponding with the worm onthe end
of the bolt.
The nut is screwed upon the end of the bolt, upon the latter
being passed through the bodies to be held together.-See Bolt.
OBLIQUE ARCH (commonly called skew arch), a brick in which
the arch is formed aslant.
It is necessary, in some situations, for one line of communica-
tion to cross another in an oblique direction, on account of cir-
cumstances preventing the diversion of either, or of their being
set at right angles with each other; the arch of the bridge is
therefore obliged to be formed askew, according to the angle of
the crossing. The beds of the courses of an oblique arch con-
sist of spiral lines, wound round a cylinder, every part of which
Z 2
Digitized by
Google
172
OFFSET-OFFSETS.
cuts the axis at a different angle, the angle being greatest at the
key-stone and least at the springing; and when so placed, and
viewed from beneath, they present the appearance of straight
lines.
Mr. G. W. Buck, C.E., was among the first who overcame the
difficulties attending them in a satisfactory manner. The skew
arch, constructed by him, over the turnpike road, at Watford, on
the London and Birmingham Railway, is an excellent model.
In bridges of very great obliquity Mr. Buck cuts off the acute
quoins of the abutments, gradually diminishing the edges of the
arch to the obtuse angles on the opposite sides, which is advan-
tageous both in point of appearance and stability.
Elliptical arches are the least suitable for an oblique plan, as
the spiral courses render them insecure and difficult to construct;
they are also more expensive than the cylindrical. The difficulty
of turning skew arches also increases from 90° to 45°, which is
supposed to be the most unsafe angle for a semicircular arch; the
danger is less from 45° downwards, and they may be safely built
at an angle of 25° nearly.
The following cut represents a bridge with an oblique arch
formed with spiral courses :-
OFFSET, a ledge left at the junction of two different thick-
nesses of a wall, being the upper surface of the lower portion;
the upper part of a wall being always less in thickness than the
lower.
OFFSETS (in surveying), the several distances set off from an
Digitized by Google
OFFSET STAFF-PADDLE-WHEELS.
173
imaginary right line, or otherwise, and run along
the side of a fence or boundary, for the purpose of
measuring the situation of the bends; thus, in the
annexed sketch, a b c d are the offsets required,
15
a
which are plotted perpendicular to the principal
line, and are usually taken with an offset staff or
18
6
cross.
OFFSET STAFF, a rod employed in surveying, for
measuring short distances ; the most convenient
10
e
length for which is 10 links of the chain, or 6 feet
7.2 inches.
26
a
OPTICAL SQUARE, an instrument used in sur-
veying, for laying out perpendicular lines. It is
made of brass, in the shape of a circular box,
and contains the two principal glasses of the sex-
tant, viz., the index and horizon glasses, fixed at an angle of 45°;
therefore, while viewing an object by direct vision, any other
forming a right angle with it, will appear, by reflection, at the
spot where the observer is situated. This contrivance has almost
completely superseded the use of the surveying cross.
PADDLE or CLOUGH a panel made to fit the openings left in
lock gates and sluices, for the purpose of letting the water in or
out, as may be desired.
PADDLE HOLES (sometimes called clough arches). The small
culverts or drains connected with canal work-as the small pas-
sages through which the water passes from the upper pond of a
canal into the lock chamber during the process of filling, and
through which it again escapes-which vary according to the
construction of the locks.-See Lock.
PADDLE-WHEELS, the wheels employed in the propulsion of
steam-boats.
Common paddle-wheels mostly consist of iron framing, sup-
porting paddle-boards or floats fixed at equal distances around
the rim, and radiating from the centre; they are placed one upon
each side of the vessel, and are secured to a strong shaft pass-
Digitized by
Google
.174
PADDLE-WHEELS.
ing across it, which is turned round by the engines, each engine
working a crank fixed upon it; and are placed at right angles to
each other. The accompanying cut represents the common pad-
dle-wheel:
There is a loss of power
Common Paddle-Wheel.
attending this description of
wheel, on account of only one
of the floats striking the water
in a vertical position at the
same time, the action of the
others being oblique; some of
them, in fact, backwater, or
partially oppose the motion of
the vessel. Attempts have
been made to obviate these
defects by constructing im-
proved wheels, the paddles of which maintain a vertical position
in their passage through the water, when in front of the wheel,
by having feathering floats, and these are called vertical paddle-
wheels; and have been found to answer very well for sea-going
Vertical Wheel of the "Medea."
Section.
Elevation.
packets, where the paddle-wheels are deeply immersed in the
water; but they are more liable to derangement than the ordi-
Digitized by Google
PADDLE-WHEELS.
175
nary wheels the floats may be made to leave the water at any
required angle. Mr. P. W.
Cycloidal Wheel.
Barlow, C. E., states the pro-
portion of the power ex-
pended on Morgan's vertical
wheels at 546, and of the
former at 151 to 197.
The Cycloidal paddle-
wheel forms the most recent
improvement, and is said to
possess the advantages of
each of the former, being
effective and strong, yet
Paddle-Wheel of the Great Western."
simple, in point of construction. It was patented by Mr. Gallo-
way in the year 1835, although first used by Mr. Field in 1833.
The floats are divided into a number of parts, which are placed
upon the wheel in the curve of a cycloid, so that they enter the
water at the same spot, and follow one another so rapidly as to
cause little resistance to the engine; in passing the centre, there
is full scope to their action, and in coming out they allow the
water to escape readily from them. The Great Western steam
ship is fitted with wheels of this description, by Messrs. Maudsley
and Field.
The draught of the vessel is necessarily greatest at the
commencement of a voyage, particularly if it should be a
long one, on account of the full quantity of coals for the whole
voyage increasing the amount of tonnage, and other similar
contingencies; the wheels are, therefore, immersed very deep
in the water, which has the effect of increasing the resistance;
but this loss of power diminishes as the vessel proceeds. The
adjusting of the floats of paddle-wheels to the requisite depth of
immersion is called reefing the floats, and there is some difficulty
connected with it; but this defect may be partly rectified with
the cycloidal wheels, as the outer floats need not be fixed at
starting, but fitted on as the voyage proceeds; and the larger the
Digitized by
Google
176
PARALLEL MOTION-PAVED WAYS.
wheel, the less will the vessel be affected by this defect, as the
diameter of the wheel increases in a greater proportion than the
variation of immersion of the vessel, the latter is consequently
proportionately less than other vessels, when each are laden.
PARALLEL MOTION, an arrangement of parallel rods connected
with the piston-rod of a steam-engine and the working beam, by
which the motion of the piston is transmitted to the latter this
system is employed in all double acting steam-engines; but a
chain was used to pull down the beam in single acting engines.
The parallel motions of marine engines are situated below the
cylinders, the beams being at the bottom part of the engine.-
See Steam-Engine and Steam-Boat.
PARALLEL RAIL.-See Edge Rail.
PARAPET, a slight wall carried up on the outer faces of bridges,
quays, &c., and generally built breast high (or from about 3 feet
3 inches to 4 feet), to prevent accidents to passengers and to the
vehicles, by falling off; cast-iron railing and wooden fencing are
sometimes substituted for parapet walls.
PASSING PLACE.-See Siding.
PAVED CROSSING.-See Level Crossing.
PAVED-WAYS, a certain description of tramway, but formed of
stone instead of iron; it may be described as a medium between a
road and a railway.
Paved-ways possess great advantages over roads-the employ-
ment of separate bodies for the wheels of the carriages to run upon,
constituting a great improvement a rough surface is thus obtained
for the horsepath, and a smooth hard surface for the carriage-wheels,
they are therefore very suitable for ordinary purposes; they also
afford a great benefit from their surface being even with the road,
and unencumbered with ledges of any kind, by which they are
available for carriages of any gauge, or width, between the wheels,
which advantage is not possessed by either tramways or railways.
The friction upon paved-ways is certainly much greater than
with the former; but the resistance operates beneficially in other
respects, by offering a greater amount of adhesion to the wheels
Digitized by
Google
PAVED-WAYS.
177
of the carriages. A locomotive cannot work usefully on a railway
of very steep inclinations; thus, upon 1 in 15, or 20, it can
barely propel itself, supposing it worked in the usual manner, or
by the adhesion of the wheels only, whereas it could work very
easily at these inclinations on a paved-way. Mr. Wood, in his
Practical Treatise on Railroads, states, that an engine, drawing
67.25 tons on a level, will only draw 15.21 tons up a rise of 1 in
100 even with the adhesion of all four wheels. Therefore, as steep
inclinations are not very objectionable upon paved-ways, it be.
comes a question whether the present turnpike roads might not be
converted into paved-ways, by having blocks of stone laid along
them, which would be a ready plan of forming them, and they
might be used by both locomotives and horses; or a portion could
be railed off, for the exclusive use of the former, by which all
danger of coalition, and the like, would be avoided; and this
part of the road would not sustain any injury from the feet of
horses and other cattle.
The expense of forming a paved-way has been estimated as
follows:-
£ N. d.
First cost, per superficial yard
0 13 0
Ten years' repair, at 4d. per ditto
0 3 4
Ten years' cleansing, at 3d. per ditto
0 2 6
0 18 10
Deduct value of old stone
0 8 0
Per yard, in ten years
0 10 10
Most of the London pavement appears to be laid down at an
expense of 7s. to 10s. per yard.
The paved-way along the Commercial-road, London, is formed
of blocks of granite, 16 inches wide, and 12 inches thick, which
are laid in 5 and 6 feet lengths, the space between them being
filled in with stone paving. The friction upon this road, when
first opened, in good order and free from dust, (as dust increases
2 A
Digitized by Google
178
PAVING.
the friction upon tram-ways and paved-ways considerably, viz., from
¹ᵗʰ to ¹th) did not amount to more than per ton, or the
1190th part of the load; but the waggons having since created ruts
on the surface of the blocks, it has consequently increased. Mr.
Walker, under whose direction the way was formed, states the
annual maintenance and repair of it at £5 per annum, taking a
period of five years, and the cost was 1°0th cheaper than that of
any railway. It must not be forgotten that the above calculation
of the friction was made when the stones were newly laid, free
from dust, and in a high state of perfection, which it has since lost—
the wear of a paved-way being very irregular; and in reference
to the repairs upon same, it may also be remarked, that the line
has merely been kept in order, not restored to its original state, as
is usually the case with railway repairs.
PAVING, a covering of stones laid or spread over roads; the flat
paving laid down on the footpaths being generally termed flagging,
or pavement, and a curb is placed between them, which keeps
each in its place.
The paving in common use consists of square cut stones, mostly
granite, and they are set in rows running across the road ; and the
system of laying them down in diagonal lines, as lately practised,
is considered an improvement. There are two descriptions of
stone paving employed for causeways 1st, rubble causeway, which
is the cheapest, the stones being only slightly hammer-dressed
2nd, aisler causeway, the stones of which are properly jointed and
fitted, and are from 8 to 12 inches long, 5 to 7 inches wide, and
12 inches in depth. A paved-way may also be described as a
description of aisler causeway.
The experiment of wooden pavement has been lately tried in
this country, and with various success, but it is impossible to
judge of its merits, at present, any more than in a general way ;
the wear, however, may be reasonably expected to be less than
that of stone, although it is the dearest, in the first instance: the
blocks are formed polygonal, and laid upon a bed of concrete, or
asphaltum. The system is said to have succeeded very well abroad,
Digitized by Google
PENSTOCK.-PERPENDICULAR LIFT.
179
and there is one great advantage connected with it, viz., the ab-
sence of all noise. The blocks laid down in the Old Bailey, Lon-
don, are hexagonal prisms, varying from 81 to 93 inches long.
PENSTOCK, a sluice or floodgate employed to retain the water
of a mill-pond, water-trough of a water-wheel, &c., and to let it
off when required.
PENTAGRAPH, an instrument used for reducing or for enlarging
plans.
PERBEND, or THOROUGH, the term applied to the heading
stones forming a wall, when they are carried through the whole
thickness: if the stones only reach a part of the way through,
they are termed binders.
PERPENDICULAR LIFT (on canals), a contrivance for passing
the boats from one level to another.
The perpendicular lifts on the Grand Western Canal, by Mr.
James Green, C.E., have deservedly attracted much attention;
they are intended to remedy the scarcity of water on that canal,
by overcoming a great height at one spot, one of them having a
46 feet lift : this lift consists of parallel chambers, somewhat
similar to those of the common lock, a pier of masonry being
carried up between them; and a wooden water-tight cradle or
cistern, is fitted into each chamber, for the reception of the
boats; the boats carry about 8 tons, and are 26 feet long and
61 wide, drawing 2 feet 3 inches of water (whereby a canal 3 feet
deep is sufficient for them), and the water is kept in both the
upper and lower ponds by lift-up or stop-gates. Upon one of
the cradles reaching the upper gate, it is secured to it water-
tight, by a bolt and staple, and the doors of both the canal
and cradle are drawn up together by a winch gear fixed on the
side of the chamber: after sufficient water has escaped into the
cradle, to cause its descent, the doors are let down, and the cradle
is allowed to descend to the lower level, where it rests upon cross-
beams, when, by a contrivance, it is forced close to the lower
stop-gate of the canal, and rendered water-tight as before; the
lower gates are then raised, and the boat floated out: three
2 A 2
Digitized by Google
180
PERMANENT WAY.
sheaves, each 16 feet diameter, are fixed at the top of the
chamber, for the purpose of raising and lowering the cradle, the
shaft attached to same being supported by iron framing and
columns; the two outer sheaves simply support the chains, but
the centre one has a spur gear, in segments, fixed to it, which
works on pinions on each side, thereby giving motion to bevel
gear, and diagonal shafts, by which a communication is effected
with hand winches fixed on each side of the chamber, when re-
quired; thus, the machinery may be put in motion by these
winches, as well as by the gravity of the cradles; and a brake is
also attached to each of them, for regulating the descent of the
cradles: a strong iron bar is fixed at the top of each cradle to
which the suspending chains are attached; which latter pass over
the sheaves, and the cradles are kept in a horizontal position, by
means of an adjusting rod placed above them, in a horizontal
position, to which they are screwed up, as may be required. The
length of the suspending chains are so arranged, that when one
cradle is at its proper level at the bottom of the lift, the other is
in a suitable position at the top and no more force is required
to put the machinery in motion than the power to overcome the
vis inertice and friction of the apparatus, which is obtained by
making the length of the chain a trifle shorter than the height of
the lift, say about 2 inches, which produces a preponderate
weight in the descending cradle of about 1 ton ; a sufficient space
IS left at the bottom of the chamber to allow of the coil of the
balance-chains, which are fixed beneath them, by which the
cradles are equipoised at whatever height they may be, and a
drain is laid from each the side and cross walls of the chambers
are pierced by arches, which give light below, and afford access
to the several parts. The quantity of water consumed is about
2 tons for about 8 tons of cargo ; whereas, in common locks, it is
about 3 tons of water to 1 ton of cargo.
PERMANENT Way, the finished road of a railway. The term
is applied in contradistinction to the temporary way laid down for
the purpose of forming the line : the term is usually understood
Digitized by
Google
PIER.
181
to refer to the rails, ballasting, spiking down of the chairs to the
blocks, and fastening of the rails to same; also adjusting the
gauge of way to the proper level and curve. The permanent
rails are elevated above the surface of the ballasting rather more
than an inch.-See Railway and Ballasting.
Transverse Section, showing one side only.
E
El
C
a
X
E
R
5.
F
The annexed cut re-
C
R
E
presents the permanent
way of the London and
15
Birmingham Railway, both
EL
il
E
1
with blocks and with
sleepers.
E
-
E
R
E
RETE
ET
X
15
E
2
B
Plan, showing one side only.
PIER, a strong marine erection, commencing from the shore a
rocky point being preferred) and jutting into the sea, extending
Digitized by Google
182
PIER-PILES.
either in a curved or in a straight line, constituting a harbour for
the protection of shipping and other craft. Piers are generally
constructed of strong masonry, with fender piles and framing : iron
is also adopted in some cases, after the suspension principle, such
being called chain piers and timber piers of slight construction,
termed jetties, are sometimes erected, which are employed merely
for the purpose of landing goods and passengers.-See Harbour
and Breakwater.
PIER (of a bridge), the impost or wall from which the arches
spring or abut. The thickness of the upper part of the piers of
bridges, appears, from the examination of some of the most cele-
brated works, to vary from 1th to ¹ᵗʰ of the span of the arch ; the
piers of Neuilly Bridge are 1/th of the span.
The piers of wooden bridges were formerly built upon piles,
termed stilts, in situations where they could not be laid dry, at
the bottom of the river, and the stilts were cut off at the level of
low water-mark, the piers being carried up upon them; they were
also surrounded by a row of piles which were placed a few feet
from them, and the place enclosed was called a starling, or jetty,
and was filled in with loose stones, or rough rubble work the
arches were mostly commenced on the paving laid on the top of
the piles. This method of erecting a pier was afterwards super-
seded by caissons; and, lastly, by the adoption of coffer-dams.-
See Caisson and Coffer-dam.
PIER (in buildings generally), a flat buttress projecting from
the face of a wall; the term is also applied to any wall situated
between two openings.
PIG IRON, also known by the name of cast-iron and crude-iron.
See Pig Iron.
PILES, or PILE TIMBERS, the timbers driven into the earth for
the support of structures and other works, when built upon a loose
soil, whereby the foundation is rendered firm and stable.
Buildings erected on marshy soils are frequently rested upon
piles, which are mostly of round timber, and from 9 to 18 inches
diameter, and placed about 2 feet apart, which are driven home
Digitized by
Google
PILE-DRIVING MACHINE.
183
into some solid stratum, passing completely through the loose
earth, or upper stratum. The feet of the piles are generally
provided with wrought-iron shoes, weighing from about 8 to 25th.
each, and the heads are enclosed by strong iron hooping, to pre-
vent their splitting in driving; although they are sometimes
driven without any but a flat piece of wood, or a plate of iron, is
placed on the head of the pile which receives the ram at the end
ofeac h stroke, instead of the pile. Amsterdam and other cities
are built wholly upon piles
The stoppage of Dagenham Breach, on the River Thames, by
Captain Perry, about the year 1720 was accomplished by piles
morticed into one another by a dovetailed joint.
The foundations of walls are sometimes enclosed by square,
or edge piles, termed sheet piling, which are driven close to-
gether: they are more especially employed in works adjacent
to the sea, and to rivers, marshes, &c., whereby the soil is pre-
vented sinking by forcing But in a lateral direction.
PILE-DRIVING MACHINE, a machine used for driving piles
into the ground, consisting of a strong framework.
The pile-driving machine usually employed at the present
time is composed of two pieces of wood, about 30 or 35 feet
long, which are placed in an upright position, and rested upon sill-
pieces, the space between them forming a slide or gauge for the
iron ram to be drawn up and run down the slides are edged with
iron, a strong shoring-piece is secured upon each side, and
a ladder is also connected with them, in the opposite direction,
with horizontal ties at different heights; and the whole is further
secured by stays and chains at different parts. There are two
cross-pieces laid across the sills, upon which a crab is placed,
by which the ram is drawn up; there is, an apparatus situ-
ated immediately above the latter, usually called a monkey, for
disengaging and again securing the ram after each fall, a chain
being attached to it, which is carried over a pulley ! fixed at
the top of the framing, and passed down again on the other
side to the crab. The length of the fall of the ram is regulated
Digitized by
Google
184
PINION-PINNING.
at pleasure by a rope fastened to the monkey, which allows of its
moving upwards to a certain extent, when its disengagement
from the ram is effected: a pair of forceps, or tongs, have also
been extensively used for detaching the ram.
The accompanying cut represents one of the pile-driving ma-
chines used in building the embankment of the New Houses of
Parliament:-
Side Elevation.
Front Elevation.
PINION (in mechanics), a small toothed wheel, which drives, or
is driven, by a larger one.
PINNING or PINNING IN (in masonry), a system of wedging or
underpinning the bed of a stone, and employed when it is not
properly squared, to supply any deficiences, and which is conse-
quently a very objectionable practice.
Digitized by Google
PIPES-PLANE.
185
PIPES, the name applied generally to the vessels employed for
the conveyance of any fluid, and which are usually of a cylindrical
shape.
The pipes used at the present time for water, gas, &c., are
mostly formed of cast-iron. Water pipes are cast in lengths of
9 feet, the principal ones being called mains, and the others ser-
vices-See Water Works and Gas Works.
PISTON, a thin cylindrical body adapted to move within a cy-
linder, and employed in steam-engines and pumps, being the body
acted upon by the steam or air, as the case may be; it is there-
fore necessary that it should run up and down as nearly air-tight
as possible; they are sometimes formed of wood, with leather
belts nailed round the edges, but metal is the material in general
use at the present time. Metallic packing is almost exclusively
employed for the pistons of steam-engines, instead of leather or
hemp coiling; the packing consists of rings possessing a tendency
to spring outwards, and they are further kept so by springs within
the body or substance of the piston; the metallic packing also
presents the least friction, and is the most durable.-See Steam-
Engine and Locomotive Engine.
PISTON RoD, the rod connected with a piston, being passed
through the centre of it, and secured by means of a screw or a
key; the other end of the piston rod of an ordinary steam-engine
is attached by a joint to the parallel motion, whereby its action is
communicated to the working beam. In marine engines it is
secured to a cross head at the top, and in locomotive engines to
the connecting rod.
PLAN, the name applied to a plot of land, or to a horizontal
section of any engineering work.
According to the standing orders of the House of Commons,
all plans for railways, &c., are required to be drawn to a scale of
not less than 4 inches to a mile, and the enlarged parts to a scale
of not less than 4th of an inch to 100 feet.
PLANE, this term, as applied to railways, refers to each length
of a line of railway at the same gradient or inclination. They are
2 B
Digitized by
Google
186
PLANE TABLE-PLOTTING.
of two kinds, level and inclined.-See Gradient, Inclined Plane, Self-
acting Inclined Plane, and Stationary Plane.
PLANE TABLE, an instrument formerly much used in surveying,
for taking angles and laying down the work in the field as it was
measured. The plane table consists of a board, upon which the
paper is laid, and enclosed by a frame, graduated into degrees from
the centre, by which the lines can be easily plotted, and a compass
is also connected to it.
PLANKING, a term applied to a layer of planks, or to any other
timber (excepting fir), when exceeding 11 inches in thickness.
PLATE RAILWAY.-See Tram Railway.
PLOT, a plan, or horizontal section of any land, country, or
works-See Plan.
PLOTTING, the operation of laying down the lines of a survey,
by admeasurement, from the field-book.
In plotting a survey, it is generally customary to have the
north upwards, the writing running from east to west. Upon the
first line being drawn in the required direction, the length of the
second line is taken as a radius, and a curve described from the
second station; another curve is then described from the other
end of the first line, after the same system, by which the apex of
the survey is found; the adoption of beam
compasses for this part of the operation is
found very convenient, particularly if the
survey is extensive: the tie lines across the
survey (see Surveying) have next to be tried,
and if found correct, the offsets may be laid
off (see Offsets), the same system being followed out in the re-
maining portion of the plan. In plotting a field taken by chain
angles, it is usual to set out the angles to a much larger scale
than that of the survey, by which a greater degree of accuracy
is obtained. All angles taken by angular instruments, as theo-
dolites and sextants, are laid down by circular or semicircular
protractors. The whole of the main lines of a survey should be
set off before plotting the offsets.
Digitized by
Google
PLUNGER-PROTRACTOR.
187
PLUNGER, a long solid brass cylinder, and sometimes employed
as the forcer in force pumps.-See Pump.
PLUMBER BLOCK, a carriage fastened on to any contrivance,
and adapted to support a shaft or axle.
POINTING, a term applied to the finishing of the external face
of the several courses of a wall. The common mortar is first
scraped out, and the joints and courses cleaned, when they are
filled up with fine mortar or Roman cement.
POLINGS, the small boards supporting the earth during the for-
mation of a tunnel.
POST, any piece of timber, when used in an upright position, as
a king post, story post, &c.
PORTLAND STONE, a hard white sandstone procured from
quarries in the Isle of Portland, and formerly in general use in the
metropolis for both engineering and architectural works; but its
use in engineering has been much superseded by granite, and in
architecture by Gloucestershire stone.
The merchantable beds of this stone are usually covered with a
stratum called the cap, which is harder than the beds beneath it,
and which is generally removed by gunpowder.
PRIMING (in steam-engines), the hot water carried along with
the steam from the boiler into the cylinders, which is very objec-
tionable: various methods have therefore been resorted to of get-
ting rid of it.
PRINCIPAL.-See Roof.
PRISMATIC SQUARE, an instrument used in surveying for mea-
suring horizontal angles only, and which are taken from the mag-
netic meridian ; a graduated floating card being attached to the
needle. This instrument is very well adapted for filling in the
detail of a map, being very portable; but all the principal points
should be fixed by a theodolite.
PROTRACTOR, a mathematical instrument used for daying down
on paper the angles of any figure. The protractors mostly used
consists of a small brass semicircle, the ends of the arch being
connected by a straight rule, the outside edge of which consti-
2 B 2
Digitized by Google
188
PUDDLE-PUMP.
tutes the diameter of the outer circle; the semicircle is divided
into 180 parts, termed degrees, and represented thus °, as 10°,
and there is a small point in the diameter which marks the centre;
circular protractors are also much employed, the divisions being
numbered from °, 10°, 20°, &c., quite round to 360°, the same as
the theodolite, which the protractor represents. Protractors are also
made in the form of a parallelogram, and graduated from a centre
on the lower edge, which represents the diameter of the circle, to
divisions marked off for the degrees.
PUDDLE, a mixture of good tempered- clay and sand reduced
to a semifluid state, and rendered impervious to water by manual
labour, as working and chopping it about with spades. It is used
for the purpose of retaining the water in any particular situation,
or for excluding it from any works : and it is usually spread in
layers of about 12 inches in thickness.
PUNNING.-See Claying.
PUMP, a machine for raising fluids, by means of pistons, or
buckets, working in tubes, valves being also placed within
them.
Pumps may be described generally as being of two kinds:
1st, those which operate upon the lifting principle, and termed
lifting pumps; 2ndly, those of the forcing description, termed
force pumps. Lifting pumps are applied to wells where the height
does not exceed 33 feet, or 30 inches in practice, as in the case of
the pump in common use, and known by the name of the suction
pump, which consists of two tubes; the end of the lower one,
termed the suction pipe, being placed in the water to be lifted
and the higher tube, called the barrel, is furnished with a spout
at the top, for the escape of the water, a valve opening upwards
being placed at their junction; ; a piston or bucket is moved up
and down the barrel, perfectly air-tight, by means of a lever
handle fixed at the top, a valve is also placed in it, opening
upwards. Now, as the bucket is moved upwards by the handle,
the air below escapes by means of the stop valve, but it cannot
again return: the whole of the air is thus removed from the
Digitized by Google
PUMP.
189
suction pipe, on the same system as in the air-pump. The
length at which the water will rise is proportionate to the length
of the stroke of the piston, and it continues to
rise higher at each stroke until at length it
passes out at the spout.
This description of pump consequently ope-
rates by the pressure of the atmosphere from
without, which forces the water upwards, by
reason of the vacuum formed within it, the air
being equal to a column of water 33 feet high.
The water may be carried higher by fixing ad-
ditional tubing at the top of the barrel, and
shifting the spout to the upper part of it, and
this may be extended to whatever height the
The Suction Pump.
force and strength of the pump will admit of; the handle, or
prime mover, must also be fixed at the upper end of the delivery
pipe, and the piston rod proportionately extended; but this
arrangement is unfit for very great depths, in consequence of the
bending of the rod, unless cast-iron pipes are employed, when
small pieces with projecting arms may be fixed at each joint of
the pipe, about 10 or 12 feet apart, to touch the inside of the
pipe.
The force pump acts by compression, instead of by exhaus-
tion; and it is mostly employed for great depths, as for mines,
also for supplying boilers against the force of steam, &c. ; it does
not differ much in construction from the former; but
no feed or suction-pipe is required, as the barrel
extends below the water. The piston works in a
frame, a, a, or some other convenient contrivance
and the water moves upwards at each upstroke
through the valve in the top of the piston; the rising
pipe b, which delivers it, may be continued to any
The Force Pump.
height; the barrel c, c, is also filled again at each stroke.
Force pumps, which take advantage of the pressure of the at-
mosphere (and most of them do), are called lift and force
pumps.
Digitized by Google
190
PURLINE-QUARRY.
The accompanying cut represents a lift and force
pump, as generally constructed. The feed pipe
dips into the water to be raised, and may of course
be of any height not exceeding 33 feet; the supply
upwards is rendered continuous and regular, by
means of an air-chamber o, o, the elasticity of the
air within it acting upon the surface of the water
(see Air-chamber) ; the barrel is sometimes covered
over, a stuffing-box being fixed in it for the piston
The Lift and Force
Pump.
to slide in.
The length and leverage of a pump is termed the stroke; and
Mr. Tredgold states, in reference to the pumps employed in
draining mines, that the stroke should not exceed 8 feet, and
that the velocity of the piston should be no more than 98 times
the square root of the length of the stroke. There have also
been several attempts made recently to introduce pumps worked
by a continuous rotative motion, and with considerable success.-
See Drainage of Mines.
PURLINE.-See Roof.
PUZZOLANA, or Pozzolana, a celebrated natural cement, formed
of volcanic ashes, and of great service in hydraulic works, as a
small portion of lime hardens it very quickly, even when applied
under water.
QUARRY, an artificial excavation formed in rocks or in rocky
ground, for the purpose of obtaining marble, stone, slate, and the
like. Blocks of freestone are usually drawn from the quarries as
follows, the ground is first uncaped by removing the soil, and
the grain is examined ; the direction of the beds of laminæ is
called the cleaving grain, and those in the contrary direction the
breaking grain; the quarrymen then drive wedges into the stone in
the direction of the cleaving grain, until they loosen the block,
they then proceed with the other side, and afterwards with the
ends of the blocks; the wedges are driven about 6 or 8 inches
apart, and the whole of the wedges on one side are driven at the
same moment, the strokes being delivered with exact regularity.
Hard stones are quarried in a somewhat similar manner, viz.,
Digitized by
Google
QUEEN-QUAY.
191
by means of channels, in which wedges are driven, but stronger
implements are obliged to be used ; iron bars are sometimes em-
ployed for confining the wedges in their proper position during
the operation. The blocks are also sometimes separated by the
aid of gunpowder, the operation being called blasting, but a great
waste of stone is caused by this plan in consequence of its irregu-
larity.- In some quarries the blocks may be obtained of almost
any dimensions, while others only furnish blocks of a limited size,
owing to the peculiarities of their formation quarries situated
close to the sea, or to rivers and canals, possess great advantages
over others, an easy communication thereto being of great import-
ance. The stones quarried for the purposes of building are
usually raised and squared out roughly into an even shape, and
the builders afterwards cut them to the forms required.
QUEEN, or QUEEN-POST.-See Roof.
QUICK LIME.-See Lime.
Quay, or KEY, the name applied to a long wharf by the side
of a harbour, river, or canal, for the purpose of landing and ship-
ping goods and passengers, being furnished with cranes and cap-
stans, also mooring posts, rings, &c.
A, A, side piles.
Transverse Section of a Timber-Quay.
B, B, side wales.
C, C, cross beams.
D, D, top beams.
E, E, side braces.
F, F, fender piles.
A
The quays of harbours
are generally formed by
retaining walls being pro-
perly supported by coun-
terforts, and backing fen-
der piles are also fixed in
the front to protect them
from injury.
c
D-F
Timber is also much
c
F
employed for this pur-
Plan showing Construction.
Digitized by Google
192
QUOIN-RAILROAD.
pose on the banks of rivers; the accompanying sketch (see Cut on
last page) represents a portion of a timber-quay; no other kind
of material is used in America for this purpose, it being very plen-
tiful. The piling in general need not go further into the ground
than is sufficient to take a firm hold.
Cast-iron piling has also been very successfully employed for
the protection of wharfs, as those recently constructed at Black-
wall and Deptford, the main piles being formed with rebates on
each side, into which the sheets are driven, and the former are
secured at the back by stays and a thick bed of concrete; great
care is necessary in driving iron piles on account of their greater
liability to fracture, compared with those of timber.
S, P, stay piles.
Details of Deptford Pier.
M, G, main piles.
G, P, guide piles.
L, T, land ties.
QUOIN, the name
given to the corners
Concrete
of stone and brick
walls, but referring
more particularly to
the stone edging
sometimes employ-
ed in brickwork; if
Elevation.
Transverse Section.
the stones project
before the face of
the wall, and have
MP
S.P
chamfered edges,
Concrete
they are termed rus-
tic quoins.
Plan enlarged.
RACE, or RACE COURSE, the cut or canal along which the
water is conveyed to and from a water-wheel.
RACK, a straight bar, having teeth or cogs similar to those on a
toothed wheel.
RAILROAD, or RAILWAY, an improved description of roadway,
of modern invention, having been used from about the year 1600;
Digitized by
Google
RAILROAD.
193
railways or tram-ways, as they were first called, were originally
formed of wood, this plan becoming perfected in the double way.-
(See Cuts in Tram-way.)
Cast-iron tram-plates were next employed, then wrought-iron,
and at length wrought-iron edge rails were adopted these several
description of rails are detailed under the heads of Tram Railway
and Edge Railway.
Railways were first used in the collieries, particularly in those
of the north of England, and horses were exclusively employed
upon them for many years, and very little attention was bestowed
upon the gradients or inclinations of the road the horse was con-
sequently obliged to exert himself according to the utmost of his
power for a short distance, after which he might not be required
for some time, and it was customary for the men to unhook him
and allow him to follow after the waggons, at very rapid descents,
where the gravity was sufficient to propel the waggons. Acci-
dents were very common upon these runs or inclines, although a
brake or convoy was employed to check the waggons, but they
were frequently prevented acting in wet or damp weather, owing
to their imperfect construction and the steepness of the planes ;
ashes were sometimes strewed over the rails, to assist the working
of the brake, notwithstanding which the works were often stop-
ped; thus, if a sudden shower occurred when a train was descend-
ing a very steep plane, it let them down at a fearful velocity, and,
despite of ropes which were drawn across the railway to stop
them, fatal results sometimes ensued, as the ropes were frequently
broken. These early railways generally descended in the direc-
tion of the delivery of the goods conveyed upon them; the wag-
gons were, therefore, easily drawn back when emptied. The gross
load upon the wooden rails was about 2 or 3 tons, but upon the
introduction of iron tram-rails, a horse took nearly double, whereby
the velocity of the train down the inclined planes was much in-
creased, which is supposed to have originated the idea of self-
acting inclined planes.
2 C
Digitized by
Google
194
RAILROAD.
There have been many different descriptions of rails pro-
posed at various periods, amongst others was the oval rail,
executed on the Penrhyn Railway, by Mr. Wyatt, in the
year 1800.
It was about 4 inches deep, and cast in lengths of 4 feet 6
inches, with a plug at each end, which was let into the stone sills,
each length weighing 36tbs. ; and the wheels run upon these rails
had concave rims : but it was found in practice that these rails had
a tendency to wear out very quickly, when others were conse-
quently substituted.
Mr. Woodhouse's 'Patent Rails," dated 1803, are very inge-
nious :-(See Cuts.)
1
2
6
3
Details of Woodhouse's " Patent Rails."
Fig. 1, Plan of the rails and sleepers, which are formed of cast-
iron.
Fig. 2, Side elevation.
Fig. 3, Plan of a rail inverted.
Fig. 4, Transverse section, showing the mode of securing the
rails, the sleepers being bedded in gravel.
Digitized by Google
RAILROAD.
195
Fig. 5, Transverse section, in which both the rails and sleepers
are worked in stone paving.
Fig. 6, Section of the rail enlarged.
It may be briefly stated, that wrought-iron parallel edge rails,
set on chairs, are now very generally adopted, the weight being
about 65 lbs. to the running yard. The system of continuous bear-
ings is also employed on some lines of railway. The steam-engine
was applied to railways, shortly after its application to mechanical
purposes generally, or about the year 1808, (at which period
it was employed in drawing the minerals from the pits); its action
was at first applied upon the ascents only, a rope being extended
from the steam-engine, and made fast to the waggons, whereby
they were drawn up-which system was afterwards introduced upon
the remaining portions of the line; and it continued in use until
the invention of locomotive engines, which were then run upon
the level portions, and the fixed engines were confined to the
inclined planes. Horses may be described as preferable to loco-
motives when the amount of goods to be conveyed is small, and
the distance short, particularly if coal is scarce upon the line;
and there is another great advantage attending animal power over
mechanical, viz., that the degree of force may be varied accor-
dingly as may be required, but, of course, within certain limits.
Locomotives are the most suitable where dispatch is required, and
the goods to be conveyed are light and valuable also, where many
passengers are expected, and the line is of some length and pretty
level; and the system of fixed engines is the best for a hilly country,
where the levels do not admit of sufficient adhesion for the wheels
of locomotives. The practice of putting two engines to a train is
not considered so advantageous as dividing the train into two, and
putting an engine to each, as that engine travelling the fastest
does the largest proportion of work.
The American railways were originally formed of timber beams,
upon which flat iron bars were laid; upon these being found ob-
jectionable, on account of their premature decay, stone was used
in place of the timber rails; next came heavy iron rails, laid upon
2 C 2
Digitized by Google
196
RAILROAD.
stone blocks, but the great variations of the weather soon de-
ranged this plan a foundation of timber was then substituted ;
which is the plan now mostly adopted. The Alleghany Postage
Railway, constructed by Mr. Roberts, C.E., in the year 1835, is
formed of white oak longitudinal pieces, 10 inches by 10 inches,
imbedded in the ground; cross transoms of locust tree, 8 inches by
6 inches. and 7feet 6 inches long, are laid athwart them, notched
and trenailed, and upon these the chairs are bolted the rails are
laid about 3 inches to 34 inches high, and from 34 inches to
44 inches on the base.
The resistance to the motion of a carriage upon a railway arises
from two causes,-1st, from the friction of the several parts of the
machine, as described under the head of Friction; and, 2ndly,
from the resistance offered by the air and wind : the atmosphere
equally opposes the passage of the stage coach, the track-boat,
and the steam-boat but the motion of these vehicles being com-
paratively slow, and the power required to overcome the friction
encountered being very great, the resistance of the air is disre-
garded in their construction, but a very large proportion of the
resistance upon railways is attributable to it, as the atmospheric
resistance is supposed to vary in the square of the velocity; a
higher velocity on a railway than 35 miles an hour has therefore
been deemed inexpedient with the present engine powers: the
expense attending any further increase of speed would also be
very great. The average speed of the first class passenger trains
upon public lines of railway varies from 20 to 30 miles an hour
there has been a few instances of an engine, with its tender, ac-
quiring a very high velocity-as 15 miles in 15 minutes. The
effects of high winds upon a railway train is very considerable,
particularly side winds, as they press the flanges of the wheels
against the rails, thereby impeding their progress, and increasing
the wear and tear much. Public lines of railway, (as the London
and Birmingham,) are generally made 33 feet wide in excavations
(see Excavation), and 30 feet on embankments (see Embankment), the
difference being caused by two drains, each 18 inches wide,
Digitized by Google
RAILROAD.
197
which are required at the bottom of cuttings, one upon each side
the line : the surface of the ballasting or road is laid a little con-
vex, to carry off the water; and two or three yards should be
allowed on each side for fencing and ditching. The width between
the rails is 4 feet 8} inches upon the principal railways through-
out the kingdom, (as the London and Birmingham and Grand Junc-
tion Railways-although it is made 7 feet upon the Great Western),
and the intermediate space in the centre between the trackways
is usually about 6 feet, and it is of similar width as the space be-
tween the rails upon some lines-as upon the Newcastle and Car-
lisle, and the Leeds and Selby Railways; and the side space, or
the distance on the outside of the rails, is generally about 5 feet—
as upon the London and Birmingham and Grand Junction Rail-
ways.
The following table shows the average expense of working the
Liverpool and Manchester Railway, from the year 1831 to 1834 :-
Merchandize, per ton
Passengers.
Aggregate cost,
per m.e.
per ton per mile.
HEADS OF CHARGE.
Useful
Gross
Per pas-
Per ton
Useful
load or of
load.
senger per
per mile
load or of
Gross
load.
goods.
mile.
gross.
goods.
d.
d.
d.
d.
d.
d.
* Locomotive power
0.55
0.36
0.27
0.73
0.73
0.51
Maintenance of railway
0.307
0.233
0.085
0.233
0.307
0.233
Upholding carriages
-
-
0.054
0.146
0.082
0.058
Coaching
{
Conducting coaching
-
-
0.104
0.282
0.158
0.111
Duty on passengers
-
-
0.071
0.216
Carrying
Upholding waggons
0.227
0.159
-
-
0.09 4
0.067
goods
Conducting traffic
1.08
0.76
-
-
0.463
0.324
General expenses
0.354
0.248
0.091
0.248
0.354
0.248
Total cost
2.518
1.760
0.675
1.855
2.188
1.551
The preceding Table does not include the cost incurred in laying
*
The cost of locomotive power differs according to the locality of the rail-
way. The London and Birmingham Railway Company have contracted for
their motive power at 0.05d. per ton per mile for goods, and 0.25d. per mile for
passengers.
The average expense of maintenance was £422. 13s. 6d. per mile.
Digitized by Google
198
RAILROAD.
down new rails where required, as such contingencies would not
be likely to occur on another line, neither the interest paid for
capital, or the cost of carriage at each end of the line.
The annual cost of private railways is much less, as will be seen
by the following Table-which shows the expense of working a line
adapted for the conveyance of heavy goods, or for a mixed traffic,
where the latter is such that a maximum effect can be produced in
the conveyance of heavy goods, without interruption to the gene-
ral traffic of the line, and where the goods are generally carried in
one direction only, the carriages having to be brought back empty
in the other direction-deduced from the cost upon the Stockton
and Darlington, the Seaham and Clarence, and other railways :-
Cost, per ton per mile.
HEADS OF CHARGE.
Useful load.
Gross load
d
d.
Locomotive power or haulage
0.380
0.191
Maintenance of railway
0.208
0.104
Upholding waggons, including loading and unloading coals
3.265
0.133
General expenses
0.100
0.051
Total cost
0.953
0.479
The following Table gives the comparative average cost of con-
veying goods and passengers by locomotive engines on railroads:-
Rate of
Resist-
Cost of
Cost of
Cost of
Charges
speed,
in miles
ance, per
haulage, per ton
carriages,
conveyance,
for conveyance,
Remarks.
ton in lbs.
per hour.
per mile.
per ton
per mile.
per ton per mile.
per ton per mile.
d.
d.
d.
d.
1.065
Export coals.
8
8.5
0.375
0.19
1.065
Lansdale
1.566
coals.
General mer-
12
8.5
0.5
0.227
2.138
3.5
chandize.
0.25 per
0.675 per
1d. to 1}d per
20
8.5
passenger.
0.206
passenger.
passenger.
1.73 per ton
2.855 per ton
12.37 per ton
Dr. Lardner has lately made some interesting discoveries re-
Digitized by
Google
RAILROAD.
199
garding railway constants, which he communicated to the last
Sessions of the British Association, held at Birmingham, and
which confirmed the opinion that he had given in 1835, before a
Committee of the House of Lords, viz., that a railway laid down
with gradients from 16 to 20 feet per mile, would be for all practical
purposes nearly, if not altogether, as good as a railway laid down
from terminus to terminus upon a dead level," as he considered
that a compensating effect would " be produced in descending
and ascending the several gradients, and that a variation of speed
in the train would be the whole amount of inconvenience which
would arise ; that the time of performing the journey, and the ex-
penditure of power and maintenance of way would be the same in
both cases : and he therefore advised that no considerable capital
should be expended in obtaining gradients lower than those
abovementioned."
He stated to the meeting, that he had since proved this theory
upon the Grand Junction Railway, where he found that the mean
speed in ascending and descending to be the same as the usual
rate of the same engine upon a level, the difference amounting to
no more than the casual variations constantly occurring in the
moving power, the surface of the rails, commonly regarded as level,
being in reality subject to continual variations of inclinations for
short distances. He also stated, that the form of the front of the
waggons had no influence upon atmospheric resistance, but by
increasing the whole volume of the train a material increase was
produced in the resistance of the atmosphere.
The motion of a train down an inclined plane has been generally
considered to be uniformly accelerated ; i. e. an increase of velo-
city takes place every second of time, being the speed due to the
gravity of the plane, and the resistance due to the friction of the
carriages only was calculated as being the sole check to the velo-
city : the effect of the atmosphere, or anything else which might
produce a retardation, increasing with the speed, was wholly neg-
lected, being considered of comparatively trifling amount; but
the learned Doctor proved by these experiments, that the degree
Digitized by
Google
200
RAILROAD.
of acceleration was gradually diminished as it run down the plane,
instead of increased. The former theory would certainly hold good
if there was no other resistance but that arising from the friction,
and the speed would then be diminished by the amount of velo-
city destroyed by the friction of the train only. Now, as the force
of gravity is well known, (also the effect produced by an inclined
plane, of given inclination, in diminishing the intensity of same),
finding the amount of resistance occasioned by the friction, is
consequently an easy calculation, all other resistance being disre-
garded, or the acceleration due to gravity could be calculated,
and the actual acceleration moving down the plane observed, the
difference being supposed to give the retarding force due to the
resistance.
According to this new theory of Dr. Lardner, if an inclined
plane of sufficient length could be attained, the motion of a train
would continue to be accelerated until a velocity was acquired,
which would produce " a resistance from the air, such as com-
bined with friction, would be equal to the gravitation down the
plane upon such velocity being obtained, the moving weight
being equal to the resisting force, no further acceleration would
take place.*
As it was thought that inclined planes of sufficient lengths
were not accessible to try the accuracy of this theory, it occurred
to the Doctor that the end would be equally attained by starting
the train from the top of an inclined plane, at a considerable
speed, as the acceleration it would receive while descending,
added to the speed with which it started, might be expected to
give that velocity at which all increase of speed would cease, and
an uniform motion be maintained to the bottom of the plane; and
this anticipation was realized by experiments, and an uniform
gravitation or velocity was produced, which was regulated by the
load; when the latter was increased the velocity was increased,
*
The angle of repose upon a railway may be cited as a comparative con-
stant to this, occurring when the gravity of the plane and friction of the load
are equal.
Digitized by Google
RAILROAD.
201
its motion being accelerated for a short distance from starting,
but at length becoming uniform in every case, the velocity dimi-
nishing with the steepness of the plane. It was found that the
same general principle applied to trains of whatever magnitude;
he also ascertained by these experiments that the common esti-
mate of the resistance upon inclines is erroneous, being taken at
the same as the resistance upon the level portions, or about 2'50th
of the load; whereas it was found that the actual resistance at high
speeds very considerably increased, compared with it when the
motion was slow. The motion of a train for about 100, 200, or 300
yards was found to give a very small degree of resistance, when
started with little velocity, viz., from τ}σth to r}σth of the load,
thereby showing that the atmosphere was but slightly affected by
the same, although it amounted to from 010 to 100ᵗʰ of the load,
when the initial motion was very great, the state of the weather
and the direction of the wind were also found to influence the mo-
tion of the train very considerably ; a great portion of the force of
the engine is also absorbed by the wheels of the carriages, owing
to their velocity and their great number, they may be said to
act against the atmosphere, and the air for some distance round
them is also affected, and which forms part of the resistance op-
posed to the moving power. The uniform velocity above described
was precisely the same upon the curves as upon the straight parts
of the line, the former being of 1 mile radius: the Doctor therefore
concludes, that curves of that radius have no perceptible effect
upon the resistance. Dr. Lardner described his conclusions to be
as follows, reserving to himself the power of modifying them when
his experiments shall be all reduced.
1. That the resistance to a railway train, other things being the
same, depends on the speed.
2. That at the same speed, the resistance will be in the ratio of
the load, if the carriages remain unaltered.
3. That if the number of carriages be increased, the resistance
is increased, but not in so great a ratio as the load.
4. That, therefore, the resistance does not, as has been hitherto
2 D
Digitized by Google
202
RAILROAD.
supposed, bear an invariable ratio to the load, and ought not to be
expressed at so much per ton.
5. That the amount of the resistance of ordinary loads carried
on railways at the ordinary speeds, more especially of passenger
trains, is very much greater than engineers have hitherto sup-
posed.
6. That a considerable, but not exactly ascertained, proportion
of this resistance is due to the air.
7. That the shape of the front or hind part of the train has no
observable effect on the resistance.
8. That the spaces between the carriages of the train have no
observable effect on the resistance.
9. That the train, with the same width of front, suffers increased
resistance with the increased bulk or volume of the coaches.
10. That mathematical formulæ, deduced from the supposition
that the resistance of railway trains consists of two parts, one-
proportioned to the load, but independent of the speed, and the
other proportional to the square of the speed, have been applied
to a limited number of experiments, and have given results in
very near accordance, but that the experiment must be further
multiplied and varied before safe, exact, and general conclusions
can be drawn.
11. That the amount of resistance being so much greater than
has been hitherto supposed, and the resistance produced by curves
of a mile radius being inappreciable, railways laid down with
gradients of from 16 to 20 feet a mile have practically but
little disadvantage compared with a dead level ; and that curves
may be safely made with radii less than a mile; but that further
experiments must be made to determine a safe minor limit for the
radii of such curves, this principle being understood to be limited
in its application to railways intended chiefly for rapid traffic.
Attempts have also been made to introduce a Pneumatic rail-
way. Mr. John Vallence was the first who thought of employing
the natural pressure of the atmosphere operating upon a partial
vacuum, for the purpose of transporting passengers and goods
Digitized by
Google
RAILWAY-RAFTER.
203
from place to place; he proposed having cast-iron cylinders suffi-
ciently large to allow the carriages and passengers to pass through
them, which latter were intended to act similar to pistons; he
caused a model to be constructed with which very satisfactory
experiments were made, but Mr. Henry Pinkus subsequently im-
proved the above plan, by transferring the action of the piston
from the inside to the outside of the tubes, a model of which has
been lately exhibited, and a company also formed for carrying
out the scheme; a guide-carriage is connected with the piston on
the outside, and termed the governor, which drags the train of
carriages along the top of the tube, similar to a locomotive, the
tube being from 3 feet to 3 feet 6 inches diameter, with ledges on
each side, on which the wheels of the carriages revolve; if the
carriages are proposed to be run on rails already laid down, or the
power be employed to draw barges, the tubes need not be above
2 feet 10 inches to 2 feet 4 inches diameter, and they would be
cast in lengths with regular socket joints. The pistons are in-
tended to be worked and the cylinders exhausted by stationary
air-pumps worked by steam-engines, and the distance between the
stations would be regulated according to circumstances.-See
Continuous Bearings, Edge-railway, Tram-railway &c.
RAILWAY.-See Railroad.
RAILWAY LINK.-See Draw Link.
RAILWAY SLIDE, a contrivance employed on railways, for the
purpose of shifting a carriage from one line of rails to another,
consisting of a platform running upon wheels, upon which there
are two or more pair of rails of similar gauge to those employed
on the line; the slide is generally placed at the extremity of the
main rails of the line, and it runs transversely across it upon a
carriage being wheeled on to the slide, the latter is moved in the
direction of the line of rails to which it is required to be transferred,
when it is run off.
RAFTERS, the beams employed in supporting roofing. Rafters
ar of two kinds, viz., principal rafters, and common rafters; the
first are employed to carry the purlines, and the latter lay above the
2 D 2
Digitized by Google
204
RATCH-RESERVOIR.
purlines, and support the slating or tiling, as the case may be.-
See Roof.
RATCH, a bar containing angular teeth, into which a paul is
dropped to prevent machines from running back.
RATCHET WHEEL, a circular ratch.
RECIPROCATING ENGINE, any steam-engine worked by an alter-
nate rectiliniar motion, and which is effected by means of pistons
moving in cylinders.-See Fly-wheel.
RECIPROCATING SYSTEM (on a railway,) the reciprocating plan
of working railways was introduced by Mr. Benjamin Thompson,
in the year 1821, who applied it very successfully. It consists of
a succession of stationary steam-engines along the whole line,
which are fixed about 11 miles apart, having ropes from one to
the other, rollers are fixed along the line to receive the latter.
When a train of carriages leaves a station, it is secured to the
rope, and is thereby drawn along the line, in which case the rope
is termed the head rope, and another is secured to the last waggon,
which is called the tail rope, which is thus pulled along by the
train, upon returning it becomes the head rope, and the former
the tail rope, thus alternating to and fro. A railway may be
worked by stationary engines, but it does not necessarily follow
that it should be upon the reciprocating system; thus the Brun-
ton and Shields Railway has five continuous planes worked by
them, but only one can be said to be upon the reciprocating prin-
ciple; as the loaded waggons run of themselves upon three of the
planes by the effect of gravity, the rope being used merely to
draw the empty ones back, and upon the remaining plane the rope
draws up the loaded waggons, the empty ones returning of them-
selves; it will therefore be perceived that on the last four places
one rope only is used, and the plan pursued appears to be very
advantageous.
RESERVOIR, a large pond containing a body of water, and em-
ployed as a means of supply for hydraulic works, as for the sum-
mit levels of canals, water-wheels, &c.; they are usually formed by
means of dams or embankments.
Digitized by
Google
RETAINING WALL-RIVER.
205
RETAINING Wall, a wall used for the support and mainte-
nance of a body of earth, when circumstances render it inexpe-
dient to slope the same gradually down.
Retaining walls are sometimes used where land
is valuable, and are battered on the outside face
from 1 inch to 1½ inches to the foot ; the greatest
degree of batter (which is usually curved) being
given to the foot of the wall.
Counterforts are generally carried up at the back
of the wall, and piers are placed sometimes on
the face of it.-See Batter.
RETORT.-See Gasworks.
RIB, a term applied generally to a girder, but
more particularly to an arched beam, as to the
Retaining Wall, Loud.
and Birm. Railway.
segments of a cast-iron bridge.
RIGGER.-See Sheave.
RIVER, a natural water-channel communicating with the sea.
Rivers are formed by the union of springs, brooks, rills, &c., and are
the natural channels by which the surplus water of a country is con-
veyed to the ocean, fertilizing the land, and affording a means of
transport by navigation throughout their course they usually take
their rise in elevated situations, at the top of high mountains, where
the spring rises, and they receive numerous tributaries in the
course of their descent, and at length after numerous meanderings
they acquire a considerable width ; these springs are generally
supposed to arise from the condensation of atmospheric vapours,
thawing of ice, snow, &c., and some other natural causes. Altera-
tions frequently occur in the courses of rivers, particularly near
their mouths, arising from the force of the current, some parts
becoming depressed and others raised. The velocity of a stream
is usually greatest at about the middle, both as regards breadth
and depth; it is consequently least at the sides and bottom.
In order to insure a proper depth of water for the barges navi-
gating rivers, it is found necessary to preserve them by artificial
means, such as by sustaining the banks on each side, (which also
Digitized by
Google
206
RIVER.
protects the adjacent country from inundation) by removing all
shoals and obstructions, and by various other works. If the width
of a river be increased beyond its natural limits, or that required
for carrying off the various land streams and floods, a reduc-
tion in depth will be the natural consequence; if on the contrary,
the river is contracted or narrowed, it will acquire in depth what
has been taken from it in width ; a constant expense is therefore
necessary in preserving its navigation. Rivers are sometimes
widened for the purpose of facilitating the trade upon them, when
every means should be taken to secure sufficient depth, and the
nature of the soil, of the bottom and sides, duly considered; also
the velocity of the current, and every obstacle interfering with the
free tidal flow of the sea-water upwards should be removed, all
banks, shoals, and obstructions being cleared away : the current
should be carried to the utmost point, by deepening and widen-
ing the entrance channel, the water will thus rise higher, and the
velocity of the flow and ebb will be increased, whereby the scour-
ing power is made greater, and all the numerous impurities from
the sewerage will be carried away the water will likewise be ren-
dered more pure and wholesome. There is less chance of the
banks of a large river being overflowed than those of a small one,
as the former may be made with a less slope at the bottom, longi-
tudinally, than the latter, owing to the greater inclination of the
water to run off by reason of its increased body.
Mr. Nimmo gives the following data on the subject of the rela-
tive inclination of streams necessary to insure the discharge of
their waters :-
Large and deep rivers run sufficiently swift, with a fall of about
1 foot per mile, or 1 in 5,000.
Smaller rivers and brooks, ditto, ditto, 2 feet per mile, or 1
in 2,500.
Small brooks hardly keep an open course under 4 feet per mile,
or 1 in 1,200.
Ditches and covered drains require at least 8 feet per mile, or 1
in 600; and furroughs of ridges and filled drains require much more.
Digitized by
Google
RIVER WALL-ROAD.
207
RIVER WALL.-See Quay.
RIVET, an iron pin used for the purpose of joining two
plates of iron together, as in the formation of boilers ; they
are put on in a red hot state, whereby a very great degree
of closeness is obtained in the joint by their contraction
in cooling a double row of rivets is generally employed
in particular work.
ROAD, or COMMON ROAD, an expedient for effecting the con-
nection of districts, cities, or towns, forming the most general
means of communication.
The formation of roads was most probably commenced at a very
early period, being a subject of immense importance. The Ro-
mans appear to have been quite aware of the advantages of good
roads, some portions of the ancient Roman roads remaining at the
present time ; but they were entirely neglected during the
middle ages, and it was not until the middle of the last century
that any very great improvement was made in them.
The ancient Roman military roads generally run in direct lines,
and hilly ground appears to have been selected in preference to
the level, for the purpose of commanding the country ; towers of
defence being erected on the several summits. The great desi-
deratum in laying out of modern roads is to obtain the most level,
together with the shortest line of route ; some attention being paid
to the materials afforded by the country for the proposed works.
Highways, or national roads, are roads of the first class, and
comprise the great communications throughout the country ; they
are conducted under the direction of the Government or of the
several county authorities, and are maintained by tolls levied upon
the horses and carriages using them; hence the term " turnpike
roads." Parish roads rank next to highways, and are sustained at
the expense of the various parishes in which they are situated.
Private roads, or the roads belonging to an estate, may be in-
stanced as the next in point of importance; and, lastly, lanes,
which may belong to either of the last stated classes.
A road should be raised 3 or 4 feet above the surface of the
Digitized by
Google
208
ROAD.
ground, in order that it
may have the benefit of
the sun and wind, also as
an allowance for drain-
age ; and it should al-
ways have an inclina-
tion, longitudinally, from
about 1 in 60 to 1 in 100,
by which the water will
be got rid of; but steep
inclinations upon a road
impede the passage of
the coaches, and are like-
wise exceedingly danger-
ous; alternate rises and
falls also increase the
distance : the inclination
of highways should not
be less than 1 in 30 in
der any circumstances,
Transverse section of a Road on Mr. Telford's plan of construction.
Ditto, ditto, a culvert being shown beneath it.
the vicinities of towns un-
and that of parish roads
1 in 20 to 24. The sur-
face of a road should be
formed as smooth as pos-
sible, provided it remains
hard, as it then offers the
least resistance ; thus a
paved - way forms the
nearest approximation to
a railway. A road should
also be of uniform width
throughout, say about 30
feet for highways, although
10, 50, or even 60 feet is not too much for the leading thoroughfares
Digitized by Google
ROADS.
209.
to cities; the surface should also be made of a convex shape, for
the purpose of carrying the water off into the side drains at the
junction of the footway with the road, and it should be conveyed
from thence to the ditches upon each side, by means of culverts;
proper mitre drains should also be constructed under the road,
(see Mitre Drains), and filled in loosely with large flints or pebbles
to carry off the water that percolates through it into the side drains;
the latter require to be kept perfectly clear of obstructions, and
passed into the natural water-courses of the country.
The centre part of a road is generally metalled, the sides being
merely gravelled on the natural subsoil, these portions being
sometimes called summer roads; the method of paving the centre
part is of great importance, the system practised by the late Mr.
Telford on the Holyhead road is generally admitted to be the
most correct plan of formation, viz., the laying down of a regu-
lar close-set pavement, as a foundation for the road, having the
broad part of the stones securely placed on the bottom of *the
excavation upon which the ballasting was laid, consisting of a
coating of broken stones, with a binding gravel covering, the
thickness of the whole being from about 6 to 9 inches; the old
Roman roads may be described as specimens of this principle of
construction, as they were formed upon a bottoming of stone and
cement, which is frequently discovered almost as hard as iron,
and of very great substance. Gravel concrete is employed for
the same purpose, in cases where stone is difficult to obtain, as in
the case of the Highgate Archway road, the proportions of which
were 10th Roman cement, 1σᵗʰ sand, and To ths stones, with a co-
vering of broken stone, 3 inches thick; the cost of this road
amounted to from 12s. to 15s. per running yard, the portion of road
covered with it being 18. feet wide. Concrete, composed of 4
parts of gravel to 1 of lime, has also been successfully used by
Mr. C. Penfold, C.E. ; for instance, on the Brixton road, where
it is laid 6 inches thick, and extends over one half the width
of the road, comprising the centre part, and good hard gravel,
or broken stone, is spread over afterwards, in two courses; the
2 E
Digitized by
Google
210
ROADS.
first being laid a few hours after the concrete has been placed on
the road. The metalling of a road requires to be removed as it is
worn down, and on no account should the vehicles be suffered to
be in immediate contact with the concrete; the paths on each side
of the road may also be much improved by a similar foundation
laid about 2 inches thick.
A macadamised road is generally understood to refer simply to
a broken stone road, and which are inferior to roads of the above
description, unless the subsoil is of a perfectly unyielding nature ;
they are probably the cheapest to lay down, but their repairs are
far the heaviest.
The following are the principles laid down by Mr. M'Adam for
constructing roads :-
That a foundation or bottoming of large stones is unnecessary
and injurious to any kind of subsoil.
" That the maximum strength or depth of metal required for
any'road is only 10 inches.
" That the duration only, and not the condition of a road, de-
pends upon the quality and nature of the material used.
" That freestone will make as good a road as any other kind
of stone.
" That it is no matter whether the substratum be soft or hard."
The expence of a Macadamised road has been estimated as
follows :-
£ 8. d.
The first cost per superficial yard
0 7 6
Two coatings, at 1s.9d. each per yard per annum, for
3 years
1 15 0
Cleansing, at 10d. per yard per annum, for 10 years
0
8
4
2 10 10
It is now pretty well known that roads so constructed are not
fit for situations where there is much traffic, as the expence of
keeping them in repair is very great; the continual attrition of
the angles of the several stones, from their constantly changing
Digitized by Google
ROADS.
211
their position, having nothing to support them, is, in fact, much
greater than the wear occasioned by the traffic of the road, it is
thus rendered dusty in summer, and muddy in winter ; hollows
are also soon formed by the partial settling of the ground for want
of a foundation, whereby the surface is rendered irregular and
bad for the passage of carriages.
The following cut represents the method of forming a road on
what is termed sideling ground :-
Road on sideling-ground.
Roads are sometimes constructed along rocky ridges, when re-
taining walls are mostly adopted-thus,
Roads across bogs or moss
are formed by first thoroughly
draining the ground ; longitu-
dinal drains must, of course,
extend on each side with other
drains parallel to them, also
cross drains to carry the wa-
ter into the side drains; and
as this work can only be ex-
ecuted in fine weather, it oc-
cupies some time, probably
three or four years would
elapse before perfectly conso-
Road on the side of a precipice.
lidated ; the turf, when thoroughly dried, may be used in forming
2 E 2
Digitized by Google
212
ROADS.
the roads and embankments connected with it, being carefully
worked in regular layers, and well rolled with a heavy cylinder
previous to the gravelling and metalling being laid. The drain-
age of Chat Moss and Parr Moss on the Liverpool and Manchester
railway may be cited as specimens in this class of engineering.
Chat Moss is composed of an extensive bed of peat or turf,
about 5 miles in length, and 2 or 3 in breadth (containing about
12 square miles altogether), about 41 miles of which is crossed by
the railway. It consists of a very soft spongy substance, from 10
to 35 feet deep, the bottom being clay and sand. The works for
the railway were commenced by cutting longitudinal drains on
each side of the line, also cross drains : the moss between these
cuts was thus drained,
and became partly con-
solidated : hurdles, 9 by
4 feet, and wattled with
heath, were then placed
across the line in one or
A, the Hurdles.
two layers, according to the tenacity of the moss, and a bed
of ballasting, 2 feet thick, was laid upon them, upon which
longitudinal beams were laid, the timber sleepers being next in-
troduced in the usual manner, and another set of longitudinal
ones, upon which the rails were fixed by means of chairs.
Where the railway is elevated the embankment was formed of
dried moss, and it took four times the quantity of material that an
embankment of similar height would require, upon sound ground,
owing to the sinking nature of the foundation; and where the
line was in cutting, it was effected by draining, in a similar manner
to the level portions, but by successive lifts or layers, 12 inches
thick, the longitudinal ditches becoming deeper every lift. The
road is therefore entirely floating upon the moss, and depends
wholly upon the tenacity of the materials.
Parr Moss is crossed in embankment, the moss being about
20 feet deep, and the material of an adjoining excavation was used
in forming it, consisting of clay and gravel, which gradually sunk
Digitized by
Google
The following table shows the cost of conveying goods and passengers on turnpike roads, with
the comparative expence of the same upon railways, both with horses and with locomotive
engines.
Turnpike roads (with Horses).
Railways (with Horses).
Railways (with Locomotives.)
Description of
traffic.
Rate of travelling, in
miles per hour.
Force of traction,
in lbs. per ton.
Cost of haulage,
Cost of
Force of
Cost of haulage,
Cost of
per ton per
conveyance,
traction,
per ton per
conveyance,
mile.
per mile.
in lbs.
mile.
per mile.
per ton.
Rate of travelling,
in miles per hour.
Force of traction,
in lbs. per ton.
Cost of haulage,
Cost of
per ton per
conveyance,
mile.
per mile.
Heavy goods
~
21
73
3d.
8d. per ton.
8.5
0.56d.
1.65d. per
8
81
0.375d.
1.065d. per
was only 4 or 5 feet high, at the completion it was found to have
as it was thrown upon the moss and, although the embankment
ROADS.
(stage vans)
tom.
ton
Light goods
(vans or light
4
73
4.5d.
12d.perton.
8.5
0.9d.
3,srd. per
12
81
0.5d.
3.5d. per
carts)
ton.
ton.
1d. to 11d.
Passengers
0.7d. per
3d. per
0.25d. per
0.25d. per
ld.to 11d.
per pas-
per pas-
and parcels
9
83
8.5
passenger,
passenger,
passenger,
senger,
20
81
passenger,
(stage coach)
10d.perton.
3s. per ton.
2.24d. per
0.73d. per
senger,
1s.3d.per
12.37d.
ton.
ton.
ton.
Digitized by Google
per ton
* Arranged from Wood's Practical Treatise on Railways.
213
214
ROCK.-ROOF.
taken a sufficient quantity of earth to have formed one 24 or
25 feet high, on ordinary ground; therefore the portion of
the line across Chat Moss could not have been made with such
materials.
Mr. Macneill stated, in his evidence before a Committee of the
House of Commons, in the year 1830, that the expence of im-
proving the present turnpike roads, altering all the slopes to within
1 in 40, would cost from £600 to £2,000 per mile, according to
circumstances.
Roads are also sometimes paved, particularly in cities and
towns.-See Paving and Paved Way.
Rock.-See Stone.
ROLLEY, the name formerly applied to a tram-wheel.
ROMAN CEMENT, a cement in very general use for building
purposes, and forming an excellent water cement; being mostly
employed with an equal portion of good sharp sand, it also forms
a perfect preventive against corrosion, and may therefore be
serviceable in covering joints in iron-work, and for similar pur-
poses; the stone is of a dark brown colour, and is principally
brought from the Isle of Sheppy.
ROOF, the covering to any building or shed.
Roofs may be described generally as being of two kinds, viz.,
1st, those with their outer surfaces or tops nearly level, such being
usually covered with lead-2ndly, those which have their tops
inclined, as the common roof, gutters being formed at their lower
edges, and slates employed for the external covering.
In the first description of roof the lead is supported by means
of horizontal joists or bearers, proper boarding being interposed
between them; and in the second kind, long timbers, called raf-
ters, are employed to carry the slates, and either boarding or thin
pieces of wood, termed fillets, are nailed on them to secure the
slates to ; when the rafters are long, they are supported by purlines,
as may be required, and these rest on framed trusses, termed
principals, which are placed at regular intervals, usually about 10
feet distance; and it is in the construction of these principals
Digitized by
Google
ROOF.
215
that the stability of the roof mainly depends: such roofs are also
described as trussed roofs. Roofs of small dimensions are con-
structed without either principals or purlines. The width between
the walls, or supports, is called the span of the roof, and the height
in the centre the rise, the slope of the rafters being termed the
pitch.
Roofs of from 20 to 30 feet span may be supported by princi-
pals, composed of a king-post, principal, rafters, and struts, thus,
and of the following scantlings :-
G
E
E
c
E
H
H
I
Span in feet.
Tie-beams.
King-post.
Principals.
Struts.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
20
9 X 4
4 X 4
4 X 4
4 X 3
25
10 X 5
5 X 5
5 X 4
5 X 3
30
11 X 6
6 X 6
6 X 4
6 X 3
This and the following Tables are according to Mr. Gwilt, with
the exception of the line marked *:-
A, the tie-beam, which is notched to receive the feet of the
principal rafters; it is also notched on the wall-plate.
B, the king-post; the head is prepared to receive the upper
ends of the principal rafters, and at the feet for the reception of
the struts.
C, C, the principal rafters or principals; these are laid to the
required pitch of the roof, the feet are joggled into the tie-beam,
and the upper ends abut against the king, and are secured by
straps and bolts.
D, D, the struts for supporting the principal rafters, &c.
Digitized by Google
216
ROOF.
E, E, the purlines which are secured to the principal and to
the common rafters.
F, F, the common rafters for receiving the outer covering.
G, the ridge-piece, against which the common rafters abut.
H, H, the pole-plates for receiving the feet of the common
rafters, which are secured to the tie-beam.
Roofs of from 30 to 40 feet span may be supported with prin-
cipals framed with two queen-posts, and one straining-beam be-
tween them, &c., thus, and of the following scantlings :-
H
F
F
X
G
G
F
-
1
I
A
K
K
Span in feet.
Tie-beams.
Queen-posts.
Principals.
Straining-piece.
Struts.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
35
11 x 4
4 X 4
5 X 4
7 X 4
4 X 2 *
40
12 X 5
5 X 5
5 X 5
7 x 5
5 X 21
A, tie-beam.
F, F, Purlines.
B, B, queen-posts.
G, G, common rafters.
C, C, principal rafters.
H, ridge-piece.
D, D, struts.
I, I, pole-plates.
E, straining-piece.
K, K, Wall-plates.
Roofs of from 40 to 60 feet span may be framed with two
queen-posts, and two straining-beams between them, and struts
from the queen-posts to other smaller queens and struts.
The principals are much improved by trussing the upper strain-
ing-beam, as shown on cut. The scantlings being of the follow-
ing dimensions :-
Digitized by Google
ROOF.
217
1
F
G
02
c
G
F
c
H
H
B
G
B
c
WALL
M
M
c
M
K
>
K
N
A
L
L
Span
in feet.
Tie-beams.
Queen-posts.
Small Queens.
Principals.
Straining-piece.
Struts.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins.
Ins. Ins.
45
12 X 7
7 X 7
7 X 4
7 X 4
8 x 5
413
50
13 X 8
8 X 8
8 X 4
8 X 6
9 x 6
5 X 3
55
14 X 9
9 x 8
9 X 4
8 X 7
10 X 6
5] x 3
60
15 x 10
10 X 8
10 X 4
8 X 8
11 X 6
6 X 3
A, tie-beam.
H, H, common rafters.
B, B, large queens.
I, ridge-piece,
C, C, small queens.
K, K, pole-plate.
D, D, principal rafters.
L, L, wall-plate.
E, straining-piece, or collar.
M, M, M, M, struts.
F, king-post.
N, Lower straining-piece.
G, G, purlines.
The following Tables show the scantlings of purlines and com-
mon rafters, also according to Mr. Gwilt :-
PURLINES.
COMMON RAFTERS.
Bearing in feet.
Scantlings.
Bearings in feet.
Scantlings.
Ins.
11.s.
Ins.
Ins.
6
6 X 4
8
4 X 21
8
7 X. 5
10
5 x 21
10
8 x 6
12
6 x 21
12
9 X 7
The whole of the several joinings of the timbers must be well
2 F
Digitized by Google
218
ROPE-ROLL-ROTARY ENGINE.
tied together; the feet of the principal rafters are commonly jog-
gled into the beam, and further secured by bolts or by straps, and
they are fastened at their upper ends by being let into the heads
of the posts, or by irons; and the tie-beam is supported by the
posts, by means of stirrup-irons fixed at the extremity of the
latter.
The height of the rise or pitch of a roof is generally between
4th and 1th of the span, the former being considered the true pitch
for strength and security.
When the end of a roof is sloped off similar to the sides, it is
said to be hipped, but if the ridge runs out straight with the face
of the end walls or supports, such mode of termination is described
as a gable-end.
Struts are understood to be upright pieces of wood, and are
employed to resist vertical compression; braces are diagonal pieces
used to prevent any flexure in a framing, or to stiffen a truss; and
those timbers exposed to the force of extension are termed ties ;
the term collar is applied to a tie extending from about the middle
of a rafter to the corresponding one on the other side of a roof.
ROPE-ROLL.-See Drum.
ROTARY, ROTATORY, or CONCENTRIC ENGINE (sometimes
called a steam-wheel), an engine worked by the elastic force of
the steam acting upon pistons fixed to an axis, whereby the latter
is put into motion instead of being turned by means of pistons
working in tubular cylinders, and communicated by the crank
motion. The construction of an efficient engine after this system
has been considered the grand desideratum with steam power,
although some engineers assert, that it would not be able to exert
more force than other engines with a similar quantity of steam.
Notwithstanding various modifications may be made in steam-
engines, to suit the purposes to which they are applied, yet it is
very questionable whether much more will be accomplished than
lessening the friction of the several parts by greater simplicity of
construction: There have been two or three rotary engines spoken
very highly of lately, as "Avery's Rotary Engine," and the " Pa-
Digitized by Google
RUBBLE-WORK-SAFETY-VALVE.
219
tent Rotative Disc-Engine," also " Bunnett and Corpe's Concen-
tric Engine."
RUBBLE-WORK, a rough description of masonry, the stones
being merely axed on the face, and laid in as regular courses as
suits the convenience of the mason, and well flushed with mor-
tar, occasional bonders being inserted (which are more required
in this description of walling than in any other), running through
the whole thickness of the wall, to tie the whole together: chain-
bond may also be used in rubble walls with great advantage, if
many openings are required to be left. In good work the stones
should be as large as the workmen can conveniently lift.
If the stones are laid in regular courses, the work is described
as regular coursed; if otherwise, irregular coursed work: and when
they are not laid in courses, but merely piled, or laid one upon
another, according to the sizes of the several stones, it is termed
uncoursed rubble walling.
The filling-in work at the back of arches, and the like, is also
called by this name, although not so properly speaking, as it con-
sists of chippings and pieces of stones, of all shapes, thrown in
without any attention to position.
SAFETY-VALVE, the valve usually employed in the boilers of
steam-engines, to prevent explosions, which are constructed in
such a manner that the power of the steam opens them when it is
of a higher pressure than the boiler is calculated to bear, whereby
the surplus power escapes, upon which the valve instantly closes
again.
The conical or button-valve, is that
most frequently employed, which is
kept shut by a lever with a sliding
weight.
The safety-valves of locomotive engines usually have a series of
spiral elliptical springs instead of a weight, with an index to show
the pressure of the steam upon the valve. It is sometimes found
in practice, that valves of this description stick, and consequently
offer a far greater resistance to the steam than intended, which has
2 F 2
Digitized by Google
220
SAND-SAND-STONE.
led to the use of spherical valves;
these supersede the necessity of any
weight, and afford very little fric-
tion; they are, therefore, very suit-
able for the lock-up valves of an
engine, as upon the top being
screwed down, it is not very easy to tamper with them, and on
account of their freedom from derangement (a lock-up valve is
always attached to a boiler, in case the ordinary one should fail).
The fusible valve is also used by some engineers, which consists
of a safety-plate or plug, made of a certain mixture of metals,
which becomes fusible before the steam attains a dangerous pres-
sure. The safety-valves employed in France are required by
government to partake of this prin-
ciple; it is appended to the usual
safety-valve. a, a, is the extra
safety-plate, made of zinc, tin, and
bismuth, being kept down by an
iron grating. The only objection
to this valve is, that it not only lets off the superabundant power,
but the whole of the steam from the boiler with it, whereby the
engine becomes stopped, although a safety-valve should be con-
structed of sufficient size to pass all the steam that the boiler can
generate in an ordinary state of work. The steam blown off at the
safety-valve often amounts to 4ᵗʰ of the steam generated in the
boiler.
SAND, a granular mineral substance insoluble in water. Pit-
sand is superior to river-sand for all building purposes.
SAND-STONE, also termed Free-stone, a very serviceable and
durable stone, when of good quality, being composed of grains
of sand adhering together without any visible cement; it varies
in its component parts, being at different places siliceous, argilla-
ceous, and calcareous.
Sand-stone is generally found stratified, each strata varying in
thickness from about that of a slate to many feet, as the enormous
Digitized by
Google
SCAFFOLD-SCOURING POWER.
221
blocks sometimes drawn from the Portland quarries: it is much
used for building purposes, as it can be readily cut into any form.
SCAFFOLD, a temporary erection, formed of poles, for the pur-
pose of building. In stone erections the poles are obliged to be
used double, when it is termed a double scaffold.
SCANTLING, a term used in reference to timber, in the same
sense as size, but with respect to breadth and thickness only; thus,
a piece of timber 12 inches wide, and 6 inches thick, is said to
have a scantling of 12" X 6".
SCARFING (of timber), the joining together of two wooden
beams endways, which operation is resorted to when timber is re-
quired of longer lengths than can be procured in single pieces.
The length of all scarfings should be at least twice the width of
the face of the beam (although not always made so), well notched
and wedged together. An iron plate, fixed beneath the scarfing,
materially strengthens it, when the beams are not laying on a wall,
or otherwise supported on the under side.
Scoop-Wheel, a certain description of wheel which is formed
of cast-iron, and employed in conveying a stream of water up-
wards, from one pond, to another situated above it; they are there-
fore employed in a contrary manner to water-wheels, since, instead
of being acted upon by the impulse of the water, they operate
upon it, being turned by the aid of a steam-engine.
Scoop-wheels are much employed in the drainage of fenny land
and levels. Mr. Joseph Glynn, C. E., who has had much experience
in using them, usually makes the dip of the float-boards extend 5
feet below the water, where powerful engines are used such a wheel
being described as having a 10-feet head and dip, and the axis of
the wheel should be 4 or 5 feet above the level of the river or
outfall drain. Mr. Glynn states, that the best velocity for the
wheel is 6 feet per second at the circumference, which gives it a
centrifugal force quite sufficient to hold the water up against the
breast of the stone trough or wheel-track, yet not enough to carry
it beyond the point of delivery.
SCOURING-POWER.-See Backwater.
Digitized by
Google
222
SEA-WALL-SECTIO PLANOGRAPHY.
SEA-WALL, or REVETMENT, a retaining wall erected along the
line of a coast adjoining the sea.
-See Harbour and Quay Wall.
SECTION, a drawing of any ob-
ject, representing it cut or divided
into two parts.
Sections are either vertical,
horizontal, or oblique, and generally
represent plain surfaces.
A section of a line of country
is a vertical section, made for the
purpose of explaining the nature
of the ground, as the soil within,
and the level of the surface; and
if intended for parliamentary pur-
poses, it must be drawn according
to the standing orders of the
House of Commons, or 4. inches
per mile for the horizontal scale,
and 100 feet to an inch for the
vertical scale.-See Levelling:
SECTIO PLANOGRAPHY, a me-
thod of laying down the section
of engineering works upon the
plan, and recently introduced by
Mr. Macneill, and required, by
the standing orders of the House
of Commons, for all proposed rail-
ways, &c. It is performed by
using the line of direction laid
down on the plan as a datum-line;
the cuttings being plotted on the
upper part, and the embankments
upon the lower part of the line;
thus.
Digitized by
Google
SELF-ACTING INCLINED PLANE-SEWERAGE.
223
By this plan the nature of the undertaking may be readily un-
derstood, and the owners of property on the line will see how
their land is crossed, whether in cutting or embankment, and the
depth of same. If the former be coloured red, and the latter
blue, it will further assist ; or the cuttings may be represented by
vertical lines ruled over them, and the embankment by horizontal
ones. The regular section is required for the practical purposes
of the engineer the same as usual.
SELF-ACTING INCLINED PLANE (upon railways, canals, &c.),
an inclined plane, worked by the gravity of the load conveyed
we first read of their being used in the year 1788, on which occa-
sion a loaded boat was placed on a cradle and run down upon
frame-work to the lower level, by the action of which some empty
boats were also drawn up to the higher level. They are occa-
sionally employed upon canals in America at the present time.
Inclined planes were formerly much employed upon colliery
railways, having been applied soon after the introduction of iron
rails and wheels, when they were adopted to counteract the in-
creased velocity occasioned by them on the runs: the surplus
gravity of the loaded waggons drawing up the empty ones, which
at the same time served as a brake to them; each train of waggons
was connected together by a rope, which is passed round a
drum fixed at the top of the plane. Inclined planes are not
applicable unless there is a preponderance of goods to be con-
veyed one way, sufficient to counterbalance the gravity of the
empty carriages coming in the opposite direction.
Much advantage is derived from the adoption of self-acting in-
clined planes during the execution of railway works.-See Inclined
Planes and Double-acting Inclined Planes.
SEWER, an arched covering, similar in shape to a tunnel, used
for the conveyance of water.-See Culvert and Drain.
SEWERAGE. This term was formerly synonymous with drain-
age, but its signification at the present time is very different;
drainage bearing more immediate reference to the recovering of
marsh land, for the purposes of agriculture, whereas the former
Digitized by
Google
224
SEXTANT-SHAFT.
implies the draining of a city or town of all superfluous water,
and ridding it of all filth, whether accumulated by natural or by
artificial causes ; and this branch of internal convenience has not
yet received that attention and consideration which it undoubtedly
demands, it being very essential to the health of the people.
The drainage of open country is not a very difficult operation,
where there are ample means provided to effect the undertaking,
but the drainage of a large city or town is frequently a work of
considerable difficulty, on account of the difference in the levels
of the several streets, and the comparative lowness of some of
them; hence all new shores required to be made in a city are
obliged to bear reference to those already laid down.
SEXTANT, Box SEXTANT, or POCKET SEXTANT, an instrument
much used in surveying, for measuring horizontal angles only ; it
is sufficiently accurate for all general purposes, although a theo-
dolite should always be used in laying out large triangles. A
small telescope is sometimes attached to the sextant, to assist the
sight, but it is not always used.
SHAFT, a vertical sinking or well, excavated and dry, for the
purpose of working and ventilating mines, also tunnels, and for
ascertaining the nature of the ground before commencing any en-
gineering operations. The principal shaft of a mine is usually
called the engine-shaft.
The brickwork of the shaft sunk for the working of the Thames
Tunnel was first built up from the ground to the required height
(40 feet), and then sunk to the proper level by loosening the
ground from beneath it; proper precautions were, of course,
taken to prevent any irregular settlement during the course of ex-
ecution, by tying it well together; it was carried up upon piles,
on which an iron curb was laid, wrought-iron rods, 2 inches dia-
meter, were taken from thence to the intended height of the shaft,
and secured into a top curb; the bricks were laid in cement, and
further bound by timber hoops, half an inch thick. Upon the
completion of the brickwork, the piles were removed from the
bottom, and it was left standing upon the gravel; a thirty-horse
Digitized by
Google
SHAFT-SHEAVE.
225
power high pressure-engine and raising gear were then fixed upon
it, and after being kept a proper time to dry, the excavating was
commenced from within it.
Section of the Working Shaft employed at the Thames Tunnel.
The shaft is 50 feet in diameter, 42 feet deep, and the brick-
work is 3 feet in thickness. The two large ventilating shafts of
the Kilsby Tunnel on the Lendon and Birmiugham Railway were
also constructed by the same method ; the ordinary shafts commu-
nicating with the tunnels on this railway are 9 feet in diameter,
carried up in 9-inch brickwork, and supported below by a cast-
iron curb, fixed in the crown of the tunnel.
SHAFT (in machinery), the term applied to a large axle. The
shaft is one of the most essential parts for the conveying of motion
in all machines; the action of the primary power causing it to re-
volve upon its axis, when any wheels fixed upon it are also carried
round by it, as the shaft of a fly-wheel.
A small shaft is termed a spindle; shafts placed in a horizon-
tal position are described as lying, and those situated vertically
are called upright. The cylindrical form of shaft is considered
superior to both square or feathered, but for large shafts hollow
cylinders are best.
SHEAVE, FRICTION ROLLER, or PULLEY, a description of wheel
much used in connection with inclined planes and fixed engines,
being formed for the purpose of receiving the rope, whereby the
friction of it is considerably reduced.
2 G
Digitized by
Google
226
SHEAVE.
Sheaves are generally formed of cast-iron on railway or canar
works, and are constructed of various sizes. The large wheels
situated at the top and bottom of a plane, and employed for re-
taining the rope, and for communicating the action of the steam-
engine to the train, are termed sheaves, and the small wheels fixed
along the surface of the ground are generally called running
sheaves, or friction rollers.
An inclined plane in a double line of railway is usually worked
by an endless rope, and a large metal sheave is fixed at the end to
pass the rope back ; the rope runs between flanges formed on each
edge of the peripheries of the wheels. This method is applied
on the Euston-square Plane, the terminal sheave and tackle being
fixed beneath the level of the rails, and set in a diagonal direction
with masonry and brickwork; it therefore does not form any ob-
struction, being entirely concealed from view ; the rope is received
at the top of the plane upon a sheave placed vertically, and is
then passed to another in a horizontal position, termed the tight-
ening sheave, from thence it turns back, passing round another
vertical sheave, and an additional smaller one is employed on
this side of the tightening sheave, when a very great degree of
friction is required; the rope is thus taken again to the surface of
the rails, and runs down the other line of rails, constituting an
endless rope; the tightening sheave is fixed on a moveable stage
placed on a railway, and a counterbalancing weight is connected
to it, in order to keep the rope in a proper state of tension, what-
ever weight the load may be : the counterbalance is situated in a
well, and acts upon the rope like a spring.
The accompanying cut represents the plan adopted by Mr. Ste-
phenson in the working of the stationary plane on the Liverpool
and Manchester Railway :-
Fig. 1.
Fig. 2.
Fig. 1, is the horizontal wheel at one end of the lines of rails.
Digitized by Google
SHEET-PILING.
227
Fig. 2, is the working wheel, with its pit and tightening sheaves,
and which is worked by a stationary engine.
The running sheaves used upon inclined planes are from 10 to
15 inches diameter, having their peripheries hollowed out to re-
ceive the rope, and are usually fixed about 8 or 10 yards apart,
the axles resting upon a metal box or socket, which is well bed-
ded in the ballasting, they are also sometimes fixed upon stone
blocks. In cases where a plane is curved laterally, as parts of
the Euston-square plane, the running sheaves are fixed in a slant-
ing position, and at different degrees of inclination, according to
their situation in the curve, a strong stay-bar being attached at
the back of each, which enables them to support the pressure of
the rope without altering their position. The proper angle for
the same, is that which allows of neither an upward or a down-
ward stress of the rope, but which presents the wheel in such a
position that the strain shall be in a line at right angles with
the axis; there is a double or endless rope to each set of rails,
or each double line (there being four lines of rails laid down),
each rope is 7 inches in circumference, and 4,000 yards long,
and weighs 10 tons. Wooden friction rollers and frames are
used on the Whitby and Pickering Railway.
The humming noise attendant on this method of working a rail-
way, arising from the velocity with which the friction rollers
revolve, is considered objectionable by some individuals, (more
especially if occurring in crowded neighbourhoods) ; it has,
however, been proposed to cover their edges with netting, as a
preventive, although rather a doubtful remedy.
SHEET-PILING, a row of timbers driven firmly side by side into
the earth. When the piling consists of planks, it is termed pile-
planking, and which is sometimes joggled together. Sheet-piling
is used for protecting foundation walls from the effects of water,
also in the construction of coffer-dams, sluices, &c., and it is usu-
ally supported and secured to guide-piles and to waling-pieces
situated along the top, by iron bolts.
Sheet-piling is always employed to support walls and other
2 G 2
Digitized by Google
228
SHIFT-SIDING:
works next rivers, canals, &c., and good clay should be well pun-
ned in at the back of the piles next the wall. Cast-iron sheet-
piling has been recently adopted, and with considerable success.-
See Quay and Piles.
SHIFT, a name employed in reference to the gangs of men em-
ployed in excavating upon railways, &c.; for instance, when two
different sets of men are employed alternately, they are described
as working double shifts, which is found more expensive than
single shifts, although occasionally resorted to during the long
days, where great speed is necessary. Night-work is also consi-
derably more expensive than that performed in the usual working
hours.
SHORE, or SHOAR, the name given to the pieces of timber
placed diagonally against the sides of walls, or otherwise, as a
prop or support to them; timber plates are usually placed at each
end of shores, and the junctions are further tightened by wedges
driven in between them.
SIDE CUTTING, a term applied to a cutting made along the side
of a line of railway or canal, for the purpose of obtaining mate-
rial for the embankment, when there is not sufficient excavation
upon the line to form it.
SIDE-FORMING, a term applied to an embankment when made
by a side cutting, and which constitutes the quickest way of
forming an embankment, as the whole can be commenced at the
same time from one side, and filled in at once towards the other,
in which case the embankment is usually supported by steps cut
at the bottom of it.-See Road.
SIDE SPACE (on railways), the distance on the outside of each
line of rails, which is generally about 3 feet 6 on private, and
5 feet on public lines, as the London and Birmingham and Great
Western Railways.
SIDELING GROUND, a line of country whose cross-section is
inclined or sloping.-See Earthwork, Side-forming, and Road.
SIDING, PASSING PLACE, or TURN-OUT (on railways), a short
length of additional trackway laid by the side of a line of rail-
Digitized by
Google
SILT-SKEW-BACK.
229
way, and connected therewith at each extremity by suitable
curves, the rails being constructed and disposed in such a manner
that the carriages can either proceed along the main line, or turn
into the siding, as may be required; to accomplish which, the
portion of rails forming the junction of the siding with the main
line is made moveable to suit either trackway, and is termed a
switch, and the points where one railway crosses another are
termed crossing points, which are generally fixed or immoveable;
suitable grooves being left on the surface of them for the passage
of the flanges of the carriage-wheels on either trackway.
The switches are mostly worked by an eccentric movement,
which is enclosed in a cast-iron box, and it is effected on some
railways by a vertical lever, which draws backwards and forwards,
means being taken to secure it in the proper position.
The occurrence of sidings is most frequent in the vicinities of
depôts and stations. Mr. R. Stephenson allowed one in every
five miles in his estimate of the London and Birmingham Railway.
-See Switch and Crossing-point.
SILT, the alluvial soil washed down, and deposited upon the
bottoms and sides of rivers by the action of the tides; the term
is also indicative of any soft light description of soil.
SKEW-BACK, or ASKEW-BACK, the course of
masonry forming the abutments to a segmental
arch, or to the cast-iron ribs employed in bridges.
It is necessary, in the latter case, to lay a plate
of cast-iron upon the stone skew-backs, which
is generally run through the entire width of the
bridge, thereby forming a tie ; but-the iron ribs
should not be fixed to this plate, particularly if they are of great
span, on account of the alternate contraction and expansion of the
metal, and a sufficient space should always be allowed for this
variation.
The ribs of the Southwark Bridge, London, were originally
secured by bolts to the masonry ; but it was found necessary,
during the execution of the work, to remove them in consequence
of the injuries threatened.
Digitized by
Google
230
SLACKED LIME-SLIP.
SLACKED LIME.-See Lime.
SLEEPERS, the name applied generally to beams of wood laid
horizontal in any works.
It
D
IN
EX
The sleepers used upon railways, upon which the railway chairs
are fixed, are generally of oak, or larch timber, and about 5 by 9
inches scantling, 9 feet long, and 3 feet from centre to centre ; the
cost of the former may be stated at 7s. 6d. each, and the latter 6s.
to 6s. 6d. A line of railway, formed of wooden sleepers, is much
more elastic than one laid on stone blocks, and consequently easier
for the passengers, and the process of kyanizing the wood sleep-
ers, as generally practised, is expected to render them very dura-
ble.-See Kyanize.
SLEETCH, the thick mud laying at the bottom of rivers.
SLIP, or LAND-SLIP, a slipping of the earth of a cutting, or
embankment, which most frequently occurs in the case of deep
cuttings and high embankments; they generally arise from the
want of stability of the soil, and general badness of foundation,
also from the side-slopes being formed too steep; but clayey soil
will slip at almost any slope, good drainage is, therefore, import-
ant in earth-work. During the formation of the Colne embank-
ment, on the London and Birmingham Railway, the level fre-
quently sank several feet in the course of a few hours, the base
extending out to an enormous width, owing to the badness of the
foundation. The only plan of procedure, in some cases, is by
that of loading the slip itself with a sufficient quantity of earth,
to enable it to bear the embankment above ; slips are likewise
caused by heavy rains : high embankments should always be ex-
posed to the wet season of the year, and the succeeding winter,
previous to the opening of the railway, as it tends much to conso-
lidate and render them less liable to give way. Alternate beds of
Digitized by
Google
SLOPE.
231
clay, sand, or other soil, are very liable to slip, particularly if the
clay should be easily acted upon by water, and if the strata dips,
or inclines to the horizon; but it may be sometimes obviated, by
driving piles into the faces of the side slopes, and laying binders
across them, by which the earth is supported.
SLOPE, the name given to any inclination, but applied more
particularly to those of excavations and embankments; the term
gradient being adopted for the inclinations of the rails upon rail-
ways. The slopes of cuttings and embankments are usually mea-
sured by an instrument termed a clinometer, (see Clinometer) which
indicates the angle of the slope ; but their proportion of slope is
usually expressed by comparing the horizontal dimension with
the perpendicular, as an embankment, with a slope of 2 to 1, sig-
nifres a fall of 2 feet horizontally to 1 foot vertically.
The ratio of the slope to the perpendicular, is represented by
the natural cotangent of the angle thus measured :-
TABLE OF SLOPES.
Slope.
Slope.
Angle.
Angle.
To one
To one
Perpendicular.
Perpendicular.
o
,
o
,
75.58
t
17.6
34
63.28
1
15.56
31
53.8
4
14.55
34
45.0
1
14.2
4
38.40
11
13.15
44
33.42
If
12.32
41
29.44
14
11.53
44
26.34
2
11.19
5
23.58
21
10.47
54
21.48
21
10.18
51
19.59
24
9.52
54
18.26
3
9.27
6
The proper slope for each description of soil can only be
determined by observation, and the state of the slopes of any
adjacent works forms a good criterion
It is generally understood, that whatever angle the soil of a
Digitized by Google
232
SLUICE, OR SLUICE-GATE.
cutting takes, without slipping, immediately after being teamed
(the angle of repose), is sufficient for the embankment formed
from it, but much depends upon the dryness of the soil at the
time it is tipped into the embankment.
Oxford clay will stand with a slope in the proportion of 2 to 1,
but London clay, whereof any height requires to be made, 3 to 1,
although a less slope is sufficient for light works. Gravel or sand
will stand at 1½, or 2 to 1; coal measures at 1½ to 1; chalk or
chalk marl varies from to to 1, and good sandstone will stand at
1 to 1; but much depends upon the height of the work, and other
circumstances.
The vegetable soil upon the surface of the ground should
always be carefully removed, and afterwards relaid upon the finished
surface of the banks; and sown with grass seed, or covered with
turf, for the purpose of strengthening them, also to carry the rain
off; and this should be done as soon as possible, that the works
may be protected from the effects of the weather.
The banks are also sometimes planted with shrubs;
and in situations where stone is plentiful, it may be
advantageously employed in covering the side
slopes, more especially the lower part or feet of the
slopes.-See Angle of Repose, Excavation, and Em-
bankment.
SLUICE, or SLUICE-GATE, a description of slid-
ing-valve, worked by a rack and pinion, and much
used in connection with hydraulic works, which
either retains the water, or allows it to pass through
as may be required. It is set in a frame of timber
or stone, by which the water is collected and raised
for the purpose required.
The following cuts represent a sluice with a dou-
ble valve, which, together with the slides, is formed
of cast-iron, and the whole is supported by an oak
frame and side walls, the foundation being protect-
ed by sheet-piling : both valves are opened by the
Transverse Section, show-
ing Paddle opening.
Digitized by
Google
SLUICE.
233
same movement, being connected together by means of wrought-
iron rods, the upper one terminating with a rack, in which a pinion
works:-
Elevation of Sluice taken on the outside face.
Plan of Sluice.
2 H
Digitized by Google
234
SMELTING-STATIONARY ENGINE.
When a number of sluices are placed side by side, the erection
is denominated a weir.-See Lock-gate and Weir.
SMELTING (of iron).-See Iron.
SOFITE, the underside of any overhanging erection, as the in-
trados of an arch, the underside of a cornice, &c.
SOUGH, a small drain, situated at the top of an embankment,
for the purpose of conveying the surface water from it into the
side drain. The term is also applied to an adit in some parts of
the country.
SPANDREL WALL, the walls built on the back of an arch ; the
term, properly speaking, does not apply to any other than such as
rest upon the extrados, and not to those situated upon the back-
ing of the arch, although frequently applied to them.-See Arch.
SPHERICAL VALVE.-See Safety-Valve.
SPINDLE, the term applied to a small shaft, as to that of a pinion.
SPIRIT LEVEL-See Level (Spirit).
SPOIL, or SPOIL BANK, the surplus excavation, which is laid
by the side of a line of railway, canal, or other work, to save the
expense of removal, and which occurs when the amount of cutting
upon the line exceeds that of the embankments.-See Earthwork.
STAITH, the line of rails forming the extremity of a railway,
and generally occurring next rivers, being laid down upon high
platforms, for the purpose of discharging coals, &c., into the holds
of the vessels or receptacles prepared for them. The staiths pro-
ject over the banks of the river, and shoots usually lead from them
to the vessels below.
STARLING.-See Cutwater.
STATIONARY, or FIXED ENGINE, any steam-engine of a fixed or
permanent nature; but one connected with a railway is more im-
mediately alluded to. Stationary engines are usually employed
upon inclined planes, to convey the carriages along, and are
constructed on the low-pressure system; they are also sometimes
used upon the other parts of the line. Recourse is had to a fixed
steam-engine where an incline is too great to be overcome by the
gravity of the meeting trains, owing to the traffic being equal in
Digitized by
Google
STATIONARY PLANE-STATIONARY SYSTEM.
235
each direction; and where it is necessary to pass a steep hill, in-
clined planes are sometimes made on each side up to the summit,
upon which an engine is fixed. In all such cases of inclined
planes worked by fixed engines, their inclination should be suffi-
cient to enable the empty waggons to descend by gravity alone,
pulling the rope after them, which would thus be in readiness to
return with the train passing up.
The principal objections to the adoption of fixed engines is, the
great friction arising from the rope, also the inconvenience of
same where passenger trains are conveyed along the line but
they are not so objectionable when situated at the termination of a
railway.
There is not much difference in the expense between the adop-
tion of fixed and of locomotive engines-for instance, the Durham
and Sunderland Railway is entirely worked by fixed engines, upon
which the charge for conveying coals is precisely similar to that
upon the Stanhope and Tyne line, where locomotives are used,
viz. 1.13d. per ton per mile, but the charges for the same upon the
Seaham and Clarence Railway, which is worked by locomotives,
is only 0.75d. per ton per mile.-See Friction, Inclined Planes, and
Stationary System.
STATIONARY PLANE, a plane worked by a stationary engine
and rope, as the Euston-square Plane, at Camden Town, on the
London and Birmingham Railway.
STATIONARY SYSTEM, a method of facilitating the conveyance
of carriages along railways, &c., by the action of two or more
fixed steam-engines, according to the inclination and length of the
road.
Some of the private railways in the north are worked by sta-
tionary-engines throughout, which are fixed at certain distances,
in regular succession, reciprocating with each other. This plan
was partially recommended by Mr. J. Walker and Mr. J. U.
Rastrick, Civil Engineers, in their celebrated Report to the Direc-
tors of the Liverpool and Manchester Railway, in 1829, on the
subject of the best motive power to be employed on that line ;
2 H 2
Digitized by Google
236
STEAM.
but locomotive engines at that period may be described as being
in their infancy.
The destruction of ropes by the stationary system is very great,
which is mainly attributable to the sudden straining to which they
are subjected at the time of the train's starting; the bottom of a
plane should therefore be level, or even slightly inclined in the
opposite direction, to assist the start which plan is successfully
practised on the Brussleton Plane, on the Stockton and Darlington
Railway.-See Stationary or Fixed Engine, and Reciprocating System.
STEAM, the vapour arising from any liquid when heated to the
boiling point, which possesses very great force or power. It is
generally allowed, that of all known fluids water is the best
adapted for producing steam. The fluid is composed of a vast
quantity of separate bodies, or atoms, having a great natural at-
traction for each other, and cold has the effect of increasing this
attraction: heat, on the contrary, decreases it; in other words,
heat possesses the power of separating these atoms, and repulsive
force is imparted to them, equal to the degree of heat.
The following Table, by Dr. Dalton, will be found very useful :-
TABLE of the Expansive force of Steam when contained in a closed vessel,
taken at every 10° of Temperature from 212° Fahrenheit (the boiling point)
up to 320°.
Pressure of the Steam against the atmos-
Pressure of Steam, or the force which
phere, when the barumeter is at 30
it will exert to enter into a vacuous space.
inches, or the force it will exert to
escape from the closed vessel into the
Temp.
open air.
Fahr.
Column of
Column of
Pressure, per
Column of
Column of
Pressure, per
Mercury.
Water.
square inch.
Mercury.
Water.
square inch
Inches.
Ft. In.
Lbs. Oz.
Inches.
Ft. In.
Lbs. Oz.
212
30.
33 11
14 11
The Steam
equal to the
atmosph.
220
35.
39 6
17 1
5.
5 7
2 7
230
41.75
47 2
20 7
11.75
13 4
5 13
240
49.67
56 1
24 4
19.67
22 3
9 10
250
58.21
65 9
28 8
28.21
31 11
13 14
260
67.73
76 6
33 2
37.73
42 8
18 8
270
77.85
87 11
38 1
47.85
54 1
23 7
280
88.75
100 3
43 7
58.75
66 5
28 13
290
100.12
113 1
49 0
70.12
79 3
34 6
300
111.81
126 4
54 12
81.81
92 6
40 2
310
123.53
139 6
60 8
93.53
105 8
45 14
320
135.
152 6
66 1
105.
116 5
51 7
Digitized by
Google
STEAM-BOAT.
237
Steam is produced upon the water being heated to 212° Fah-
renheit's thermometer, or the boiling point. It is perfectly colour-
less when pure, or unmixed with other ærial matter, but is white
and cloudy when mixed with air, as it thereby becomes partly
condensed, or reduced to a temperature below the boiling point,
when it again becomes water.
STEAM-BOAT, or STEAM-VESSEL, a vessel propelled by the
force of steam.
Perhaps of all the innumerable advantages derived from the
application of steam, its utility for the purposes of navigation
is the most beneficial and important to mankind. The idea of
propelling vessels by steam was, in all probability, coeval with
the introduction of that power; as, on referring to the period of
its application, or about the year 1700, we find many individuals
famous for their ingenuity in mechanics endeavouring to adopt it
for the purpose of propelling boats; among whom was the cele-
brated Savery, who was the first to introduce the steam-engine
in a practicable shape, and his contemporary Dr. Papin, the in-
ventor of the safety-valve; also Mr. Hulls, the inventor of the
crank motion (in the year 1737), so essential to the rotary motion
of the paddles.
There have been many ways tried of employing steam for the
propulsion of boats on water : in the usual mode adopted, it is
made to turn a shaft situated athwart the vessel, by means of
cranks, and large cast-iron wheels are fixed at each end, having
paddle-boards fastened round them, like under-shot water-wheels
these paddles, or floats, strike the water somewhat similar to com-
mon oars, and they are placed in such a depth of water that each
paddle is just immersed when in a vertical position, or as it passes
the centre at the bottom of the wheel. An experiment of propel-
ling vessels by means of an archimedian screw has lately been
made, which was fixed at the stern ; and it is imagined, from the
uniformity of its action, and the total absence of all swell in the
water, that this plan would be very advantageous : although the
principle is not new.
Digitized by
Google
238
STEAM-BOAT.
One of the first instances, if not the first of a vessel being abso-
lutely propelled by the power of steam, was that by the Marquis
de Jouffrey, which took place upon the Saône, at Lyons, in the
year 1782 the next was constructed under the direction of a Mr.
Miller, in the year 1789, and succeeded very satisfactorily, on the
Forth and Clyde Canal : after : which, several experiments were
made ; and that of the celebrated American engineer, Mr. Robert
Fulton, was among the most successful, the engines having been
supplied and fitted by Messrs. Boulton and Watt. The vessel was
named the "Vermont," which was the first steam-vessel run as a
regular packet-boat, having been launched at New York, in the
year 1807, and plied between that city and Albany, a distance of
about 150 miles, performing the voyage in 32 hours, which gives
a speed of nearly 5 miles an hour (about 3ʳᵈ the speed now at-
tained) : the length of the boat was 133 feet, depth 7 feet, breadth
18 feet ; the boiler was 20 feet long, 7 feet deep, and 8 feet broad,
and with only one steam cylinder, which was 2 feet diameter, and
4 feet stroke of piston the paddle-wheels were 15 feet diameter,
(dipping 2 feet into the water) and 4 feet broad and the burden
was 160 tons.
It was not until 1812 that a steam-packet experiment was again
attempted in this country, which occurred on the Clyde ; another
was tried at Bristol ; and these were shortly after followed by
many others : at length they became pretty general-although the
engines were of very imperfect construction, one steam cylinder
only being employed whereas two are now invariably used, each
working a crank, fixed upon the axle of the paddle-wheels, and
situated at right angles to each other, so that when one is passing
the dead points, the other is exerting its greatest power.
Steam-packets commenced making regular sea voyages in the
year 1818, and they have continued extending their bounds ever
since, voyages of considerable length being now made ; among
which may be cited those of the Great Western, and other steam-
packets to America and voyages yet more extensive are talked
of.
Digitized by
Google
STEAM-BOAT:
239
The arrangement of the several parts of the marine engine is
somewhat different to the general land engine, it being important
to reduce the space occupied by the machinery as much as possi-
ble ; the boilers are consequently of less dimensions, but a much
more extensive surface is exposed to the action of the fire : the
employment of a pair of engines, instead of one, is independent of
the advantages before stated, very beneficial; thus in the event
of one being disabled the other can work the vessel, which has
sometimes been the case; and the employment of several distinct
boilers is also very advantageous, although not always adopted,
as in the event of a concussion it is not likely that all would be
ruptured. A ready method of disengaging the paddle-wheels is
another point of great importance, as it would enable a steam-boat
to cope with sailing vessels by the same means, both as respects
speed and manœuvreing. It may also be remarked that proper
safety-valves and gauges should always be constructed, to ensure
safety to the passengers and crew.
The steam-boats employed in this country at the present time
are principally upon the low pressure condensing principle, (see
Steam-Engine) the whole of the machinery being placed below
deck, which renders it necessary to diminish the height of the
engine as much as possible and instead of having a working-
beam over the cylinders, a cross head is placed at the top of the
piston rod, the action of which is conveyed by parallel motions
to cross beams on each side, which are situated at the bot-
tom part of the engine ; the motion, compared with regular land
engines, is consequently inverted ; the proportions of the cylinders
also differ from them, the length of stroke being shorter, for the
purpose of saving height, but the diameter is greater: the valves
and gearing connected therewith, air-pump, condenser, &c., do
not differ essentially from land engines; but the governor is alto-
gether omitted, it being impracticable to work an engine with
great regularity, in consequence of the agitation of the water, and
other contingencies.
Digitized by
Google
240
STEAM BOAT.
adid
Pipe
C.H.
Motion.
ton.
Cylinder
Pis
Par aleD Par alell
Slide Box
Longitudinal Section of one of the Engines of the " Red Rover " Steam-packet.
Sleepers
Beam
Food
Hot
Water
Cistern
TITLE
vionking
Feed Pipe
dam]
Air
C.B
Counceting Rod
€
L.H.F
S. P., the steam-pipe which conveys the steam from the boiler
to the slide box.
Digitized by Google
STEAM-BOAT.
241
Cylinder.
Parallel Motion
Cross
Head
IT
Parallel Motion
3
-
Beam
Beam
0
Plan of one of the Engines of the " Red Rover" Steam-packet.
U.F.P.
ML 4 e
Condenser
Hot Water
Cistern
Condent/ser
NI -
Air
-
@
Pump
BV
21
a
a
U.H.F
&
LHF
L.H.F
UHF
U,E, P, upper eduction pipe.
L, E, P, lower eduction pipe.
21
Digitized by Google
242
STEAM-BOAT.
These pipes are employed to pass the steam to the condenser,
at the termination of each stroke.
S,S, slides or valves, by which the steam is admitted alternately
to the top and to the bottom of the cylinder.
M, G, main gudgeons, upon which the beams are placed.
C, H, cross heads, fixed at the top of the piston rod.
S, R, side rods connecting the cross heads with the working
beams.
C, R, connecting rod communicating with the crank.
C, B, air-pump cross-bar, the air-pump is worked by two slide
rods from the beams, and the hot water and bilge pumps are also
worked from the air-pump cross-bar.
E, eccentric.
E, R, eccentric rod.
E, A, eccentric arm.
These constitute the eccentric motion, whereby the slide-valves
or slides are worked.
W, G, S, working gear shaft, which is operated upon by the
eccentric motion.
B, V, upper and lower blow valves.
Upon starting the engines, the steam is admitted into the con-
denser through the upper one; it then passes out through the
lower, blowing out all the air and water, by which a partial va-
cuum is obtained in the condenser.
U, H, F, upper head stock frame.
L, H, F, lower head stock frame.
The engine and paddle-shafts are supported by these frames.
W, waste water stop valve pipe.
P, injection pipe.
In American steam-boats the engines are mostly on the high
pressure principle, and a part of the machinery is placed upon
deck, whereby the whole extent of the hull is left open for ca-
bins, which are, consequently, extremely capacious; their vessels
not being much employed for sea navigation, nor subjected
to winds and waves, as in our country, can be safely built more
Digitized by Google
STEAM-ENGINE.
243
slender and of a more delicate form, which increases their speed
much ; their bows also glide over the water instead of cutting
through it, and they are further assisted by the engines being
made much more powerful than ours; and the length of stroke is
very great, although one engine only is employed, a counterbalance
being generally attached to the paddle-wheels, in some cases, to
enable the engine to get over the centres ; their great length of
stroke, however, allows time for a degree of momentum, which is
mostly found sufficient; the paddle-wheels also assist on account
of their large diameter, acting like fly-wheels : where two engines
are employed their connecting rods are not attached to the same
axle, but each drive a wheel independent of one another.
The deposit occuring in the boilers of steam-boats is much
greater than those of other engines, owing to the salt and other
impurities contained in the water employed; and this incrustation
becomes considerable, if not frequently attended to it sometimes
acquires a thickness of upwards of an inch, and is so hard that it
can with difficulty be removed a considerable portion of the
heat is consequently abstracted by it, and the wear of the metal
increased, besides rendering it more liable to accidents. The
means of preventing incrustation were very inadequate previous
to the introduction of Mr. Samuel Hall's patent condenser, in
which the condensation is effected without the introduction of a
jet of cold water (as in Mr. Watt's engines), but by contact, or
the effect of cold water chambers only; the water employed is also
distilled, and made available over and over again, allowance being
made for leakage, &c. : there are also several other advantages
connected with the invention, as the freedom of the condenser from
the pressure of any air, which renders the vacuum more perfect.
The engines of steam-boats are usually considered to consume
about 8tb. of coal per hour, per horse power.
STEAM-ENGINE, an engine worked by the power obtained from
the expansion and contraction of the steam from boiling water,
which is adopted for the first moving power to the many various
machines employed at the present time, as for the raising of water
2 I 2
Digitized by Google
244
STEAM-ENGINE.
for impelling machinery for mining, manufacturing, and agricul-
tural purposes, also for navigation and for land carriage.
Every modification of the steam-engine derives its power from
either one of the following causes, or from a combination of both,
viz., from the property of water to expand in bulk under the action
of heat, assuming the appearance of vapour; and from the sudden
return of this expanded water or vapour to its original size, upon
the introduction of cold, thus steam is generated upon the water
being heated to the boiling point (212° of Fahrenheit's thermome-
ter) and if it be contained in a close vessel, and subjected to
the action of increased heat, it becomes yet more rarified, exert-
ing an increased pressure on the sides of the vessel, and this
pressure is regulated by the degree of heat applied; it may be
increased until the power of the steam bursts the vessel-a posi-
tive power is thus obtained, which constitutes the first power be-
fore stated. If instead of an inclosed vessel a short tube be
employed for the reception of the steam, having a sliding top
working within it, the power of the steam will force the lid up-
wards, instead of bursting the tube, and upon a quantity of steam
having forced its way upwards, by removing the fire, and applying
cold water upon the outside of the tube, such steam will almost
immediately be condensed or reduced again to water, occupying
only 17 oordth part of its former size, or thereabouts, (as a cubic
foot of steam, when its elasticity is equal to 30 inches of mercury,
only occupies a cubic inch of water when condensed), a void or
space unoccupied either by air, water, or steam, will consequently
be left at the upper part of the tube, and the pressure of the
atmosphere upon the outside of the tube, which is equal to a
force of nearly 15 lbs. to the square inch, will immediately force
down the sliding top to the surface of the water condensed from
the steam : here, then, another direct force is obtained, and which
forms the second description of power before stated; the system of
action just described constituting the principle of the common
atmospheric engine, the condensation being effected within the
cylinder.
Digitized by
Google
STEAM-ENGINE.
245
It is very probable that some of the properties of steam were
known to the ancients, but it was not until about the early part of
the seventeenth century that its power was made available for the
working of machines. A mining engineer, named Savery, appears
to have been the first who constructed and publicly exhibited an
engine, acting by the expansive force and subsequent condensation
of steam, and which he applied to the raising of water in the year
1699; Dr. Papin next introduced the safety-valve to an engine
of his own contrivance in 1707. The steam-engine also received
various modifications and improvements from Mr. Newcomen,
in the year 1707, (whose engines are known by the name of
atmospheric engines); and successively by Messrs. Beighton and
Smeaton, who may be said to have perfected this class of engines.
The accompanying cut represents an atmospheric steam-engine
upon Mr. Newcomen's principle :-
L/C
c
X
D
Cylinder
E
I
H
BY
e
G
Botter
d
Digitized by Google
246
STEAM-ENGINE.
A, the regulator, or regulating valve, whereby the communica-
tion between the cylinder and the boiler is opened and closed
when required.
B, the gauge-cocks for ascertaining the height of the water in
the boiler, which are so arranged that the extremity of the one is
a little below the level of the water, and the other a little above
it, therefore, upon their being turned, one should discharge water,
and the other steam, provided the water is at its proper level.
C, the safety-valve.
D, the piston working in the cylinder, which is open at the top.
E, the injection-pipe for conveying water from the cistern, a,
into the cylinder, to condense the steam.
F, the injection-cock.
G, the pump for supplying the cistern, a, with water from the
well.
H, the eduction-pipe for conveying the condensed steam and
injection water from the cylinder to a cistern placed below it, b,
a valve is placed in its lower end to prevent the water rising up
the pipe.
I, the snifting or blowing-off valve, for passing off any air from
the cylinder; it is used to expel the air from the cylinder at start-
ing, and opens outwards.
K, a pipe used to discharge water on the top of the piston,
whereby the whole is preserved air-tight; it is furnished with a
stop-cock.
L, the beam which turns on an axis fixed in the wall, the piston,
rod, c, being attached at one end, and the pump-rod, d, at the
other; a weight, e, is fixed on the latter rod, for the purpose of aid-
ing the descent of the pump-rod.
It is necessary to state, that the regulating valve, A, and the
injection-cock, F, were not worked by the engine, as the valves
of steam-engines at the present time, but were attended to by the
engine man.
These steam-engines continued in general use until the time of
Mr. Watt (about the year 1770), who effected great improvements
Digitized by Google
STEAM-ENGINE.
247
in them his first engine is known by the name of the single acting
engine, being applied to the same purposes as former engines, viz.,
the drawing up of water from mines, and like purposes; and its
summary action was not unlike them. He inclosed the cylinder
in a case or jacket, and filled the space inclosed between them
also with steam, by which the cylinder was kept constantly at the
same degree of temperature, but his prime improvement was the
introduction of a condenser, which consists of a vessel exhausted
of air and other fluids, and connected with the cylinder by a pipe,
through which the whole of the steam from the cylinder escapes,
being sucked into it, where it is very speedily condensed : the
condenser is placed in a cistern of cold water, which is kept
constantly flowing by a small pump, termed the cold water-pump,
worked by the engine; another pump is also attached, called the
air-pump, which is employed in drawing off the contents of the
condenser at each stroke of the piston. Mr. Watt subsequently
adapted his engine to drive machinery generally, by converting
the reciprocating motion conveyed to the pump-rods into a rota-
tive movement; and, in order to preserve a constant and uniform
power, he employed the elastic force of the steam to impel the
piston up as well as down the cylinder-hence the term double act-
ing engine. He also invented the parallel motion, in place of the
chains usually employed in connection with the beam, by which
the piston was enabled to transmit motion by pushing or thrusting
upwards, as well as by pulling downwards, as heretofore; and the
fly-wheel, to render the motion of the piston regular throughout,
which is effected by the momentum of its weight, carrying the
axle round the dead points, or those parts where the power of the
crank has the least effect the crank having been previously pa-
tented by Mr. Washborough, he constructed another movement,
since known by the name of the sun and planet wheels, but the
former is generally employed at the present time; and he intro-
duced a contrivance, called the governor, to regulate the supply of
steam from the boiler to the cylinder, and insure the uniform
velocity of the piston. He also introduced the improved way of
Digitized by
Google
248
STEAM-ENGINE.
working the piston by the elastic force of the steam, which is said
to have partly arisen from his having found some inconvenience
from the accelerated motion acquired by the piston towards the
end of the stroke, when it occurred to him to cut off the steam
before the piston arrived there, and which he afterwards practised
with great advantage, thus, by cutting it off at +rd; the rest of
the descent was accomplished by the elastic force of the steam
alone, and a proportionate saving consequently accrued. To
these modifications of the steam-engine the term low pressure, or
condensing engines, is now applied.
The accompanying cut represents Mr. Watt's double acting
steam-engine :-
Beam
M
P
R
TV
G
TMH
al
J
Cylinder
HAT
H.W
HAD
Con
FLY
Wheel
The cylinder is enclosed in a jacket, j, and C, P, is the piston.
Digitized by Google
STEAM-ENGINE.
249
P, R, the piston-rod.
S, P, the steam-pipe.
U, V, B, upper valve box.
L, V, B, lower valve-box.
The valves are employed to admit the steam to the cylinder,
and to draw it off at the termination of each stroke, each box being
furnished with a steam-valve and an exhausting valve, and they
are put into proper action by levers, I, l, connected with them by
jointed rods; and the levers are worked by pins placed on the
piston-rod of the air-pump. The valves of steam-engines are ge-
nerally worked at the present time by means of an eccentric
placed on the axle of the fly-wheel.
G, the governor, which is mostly put into motion by a strap or
rope from the main shaft.
Con', the condenser.
I, C, the injection cock.
A, P, the air-pump.
A, P, R, the air-pump rod.
H, W, the hot well.
C, W, C, cold water cistern.
H, W, P, the force-pump by which the water is conveyed from
the hot well to the supply of the boiler.
C, W, P, pump to furnish cold water to the condensing cis-
tern.
C, the crank.
P, M, the parallel motion.
The difference between a high pressure engine and a low pres-
sure lies in the former being worked by the expansive force of
the steam acting upon the piston, despite of the pressure of the
atmosphere at the back of same (about 15tbs. per square inch, as
before stated); it is consequently required to be of very great
pressure, whereas a low pressure is worked by the force of the
steam upon the piston, but a vacuum is formed upon the other
side by means of the condenser, whereby steam of little pressure
2 K
Digitized by Google
250
STEAM-ENGINE.
may be used ; a force of 1 or 2 lbs. beyond that of the atmosphere
is all that is required.
Leupold gave the first plan for a high pressure engine; Mr.
Watt also vaguely proposed one ; but Messrs. Trevithick and Vi-
vian were the first who constructed a high pressure engine, which
they effected in the year 1802, and adopted, amongst other pur-
poses, as a locomotive, for which it suited admirably, enabling
them to dispense with the condenser, and the whole of the ma-
chinery connected therewith.-See Locomotive Engine.
When steam-engines were first introduced, they were used ge-
nerally for many mechanical purposes where horses had been
previously employed, hence the origin of comparing the power of
engines with that of horses. The resistance which an engine is
capable of overcoming is called the power of the engine, and that
which is ascribed to it by its makers, is termed the nominal power,
which of course varies according to the velocity of its action ;
most engines work considerably above their nominal power, as
that is understood to refer to their power with steam of the ordi-
nary pressure only. Mr. Watt's standard was an effective pressure
of steam in the cylinder of 6 lbs. per circular inch for each horse
power of the engine, and a speed of 220 feet per minute. The
total power exerted by the steam in the cylinder is called the gross
power, which includes that employed in overcoming the friction and
resistance of the engine; and the effective power is that portion of the
power absolutely delivered at the crank-shaft, the remaining por-
tion of the gross power being employed in overcoming friction
of the engine; comprising not only that of the piston, pump,
buckets, stuffing-box, and bearing parts of the engine, but the
resistance due to the water lifted by the engine-pumps, which of
course varies according to circumstances. Mr: R. Armstrong
states the amount of this last resistance at 2 lbs. per circular inch
on the area of the piston in the best modern engines, but the ratio
is much less in large engines than in small ones. The term duty
is used in Cornwall to express the load which an engine is capable
of raising a given perpendicular height, by the combustion of a
Digitized by
Google
STEAM-ENGINE.
251
given quantity of fuel, which is partly regulated by the construc-
tion of the furnace, boiler, &c.
It is held by some engineers, that a steam-engine should pos-
sess an area of piston equal to 27 circular inches per horse power,
and that a boiler should have 27 cubic feet for the same, half of
the latter being reserved for steam, and the other occupied by
water. It was shown by Mr. Watt, that the evaporation of a cubic
foot of water was the proper measure of 1-horse power, the boiler
is therefore, cæteris paribus, the real depository of its power; the
best length for a cylinder, is twice its diameter, some make it 21 :
in marine engines it is much less, or about the same as its diame-
ter: whatever be the form of the cylinders of two engines of equal
power, the quantity of steam passed through them per minute is
precisely the same, unless the pressure of the steam differs in
each, when that possessing steam of the highest pressure will
have the smallest cylinder. The greater the diameter of the pis-
ton, compared to its length of stroke, the less will be the velocity
of its action. The area of steam-ports allowed by Mr. Watt for
stationary engines was equal to 25ᵗʰ part of the area of the
cylinders, which admits sufficient steam to move the piston at
a rate of 220 feet per minute, which he states as the best velocity
for it; the diameter of the steam-pipe is usually about ¹ᵗʰ that
of the cylinder; some allow it 1 square inch of section per horse
power.
Mr. Tredgold gives the following rule for finding the effective
power of a steam-engine :-
Multiply the square of the cylinder's diameter in inches by the
mean effective pressure on the piston in lbs. per square inch, and
by the velocity of the piston in feet (which is obtained by multi-
plying double the length of stroke by the number of strokes per
minute), point off three figures, and divide the product by 42,
and the quotient will express the number of horses' power; thus,
suppose the diameter of the cylinder to be 36 inches, length of
stroke 4 feet, and number per minute 24, and the mean effective
pressure on the piston 4 lbs. per square inch, then—
2 K 2
Digitized by Google
252
STEAM-ENGINE.
No. of strokes per minute 24
Diameter 36 inches
Length of stroke
8
36
Velocity of piston
192
216
108
1,296
Mean pressure
4 tb.
5,184
Velocity of piston
192
10368
46656
5184
42 ) 995328 ( 23.7 horses' power.
84
155
126
293
294
Number of horses' power 23.7.
In reference to the mean effective pressure on the piston, it may
be stated, that not one-half the water evaporated from the boiler
is absolutely expended in working the piston, the remaining por-
tion being lost in passing from the boiler to the cylinders, in
working the air-pump, and by friction, also on account of
leakage, and various other contingencies. Mr. Tredgold calcu-
lated 1000 632 of the power of an engine to be thus lost-now
supposing the force of the steam in the boiler be equal to 35
inches of mercury, or 5 inches above the pressure of the atmo-
sphere, and the temperature of the uncondensed steam 120°, and
its force 3.7 inches, then (35 x 632) 35 - 3.7 = 18.42 or 9.05 per
square inch for the mean effective pressure on the piston.
In the case of high pressure engines, the whole pressure of the
atmosphere must of course be deducted from the force exerted by
the steam in the boiler, in order to ascertain the real effect of the
engine, and if the engine works expansively, allowance must also
be made for it.-See Air-Pump, Fly-Wheel, Governor, Parallel
Motion, Piston, Steam, Safety-Valve, &c.
Digitized by
Google
STEAM-GAUGE-STONE.
253
STEAM-GAUGE, a contrivance connected with the boilers of
steam-engines, and employed to indicate the pressure of the
steam, thereby forming a guide, whereby the fire is regulated.
The steam-gauge usually consists of an inverted syphon, or bent
tube, formed of wrought-iron, and secured at one end of the
boiler, and a sufficient quantity of mercury is placed in it to
counteract the pressure of the steam, the other end being open to
the atmosphere; the level of the mercury, therefore, varies with
the pressure of the steam, the amount of which is communicated
to an index on the outside; it may also be said to constitute an
extra safety-valve, for if any thing should prevent the ordinary
safety-valve from acting, the whole of the mercury must be driven
out of the tube.-See Boiler.
STEAM-PIPE, the pipe communicating with the upper part of
the boiler, through which the steam passes in its passage to the
cylinders.-See Steam-Engine.
STEAM-WHEEL.-See Rotary Engine.
STEAM-WHISTLE, a device attached to locomotives, for giving
warning to the passengers and others when the engine is starting.
It consists of a pipe situated at the top of the boiler, with a cock
to same, within reach of the engine man who is thus enabled to
turn the steam on or off at pleasure. When turned on, it issues
through the pipe into a hollow cup, passing through four holes in
a plate placed at the bottom of it ; the steam then escapes at the
top, round the thin edge of the cup, striking the same with consi-
derable force, which produces a loud shrill whistle, and can be
heard at a distance of many miles.
STEPS, or BEARINGS, those parts which receive the lower gud-
geons of upright shafts.
STONE, or Rock, an aggregation of several hard mineral sub-
stances, insoluble in water.
Notwithstanding the general diversity of nature, the same rocks
are common to all quarters of the globe; the crust or covering of
the earth being composed of a number of layers, termed strata,
of very different appearance compared with each other, yet com-
Digitized by
Google
254
STONE.
posed of comparatively few primary elements, but they are so
concreted or mixed together, and are in such a number of propor-
tions, as to produce considerable variety ; and most of the rocks
lying in beds contain foreign matter, as shells, fragments of other
rocks, and of animals, fishes, trees, and plants.
Stones are named either according to their chemical constitu-
ents, physical properties, or from their external appearance, or
the names of the places from whence quarried. Stone for engi-
neering purposes should possess strength, or the power of resist-
ance, in every direction ; also hardness, or the power of attrition,
which enables it to resist blows; and durability, that it shall not be
affected by any natural agents, as the atmosphere, water, heat, and
frost. Stone is classified generally under three heads, although
the component parts of some stone partakes of each class, viz.,
1st, the silicious, which is least liable to decay, comprising granite,
sandstone, &c. ; 2ndly, the argillaceous, which comprehends basalt,
and nearly all the slate-stones; stone of this class, though exces-
sively hard when laying in their beds, are not suitable for building
purposes, as upon their being quarried and removed, they are
soon affected by the atmosphere and 3rdly, the calcareous, which
is a very plentiful and valuable class, comprising all limestones,
from marble downwards; it is the principal ingredient in all ce-
ments; and the most celebrated statues of antiquity being formed
of calcareous stones, bear proof of its great hardness and dura-
bility.
The under beds of stone, in most quarries, are harder and
thicker than the upper ones, it therefore frequently happens that
the best stones are neglected, or very rarely worked, on account
of the expense of blasting and removing those beds covering
them, particularly where time and first cost are regarded; and it
is generally considered that stone employed in the vicinity of its
native quarry withstands the effects of the atmosphere better than
when used further off-say a distance of 40 or 50 miles, or up-
wards.-See Bath-stone, Portland-stone, Lime-stone, Sand-stone,
Granite, Natural or Quarry-beds, and Quarry.
Digitized by
Google
STONE BLOCKS-STRING.COURSE.
255
STONE BLOCKS, on railways.-See Blocks (Stone).
STOP-PLANKS, a certain description of dam employed on
canals.
It is necessary to provide weirs on the line of a canal, at certain
distances from each other, except in cases where the space between
the locks is very short, to prevent the loss of water that might
arise from an accident, and for other purposes.
This is usually done by contracting the water-way at such
points, and carrying up wing-walls from below the bottom of the
canal, and vertical grooves are made in the face of the masonry
upon each side, corresponding with each other, for the insertion
of the hatches, or stop-planks, as they are called. Provision is made
for stop-planks in most hydraulic works-for instance, grooves are
made at each end of a lock, on the outside of the chamber, in
order that the water may be kept out during any repairs.
STRAP, a sort of bandage or fastening for securing the junction
of two or more pieces of timber, consisting of a piece of wrought-
iron, of a flat cross section, and extending over each piece of
timber, according to circumstances, being bolted or keyed to
them. The annexed cut represents a strap for tying three pieces
of timber together, as in bridge-building; the ends of the straps
are taken through a bottom plate, and made tight by
means of nuts on the other side.
The straps employed in securing the bottom of
king or queen-posts to tie beams, are termed stirrups,
and are passed round the under part of the tie-beam,
taken up on each side, and fastened to the posts by
gibbs and keys.
STRETCHING-COURSE (in masonry and brickwork), a course
consisting of all stretchers, or stones, bricks, or the like, laid
lengthways in the longitudinal direction of the wall-See Bond
and Heading Course.
STRING-COURSE, a term applied generally to a course of ma-
sonry or brickwork, projecting in a slight degree before the face
of the wall.
Digitized by
Google
256
SURVEYING.
STUFFING-BOX, or GLAND, a piece secured
to the end of a cylinder, pipe, or other ves-
WHEN
sel, through which a rod passes ; a little hemp
being pressed tightly against it, by which it
is kept air or steam-tight. A in the cut is
the piston-rod, and B the stuffing-box.
SURVEY, a measured plan and description of any line or area
of country.
SURVEYING, the operation of making a survey, which is either
performed by Gunter's chain, both angles and distances being taken
with it, or the angles are taken by angular instruments, and the
distances by a chain; the distances are also sometimes calculated,
when the survey is said to be performed trigonometrically.
In chain surveying, the surveyor is confined to one figure, viz.,
a triangle, which should always be as near an equilateral triangle
as possible; for when the angle at the top is either very obtuse or
very acute, the most trifling error in the admeasurement of either
of the sides will alter its figure, and consequently its area.
In order to explain generally the principles of surveying, sup-
pose the plan of a piece of land is required, such as represented
in the cut :-First erect a conspicuous 3
2
mark at one corner of it, say at 1, then
look to the opposite corner, and com-
mence chaining in that direction, keep-
ing the line straight by the eye, which
may be effected by looking towards
some natural object upon it; if you
cannot find any, set up one at the fur-
ther end, and leave some marks near
the middle of your line, measuring
their situations ; these are for the pur-
4
pose of running out lines or checks, and are termedfalse stations;
upon reaching the extremity, commence running a line along one
side of it, and take offsets to the boundary (see Offsets) : upon
arriving at the end, put up a mark, and commence another side-
Digitized by
Google
SURVEYING.
257
line, taking offsets as before, which will bring you to the starting
point, then measure a tie-line from the angle formed by the junc-
tion of the side-lines to one of the false stations left in the diago-
nal commencing the survey, which completes this side; the same
system must then be pursued with the other, and in fact with the
whole survey, of which this may be supposed to form a part; this
plan of working is termed surveying by diagonals. The plan may
also be taken by means of chain angles only; and it is much prac-
tised, although not so secure from error
thus, (see side Cut): mark off any conve-
nient length on each of the side lines, as
1, 2, or 3 chains, commencing from each
station, and, by measuring the distance be-
tween them or the tie, the angle will then
be obtained. It is not absolutely necessary
to take more than one or two in a field,
but if others are taken they would form
checks to the work.
Chain angles and offsets may also be taken on the out-
side of the side lines instead of
the inside, if more convenient;
thus :-
The angles may likewise be
taken with a theodolite or a sex-
tant, instead of measuring them,
if such instruments are at hand.
A road may be surveyed, suffici-
ently accurate for some purposes,
by means of chain angles; the
width of it, also the buildings, &c., upon each side being taken
by offsets; and the commencement of any fences may be sketched
or taken by chain angles.-(See Cut on next page).
A surveyor commences chaining by first noting his first station,
he then sends his chainsman forward, who takes the further end
of the chain in one hand, and the arrows (10 in number) in the
2 L
Digitized by
Google
258
SURVEYING.
other, and when he arrives at the end
of the chain he turns round and looks
to the surveyor for instructions, who
directs him to the right or the left, as
may be required, by waving his hand ;
when the chainsman is got into the
right position, he sticks one of the
arrows in the ground at the end of the
chain, where he leaves it, and again
walks forward with the chain. The
surveyor, on arriving at the spot where
the arrow is fixed, places his end of the
chain upon it, and directs the chains-
man as before : he also takes up the
arrow, and proceeds forward until in
like manner he obtains all the arrows,
when he returns them to the chainsman,
making a note of it in his Field-book;
he of course leaves such false stations
in the line as he considers necessary ;
for instance, upon arriving at a fence,
either upon one side or upon the other,
which he also notes in his Field-book.
In hilly country the chain ought not
to be laid upon the surface of the
ground, (as represented by Fig. 2, in
Fig. 1.
Fig. 2.
the diagram), but it should be laid
horizontally, in short lengths, (as Fig.
1), a plumb-line being suspended from
it. If the hill is very steep, it may be
Digitized by Google
SURVEYING.
259
chained straight, and the vertical angles taken with an instrument,
and the requisite deductions afterwards made.
The following Table shows the quantity to be subtracted from
each chain's length for various angles of inclination of the ground :-
Reduction in Links and Decimals upon each Chain's Length, for the follow-
ing Angles of Elevation and Depression.
Angle.
Reduction.
Angle.
Reduction.
Angle.
Reduction.
o ,
o ,
o ,
o ,
o ,
o ,
3. 0
0.14
9. 0
1.24
15. 0
3.40
30
1.38
30
3.64
4. 0
0.25
10. 0
1.52
16. 0
3.88
30
1.68
30
4.12
5.0
0.38
11.30
1.84
17. 0
4.37
30
2.01
30
4.63
6. 0
0.55
12. 0
2.19
18. 0
4.90
30
0.65
30
2.37
30
5.17
7.0
0.75
13. 0
2.56
19. 0
5.44
30
0.86
30
2.77
30
5.74
8. 0
0.98
14. 0
2.97
20. 0
6.03
30
1.10
30
3.18
30
6.33
The reduction for one chain multiplied by the number of chains will give the
quantity to be subtracted from the measured length of an inclination to
reduce it to horizontal measure.
Extensive surveys are usually performed by extending a series
of triangles over the country to be delineated, and it is always
best to refer to some former plan previous to commencing opera-
tions, if it can be procured; by which the surveyor will be enabled
to see the best situation for his main lines, in reference to their
junction and freedom from obstructions :-
The first, or base-line, should pass through the centre of the
survey, and intersect the most intricate portions; upon determin-
ing which, set up a theodolite at its commencement, (which should
be on some conspicuous land-mark, as a church, house, windmill,
&c., and, if possible, within the extent of the survey); next ascer-
Digitized by Google
260
SURVEYING.
tain very correctly the angle formed by this line, with the magne-
tic meridian, then take angles to some conspicuous objects near
it, in order to fix the exact spot for the purpose of future refer-
ence; next erect a high pole upon it, and commence measuring
the line, driving stakes along it at distances of about 5 or 10
chains, and numbering them (the chain should be previously
measured, in order to start with a correct standard); the roads,
rivers, fences, &c., must also be noted, as they are crossed, and
offsets taken to all conspicuous objects within distance and pro-
minent points; poles must also be set up along it, occasionally,
to keep it direct in the event of meeting a house or pleasure-
ground, through which circumstances prevent a line being run,
measure an angle, of exactly 60° on either side, with the theodo-
lite, and set out a sufficient length upon
it to clear the obstruction, then take
another angle of 60° from it, and measure
the distance equal to the last, which
brings you on the other side of the ob-
struction, and in the direction of the
main line. If the poles set up are be-
yond the limits of vision, measure the
supplementary angle of 120° from the
last-measured side of the equilateral
triangle, which gives the direction of
the base, and check it by taking the
bearing, which, of course, will be the same as at starting, if all is
correct. Upon reaching the end of the base, set up the theodolite,
and take the angle of one of the side-lines, which should not
be very oblique, but as near 45° as convenient, it should also
have some natural mark upon it, similar to the base-line;-the mea-
surement of this angle being very important it should be repeated
several times, and the mean of them taken; then set up a pole at
this station, and measure the new line in a similar manner to the
base, driving stakes at regular intervals, and upon arriving at the
boundary of the survey, or as far as requisite, set up the theodo-
lite, and take an angle to the opposite side of the survey, crossing
Digitized by
Google
SURVEYING.
261
the main line and another angle to the starting point, or first sta-
tion, then set up a pole on this station, and measure the transverse
line as before, and upon the exact spot of crossing take the dis-
tance from the nearest stake previously left upon it, and terminate
the line at the extremity of the survey, or as far beyond it as may
be necessary, so that the tie-lines taken from it to the extremities of
the base shall comprise the entire survey, excepting any small
portions, which may be determined by small triangles from the
principal ones, thus-the four principal lines may be said to be
fixed, the internal lines may now be commenced, and run accord-
ing to circumstances.
It may be stated generally, that it is best to finish one part of a
survey before proceeding with another, as it prevents confusion ;
the boundaries should also be taken, and those parts without the
tie-lines, previous to filling in any part of the plan, but if consi-
dered inconvenient, such parts only should be circumscribed where
operations are about to be commenced.
It is advisable to take the angles of all lines, except those which
are well tied; those determined by their extremities only should
always be taken, for which the sextant may be used, and it is best
for a surveyor to lay down or plot his work every day, as he pro-
ceeds with his survey.
The grand desideratum in all systems of surveying consists in
obtaining a correct plan, with no more lines than are absolutely
necessary, and the avoidance of passing backwards and forwards
over the same ground, together with a clear method of keeping
the Field-book, which should be as simple as possible the system
generally adopted is, to number all the lines of a survey, and
measure the length of each, taking the bearings and offsets from
them, as may be necessary; the Field-book being ruled with three
columns, the distance and bearings are entered in the centre co-
lumn, and the side columns are employed for noting down the
offsets and breaks on each side, also for observations, sketches,
&c. It is the custom to begin at the end of the book, and
work up the leaf instead of down it, (as in levelling and ordinary
observations), commencing at A, in the following diagram:-
Digitized by
Google
262
SURVEYING.
68
12.00
50
70
10.20
55
81
9.00
48
72
8.00
42
21
7.20
40
30
5.00
42
50
4.00
40
55
3.20
35
30
1.00
38
A
The mark O means station, which are numbered as the survey
proceeds; the figures in the centre column refer to the distance
from the station at which the offsets have been taken, and they
represent links, being the most convenient for plotting; the
figures in the side columns show the length of the several offsets
on each side, thus ; it is 38 links at a distance of 100 links
from the station to the fence on the right hand of the station, 35
at 320 links, and so on. False stations for subsequent operations
are marked F. S., thus :-
280
200
F.S.
110
70
30
The F.S. occurs at a distance of 200 links from the station, and
the figures 220 indicate that it is 220 links from the station or
starting point to the fence.
The commencement of a line is headed thus :-from O 2 (sta-
tion 2) to right or left of base; or F. S. 200 (false station at 200
links) on last line ; or from F.S. 15.20 to F.S. 23.15 : if the line
runs into another, and finishes in same, it is called a close, and
marked accordingly at the end, as, close at O 6, or close at
F.S. 700. The length from one station to another is called the
Digitized by
Google
SURVEYING.
263
length of the line, which is designated according to the starting
point, as the length of the first, second, or third station line.
When the bearing is taken, as in the case of running a base, it is
entered at the commencement of the line, as follows :-
o
,
69 0
N.E.
6
The following methods are also adopted for taking roads and
angles:-
250
30 x 40
30
>
300
20
40
Some surveyors also sketch their plans in the Field-book, i. e.,
they enter the several lines as they are measured, and the offsets
in the order that they are taken, the system of commencing at the
bottom, and writing upwards, being pursued the same as usual.
Digitized by Google
Digitized by Google
12 26 12/25 Close at A.
N
36
20
20
80
32
ST
SURVEYING.
11 70 11/70 35
11 65 1165
11 50
20 15
8 90
7 35
: -
6 30 65
F.S. 5 05
492
10 4 0 400
D GO
5 00 15
2 00 40
5 75 35
35
to A
10 .
00 40
30 35
15 475
+
8 00 10
a
: 0 -
: €
D 04 9
00
From 8:10
14 6 50
10 A 60
010
F S 35
2 66
2 200
1
0 4.5
16
to
5
1
17 00
10 1 00
HIS
30
27
12
F.S
From 17 15 to left
17 40
17 18
01/11 01 II
11 2 0 20 F. S. F.S.
9 30 F. S. F.S.
Commence Survey st.A. atA.
264
SURVEYING.
265
The following engravings represent two different forms of keep-
ing a Field-book (page 264 and 265 constituting one, and page
266 the other), by Mr. Peter Bruff, each referring to the same
plan, which is plotted at page 267, and either will be found very
simple and efficient :-
5
38
Close at 5.05
5 40 22
4
80
18
4 20 20
S 00 20
1
45
Cut
E.S .enBase
1 00 10
From F. S.2 90 on last Line to RS.5.05
8
25 Close at 4.35
7
80
8
6
50
10
5
11
4
35
Cut
F.S on Base
5
45 25
F.S 2
90
1
80
6
100 13
1
From F. S 8-5 to F.S.4.33
6
60
22
Close at 17.18
6
00 20
5 00 20
4
00 18
2 00 10
43 20
From 13.75
to left
is
75
c
40 13
0
16 12
2
17 12
0
12
11
15
97 10
70
990
9507
9
00
F.S
8
85
15
800
40
7
00
45
6
00
50
B
00
40
450
30
4 00 15
3
0010
210
25 1/00
From to right of Base
2 M
Digitized by Google
266
SURVEYING.
17/40
9
17/15
660
B
1100
sool
&
500
18
BES
$00/
100s
/
10
or
2001
650
or
560
1870
"
11/40
600/
OR
THE
120
D
C
510
1300
to
1220
6
&
?
to
120a
290
we
of
f
0
1003
9
15
/1070
900
180
9
30
9/30
a
200
0
000
=
a
&
85
is
a
9LT
800
70
d
200
566
505
4
00
$30
:
000
to
150/
80
sool
:
to
foop
PIOT
20
2/20
OSTE
95
25/10
58
SEXT
Digitized by Google
SURVEYING.
267
B
C
C
D
Hig
3d
Links 100
5"
0
1
2
3
4
4
Chains
IIII
Digitized by Google
268
SURVEYING.
In plotting the work, the whole of the lines of the survey should
be plotted before any of the fences are commenced, the several
angles taken by instruments being laid down by a circular or
semicircular protractor.-See Plotting.
In making subterranean surveys, as plans of coal-pits, mines,
&c., a circumferenter is generally employed, the method of pro-
ceeding being to plant the instrument at the point of commence-
ment, when the assistant walks forward in the proper direction,
with a lighted candle in his hand, and takes his station, the bear-
ing and distance of it are then noted ; the instrument is next fixed
on the spot where the candle was situated, and a second observa-
tion taken in a similar manner to the first, which system is pur-
sued until the whole survey is completed.
The area of the land is calculated from the finished plot of the
survey ; and the lengths being taken in links, it is readily ascertained
by multiplying them together, and pointing off five figures on the
right hand, when those on the left (if any) will be acres ; those
struck off are then multiplied by 4, and five more struck off, the
figures on the left will then be roods. The same principle may
be pursued for the perches ; thus, suppose the area of a piece of
ground, 400 links long, and 260 wide, is required, then
260
400
1|04000
4
|16000
40
6/40000
Area 1 acre, 0 roods, 6 perches.
If the ground is in the shape of a triangle, multiply the height
by the base, and take off one-half the product for the area.
Large surveys are generally computed by dividing the whole
into columns of equal width, say 1 or 2 chains wide, and every
5 or 10 columns may be also calculated together as a check, and a
summary of each drawn out, when any errors will be detected.
Digitized by
Google
SUSPENSION BRIDGE.
269
The system of calculating the area of the columns is as follows:-
Suppose the number of square chains in a column to amount to
108 (either a column 1 chain widę; with a length of 108 chains,
or a column 2 chains wide, with a length of 54 chains), then bring
it into acres, by dividing it by 10, the number of square chains in
an acre; or otherwise cut off one figure on the right, it may then
be multiplied for roods and perches, thus :-
Number of squares in column 10|8
4
3|2
40
810
Contents of column, 10 acres, 3 roods, 8 perches.
The content of the whole may also be computed by the mea-
sured lines, the computer equalizing and arranging such parts
which may be on the outside into triangles and other regular
figures. The inequalities of the boundaries may be equalized by
the eye with sufficient accuracy, i. e., an extra portion may be
taken into the calculation in some parts, and a less area in others,
corresponding to that allowed, by which the true area may be
found ; this may be effected by equalizing the boundary by a
pencil, or by laying a thin piece of transparent bone, or a piece of
glass upon it, remedying the irregularities by the eye.
Tables of the contents of various bodies are also very exten-
sively employed at the present time.-See Arrow, Chain, Theodo-
lite, &c.
SUSPENSION BRIDGE, a bridge suspended from inverted bows,
by means of rods, being usually formed of iron, at the present
time; the bows are supported by stone piers erected at each end,
and from thence carried down and secured in the ground.
Suspension bridges are generally adopted where the span is
very great : the first notice of them appears to have occurred
towards the end of the sixteenth century ; the which were com-
posed of cordage. The most celebrated suspension bridges in
this kingdom are those erected by Mr. Telford, of which the Menai
Digitized by
Google
270.
SUSPENSION BRIDGE.
Bridge is the most extensive, being 560 feet between the points of
suspension, and 100 feet in the clear above high water-mark : four
arches are built on one side of it, and three on the other, each
of 50 feet span.
The bridge consists of four suspended cables of malleable iron,
the versed sine of their curve being about 57 feet, or 1ᵇᵗʰ of the
span, and two carriage-ways pass over it, each 12 feet wide, with
a footpath between them, 4 feet wide. The weight of the bridge
between the points of suspension, including the cables, is said to
be 489 tons ; and, as the suspending power is calculated at 2,016
tons, a disposable force of 1.674 is provided to meet any stress
the bridge may encounter. This bridge has, however, recently
sustained considerable damage, principally from the effects of high
winds. There are likewise several other suspension bridges of
great span erected ; as that over the Thames, at Hammersmith,
which is of 400 feet.
It is imagined by some, that chains introduced under the plat-
form, in an inverted position to the principal suspension chains,
would give greater strength to these bridges, and render them
proof against the action of strong winds from beneath, and by
Elevation of the Bridge in the Island of Bourbon.
Plan of Ditto.
Victoria Bridge, Bath.
Digitized by
Google
SUSPENSION BRIDGE.
271
arching them on the plan, or fixing the
chains a greater width apart at the piers,
they would also be proof against side-
winds, and thereby correct any rocking
motion. The bridges erected for the Island
of Bourbon, by Mr. M. I. Brunel, C.E.,
are constructed on this principle.
Colonel Pasley, R.E., attributes the
injuries frequently sustained by suspension
bridges during heavy gales, to their being
generally constructed without any longi-
tudinal trussing upon the platform, as he
considers that the wind acts from beneath
the rise and fall of the Menai Bridge,
which is not furnished with any, is stated
to be above 3 feet in ordinary gales; but
the Hammersmith bridge, having four ties
of longitudinal trussing along it, is not
so affected. .This framing also serves as a
Bow Chains of the Victoria Bridge.
Bow Chains of the Menai Bridge.
means of enclosure to the footways.
The latest improvements in suspension
bridges are comprised in Mr. Dredge's
"patent;" and the Victoria Bridge, erected
by him, at Bath, is upon this principle.
The construction of the bow chains will
be readily understood by the following
diagram, which exhibits the form of a
portion of the bow chains of the Menai
Bridge, and those of the Victoria :-
The bow chains of the Victoria Bridge
are tapered gradually to the centre of the
bridge, and are thereby rendered much
stronger at the points of suspension; but
those of the Menai are formed of similar
size throughout the centre portion, there-
Digitized by Google
272
SWIVEL BRIDGE-SWITCH.
fore, being overcharged, the superfluous weight assists the wind,
and occasions the rocking motion before noticed; and those por-
tions of the chain next the piers are deficient in strength to exactly
the amount of the excess of the centre portion. - The suspending
rods are also fixed in an oblique direction instead of vertical, as
in ordinary suspension bridges.-See Bridge.
SWIVEL, or SWING BRIDGE, a moveable bridge much employed
in docks, in order to admit of the passage of shipping, consisting
of two parts, or platforms, their point of meeting being midway
between the abutments; each portion turning upon a centre pivot,
and supported upon rollers, on the same principle as a railway
turn-table : the over-hanging portion is balanced and kept in the
proper position by a counterbalancing weight, fixed within the
framing at the other end.
The iron Swing Bridge, over the entrance-lock, at the West
India Docks, by Mr. Ralph Walker, C.E., was among the first.
instances of this description of bridge. Timber turn-bridges are
sometimes erected on canals; but iron is the best material for
them, on account of its freedom from warping.
Swing Bridge, London Docks.
Side Elevation.
Transverse Section.
SWITCH, (railway), that portion of moveable rails forming the
junction of a siding with the main line, which are usually shifted
by means of an eccentric movement,
enclosed in a box. It has been the
general custom to form them of the fol-
lowing form, on colliery railways :-a,
being the switch rail, which is move-
able, and b, the check rail, which is im-
moveable; and this plan of formation
is distinguished by the name of the
The Switch Rail.
switch rail. The switches employed on
Digitized by
Google
SWITCH.
273
the London and Birmingham, and some other railways, have both
IT)
ILTI
c
LA
The Check Rail.
rails formed moveable ; and they
are connected together by two
iron bars; and this system is
known by the name of the check
rail. Double switches are also
now becoming used for the out-
side rail, which is in all cases
the guiding rail ; and the inner
rail continues through entire, according to Mr. Curtis' improved
plan, thus;-
Curtis' Sliding Switch.
The inner pointed switch shuts against a solid, which renders
the whole much more secure than in the common switch rail, and
there is a counterbalancing weight connected with the lever handle,
by which the rails are kept right for the direct line, which is an
important advantage : moveable rails of this description are
termed sliding switches.
2 N
Digitized by Google
274
SYPHON-TENDER.
SYPHON, an instrument frequently employed in hydraulics,
consisting of a bent iron tube.
The property of the syphon is, that when filled with water, and
placed with the bend uppermost, each leg being situated in a se-
parate basin of water, it will allow the water to pass through in
one direction, but not in the other, viz., from the upper to the
lower basin, as upon the air being exhausted from the lower, by
any water situated at the level of the shorter one, it will move up
and pass out at the longer opening.
TALLUS WALL, a wall battering on the face.-See Retaining
Wall.
TEAMING, the operation of leading the earth or excavation from
a cutting to the embankment.
The distance from whence the soil is dug, to the spot whence it
is teamed, (commonly called the head of the embankment) is deno-
minated the lead, or haul; and continually increases in length as
the work proceeds.
TELEGRAPH, a machine for facilitating the communication
between distant places, and supposed to be of great antiquity ;
although not perfected until modern times. A galvanic telegraph
is laid down upon a portion of the line of the Great Western Rail-
way, which is said to answer very well.
TEMPLATE, a sort of mould employed in cutting and setting
masonry and brickwork. Templates consist of a thin piece of
iron, cut to the exact cross section of the moulding or other fea-
ture to be worked.
TEMPLET, a short piece of timber sometimes placed on a wall,
to receive the ends of a girder; they are more especially used in
brick walls, as a large stone is found sufficiently efficacious in
stone walling.
TENDER, a waggon built expressly for the purpose of accompa-
nying a locomotive engine, for the conveyance of the fuel and
water, the fuel being situated at the bottom of it, and the tank
containing the water at the upper part.
The communication with the locomotive is effected by two
Digitized by
Google
TENON-TIDE.
275
copper pipes fixed beneath the tank, one upon each side, and
connected with elastic hose to the suction-pipes of the feed-
pumps, which are worked by the engine. And some tenders
have a steam-pipe laid on to them from the engine, to warm the
water.
The supply of fuel and water carried by a tender depends upon
the weight of the load, and upon the resistance offered by the
road, and the rate and amount of the clivities upon it. Some
carry sufficient to last from 30 to 40 miles, or about 700 gallons
of water, and 8 cwt. of coke; but tenders are generally refilled at
18 or 20 mile lengths, and they mostly weigh about 31 tons when
empty, and 7 tons when loaded full ; they are also usually placed
upon four wheels, but when of very great weight they are fre-
quently supported on six.-See Locomotive Engine, &c.
TENON.-See Mortice.
TENSION BRIDGE.-See Bow-string Bridge.
TERMINAL PLANE, the plane at each end of a line of railway.
Terminal planes should always be upon a descent from the depôt
or station, for the purpose of starting the departure train, and
checking the velocity of the arrival train.
TERMINUS, the extreme point at either end of a railway.
THEODOLITE, an instrument used in surveying, for measuring
both horizontal and vertical angles.
The theodolite is mostly employed in determining particular
stations, and in running base-lines, being the most perfect of all
angular instruments.
THROTTLE-VALVE, (in steam-engines) a contrivance to regu-
late the supply of steam to the cylinder, and which is brought into
operation by the action of the governor in fixed engines, but in
locomotives it is worked by the engine-man, by means of a lever-
handle.
THOROUGH.-See Perbend.
TIDE, the rise and fall of the level of the water in rivers and
seas, which occurs twice in rather more than 24 hours, and is
attributed mainly to the influence of the moon. The height of the
2 N 2
Digitized by Google
276
TIDE-TIMBER.
tide on any particular day also depends upon the age of the moon;
the highest tides being about the time of new and full moons, and
the lowest when the moon is in her quarters.
The action of the sun also produces tides, but its effects are
less on account of its distance from the earth being much greater
than the moon. When the sun and moon are either together, or
directly opposite to each other, viz., at new and full moon, the
greatest influence of each occurs at the same hour, the height of
the tide is thereby rendered greater than usual, and is termed a
spring-tide; when, on the contrary, the moon is halfway between
these two positions, or at the quarters, then at any place where it
would be high water by the action of the moon, it would be low
water by the action of the sun, the tide consequently does not
rise so high as usual, when it is called a neap-tide.
TIDE, or GUARD-LOCK, a lock situated between an entrance
basin and a canal, harbour, or river, and forming a communication
between them. It is furnished with double gates, whereby craft
can pass them either way, at all times of the tide.
TIDE-MILL, a mill connected with other machinery, and con-
sisting of a water-wheel, which is put into motion by the ebbing
and flowing of the tide. The wheel is sometimes made to rise
and fall with the tide.-See Water-wheel.'
TIMBER, a term applied to trees after they are felled. The
trunk of a full-grown tree presents three distinct parts, viz., the
bark, or exterior; next to which is the sap; and the centre of the
tree, which is called the heart, and forms the most essential portion.
A period of full 3 years should elapse after the felling of a tree,
before making use of it for building purposes, during which period
it should undergo the process of drying, by being sawed into vari-
ous thicknesses, as may be required, and properly piled.
Oak is a most durable and tough wood, and much used for all
ground purposes, as sleepers, planking, &c.; it is exceeded by
none for strength and durability, and is particularly well adapted
to bear and suspend weights.
Elm is a wood often adopted for piles and the like, being
Digitized by
Google
TRACTION-TRAM.
277
excellent when used under water, but it will not stand alternate
dryness and moisture like oak. Beech is also used for piling.
Foreign fir is much employed in this country, Memel, Riga, and
Dantzic being considered the best. American pine is likewise
imported; the red pine being a favourite timber for piling.-See
Kyanize.
TRACTION, the amount of tractive power necessary to overcome
the resistance upon a road, railroad, or canal.
TRACTIVE POWER, the power of draught required to overcome
the friction or resistance of a road, canal, or railway, the amount
of which, is regulated by the state of perfection of each respec-
tively, and upon the construction of the vehicles to be propelled
along them.-See Road, Paved-way, Tramroad, Railroad, and Canal.
TRAM, a local name given to coal-waggons, in the neighbour-
hood of Newcastle-upon-Tyne; hence the word tramway was
given to the road prepared to receive them.
TRAM, or PLATE-RAILROAD, TRAMWAY, or TRACKWAY, a
description of roadway consisting of narrow tracks, plates, or
rails of wood or iron, the same being prepared to receive the
wheels of carriages or trams, as waggons were formerly called,
whereby the transit of the latter is much facilitated.
Details of a Single Way. Longitudinal Section.
a
b
b
f
b
O
a
o
b
b
b
b
Plan.
a, a, the longitudinal beams or rails.
b, b, b, the cross sleepers.
Digitized by Google
278
TRAM.
a
l
b
7
Details of a Double Way. Longitudinal Section.
Trackways were employed in this country as early as the year
1600, and were originally constructed of timber, the transverse
sleepers being of oak or fir, from 4 to 6 inches square, 5 or 6 feet
long, and laid about 2 feet apart. The longitudinal beams or rails
laid across the former were generally of sycamore or larch, being
secured thereto by pins or pegs of wood, and were from 4 to 6
inches square, and laid in about 5 or 6 feet lengths, and this de-
scription of line formed what was called a single way. (See Cut on
last page.) When two longitudinal beams were laid one upon the
other, it was called a double way ; the which constituted a great
improvement upon the former, the transverse beams were thus
protected from the feet of the horses, as a space was obtained for
ballasting, which was laid up to the bed of the upper rails, and
the under rail was also protected by it; the upper one could con-
sequently be replaced when worn, without disturbing the lower ;
the surface of some of these rails was square throughout their
width, in others a small ledge was placed at the side, to keep the
wheels in their places, similar to iron-plate rails, while some had
all the edges rounded off like edge-rails, in which case flanges
were placed upon the wheels of the waggons.
At the period of coal fuel becoming used in the metropolis
generally, instead of wood, which occurred in about the year 1760,
the demand for it caused a proportionate increase in the expense
of conveyance, which led to the use of iron rails, as a means
of reducing it, and wrought-iron plates, 2 inches by 1 an inch,
having been occasionally laid upon the surface of the beams, and
secured by counter-sunk bolts, at sharp curves or steep planes, to
receive the wheels of the waggons, gave the first hint to the pro-
jectors. Cast-iron plate rails were first employed in the year
1767 ; the trams or beds were generally made about 3 inches
Digitized by Google
TRAM.
279
wide, with an upright ledge, 3 inches high, termed the keel, cast
on the surface and upon the inner side, to keep the wheels on the
tracks, and they were usually cast in about 6 feet lengths, and
secured to the sleepers by spikes and oak plugs.-See Cuts below.
Details of a Tramway with a single Flanche.
Plan of one Rail.
Section of Rail enlarged.
Transverse Section.
Longitudinal Section of one Rail.
Edge-rails were first introduced in the year 1824, and are those
in general use at the present time. Although tram-rails form a
very excellent road, when properly laid down, yet they are not
Details of a Tramway with a double Flanche.
Plan of one Rail.
à
Section of Rail enlarged.
Transverse Section.
Longitudinal Section of one Rail.
Digitized by Google
280
TRANSIT INSTRUMENT.
equal to edge-rails. There are several modifications of them-some
have a circular flange or web on the outer edge, projecting down-
wards, which increases their strength much, and the rounding of
the inner angle formed by the meeting of the tram and keel is also
an improvement, as it reduces the friction.-See Cut on last page.
Tramways are yet much used for both permanent and temporary
purposes, in collieries, mines, and quarries, and in the formation
of roads, railroads, and for other purposes, as the ordinary carts
and waggons may be run upon them; and they derive some sup-
port from the ground between the bearings, which is rammed be-
neath the plates; indeed they are frequently laid upon the bare
ground, when employed for temporary purposes.
There is a tramway from Wandsworth to Croydon and Mers-
tham, formed of plates of cast-iron, 4½ inches wide, and 1 inch
thick, and laid in 3-feet lengths; the plates have an upper verti-
cal guide-flanche, 2 inches high, and a fish-bellied lower flanche
on the other side. The guide-rails are 4 feet apart, and the space
between each line is 5 feet the plates are bedded on stone blocks,
and fastened down by iron spikes driven into wood plugs, which
are let into the blocks vertically. Horses are used upon the line
the usual load of a horse being about 4 tons, the waggons weigh-
ing each 1 ton.
There is also a tramway at Glasgow, part of which is laid at
1 in 20, upon which a horse can drag 4 tons, and the amount of
repairs upon it is very trifling : the trams are 8 inches wide,
2 inches thick, and are made in 3-feet lengths.
Tramways are sometimes constructed of stone, which descrip-
tion of road we have designated " Paved-way," for the sake of
distinction, and described under that head. Many of the American
railways are constructed of granite or hard stone sills, with flat
bars of iron laid on them, to diminish the wear and tear; which
plan has been found to answer very well.-See Railway, Edge
Railway, and Paved-way.
TRANSIT INSTRUMENT, an instrument employed in the formation
of tunnels, for the purpose of ranging the shafts straight together;
Digitized by
Google
TRENAIL-TUNNEL.
281
it is fixed upon a brick pillar, carried up solid from the ground,
and quite independent of the building covering it.
TRENAIL, a wooden pin employed in timber framework, in situ-
ations where iron bolts are considered objectionable.
TRENAILS, or PLUGS, the hollow oak pins
usually driven into stone blocks, when any
thing is required to be secured to them,
as the chairs employed on railways; in which
case iron pins are first passed through the seat
of the chair, and then driven tight into the
centre of the plugs, which are generally 6 inches long, and 21/4
inches diameter, and formed of good heart of oak, or African oak.
TRUCK, as applied to railways, a stage or platform running upon
wheels, and used upon railways for the conveyance of ordinary
stage coaches and carriages, which are placed upon it. The mails,
and most of the coaches remaining in the line of the several rail-
ways, are thus conveyed, the passengers and luggage keeping
their respective places.
TUBE, a hollow cylindrical body.-See Pipe.
TUNNEL, a subterraneous gallery or passage excavated or dug
through the earth for the passage of a canal, road, or railway.
The tunnel on the canal at Languedoc, in France, commenced
in the year 1666, is one of the first instances of this description
of work, although the principle is doubtless of much greater an-
tiquity. The Hartshill Tunnel, on the Chesterfield Canal, and the
Sapperton, on the Thames and Severn navigation, are among the
earliest applications of the principle in this country-the former
is 3,000 yards long, and the latter is 21 miles, and lined with
masonry throughout; there are also some canals in this country
communicating with coal mines, executed in tunnelling, and that
to a very considerable extent.
The tunnels already formed, or forming, upon the several rail-
ways at the present time, are generally made by sinking vertical
working shafts, and then commencing abreast each way, upon
arriving at the proper level ; smaller shafts, termed air-shafts, are
20
Digitized by
Google
282
TUNNEL.
also made, for supplying the tunnel with air: the excavation is
formed as nearly the size of the tunnel as possible, the sides and
top being supported by timber centreing, consisting of leading ribs,
&c., also by shoars. The brickwork and earthwork are carried
forward simultaneously, or as nearly so as possible, and usually in
lengths of about 20 feet and when the brickwork of a length is
completed, the leading ribs are struck, and pushed on further for
another length the striking or slackening of the ribs is attended
with some degree of danger to the brickwork, if due caution is
not used; the space between the back of the brickwork of the
tunnel and the excavation is carefully filled in with earth, and
well rammed, and if any of the timbers should be found difficult
to withdraw, they are allowed to remain. The soil of the exca-
vation is drawn up the shaft to the surface of the ground by a
horse-gin, which is fixed at the top. It is generally the prac-
tice to set a strong curb in the crown of the tunnel under a
shaft, to support it, and cast-iron is at present used for this
purpose.
The following cuts represent a portion of the Primrose Hill
Tunnel, on the London and Birmingham Railway, during the course
of execution, and which was constructed by the method before
stated :-
Tunnelsare also sometimes worked
by horizontal shafts, or galleries, as
that taken through the cliffs at Do-
ver, on the South-Eastern Railway ;
they are also formed in cuttings si-
milar to bridges, the ground being
shoared up on each side, and again
covered over with earth upon the
completion of the brickwork, tech-
nically termed open tunnels; an in-
verted arch is generally unnecessary
Transverse Section of Tunnel.
in this description of tunnel, although always formed at the bottom
of those of the former description.
Digitized by
Google
TUNNEL.
283
Longitudinal Section of Tunnel.
The Thames Tunnel, between Rotherhithe and Limehouse, now
in the course of execution, by Mr. M. I. Brunel, forms a most
38
Ft
In
9
In
Tax &
16
Ja E
15
Transverse Section of the Thames Tunnel.
202
Digitized by Google
284
TUNNEL.
surprising instance of tunnelling; it consists of a double gallery,
the width of the brickwork externally, including both galleries,
being 38 feet, and the height 22 feet 9 inches.
The centre wall is built up quite solid at first, for the sake of
security, and afterwards pierced with arches of communication ;
the works are conducted by means of an immense framing, termed
a shield, which is divided into several compartments or cells, in
which the miners and artificers are placed, and it is made to move
forward as the work proceeds.
This cut represents the miners and bricklayers at work in the
shield, which is moved forward by means of the horizontal screws,
shown at the top and bottom of the tunnel, the moving stage which
follows the shield is also represented, upon which the materials
are placed, and the soil thrown :-
Longitudinal Section of Thames Tunnel.
There are several tunnels upon the London and Birmingham
Railway, of which the Kilsby was found the most difficult to ex-
ecute, one-fourth of its length passing through an extensive quick-
sand, which required the constant action of 2-28 horse power
steam-engines for pumping, independent of other pumps for re-
moving the water. The general size of the several tunnels on this
Digitized by Google
TURN BRIDGE-UNDERPINNING.
285
line is 24 feet wide, and 27 feet 4 inches high from the invert to
the crown of the arch, and they are 24 feet 4 inches from the
surface of the rails to the crown.-See Shaft.
TURN BRIDGE.-See Swivel, or Swing Bridge.
TURN-OUT.-See Siding.
TURNPLATE, or TURNTABLE, a contrivance for removing rail-
way carriages from one line of rails to another; they are gene-
rally made for crossings at right angles with each other, but can be
adapted to any angle that may be required.
A turnplate is composed of iron framing, upon which iron gra-
tings, or wood planking is laid, thereby forming a table or plat-
form, two pair of rails being fixed on the upper surface of it,
crossing each other at right angles, and of a corresponding gauge
with those laid down upon the line. The platform is made to turn
upon a centre pivot, which rests upon another iron frame, set
on masonry; friction rollers being inserted between this frame,
and that supporting the
A Turnplate on the London and Birmingham Railway.
platform, which are si-
The grating is removed in the lower half
Plan.
tuated at the edges of
the table, and either
secured to the circular
curb, which encloses the
table, or connected with
the centre socket by iron
rods.
The size of turnplates
is regulated by the length
of the engines employed
on the line of railway :
they are 12 feet diame-
ter on the London and
Birmingham Railway ;
but they are made only
8 feet on some railways.
Section.
UNDERPINNING, the operation of making additions or repairs
Digitized by
Google
286
UNDERSETTING-VALVE.
to the foundations of walls, in which case the latter are supported
by strong timber shoars and needles.
UNDERSETTING, the operation of supporting the earth in a
cutting, when occurring below rock ; and it is effected by the
stone quarried from the rock, which is laid in courses against the
face of the soft soil, the rock being formed as nearly perpen-
dicular as considered safe and convenient to work.
The great Blisworth cutting, on the London and Birmingham
Railway, is a good specimen of this description of work.
The Blisworth Cutting, London and Birmingham Railway.
Transverse Section.
A portion of the Plan.
VANE-See Fly-wheel.
VALVE, a sort of moveable cover to an aperture, and occurring
in various mechanical contrivances. Valves are used to separate
two different elements, or bodies, and act by the force of that
which is the most powerful, which is regulated accordingly : it
Digitized by Google
VERNJER-WAGGONS.
287
is also necessary that a valve be well made, so as to move on
the application of a very small degree of force.
Valves are constructed in a variety of forms; but they may be
described generally as being of four kinds, viz., 1st, those of the
revolving description, comprising all cocks, from that in common
use to the four-way cock employed in steam-engines ; 2ndly, slid-
ing valves, as the D slide valve, which is employed for a similar
purpose to the last stated ; 3rdly, the lifting kind, as the safety
valve in general use for steam-boilers; and 4thly, the hinge class,
as the clack-valve, which moves similar to a hinge. The two last
classes may be said to act in a somewhat similar manner.-See
Air-valve, Clack-valve, D Valve, Four-way Cock, and Safety Valve.
VERNIER, a contrivance connected with a graduated scale, and
employed for measuring any portions of the space between the
most minute dimensions. Verniers are applied to most of the
optical instruments used in surveying.
VIADUCT, an elevated erection, usually consisting of a series of
arches, and very similar in appearance to an aqueduct, but con-
structed for the conveyance of a road or railway, instead of a
canal or other body of water.
Voussoirs, the stones forming an arch, the beds radiating to-
wards the centre or centres forming the curve. The centre vous-
soir of an arch is called the key-stone.
WAGGONS (railway) the form of carriages used upon railways
depends, in a certain degree, upon the description of goods con-
veyed by them, although the same form of wheels, axles, and
bearings, are common to all. The bodies of the waggons first
employed were in the form of an inverted pyramid, or the shape
of a hopper, being much wider at the top than the bottom; and
this form is still retained for coal waggons and the like.
The wheels of some of the waggons em-
ployed upon the old wooden railway had
flanges on the edges, similar to those used
on edge rails at the present time ; and as
most of the colliery railways descended
Digitized by
Google
288
WALL-WASTE WEIR.
towards the depôts, the fore-wheels were made of greater diameter.
than the hind ones, according to the angle of the road, in order
to keep the bodies in a horizontal position; and this system has
been gradually given up, all four wheels being now made of similar
size. The modern coal waggons are about 8 feet long by 5 feet
6 inches wide at the top, and 4 feet deep ; which size will contain
2 tons 15 cwt., or nearly 3 tons, by heaping the coals up.
The bodies of the waggons, upon the Newton and some other
railways, are suited both for railway and common road travelling,
which is very economical and convenient.-See_Arle, Bearing, and
Wheel.
WALL, a solid structure, composed of either stone or brick-
work, being usually carried up perpendicular, and of various
thicknesses, enclosing and supporting other works; the front sur-
face of a wall is usually termed the face, and the stones or bricks
forming it the facing ; the inside is the back, or tail, and the
materials composing it, the backing ; the interior, or space enclosed,
being called the core, or filling in. The face of a wall is some-
times sloped, the latter being termed the batter.-(See Batter). A
wall is carried up in layers, called courses if the courses are of equal
thickness throughout, the term regular coursing is applied to them,
and if unequal, they are called random courses: the system of lay-
ing the stones in the several courses forming a wall, is termed the
bond.
The principal cause of decay in most structures arises from the
unequal settling of the walls, which creates cracks and bulges in
them, as they are not usually calculated to resist lateral strains,
but are mostly built with a view of sustaining vertical pressure
only.-See Bond.
WAREHOUSE, a strong erection formed for the reception of va-
rious description of goods.
WASHER, a piece of iron used in connection with a bolt.See
Bolt.
WASTE WEIR, a cut constructed through the side of a canal,
for carrying off any surplus water that may not be necessary for
Digitized by
Google
WATER STATIONS-WATER-WHEEL.
289
the navigation at certain times and seasons, operating as a drain.
The front of the cut next the canal is generally faced with masonry,
which is carried up solid from below the bottom of the canal, to
the level of the pond at that part; therefore, when the height of
the water exceeds this, it escapes into the cut, and hatches, or
stop-planks, are fixed in the wall, to dam it off, when necessary.-
See Weir.
WATER STATIONS (on railways), a small reservoir of water
upon a line of railway, consisting of a tank, connected with a
well. There is only one water station upon the Liverpool and
Manchester railway, between the termini, a distance of 29½ miles,
which is at Newton, where the trains stop.
WATER-WHEEL, an hydraulic machine employed in connection
with mill-work, filling the situation of prime mover, it being the
instrument whereby the motion of the water in a river or stream
is brought into action.
There are four descriptions of water-wheels; viz., 1st, the
undershot; 2nd, the overshot; 3rd, the breast wheel (each of
which receive the impulse of the water vertically); and, 4th, the
horizontal, upon which the water acts horizontally or bodily.
The undershot water-wheel is the most simple in action, and
was in use long before the others, being the cheapest and readiest
The Undershot Water-wheel.
for small streams in their natural state ; and it may be used almost
without any fall in the stream, provided there is plenty of water
and a good current, as it acts principally by the momentum, and
not by the weight of the stream ; it also answers equally well both
2P
Digitized by Google
290
WATER-WHEEL.
ways, which renders it very suitable for tide rivers. The under-
shot wheel works best where the difference between the ebb and
flood is not very great, as it should not be immersed in the water
much beyond the width of the float-boards, on account of the loss
of power occasioned by the action of the water upon them when
returning upwards, after having passed through the lower part of
the wheel-course; but if adopted under such circumstances, the
diameter of the wheel should be made sufficiently large to allow of
a small segment only of its circumference being covered by the
water.
The overshot wheel is usually made in the shape of a drum,
upon which a series of buckets are constructed, the water passing
The Overshot Water-wheel.
over the top of the wheel into them; it therefore acts by the
gravity or weight of the water in the buckets, as well as by the
mometum of the stream. This plan gives the greatest power
with the least expense of water, as the thickness of the stream is
seldom more than half an inch, or an inch; a penstock or sluice
being fixed at the head of the wheel, in a proper trough, which
regulates the supply. The overshot wheel requires a fall in the
stream equal to rather more than its own diameter, which renders
it necessary to make it of greater length in proportion to its height
than is usual with other wheels. Its power is calculated at double
that of the undershot wheel.
Digitized by Google
WATER-WHEEL.
291
The breast wheel is a medium between the two former, and
consequently much the most general; but, like the overshot, it
requires a considerable force in the stream, and thereby also
destroys it for the purposes of navigation. The water usually
strikes the wheel at rather below the axis, although sometimes
situated above it, and either floats or buckets are employed to
receive it; the former are mostly adopted, and no water is allowed
to escape past the mill-course without first operating upon them,
there being no space left between : the supply of water is regulated
by a penstock, as in the last description. The breast wheel con-
sumes about double the quantity of water of the overshot wheel,
in performing the same quantity of work; the diameter of the
wheels, number of float-boards, &c., being similar in both cases.
This method is the most suitable when the fall is between 4 and
10 feet; when it exceeds the latter, it is best to divide it into two
falls, and the supply of water must of course be ample in either
case.
The Breast Water-wheel.
It is a very essential point with every description of water-wheel
to get rid of the tail-water, or that which has acted, and is conse-
quently discharged at the bottom of the wheel, as the power of
the wheel is considerably reduced by its accumulation ; two small
culverts or drains are sometimes employed to effect it, which are
made in the masonry, passing from the head of the wheel to the
tail-water, when the impetus of the stream rushing from the upper
2 P 2
Digitized by Google
292
WATER-WHEEL.
pond down these drains will be found to carry off the spent water
very effectually a penstock should also be placed at the top of
each of these culverts, in order to cut off the escape of water in
dry seasons, or when scarce.
In situations where the supply is large and the fall little, an
undershot wheel may be used ; if, on the contrary, the fall is large
and the supply small, the overshot is most appropriate; and in
cases where the height of fall and quantity of water is but mode-
rate, the breast wheel should be adopted. An undershot wheel
works best when its circumference moves with between a 1 and a
frd the velocity of the stream, but overshot wheels are not in-
fluenced by it, as all the buckets have to be filled in succession.
Mr. Smeaton determined on 3 feet per second as the best velocity
of fall for the latter, the distance from the spout to the receiving
bucket being two or three inches.
The full power of a stream should always be taken advantage of
in the construction of mills ; a wide wheel of small diameter is
best where great speed is required, if otherwise, a large narrow
wheel may be employed.
The horizontal water-wheel is rarely met with, being very infe-
rior to the former, on account of the resistance offered by the float-
boards in returning against the stream, and other defects. Mr.
Robert Beatson suggested the employment of suspended float-
boards, which should present a surface for the stream to act upon
in passing down, and allow the water to pass between them in
returning upwards against the stream, the principle being similar
to that of his patent horizontal windmill.-See Windmill.
There is also another form of water wheel, termed Barker's
Mill," from the name of the inventor, which, however, is rarely
employed; the water passes down a tube placed vertically, and
escapes from a cross tube at the bottom, through two apertures
placed in opposite directions of its extremities, and the engine
acts by means of the reaction or counter pressure of the issuing
water, when the lower tube is caused to revolve horizontally, and
the whole machine with it; a vertical axle being placed within the
Digitized by
Google
WATER-WINGS-WATER-WORKS.
293
vertical tube, which gives motion to a horizontal one at the top
by means of a pinion.
The propelling wheels of steam boats are termed paddles, the
intent of which differs from the wheels before described, as they
act upon the water, using it as a resisting force, whereas the for-
mer are acted upon by the water, i. e., by the motion of the
stream.
WATER-WINGS, the walls erected on the banks of a river next
bridges, to secure the foundations from the action of the current;
they are usually battered towards the stream, having good puddle
filled in at their backs, and are sometimes further supported by
sheet piling at the feet; they are usually executed in curved lines,
the water-way being contracted at such parts.
WATER-WORKS, the name applied to all description of works
employed for raising or sustaining water, as water-mills, wheels,
sluices, and various other hydraulic works; but it is not generally
understood at the present time to refer to any other than works
erected for the purpose of supplying cities and towns with water
for the daily use of the inhabitants.
The water for the supply of cities and towns is generally ob-
tained from the neighbouring rivers or streams, and pumps are
employed in forcing the water to the requisite height, which are
worked by powerful steam-engines; where there are no fresh-
water rivers within reach, the water is procured from wells, and
the power required in this case is stated by Mr. Wickstead to be
double that of the former: the water is also sometimes conveyed
from the rise or upper portion of a river, by a small cut or canal;
and as the velocity requisite for the water in the cut is small,
compared with the usual run of rivers, the level of the cut at its
termination is consequently higher than that of the river, and
upon being taken a sufficient distance the required head of water
may be thus obtained: The New River, London, is formed upon
this plan, although it is said to be generally the most expensive
in carrying into execution, but the annual expenses are less than
where steam-power is employed in maintaining the required head
Digitized by
Google
294
WATER-WORKS.
of water. If there are good springs of water in a town, and they
are situated at a sufficient elevation to supply the houses, the
cost will be trifling, compared with any of the above-mentioned
systems; but it is an occurrence which rarely happens.
The water is frequently conveyed a considerable distance in
iron pipes, through large cities and towns, on account of the num-
ber of houses to be supplied : the principal pipes are called mains,
or main pipes, which communicate directly with the reservoirs, and
are laid down in the principal streets only, and pipes of smaller
bore, termed services, or service pipes, are connected with them, for
the use of the remaining streets; a cock is placed at every such
branch, whereby the communication with the main is either opened
or closed, the latter being always charged with water, and there
is a small lead pipe laid on from the services to each house or
tenement requiring water.
The cocks of the services situated at the most distant parts are
kept open a longer time than those near to it, in order that the
whole district may have an equal supply, the velocity of the water
at the extreme parts not being so great as where near the source :
for when water is forced through pipes, either by a natural or arti-
ficial head, or by steam, or any other power, friction is created
according to the velocity of the water, and the distance which it
travels in the pipes; therefore if the power be not increased, the
velocity of the water is lessened as it proceeds forward.
In small towns one line of pipes is generally found sufficient,
and there are small lead pipes laid on to it, as with the former; the
whole of the houses therefore receive an equal supply, and at
the same period of time.
There are fire-plugs made on the several mains and services, at
certain distances, which consist of holes about 2 inches diameter,
into which wooden spigots are driven ; they are easily removed
in case of fire or frost, and the whole force of the water may be
directed to one spot, by closing the service-cocks in the surround-
ing portions of the district.
The ancients employed lofty aqueducts for the conveyance of
Digitized by
Google
WATER-WORKS.
295
the water intended for the supply of cities, and it has been stated
that they were ignorant of the circumstance of water situated in
pipes, rising to the level of the reservoir connected with them;
the comfort and convenience of having pipes laid on to every
house, as provided at the present day, was also unknown to them,
at least the superior habitations only possessed it, the means of
casting or constructing large iron mains being then unknown.
The conveyance of water for the use of the inhabitants of the
city of London, and the general purposes of consumption, was first
introduced in the year 1236, being brought from Tybourne; after
which period stone conduits began to be used, which were at first
lined with lead.
The Chelsea Water-works are among the most extensive: the
supply is first received from the river into a large reservoir, 100
feet by 70 feet, and 10 feet deep; it is then passed into another,
which is lined with stone and brick from thence it is pumped
into two reservoirs, paved with bricks, laid edgeways-the southern
one is 300 feet by 100, and the northern 540 feet by 140; and
their level being high, the water gravitates downwards, passing
through filtering beds, which are of great extent, the southern
one being 240 by 180 feet, and the northern 351 by 180 feet, and
the level of the latter is kept higher than the other : the surface
of these beds is composed of sand, and disposed in ridges, pre-
senting an undulated appearance; their sides rise about 12 feet
above the surface of the ground, and are strongly embanked
and turfed over; the water is let on to the beds at several places,
the ends of the pipes being fitted with curved boards, to diffuse
the currents of the water, and prevent the surface of the sand
from being disturbed; the bottom is formed of clay, 18 inches
thick, to keep out the land-springs, and tunnels or culverts, 3 feet
in diameter, and about 18 inches thick, are laid upon same, ex-
tending from one end to the other, viz., nine upon the northern;
and eleven upon the southern; they are built of cemented blocks
of brickwork, with the joints partially open; the heading joints
Digitized by
Google
296
WATER-WORKS.
are quite open, and every alternate brick is omitted, the water is
thus enabled to pass through them; a covering of gravel stones
is then laid over the whole, 2 feet thick, upon which is a 6-inch
layer of shelly concrete, next a bed of coarse sand, and, lastly,
one of fine sand; the two last occupying a depth of about 5 feet :
wooden troughs, 3 feet by 6 inches, and 3 feet deep, are placed
between the tunnels, and about 10 feet apart, which prevents the
water from washing the sand into holes upon its admittance into
the filterer.
The deposit left upon the surface acquires a thickness of 1 or
2 inches in about three or four weeks, when about one inch of it
is raked off, the remainder tending to improve the filtration by
rendering the interstices less: the grosser portions of silt slide
down the ridges, and are easily removed. It has been ascertained
that the sediment does not penetrate through a greater depth than
from 6 to 9 inches, according to the state of the Thames water,
the greatest occurring during the prevalence of land floods in the
river.
Upon the water having passed through these filterers, it is
received in an open culvert, 15 feet deep, and is from thence
conveyed to the mains: a steam-engine of 120 horse power is
employed in raising the water; 3,500 gallons of which is raised
per minute, or upwards of 5,000,000 gallons per day. The ex-
pense of these works is said to exceed £60,000.
According to a Parliamentary Commission, appointed a few
years back, to enquire into the subject of the supply of water to
the metropolis, the average quantity supplied was stated to be 170
gallons to each house daily; but it must be remembered, that
very few of the cisterns are empty when the water is on, therefore
nothing like that quantity is consumed. Mr. Tredgold states that
the supply of water to a town should be 10 cubic feet per day for
each house, exclusive of other demands, as for manufactories,
breweries, watering streets, &c., amounting in the whole to 4 cubic
feet per day for each person; in small towns 21 cubic feet is
Digitized by Google
WEIR-WHEEL.
297
sufficient. He also gives the following Table, which may afford
some criterion :-
Towns.
Inhabitants.
Supply of water
Each person
per day.
per day.
Cubic feet.
Cubic feet.
London
1,225,694
3,888,000
3.15
Edinburgh (old service)
138,235
80,640
0.61
Rome (modern)
136,000
5,305,000
39.0
Rome (ancient)
1,200,000
10,500,000
9.0
Paris
713,765
293,600
0.42
Plymouth
21,570
33,400
1.56
WEIR, an erection carried across a river or rivulet, for the pur-
pose of damming up the water for the convenience of irrigation,
and for other uses.
Weirs are formed of stone and brickwork, or of timber, being
composed of frames placed side by side, in which stop-planks or
hatches are dropped, by which the head of water is supported ;
cast-iron is also sometimes used for the paddles and framing : a
single frame is, properly speaking, a sluice; it requires a series of
them to constitute a weir.-See Dam and Waste Weir.
WELDING, the process of uniting or joining two pieces of iron
together by the aid of heat and pressure.
WELL.-See Artesian Well.
WELL-HOLE, a hole connected with some mechanical contri-
vances, and adapted for the reception of a counterbalancing weight,
and for other purposes.
WET Dock.-See Dock.
WHEEL, an agent very extensively employed in machinery the
wheel, with its axle, constituting one of the mechanical powers.
Regarding toothed wheels, it may be stated, that they are described
generally as cog-wheels.; although the term cog bears more imme-
diate reference to one of the teeth fixed upon the circumference of
a wheel, the same being originally made of wood : when they are
formed upon the body of the wheel, or both out of one piece, they
2Q
Digitized by Google
298
WHEEL.
are termed teeth; and the teeth of a pinion are called leaves, and
those of a trundle, staves.
c
B
E
E
c
E
E
B
In the case of two cog-wheels in contact with each other, as
represented in the cut, the radii up to where the teeth com-
mence, B, B, is called the proportional radii; a line joining their
centres, A, A, is called the line of centres; and the distances to
the extremity of the teeth, C, C, is called the real radii; the dis-
tance of the teeth from centre to centre, D, D, is called the pitch of
the wheel ; and the circles from which each commence, E, E, the
pitching line.
A wheel which acts upon another, is termed a driver or leader,
and the wheel acted upon, the droven or follower.
WHEEL (of a carriage), a solid disc or circular frame, con-
structed of wood or metal, turning upon an axis, and used for
facilitating the conveyance of carriages. It consists of three parts,
viz.,-1st, the nave, hub, or centre ; 2nd, the periphery, or outside
ring, being usually formed in circular pieces, termed felloes; and
3rd, the spokes, or radii, which connect the former together.
The peripheries of roadway carriages are encircled by tires,
formed of flat bar-iron, made in pieces, and secured by nails pass-
ing through the felloes, with nuts and washers. The best sort of
vehicles have the tires of the wheels made in a single piece or
Digitized by Google
WHEEL.
299
ring, which being put on in a hot state draws and binds the whole
firmly together by the contraction of the metal in cooling. The
common practice of making the rims of wheels conical is highly
injurious to the roads, as it gives the wheels a tendency to move
out of the line of draught. The plan of rounding the extreme
edges is less objectionable: but flat edges, or wheels perfectly
cylindrical, are much the least destructive: they also run much
lighter than the former.
The wheels of railway carriages were originally made of wood,
which material was retained for the wheels acted upon by the
brake long after the introduction of cast-iron wheels, as it was
supposed to afford a greater degree of adhesion; but metal having
been found to answer equally well for that purpose, iron is now
adopted for the whole of the wheels. The next
improvement was that of case-hardening the
peripheries of the wheels, which arose from the
great injury they sustained (and consequent
increased wear and tear) upon the introduction
of edge-rails: this plan also reduced the resist-
ance, but was subsequently found objectionable,
on account of its rendering the wheels brittle, which led to the
adoption of wrought-iron tires, by Mr. G. Stephenson, who was
the first engineer that employed them; the wear of which is about
1½th of an inch per annum, or about $rd those of cast-iron: they
are also generally formed of a slightly
Mr. George Stephenson's Patent Wheels.
conical shape, with flanches on the in-
side, thus :-(See Cut above.)
The annexed cut represents Mr.
George Stephenson's patent wheels;
the spokes are of wrought-iron, and
are formed hollow, the nave and rim
being cast on to them ; the rim is then
turned in a lathe, and a wrought-iron
Section.
Elevation
tire fixed on it.
2 Q 2
Digitized by Google
300
WHIMS-WINDMILL.
Mr. Losh's patent wheels have ac-
Mr. Losh's Patent Wheels.
quired great repute. The whole is of
wrought iron, except the nave.
Mr. Joseph Bramah's are the last
wheels produced, and certainly surpass
all former wheels. The whole of this
wheel is also formed of wrought-iron,
except the nave, and it is finished by
Section.
Elevation.
a wrought-iron ring being made hot,
Mr. Joseph Bramah's Patent Wheels.
and contracted on to the spokes; the
tire is put on in a similar manner, and
further secured by bolts, and properly
turned and finished.-See Axle, Bear-
ings and Curve.
WHIMS, large capstans connected
with the shafts of mines, and worked
Section.
Elevation.
by three or four horses.
WINCH, the name applied to the bent handle or crank, by which
the axles of machines are turned when manual labour is employed
in effecting it.
WINDLASS, a circular axis turned round by crank handles, by
one or two men, for the purpose of raising water or minerals from
wells or mines ; the anchor used on board ships is raised by a
windlass worked by shifting levers. The crank handle by which
any contrivance is turned is also known by the name of a windlass.
WINDMILL, or WIND ENGINE, a contrivance for acquiring a
first mover or power for machinery from the impulse of the wind,
and which is adopted for various purposes. Windmills are most
frequently employed in grinding corn ; they were also much used
formerly for draining marshy land, but steam power has superseded
their use considerably, in common with other early machines.
Windmills are of two kinds, vertical and horizontal.
The vertical are those almost invariably met with, having four
cross vanes or arms fixed at the extremity of an axis lying in a
Digitized by
Google
WINDMILL.
301
horizontal position, or nearly so. The vanes are formed in the
shape of trapeziums, of about 9 yards long, and 2 wide, and are
covered with canvas or cloth upon open lattice-work framing.
The position of the sails in this kind of windmill is obliged to be
accommodated to the direction of the wind, and there are two
modes of effecting it practised; viz., by the post-mill, which
is built around and upon the trunk of a large tree, properly braced
and strutted next the ground, and a certain height is settled for
the lower and the upper floors, upon which it is turned bodily
when required, a pivot or centre being formed in the upper floor,
which rests upon the top part of the trunk; the lower flooring has
a collar framed in it, which also rests upon the outer edge of the
trunk, the latter being passed through the collar. The mill is turned
by means of framing at the back, which descends in a sloping direc-
tion, and is fastened in a temporary manner to posts driven into the
ground, or it is rested on the axle of a moveable wheel, which de-
scribes a circle round the mill, and thereby takes any position that
may be necessary. The other method of setting the sails to the
wind is accomplished by means of smock mills, and which are built
in a more substantial manner, the lower part being formed of stone
or brickwork, and the upper of wood, usually in a conical form.
The head is constructed on a moveable plan, and accommodates
itself to the direction of the wind by means of some small sails
situated at the back part of it.
Horizontal windmills are worked by sails set horizontally, the
axis being in a perpendicular position. It is natural to suppose
that the action of the wind would be much greater when employed
in a direct manner against the sails, as in this case, than when
acting in a lateral course, as it does with the
former description, but the resistance pre-
sented by the vanes or sails upon returning
against the wind, forms a great objection to
their use; they are calculated at not above
₫rd to 4ᵗʰ the power of the vertical.
Mr. Robert Beatson effected a consider-
Mr. Robert Beatson's Patent
Horizontal Windmill.
Digitized by
Google
302
WINZE-WOOD SCREW.
able improvement in them by his patent of 1798-he proposed
having the vanes formed of suspended flaps, which were shut by
the action of the wind, and upon returning they opened, allowing
it to pass between them.
Both in the case of windmills and water-wheels, for grinding
flour, the prime mover is connected with large mill-stones, be-
tween which the corn is ground, the motion being communicated
to them from the sails by means of a vertical axle.
WINZE (in mining), a small pit or shaft sunk from one level to
another, for the purpose of ventilation. Winzes are generally
constructed in mines at regular distances, those of one level
being placed midway between those of the level above or below
it, thus :-
A
A
A
A, A, A, represent the winzes.
WOOD SCREW, an iron screw, in which the body tapers, but
not the worm, the latter continuing straight to the extremity.
Digitized by Google
INDEX.
Page
Page
Abbrevoir
7
Backing
19
Abutment.
7
Backwater
19
Acre
7
Balance Beam
19
Adhesion
7
Balance Gates
19
Adit
8
Balks
20
Air Escape
9
Ballast Lighter
20
Air Pump
9
Ballast Waggon
20
Air Valve
9
Ballasting
20
Air Vessel
9
Balustrade
21
Ajutage
9
Bank
21
Anchor and Collar
10
Bar
21
Angle Irons
10
Bar (in navigation)
21
Angle of Traction
10
Barrel (of a drum-wheel)
21
Angle of Repose
10
Barrel (of a pump)
21
Animal Power
10
Barrow
21
Aqueduct
11
Base Lines
21
Arch
11
Bat
21
Arch of Equilibrium
15
Bath Stone
21
Arch of Equipollence
16
Batter
22
Architecture
16
Batter Level
22
Arris
16
Beam
22
Arrow
16
Bearings
22
Artesian Well
16
Beetle
22
Ashlar
18
Bench or Berm
22
Asphaltum
18
Bench-marks
22
Assistant Engine
18
Beton
22
Atmospheric Engine
19
Bevel Gear
23
Axle or Axletree
19
Blast Pipe
23
Digitized by Google
304
INDEX.
Page
Page
Blasting
23
Chair (railway)
54
Block (railway)
24
Chalk
56
Block
25
Cheeks
57
Boiler
25
Chimney
57
Bolts
29
Chipping Pieces
58
Bolsters
30
Chock
58
Bond
30
Circumverenter
58
Bonnet
31
Clack Valve
58
Booms
31
Claying
59
Boning
31
Clinometer
59
Boring
31
Coal-mine.
59
Bottoming
31
Cock
61
Boulder Paving
31
Coffer Dam
61
Boulder Walls
31
Cogs
63
Boundaries
31
Cog.wheel
63
Bowstring Bridge
32
Coke
63
Brake, or Convoy
32
Collar, or Gland
63
Breakwater
33
Compass
63
Breakwater Glacis
34
Concentric Engine
63
Breasts
34
Concrete
63
Breast Wall
34
Condensing Engine
63
Brick
34
Conduit
63
Bridge
35
Conical Valve
63
Buffer Heads
43
Conical Wheels
63
Buffing Apparatus
43
Constant (railway)
64
Burn
46
Continuous Bearings.
64
Bush
46
Convoy
65
Butterfly Valve
47
Copper Mine
66
Core
66
Caisson
47
Cornice
66
Camber
47
Cottar
66
Canal
47
Counter
66
Carriage
50
Counterbalance
66
Carriage (railway)
51
Counterfort
67
Catanarian Curve
51
Countersunk
67
Catchwater Drains
51
Couplings
67
Causeway
51
Cowl
67
Cement
51
Crab
68
Centres
52
Cradle, or Coffer
68
Chain
53
Cramp
68
Digitized by Google
INDEX.
305
Page
Page
Crane
68
Dry Dock
86
Crank
69
Dike
86
Crossing (railway)
69
Dike (mining)
87
Crossing (level)
69
Dynanometer
87
Crossing Point
69
Cross Staff (in surveying)
70
Earthwork
87
Crown, or Contrate Wheels
70
Eccentric
93
Cuddy
70
Edge Railway
93
Culvert
70
Elbow-joints
95
Curve
71
Embankment
96
Cutting
72
Engine
97
Cutwater
72
Engine-house
98
Enrockment
98
D, Slide Valve
72
Estuary
98
Dam, or Weir
73
Excavation
98
Datum Line
75
Expansive Engine
99
Deflection
76
Degree
77
Face (of a stone)
99
Depôt, or Station
77
Facing (in hydraulies)
99
Diagonal
77
Fanner
99
Diving Bell
77
Falling Sluices
100
Dock
78
Fathom
100
Double-acting Inclined Plane
80
Feather-edged
100
Double-railed Inclined Plane
80
Feeder
100
Drain, or Ditch
80
Feed Pipe
100
Drainage (agricultural)
80
Feed Pump
100
Drainage (mining)
82
Felloes
100
Draining Tiles
83
Felt
100
Draught (in masonry)
83
Fencing
101
Draught (in mechanics)
83
Fender Piles
101
Drawlink (railway)
83
Ferry
102
Drawbridge
84
Field Book (levelling)
102
Dredger
85
Field Book (surveying)
102
Dredging
85
Filling, or Filling-in
102
Drift, or Driftway
85
Fished Beam
102
Drop
85
Fixed Engine
102
Drought
85
Flanche
102
Drove
86
Flank Walls
102
Drum, or Rope-roll
86
Flashes
102
Dry Rot
86
Float, or Water Gauge
102
2 R
Digitized by Google
306
INDEX.
Page
Page
Float-boards
102
Hacking
120
Floating Bridge
102
Half-tide Dock
120
Floating Clough
103
Harbour, or Haven
120
Floating Harbour
103
Hard
121
Flood, or Tide-gates
103
Hatch
122
Fly, or Fly-wheel
103
Head (of water)
122
Footings
104
Heading
#22
Foreshore
104
Heading Course
122
Foundations
104
Headway
122
Fourway Cock
105
Hedgehog
122
Freestone
106
Hewn-stone
122
Friction
106
High-pressure Engine
122
Friction Roller
110
Hip
123
Fuel
110
Hoarding
123
Hollow Quoin
123
Gable
111
Horse-path
123
Gallery
111
Horse-power
123
Gasometer
111
Horse-run
125
Gas Works
111
Horsing-block
126
Gates (of locks, &c.)
114
Hub
126
Gauge Cocks
114
Hurries
126
Gauge of Way
114
Hydraulic Engine
126
Gearing
115
Hydraulic Lime
126
Gibs
115
Girder
115
Ice Boat
126
Gland, or Collar
117
Inclined Plane
126
Gneis
117
Injection Engines
127
Governor
117
Inlet
127
Gradient
117
Intermediate Space
127
Granite
118
Invert, or Inverted Arch
128
Graving Dock
118
Iron
128
Gravity
118
Irrigation of land
131
Grillage
119
Isolated Harbour
132
Groin
119
Groined Arch
119
Jib
133
Grouting
119
Joggle
133
Gudgeon
120
Joint
133
Gullies
120
Joint Chair
133
Gutter
120
Joists
133
Journal
133
Digitized by Google
INDEX.
307
Page
Page
Key, Cottar, or Cottrel
133
Mitre Sill
170
Key-stone
134
Mole
170
King, or Crown Post
134
Mortar
170
Kyan's Patent Preparation
134
Mortice and Tenon
. 170
Land-slip
134
Natural, or Quarry-beds
171
Leaf Bridge
134
Navigators
171
Leat
134
Non-condensing Engine
171
Leggers
134
Nut (of a screw)
171
Level (marsh land)
.
134
Level, or Gallery (mining)
135
Oblique Arch
171
Level (spirit)
135
Offset
172
Level (crossings)
135
Offsets (in surveying)
172
Levelling
136
Offset Staff
173
Levelling Staff
140
Optical Square
!
173
Lift Wall
140
Lighthouse
140
Paddle, or Clough
173
Lime
143
Paddle-holes
173
Lime-stone
144
Paddle-wheels
173
Lining
144
Parallel Motion
176
Link
144
Parallel Rail
176
Lock, or Hydraulic Lock
145
Passing Place
176
Lock-gates, or Hatches
147
Paved Crossing
176
Lock-sill, or Cill
149
Paved Ways
176
Lock Weir
149
Paving
178
Locomotive Engine
149
Penstock
179
Lode
166
Pentagraph
179
Low-pressure Engine
166
Perbend, or Thorough
179
Perpendicular Lift
179
Machine
166
Permanent Way
180
Marine Engine
166
Pier (marine)
181
Masonry
166
Pier (of a bridge)
182
Mechanical Power
167
Pier (in buildings)
182
Mechanical Powers
167
Pig Iron
182
Metalling
167
Piles, or Pile Timbers
182
Mile
167
Pile-driving Machine
183
Mill
167
Pinion
184
Mine
168
Pinning, or Pinning-in
184
Mitre
170
Pipes
185
Mitre Drains
170
Piston
185
Digitized by Google
308
INDEX.
Page
Page
Piston Rod
185
Reservoir
204
Plan
185
Retaining Wall
205
Plane
185
Retort
205
Plane Table
186
Rib
205
Planking
186
Rigger
205
Plate Railway
186
River
205
Plot
186
River Wall
207
Plotting
186
Rivet
207
Plunger
187
Road, or Common Road
207
Plumber Block
187
Rock
214
Pointing
187
Rolley
214
Polings
187
Roman Cement
214
Post
187
Roof
214
Portland Stone
187
Rope Roll
218
Priming
187
Rotary Engine
218
Principal
187
Rubble Work
219
Prismatic Square
187
Protractor
187
Safety Valve
219
Puddle
188
Sand
220
Punning
188
Sandstone
220
Pump
188
Scaffold
221
Purline
190
Scantling
221
Puzzolana
190
Scarfing
221
Scoop-wheel
221
Quarry
190
Scouring Power
221
Queen, or Queen-post
191
Sea Wall
222
Quick Lime
191
Section
222
Quay, or Key
191
Sectio-Planography
222
Self-acting Inclined Plane
223
Race, or Race-course
192
Sewer
223
Rack
192
Sewerage
223
Railroad, or Railway
192
Sextant
224
Railway
203
Shaft
224
Railway Link
203
Shaft (in machinery)
225
Railway Slide
203
Sheave
225
Rafters
203
Sheet Piling
227
Ratch
204
Shift
228
Ratchet-wheel
204
Shore, or Shoar
228
Reciprocating Engine
204
Side Cutting
228
Reciprocating System
204
Side Forming
228
Digitized by Google
INDEX.
309
Page
Page
Side Space
228
Surveying
256
Sideling Ground
228
Suspension Bridge
269
Siding
228
Swivel Bridge
272
Silt
229
Switch
272
Skew Back
229
Syphon
274
Slacked Lime
230
Sleepers
230
Tallus Wall
274
Sleetch
230
Teaming
274
Slip, or Land Slip
230
Telegraph
274
Slope
231
Template
274
Sluice, or Sluice-gate
232
Templet
274
Smelting
234
Tendon
274
Soffit
234
Tenon
275
Sough
234
Tension Bridge
275
Spandrel Wall
234
Terminal Plane
275
Spherical Valve
234
Terminus
275
Spindle
234
Theodolite
275
Spirit Level
234
Throttle Valve
275
Spoil, or Spoil Bank
234
Tide
275
Staith
234
Tide, or Guard-lock
276
Starling
234
Tide Mill
276
Stationary Engine
234
Timber
276
Stationary Plane
235
Traction
277
Stationary System
235
Tractive Power
277
Steam
236
Tram
277
Steam-boat
237
Tram, or Plate Railroad
277
Steam-engine
243
Transit Instrument
280
Steam-gauge
253
Trenail
281
Steam-pipe
253
Trenails, or Plugs
281
Steam-wheel
253
Truck
281
Steam-whistle
253
Tube
281
Steps, or Bearings
253
Tunnel
281
Stone, or Rock
253
Turnbridge
285
Stone Blocks
255
Turnout
285
Stop Planks
255
Turnplate, or Turntable
285
Strap
255
Stretching Course
255
Underpinning
285
String Course
255
Undersetting
286
Stuffing Box
256
Survey
256
Valve
286
Digitized by Google
310
DEX.
Page
Page
Vane
286
Water-works
293
Vernier
287
Weir
297
Viaduct
287
Welding
297
Voussoires
287
Well
297
Well-hole
297
Waggons
287
Wet Dock
297
Wall
288
Wheel
297
Warehouse
288
Whims
300
Washer
288
Winch
300
Waste Weir
288
Windlass
300
Water Stations
289
Windmill
300
Water-wheel
289
Winz
302
Water-wings
292
Wood-screw
302
DRURY, Printer,
17, Bridgewater Square, Barbican, London.
Digitized by Google
ERRATA.
Page 30, line 23, for backs, read bricks.
- 40, - 10, - 250 feet span, read 25 feet span.
- 43, - 25, - something, read any thing.
- 47, - 14, - coffer dams, read coffer dams, or coffre dams.
- 49, - 2, - boats, hooks, read boat-hooks.
- 73, - 34, - water, read dam.
76, - 8, - material, read load.
- 76, - 26, - strains, read weights.
- 85, - 25, - straiths, read staiths.
- 89, - 18, - prismoidal, read prismoid.
- 100, - 29, - covered, read curved.
- 101, - 10, - posts, read parts.
- 105, - 11, - sheep, read sheet.
- 105, - 32, - C, read D.
- 105, - 32, - D, read C.
- 106, - 2, - lower, read upper.
- 106, - 3, - upper, read lower.
- 106, - 5, - D, read C.
- 107, - 21, - roading, read roadway.
- 109, - 7, - runs, read run.
- 109, - 21, - 33, read 33*.
- 129, - 9, - clumps, read clamps.
- 166, - 34, - crumped, read cramped.
- 171, - 27, - brick, read bridge.
- 182, - - 29, - pig-iron, read iron.
- 224, - 19, - dry, read dug.
- 242, - 29, - P, read I.P.
- 269, - 25, - bone, read horn.
- 290, 15, - mometum, read momentum.
Digitized by Google
Digitized by Google
WORKS RECENTLY PUBLISHED
ON THE VARIOUS BRANCHES OF
ARCHITECTURE, CIVIL AND MILITARY ENGINEERING,
MECHANICS, NAVAL ARCHITECTURE, &c. &c.
BY JOHN WEALE,
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN,
here an Extensive Stock of all the approved Publications relating to the above Subjects, and the
Fine Arts, whether Foreign or Domestic, is constantly on Sale.
1.
Just Published, in large 4to., Price 18s.
STUDIES OF MODERN ENGLISH ARCHITECTURE.
THE TRAVELLERS' CLUB-HOUSE.
By CHARLES BARRY, Architect.
Illustrated by Engravings of Plans, Sections, Elevations, and Details, by J. H. LE KEUX.
With an Essay, including a Description of the Building, by Mr. W. H. LEEDS.
* This volume, complete in itself, is proposed as the first of a series under the general title of The
Modern School of English Architecture."
6 The Plates, engraved by J. H. Le Keux, from the Drawings of Mr. Hewitt, are examples of
rfection in this species of art. We do not believe that any artists that ever lived could carry it
ther. They will afford exemplars both to architectural draughtsmen and engravers, as well as to
chitects themselves; and will go down to posterity as the remains of Grecian architecture have
scended to us.
4
The author before us seems to be exactly the sort of commentator to grapple with doubts and
nfficting opinions, since he is not hampered with school prejudices and conventionalities; but com-
es fresh thoughts and sound reflections on his subject with good taste and elegant diction.'-
robe, No. 13.
2.
50 Plates, neatly engraved. Imperial 4to., Price £2. 8s.
ORNAMENTAL IRON WORK.
GATES, LODGES, PALISADING, AND RAILS OF THE ROYAL PARKS;
With some others, including the Entrances to the SULTAN'S PALACE at CONSTANTINOPLE.
rt. I. is just published, containing 25 Plates, Price £1. 4s. Part. II. will be published in Feb., 1840.
le work consists of Engravings of Plans of Regent's, Hyde, and St. James's Parks, the Lodges,
trance Gates, Ornamental Rails, &c.; with those of Hampton Court and Greenwich; the Gates
inufactured in this country for the Sultan's Palace, together with other very interesting examples of
e modern improved style. Designed principally by John Nash, Decimus Burton, &c., Architects;
th some of the old style by Inigo Jones, Sir Christopher Wren, &c.
Digitized by
Google
2
WORKS PUBLISHED BY JOHN WEALE,
3.
TREDGOLD ON THE STEAM ENGINE
AND
ON STEAM NAVIGATION.
These very important and interesting volumes, comprising 125 very elaborate and beautifully engraved
Plates, are, in Sections, Elevations, Plans, Details, &c., of the highest utility to the Engineer and
Student, to Manufacturers of Marine, Locomotive, and Land Engines ;-the science being elucidated
and explained by the most eminent practical men of Britain. In 2 4to. vols., price £4. 4s., entitled
THE STEAM ENGINE;
Comprising an account of its invention and progressive improvement, with an INVESTIGATION of its
PRINCIPLES, and the PROPORTIONS of its PARTS for EFFICIENCY and STRENGTH; detailing also its
application to NAVIGATION, MINING, IMPELLING MACHINES, &c., and the Result in numerous Tables
for Practical Use, with Notes, Corrections, and New Examples, relating to Locomotive and other Engines.
REVISED AND EDITED BY W. S. B. WOOLHOUSE, F.R.A.S., &c.
The algebraic parts transformed into easy practical Rules, accompanied by Examples familiarly
explained for the Working Engineer, with an ample
APPENDIX,
Containing, besides a vast acquisition of Practical Papers, an Elementary and Practical Description of
Locomotive Engines now in use, illustrated by Examples ; and the Principles and Practice of Steam.
for the purposes of Navigation either in Rivers or at Sea; showing its present and progressive state, by
illustration of the various Examples of Engines constructed for Sea, War, and Packet Vessels, and River
Boats, by the most eminent Makers of England and Scotland, drawn out in Plans, Elevations, Sections,
and Details, with a Scientific Account of each, and on
STEAM NAVAL ARCHITECTURE,
Showing, by existing and the latest Examples, the Construction of War, Sea, and Packet Vessels: their
Naval Architecture, as applied to the Impelling Power of Steam for Sea and River purposes. This
portion of the work is edited by several very eminent Ship Builders—
OLIVER LANG, Esq., of H.M. Dock-yard, Woolwich,
J. FINCHAM, Esq., H.M. Dock-yard, Chatham.
T. J. DITCHBURN, Esq., Deptford and Blackwall.
The new subjects in this edition consist of the works of
Messrs. Boulton and Watt.
William Morgan, Esq.
The Butterley Company.
Messrs. Hall, Dartford.
Messrs. Maudslay, Sons, and Field.
Edward Bury, Esq., Liverpool.
Messrs. Seaward.
Messrs. Hague.
Robert Napier, Esq., Glasgow.
Messrs. Claude, Girdwoord, and Co.
Messrs. Fairbairn and Murray.
Messrs. Stephenson and Co., Newcastle upon Type.
Dedicated, by Permission, to Der Majesty.
LIST OF PLATES.
1. Isometrical projection of a rectangular steam boiler.
20. Side elevation and cross section of a steam carriage.
2. Two sections of a cylindrical steam boiler.
21. Kingston's valves.
3. Brunton's apparatus for feeding furnaces by machinery.
blow-off valves.
4. High pressure engine with four-passaged cock.
injection valves.
5. Section of a double acting condensing engine for work-
hand pump valves.
ing expansively.
22. Boilers of Her Majesty's steam vessel African.
6. Section of a common atmospheric engine.
23. Boilers of Her Majesty's steam frigate Medea.
7. Represents the construction of pistons.
24. Paddle wheels of Morgan and Seaward.
8. Parts of Fenton and Murray's double engine.
25. Positions of a float of a radiating wheel, and also of &
9. Apparatus for opening and closing steam passages.
vertical acting wheel, in a vessel in motion.
10. (A). 10 (B). Parallel motions or combinations used to
26. Cycloidal paddle wheel fitted to the Great Western.
produce rectilinear motion from motion in a circular arc.
27, 28. Illustrate Captain Oliver's paper.
11. Plan and elevation of an atmospheric pumping engine
29. Exhibits the various situations of a trial at sailing of
for raising water from a mine.
the Medea, with the Caledonia, Vanguard, and Asia.
12. Boulton and Watt's single acting engine.
30. Side view of the engines of the Red Rover, and City of
13. Double acting engine for raising water.
Canterbury, steam vessels.
14.
for impelling machinery, by Fen-
31. Longitudinal section of ditto.
ton, Murray & Co.
32. Cross section of engines of ditto.
15. Maudslay's portable engine.
33. Side elevation of the engine of the Nile steam ship.
16. Indicator for measuring the force of steam in the
34. Plan of the engine of the Nile.
cylinder.
35. зб. Cross sections of engines of the Nile.
Diagrams to illustrate the comparative stability of
37, 38, 39. Engines of Her Majesty's steam frigate Phonis.
opposite classes of vessels.
40. Engines of the Ruby Gravesend packet.
17. Section of a steam vessel with its boiler in two parts.
41. Section of one of the engines of the Don Juan Penis-
18. Isometrical projection of a steam boat engine as first
sula Company's packet.
nged by Boulton and Watt.
42. Boilers of Her Majesty's ships Hermes, Spitfire, 1
and plan of steam boat engine.
Firefly.
Digitized by
Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
3
43, 44, 45, 46. Elevation, plan, and two sections of the
70. (A). 70 (B). Sections of the engines of the Berenice
engines of the armed Russian steam ships Jason and
steam vessel.
Colchis.
71, 72. Beale's patent rotatory engine.
47, 48. Hall's improvements on steam engines.
73. Mr. Ayre's contrivance for preventing a locomotive
49, 50. Engines of Her Majesty's steam ship Megæra.
engine from running off a railway.
51, 52, 53, 54. Engines of the Hull and London packet
74 to 83. Relate to the very important subject of all kinds
William Wilberforce.
of paddle wheels.
55. (A). Longitudinal section of Humphrys's patent marine
84 to 88. Sixty-five inch cylinder engine, erected by
engine.
Messrs. Maudslay, Sons, and Field, at Chelsea water-
55. (B). Longitudinal elevation of Humphrys's marine
works.
engine.
89 to 92. Patent locomotive engine, made by Messrs. R.
56. (A). Midship section of the steam packet Dartford,
Stephenson and Co. for the London and Birmingham
showing a front elevation of a pair of Humphrys's
Railway.
engines.
93. Drawings of the Comet, the first steam boat in Europe.
56. (B). Plan of the engines of the Dartford.
94. The Pacha's steam vessel of war, the Nile.
57, 58, 59. Forty-five horse power engine, constructed by
95, 96. The Hon. East India Company's steam vessel
W. Fairbairn and Co.
Berenice.
60, 61, 62, 63. Ten-horse power engine, constructed by
97. Draught of the Forbes steamer, Chinese rigged.
W. Fairbairn & Co.
98. Herne Bay steam packet Red Rover.
64. Elevation of a locomotive engine, Stanhope and Tyne
99. Diamond Company's steam packet Ruby.
Railway; constructed by Messrs. R. Stephenson and
100 to 103. Her Majesty's steam vessel of war Medea.
Co., of Newcastle upon Tyne.
104 to 107. Construction of the Nile steam ship, built for
65. Section of ditto.
the Pacha of Egypt.
66. Safety valves of ditto.
108, 109, 110. His Imperial Majesty's armed steam vessel
67. (A). Cylinder cover and connecting rods of ditto.
Colchis.
67. (B). Cylinder and piston at large of ditto.
111, 111 (A). Engines of the steam ship Tiger.
68. Plan and section of boiler seating for a twenty-horse
112. The Admiralty yacht Firebrand.
engine, at the manufactory of Messrs. Whitworth and
113. Portrait of the late Mr. Watt.
Co., Manchester.
114. Portrait of the late Mr. Tredgold.
69. Messrs. Hague's double acting cylinder, with slides, &c.
115, 117, 118. Illustrate steam navigation in America.
4 The first publication of Mr. Tredgold's work,
lightened philosophers as well as experienced
on one of the most important mechanical and
artisans, are explained to us, and set before our
scientific subjects of our age, was so highly suc-
eyes 80 as to be palpable to the understanding.
cessful, that, besides being translated into the
In the same way the locomotives of the Messrs.
French, and, we believe, other languages, a new
Stephenson, of Newcastle, the construction of
edition was imperatively called for. That call
the elegant government steam boats of Mr. Lang,
has been answered by the present enlarged work,
of Woolwich, and Mr. Fincham, of Chatham, (ves-
in which has been embodied the progress and
sels it is a delight to notice as we pass up or
improved application of that mighty agent Steam,
down the river,) are rendered familiar to us; and
an investigation of its principles, and a practical
we care little to vex ourselves about hypothetical
view of its uses and effects in steam vessels, steam
improvements and untried experiments. We have
carriages, and railroads. When we look around
witnessed so many pseudo certain and undeniable
us and see the face of the country changed and
inventions fail, that we have become rather scep-
changing; the expedition of a week compressed
tical when we hear of patents that are to supersede
into a single day the limits of pleasure and of
all that has been done before, or listen to the dic-
business widely extended among all classes of
tatorial laws of people whom we have known to
society new wants created, and new wishes
be more frequently wrong than right. We are
gratified; sedentary easily and readily converted
glad to observe, however, that in this new edition
into ambulatory life; the sphere of city homes, as
most of the errors of the former have been cor-
it were, enlarged by a circle of rural miles ;-
rected ; and what questionable statements or
when, in fact, we see the prodigious alteration
mistakes may remain are not such as to impeach
made in our social, statistical, economical, po-
the vast utility of the publication.
litical, national, and international system, by the
The Appendix, indeed, is deserving of much
growing powers of this vast engine, we cannot
praise. The rules of practice are well expounded,
but consider the effort to offer us a just and com-
and the mathematical calculations, remodified into
prehensive account of it to be one of the most me-
simple arithmetic, are excellent for the purpose of
ritorious within the scope of individual industry,
enabling the working man "operative" is the
skill, and labour. We, therefore, think the public
fashionable phrase) to perform his duty.
deeply obliged to Mr. Tredgold, the author, and
' Upon the whole, not to dwell upon either real
Mr. Weale, the enterprising publisher, who must
or supposed imperfections, inseparable from a
have expended a very large sum on the risk, for
production embracing so vast a number of com-
the very important volumes now before us.
plicated matters-a production treating of things
6 It is apparent that it is a publication of great
in an almost daily state of partial transition-we
magnitude and great worth. Above a hundred
feel bound to pronounce this treatise to be a very
plates of steam engines, &c. &c., illustrate its
able and satisfactory exposition of the state of
descriptions; and many wood-cuts serve further
steam navigation and railroad travelling to the
to render the contents plain and intelligible to
present time and as such we heartily recommend
every capacity. Thus the actual operations of
it to the public at large, both at home and on the
such men as Boulton and Watt, Maudslay and
continent, where its predecessor has hitherto been
Field, Seawards, Napier of Glasgow, and other
esteemed a standard work.-Literary Gazette,
eminent mechanicians, and, we may add, en-
August 3, 1839.
Digitized by
Google
4
WORKS PUBLISHED BY JOHN WEALE,
4.
In 2 vols., very neatly half-bound in morocco or russia, gilt tops, Price £5. 5s.
TREDGOLD ON THE STEAM ENGINE AND ON STEAM NAVIGATION.
5.
In 2 vols., elegantly bound in russia or morocco, gilt leaves, Price £5. 15s. 6d.
TREDGOLD ON THE STEAM ENGINE AND ON STEAM NAVIGATION.
This work having been selected as a Prize-book by the Institution of Civil Engineers, and several
other Institutions, and by practical Engineers for presents to their Pupils, can be had in any other style
of binding by giving seven days' notice.
6.
In 2 vols., very neatly half-bound in red morocco, gilt tops; the Text in quarto, and the Plates printed
separately on fine Columbier folio paper, Price £7. 78.
TREDGOLD ON THE STEAM ENGINE AND ON STEAM NAVIGATION.
7.
The Plates sold separately, on Columbier folio, very neatly half-bound in red morocco, gilt tops,
Price £5. 5s.
TREDGOLD ON THE STEAM ENGINE AND ON STEAM NAVIGATION.
In many instances purchasers of the work in 2 vols. have also possessed themselves of these
Plates in a separate form, not only for practical use and reference, but as a Table-book, to exhibit the
splendour of the Steam Machinery of Britain.
8.
In quarto size, with four elaborately engraved Plates, and numerous Wood-cuts of Details, Price £1. 1s.
in cloth boards.
DESCRIPTION OF THE PATENT LOCOMOTIVE STEAM ENGINE
OF MESSRS. ROBERT STEPHENSON AND Co.,
NEWCASTLE UPON TYNE.
*** The above Work is affixed to the publication of the 2nd edition of Tredgold, and has been pub-
lished separately for the use of those who desire a perfect knowledge of the Locomotive Engine
separate from other Steam Engines. The description is both popular and scientific, and was drawn up
under the immediate superintendence of Robert Stephenson, Esq. The Engravings are large, and are
unique examples of mechanical engraving. The cost of the four Plates was £400; the wood-cuts,
40 in number, are explanatory of such details of the Engine as cannot be shown in the Elevation,
Plan, Cross or Transverse Section; nor so well described in language as by the ocular demonstration of
these, intermixed as they are with the descriptive text. It will be found that this extraordinary modern
Engine, which owes its present improvements to the Stephensons, is made available to the million by
being explained in the plainest language, and divested of mathematical formulæ.
9.
STEAM NAVIGATION.
Just published, in Atlas folio size, uniform with Telford's works and the Atlas copies to Tredgold,
Price 12s.
APPENDIX A. TO THE NEW EDITION OF TREDGOLD ON THE
STEAM ENGINE.
CONTENTS.
Plate I.-Iron Steam (achtGlow-worm, constructed
power each, 50-inch cylinders, 4-6 stroke, made
by John Laird, Esq., Birkenhead, Liverpool.
by G. Forrester and Co., of Liverpool, and fitted
Plates II. and III.-Iron Steam Ship Rainbow,
on board of the Rainbow.
belonging to the General Steam Navigation
Plate V.-Side Elevation and Section of ditto.
Company, draught lines at bottom, fore body
Plate VI.-Transverse Section of ditto.
to a large scale, by Ditto.
Plate VII-Draught of the American Armed
Plate IV.-Plans of the Engines of 90-horse
Steam Ship Fulton. Half the main breadth,
)
Digitized by
Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
5
17 feet distance between the water lines, 2
Plates IX. and X.-Plans of the Upper and Lower
feet ; fore and after body precisely alike.
Decks of the Iron Steam Ship Nevka, con-
Plate VIII. - Plans of the Upper and Lower
structed for Her Imperial Majesty the Empress
Decks of the Admiralty Yacht Firebrand,
of Russia, by Messrs. Fairbairn and Murray, of
showing the fittings and conveniences; drawn
Mill Wall, Poplar.
by Mr. James Henry Lang, of Woolwich.
APPENDIX B. is in preparation. To contain the remaining five Engravings of the Nevka, the
Steam Engine in the Royal Arsenal at Woolwich, and other interesting subjects together with the Text
for both Parts. Price 12s.
10.
Just published, vol. 3, with several Plates, Price £1. 5s.
PAPERS ON SUBJECTS CONNECTED WITH THE DUTIES OF
THE CORPS OF ROYAL ENGINEERS.
CONTENTS.
Introduction.
205 feet span, at Paradenia, with an account of
Memoranda relative to the Lines thrown up to
the execution of the work and the means em-
cover Lisbon in 1810. By Colonel JOHN T.
ployed in throwing it across the river Mahavil-
JONES, Royal Engineers.
laganga, in the island of Ceylon. By Captain
Memoranda relating to the Defence of Cadiz, and
OLDERSHAW, Royal Engineers.
explanatory details of the Position intrenched
Description of a Series of Bridges erected across
by the British troops under Lieutenant-General
the river Ottawa, connecting the provinces of
GRAHAM, in 1810.
Upper and Lower Canada, and especially of a
Instructions of the Minister of War concerning
wooden arch of 212 feet span which crossed
the Model-towers approved of by Napoleon.
the main branch of the river. By Lieutenant
Translated by Lieut. LAFFAN, Royal Engi-
DENISON, Royal Engineers.
neers.
Description of a Barometer that requires no cor-
Report on the Demolition of the Revetments of
rections either for Zero or for Temperature.
some of the Old Works at Sheerness, on Sa-
By SAMUEL B. HOWLETT, Esq., Chief Draughts-
turday the 14th July, 1827.
man, Ordnance.
Letter from Lieut.-Colonel ROBERT THOMSON to
Notes to aid in correcting the operation of ascer-
Lieutenant DENISON on the subject of Furnaces
taining the Heights of Mountains by means of
for heating Shot.
Boiling Water; furnished by Major ORD, Royal
Memoir on Posen, by T. R. STAVELY, Esq., late
Engineers.
Captain Royal Engineers.
On the Decomposition of Metallic Iron in Salt
Report on Beaufort Bridge. By R. J. NELSON,
Water, and of its Reconstruction in a Mineral
Lieutenant Royal Engineers.
form. By Lieut.-Col. REID, Royal Engineers.
Rough Sketch of the Suspension Bridge over the
Report on the Effect of Climate on Yorkshire
Lahn at Nassau. By R. J. NELSON, Lieutenant
Paving, communicated by Colonel FANSHAWE,
Royal Engineers.
Royal Engineers.
Detailed Description of some of the Works on the
Report of Paving Stables at Brighton.
Rideau Canal, and of the alterations and im-
Experiments tried at Quebec as to the properties
provements made therein since the opening of
and adhesive qualities of Cements, by order of
the navigation. By Lieutenant DENISON, Royal
Colonel NICOLLS, Commanding Royal Engineer,
Engineers.
dated 17th November, 1834.
)n the mode of Bending Timber adopted in
Proof of an Earthen Ware Pipe for Lieutenant
Prussia. By R. J. NELSON, Lieutenant Royal
Denison. By Mr. BRAMAH.
Engineers.
Description of a Drawbridge on the London and
Description of the Coffer-dam used in the Con-
Birmingham Railway, at Weedon. By Captain
struction of the Piers of the Alexandria Aque-
JEBB, Royal Engineers.
duct, being an abstract of a report addressed
Table of the Description and Weight of the
by Captain TURNBULL to Lieutenant-Colonel
Packages of various Articles of Traffic, By
ABERT, and by him submitted to the House of
Major H. D. JONES, Royal Engineers.
Representatives of the United States.
APPENDIX.-Notes on Lintz.
Description of the one-arch Wooden-Bridge, of
Notes to pages 36 and 39.
11.
Vol. 2, uniform with the preceding, Price £1.
12.
Vol. 1, reprinting, Price 15s.
Digitized by
Google
6
WORKS PUBLISHED BY JOHN WEALE,
13.
153 Plates, engraved in the best style of Art, half-bound, very neat, Price £4. 48.
PUBLIC WORKS OF GREAT BRITAIN;
CONSISTING OF
Railways, Rails, Chairs, Blocks, Cuttings, Embankments, Tunnels, Oblique Arches, Viaducts, Bridges,
Stations, Locomotive Engines, &c.; Cast-Iron Bridges, Iron and Gas Works, Canals, Lock-gates,
Centering, Masonry and Brickwork for Canal Tunnels; Canal Boats; the London and Liverpool Docks,
Plans and Dimensions, Dock-gates, Walls, Quays, and their Masonry; Mooring-chains, Plan of the
Harbour and Port of London, and other important Engineering Works, with Descriptions and Specifi-
:ations; the whole rendered of the utmost utility to the Civil Engineer and to the Nobility and Gentry,
IS Monuments of the useful Arts in this Country, and as Examples to the Foreign Engineer.
EDITED BY F. W. SIMMS, C.E.
This Work is on an Imperial folio size, the Drawings and Engravings have been executed by eminent
Artists, and no expense has been spared in rendering it highly essential to the Civil Engineer and
Student also, as an ornamental Volume of Practical Representations of important Engineering Works
n several Parts of the Kingdom. The Work is bound in half-morocco. There are some Plates in the
Volume that may be preferred in Colours, viz., the elaborate subject of the Blisworth Cuttings, in the
Birmingham Line, 18 Plates, geologically coloured; Glasgow and Gairnkirk Railway Cutting through
Moss, geologically coloured, &c. making 20 Plates, to be carefully coloured, and for which an
dditional £1. 1s. is charged.
The following is a list of the Authors whose works are comprised in the volume.
Brindley
Hartley
M'Adam
Telford
Brunel
Hosking
Palmer
Thomas
Buck
Jessop
Rennie
Tierney Clark
G. and R. Stephenson
Landmann
Rhodes
Walker.
14.
22 Plates, large folio, bound, Price £1. Is.
THE HARBOUR AND PORT OF LONDON,
SCIENTIFICALLY, COMMERCIALLY, AND HISTORICALLY DESCRIBED;
Containing Accounts of the History, Privileges, Functions, and Government thereof; of its Extent,
Divisions, and Jurisdictions, Municipal and Commercial; of its Docks, Piers, Quays, Embankments,
Moorings, and other Engineering Works Tidal and other Observations, and every other necessary
nformation relative thereto, accompanied by Charts of the Port and its Dependencies, its Shoals and
loundings, surveyed by order of the Port of London Improvement Committee; Plans of Docks, Gates,
'iers, Swivel Bridges, Methods of Mooring Vessels, &c., as directed by the Corporation By-Laws
kc., &c., &c.
By JAMES ELMES, Architect and Civil Engineer, Surveyor of the Port of London.
15.
In 8vo., with Engravings and Wood-cuts, cloth bds. extra, Price 12s.
OUTLINE OF THE METHOD OF CONDUCTING A
TRIGONOMETRICAL SURVEY,
or the Formation of Topographical Plans; and Instructions for Filling-in the Interior Detail, both b)
Measurement and Sketching; Military Reconnaissance, Levelling, &c., &c.
With the Explanation and Solution of some of the most useful Problems in Geodesy and Practical
Astronomy; to which are added, a few Formulae and Tables of general utility for facilitating
their calculation.
By Lieutenant FROME, ROYAL ENGINEERS, F.R.A.S., & A.I.C.E.
Digitized by
Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
7
16.
RAILWAYS.
In Imperial folio, 83 Engravings, with explanatory Text, containing the Specification of the Works as
executed.
EDITED BY F. W. SIMMS, C.E.
Price £2. 12s. 6d. in half-morocco.-Subjects
THE LONDON AND BIRMINGHAM RAILWAY-THE GREAT WESTERN RAILWAY-THE SOUTH-
AMPTON RAILWAY-THE GREENWICH RAILWAY-THE CROYDON RAILWAY-THE BIRMINGHAM
AND BRISTOL THAMES JUNCTION RAILWAY-GLASGOW AND GAIRNKIRK RAILWAY. In 83 Plates,
with Sections, Details, &c.
LONDON AND BIRMINGHAM RAILWAY.
1. Frontispiece-London Entrance to the Primrose Hill
18, 19. Entrances to ditto-Vignettes, pages 31 and 34.
Tunnel.
20 to 29. Working Section, Blisworth Excavations and
2. Title Page, vignette-Railway Station at Watford.
Embankments.
3. Chimneys at Camden Town fixed Engine Station.
30, 31. Undersetting of Rock in Blisworth Cuttings-En-
4. Entrance to Railway Station at Euston Grove-Vig-
larged Scale.
nette, page 1.
32, 33. Plan and Elevation of Retaining Walls, Counter-
5. Euston Grove Station, ground-plan.
forts, Inverts, Drains, &c. in the Blisworth Cuttings.
6. Camden Town fixed Engine Station, ground-plan.
34, 35. General Plan and Section of the Undersetting of
7. Iron Roof-Euston Grove Station.
the Rock in the Blisworth Cuttings.
8. Stanhope Place and Park Street Bridges.
зб, 37. Plan, Elevation, and Section of the West End of
9. Bridge over the Regent's Canal.
the Blisworth Cuttings.
10. Details of ditto.
38 to 47. Plan, Elevations, and Details of the Kilsby Tun-
11. London and Birmingham Railway-Harrow in the
nel, Warwickshire.
distance. Vignette, page 17.
48. Method of fixing the Fifty-pound Rails in the
12. London and Birmingham Railway-Watford Tunnel.
Chairs.
Vignette, page 28.
49. Method of fixing the Sixty-five-pound Rails in the
13. Road Bridge over Railway.
Chairs.
14. Colne Viaduct.
50. Mr. Buck's Railway Chairs.
15. Bridge over Excavation south of Watford Tunnel.
51. Plan of Siding or Passing Place.
16. Box Moor Oblique Bridge.
52. Plans and Sections of a Twelve-feet Turn Rail.
17. North Church and Primrose Hill Tunnels Cross
53. Plan and Elevation of First Class Carriages.
Sections.
GREAT WESTERN RAILWAY.
54. Plan and Elevation of the Brent Viaduct.
57. Plan and Elevation of Maidenhead Bridge.
55. Sections of the Brent Viaduct.
58. Sections of Maidenhead Bridge.
56. Transverse Sections of the Brent Viaduct.
59. Occupation Bridge over the Railway.
SOUTHAMPTON RAILWAY.
60. Bridge under Railway.
63. Occupation Bridge.
61. Plan of ditto.
64. Elevation and Details of Earth-work and Timber
6a. Occupation Bridge in Embankment.
Waggons.
GREENWICH RAILWAY.
65. Oblique Arch over Neckinger Road.
68, 69. Sections of ditto.
66. Sections of ditto.
70. Viaduct of the Greenwich Railway.
67. Oblique Arch over Spa Road.
CROYDON RAILWAY.
71. New Cross Bridge over Railway.
72. Method of fixing the Permanent Way.
BIRMINGHAM AND BRISTOL THAMES JUNCTION RAILWAY.
73. Cast-iron Arch Suspension Bridge over the Paddington
74. Railway Gallery under the Canal, &c.
Canal and the Railway.
GLASGOW AND GAIRNKIRK RAILWAY.
75. Transverse Section at Robroyston Moss.
MISCELLANEOUS.
76. Comparison of the Transverse Section of numerous
80. Flat Rail with Flange.
Railway Bars.
81. Rail by Losh, Wilson, and Bell.
77. Comet Locomotive Engine.
82. Hetton Rail.
78. Mr. Stephenson's Patent Locomotive Engine.
83. Sidings or Passing Places.
79. Railway Waggons.
Digitized by
Google
8
WORKS PUBLISHED BY JOHN WEALE,
17.
The new Bork on Bridge Building.
Vol. 1, royal octavo, is just completed, Price £1. 16s., containing 380 pages of Text and 55 elaborately
engraved Plates, with every detail and dimension for practical use, entitled,
THEORY, PRACTICE, AND ARCHITECTURE OF BRIDGES.
THE THEORY BY JAMES HANN, OF KING'S COLLEGE,
Hon. Mem. of the Philosophical Society of Newcastle upon Tyne, Mem. of the Mathematical Society
of London, and Joint Author of " Mechanics for Practical Men;"
AND
THE PRACTICAL ENGINEERING AND ARCHITECTURAL TREATISE
BY WILLIAM HOSKING, F.S.A.,
Architect and Civil Engineer, Author of " Treatises on Architecture and Building;"
PROFESSOR MOSELEY, M.A., KING'S COLLEGE; T. HUGHES, AND ROBERT STEVENSON,
Civil Engineers.
The Work will be completed in 2 Vols., to contain 700 pages of Text, and illustrated by 110 En-
gravings of examples of Stone, Timber, Iron, Wire, and Suspension Bridges, from Drawings furnished
by the principal Engineers of Great Britain and France.
Vol. 2 is preparing, and is to be published in 6 Parts, at intervals, in the course of the year 1840.
*** This Work, when completed, will be found to be of a most valuable character, the highest talent
having been engaged for the Engravings, and the price made convenient to the Student.
Atlas copies of the Plates may be had.
18.
In demy 8vo., numerous Wood-cuts, extra cloth bds., Price 8s.
AN ESSAY ON THE BOILERS OF STEAM ENGINES:
Their Calculation, Construction, and Management, with a view to the SAVING OF FUEL. Including
Observations on Railway and other Locomotive Engines, Steam Navigation, Smoke Burning, Incrus-
tations, Explosions, &c. &c. A New Edition, considerably enlarged and improved.
By R. ARMSTRONG, Civil Engineer.
19.
Vol. 1, Price 30s., extra cloth bds., containing a Portrait of the late President, Thos. Telford, Esq.,
and 27 finely engraved Plates.
TRANSACTIONS OF THE INSTITUTION OF CIVIL
ENGINEERS.
*** Except 15 copies, which only remain of this Volume, all of them being deficient of Mr. Macneill's
Tables, the Volume is out of print, and scarce. It will however be reprinted some time in the year
1840.
20.
Vol. 2, Price 28s., extra cloth bds., containing 23 finely engraved Plates.
TRANSACTIONS OF THE INSTITUTION OF CIVIL
ENGINEERS.
LIST OF SUBJECTS.
Account of the Bridge over the Severn, near the
A Series of Experiments on different kinds of
Town of Tewkesbury, in the County of Glou-
American Timber. By W. DENISON, Lieut.
cester, designed by THOMAS TELFORD, and
Royal Engineers, F.R.S., A.Inst.
erected under his superintendence. By W.
On the Application of Steam as a moving Power,
CKENZIE, M.Inst.C.E.
considered especially with refereráce to the
Digitized by Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
9
economy of Atmospheric and High Pressure
On certain Forms of Locomotive Engines. By
Steam. By GEORGE HOLWORTHY PALMER,
EDWARD WOODS.
M.Inst.C.E.
Account and Description of Youghal Bridge, de-
Description of Mr. Henry Guy's method of giving
signed by Alexander Nimmo. By JOHN E.
a true Spherical Figure to Balls of Metal, Glass,
JONES, A.Inst.C.E.
Agate, or hard Substances. Communicated by
On the Evaporation of Water from Steam Boilers.
BRYAN DONKIN, V.P.Inst.C.E.
By JOSIAH PARKES, M.Inst.C.E.
On the expansive action of Steam in some of the
Account of a Machine for cleaning and deepening
Pumping Engines on the Cornish Mines. By
small Rivers, in use on the Little Stour River,
WILLIAM JORY HENWOOD, F.G.S., Secretary
Kent. By W. B. HAYS, Grad.Inst.C.E.
of the Royal Geological Society of Cornwall,
Description of the Perpendicular Lifts for passing
H. M. Assay-Master of Tin in the Duchy of
Boats from one Level of Canal to another, as
Cornwall.
erected on the Grand Western Canal. By
On the effective power of the High Pressure ex-
JAMES GREEN, M.Inst.C.E.
pansive condensing Engines in use at some of
On the methods of Illuminating Lighthouses, with
the Cornish Mines. By THOMAS WICKSTEED,
a description of a Reciprocating Light. By J.
M.Inst.C.E. A letter to the President.
T. SMITH, Captain Madras Engineers, F.R.S.,
Description of the Drops used by the Stanhope
A.Inst.C.E.
and Tyne Railroad Company, for the Shipment
Experiments on the Flow of Water through small
of Coals at South Shields. By THOMAS E.
Pipes. By W.A. PROVIS, M.Inst.C.E.
HARRISON, M.Inst.C.E.
Experiments on the Power of Men. By JOSHUA
On the Principle and Construction of Railways of
FIELD, V.P.Inst.C.E., F.R.S.
continuous bearings. By JOHN REYNOLDS,
Particulars of the Construction of the Floating
A.Inst.C.E.
Bridge lately established across the Hamoaze,
Wooden Bridge over the River Calder, at Mirfield,
between Torpoint in the County of Cornwall,
Yorkshire, designed and erected by WILLIAM
and Devonport in Devonshire. By JAMES M.
BULL, A.Inst.C.E.
RENDEL, M.Inst.C.E., &c. &c.
A Series of Experiments on the Strength of Cast
APPENDIX.-Officers, Members, &c.
Iron. By FRANCIS BRAMAH, M.Inst.C.E.
21.
Vol. 3, Part I., extra cloth boards, Price 4s.
TRANSACTIONS OF THE INSTITUTION OF CIVIL
ENGINEERS.
CONTENTS.
On Steam Boilers, by JOSIAH PARKES, M.Inst.C.E.
22.
Vol. 3, Part II.
TRANSACTIONS OF THE INSTITUTION OF CIVIL
ENGINEERS.
CONTENTS.
On Steam Boilers and Steam Engines, Part. II.
that and other Suspension Bridges, in reference
By JOSIAH PARKES, M.Inst.C.E.
to the action of violent gales. By C. W. PAS-
On the Comparison between the Power of Loco-
LEY, Colonel R.E., Hon. M.Inst.C.E. 1 Plate.
motive Engines and the Effect produced by
On the Expansion of Iron and Stone in Structures,
that Power at different Velocities. By Pro-
as shown by observation on the Southwark and
fessor BARLOW, Hon. M.Inst.C.E.
Staines Bridges. By GEORGE RENNIE, F.R.S.,
On the Properties, Uses, and Application of Turf,
&c. &c.
Turf-Coke, and Resin Fuel. By C. WYE WIL-
The Gravesend Pier. By W. TIERNEY CLARK,
LIAMS, A.Inst.C.E.
M.Inst.C.E. 6 Plates.
Description of a Sawing Machine for cutting off
On Well-sinking near the Metropolis, with an
Railway Bars. By JOSEPH GLYNN, M.Inst.C.E.
account of the Well sunk by the New River
1 Plate.
Company at their Reservoir in the Hampstead
On the State of the Suspension Bridge at Mon-
Road. By R. W. MYLNE. 1 Plate.
trose after the hurricane of the 11th of October,
On Locomotive Engines. By EDWARD BURY,
1838, with Remarks on the Construction of
M.Inst.C.E. 4 Plates.
Digitized by
Google
10
WORKS PUBLISHED BY JOHN WEALE,
23.
In 8vo., Price 8s.
A PRACTICAL TREATISE ON THE CONSTRUCTION AND
FORMATION OF RAILWAYS,
Showing the Practical Application and Expense of Excavating, Haulage, Embanking, and permanent
Waylaying; also, the method of fixing Roads upon continuous Timber Bearings; including the prin-
ciples of Estimating the Gross Load and Useful Effect produced by Mechanical or other Motive Power,
upon a Level and upon any Inclination. Illustrated with Diagrams and Original Useful Tables.
By JAMES DAY.
24.
12mo., Price 3s. in boards.
THE RAILWAY CALCULATOR, OR ENGINEER'S AND
CONTRACTOR'S ASSISTANT.
By JAMES DAY.
25.
A Sheet, Price 2s.
TABLE SHOWING THE CONTENTS OF EXCAVATIONS,
Intended to facilitate the Estimating of Public Works.
By GEORGE P. BIDDER, C.E.
26.
In 4to., with 12 large folding Plates, extra cloth boards, Price 14s.
A PRACTICAL AND THEORETICAL ESSAY ON OBLIQUE
BRIDGES.
By GEORGE WATSON BUCK, M.Inst.C.E.
27.
In Imperial 8vo. Second Edition with Additions. 11 Plates, extra cloth boards, Price 8s.
A PRACTICAL TREATISE ON THE CONSTRUCTION OF
OBLIQUE ARCHES.
By JAMES HART, Mason.
28.
In demy 8vo., with 107 Wood-cuts, extra cloth boards, Price 7s.
EXPERIMENTAL ESSAYS ON THE PRINCIPLES OF CON-
STRUCTION IN ARCHES, PIERS, BUTTRESSES, &c.
Made with a view to their being useful to the Practical Builder.
By W. BLAND, Esq., of Hartlip, Kent.
29.
In royal 8vo., in boards, with nine Charts and one Meteorological Table, Price £1. 1s.
AN ATTEMPT TO DEVELOP THE LAW OF STORMS,
By means of Facts arranged according to Place and Time ; and hence to point out a Cause for the
VARIABLE WINDS, with the view to PRACTICAL USE in NAVIGATION.
By Lieut.-Colonel W. REID, C.B., of the Royal Engineers.
Some copies with the Charts in a separate Atlas form, Price £1. 5s.
Digitized by Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
11
30.
In demy 8vo., extra cloth boards. A New Work, Price 12s.
THE THEORY OF THE STEAM ENGINE;
Showing the Inaccuracy of the Methods in use for calculating the Effects or the Proportions of
Steam Engines, and supplying a Series of Practical Formulæ to determine the Velocity of any Engine
with a given Load, the Load for a stated Velocity, the Evaporation for desired Effects, the Horse-
power, the useful Effect for a given Consumption of Water or Fuel, the Load, Expansion, and Counter-
weight fit for the Production of the Maximum useful Effect, &c., with
AN APPENDIX,
Containing concise Rules for persons not familiar with Algebraic Signs, and intended to render the use
of the Formulæ contained in the work perfectly clear and easy.
By COMTE DE PAMBOUR,
Formerly a Student in the E'cole Polytechnique, late of the Royal Artillery, on the Staff in the French
Service, of the Royal Order of the Légion d'Honneur, &c.
31.
In 8vo., cloth, Price 2s. 6d.
A NEW SYSTEM OF SCALES OF EQUAL PARTS,
Applicable to various purposes of Engineering, Architectural and General Science. Illustrated by a
Facsimile of the Scales on Copper-plate.
By CHARLES HOLTZAPFFEL, Associate of the Institution of Civil Engineers.
32.
In demy 8vo., extra cloth boards, with 16 Plates, Price 12s.
A SKETCH OF THE CIVIL ENGINEERING OF NORTH
AMERICA.
Comprising Remarks on the Harbours, River and Lake Navigation, Lighthouses, Steam Navigation
Water-works, Canals, Roads, Railways, Bridges, and other works in that country.
By DAVID STEVENSON, of Edinburgh, Civil Engineer.
33.
COLONEL PASLEY'S COMPREHENSIVE WORK ON GEOMETRY.
Second Edition, demy 8vo., much enlarged, Price 16s. cloth boards, (instead of £1. 4s.),
A COMPLETE COURSE OF PRACTICAL GEOMETRY AND
PLAN DRAWING;
Treated on a principle of peculiar Perspicuity. Adapted either for Classes, or for Self-Instruction.
Originally published as the first volume of a Course of Military Instruction.
By C. W. PASLEY, C.B., Colonel Royal Engineers, F.R.S., &c. &c.
34.
In demy 8vo., extra cloth boards, numerous Wood-cuts, Price 14s.
OBSERVATIONS ON LIMES, CALCAREOUS CEMENTS,
MORTARS, STUCCOS, AND CONCRETE,
AND ON PUZZOLANAS, NATURAL AND ARTIFICIAL; TOGETHER WITH RULES DEDUCED
FROM NUMEROUS EXPERIMENTS FOR MAKING AN ARTIFICIAL WATER CEMENT,
Equal in Efficiency to the best Natural Cements of England, improperly termed Roman Cements ; and
an Abstract of the Opinions of former Authors on the same Subjects.
By C. W. PASLEY, C.B., Colonel in the Corps of Royal Engineers, F.R.S., &c. &c. &c.
Digitized by
Google
12
WORKS PUBLISHED BY JOHN WEALE,
35.
Second Edition, with Additional Corrections, in 8vo., with a fine Frontispiece of a Locomotive Engine,
Price 8s.
ANALYSIS OF RAILWAYS;
Consisting of Reports of RAILWAYS projected in England and Wales; to which are added, a Table of
Distances from the proposed London Terminus to Eight well-known Places in the Metropolis, with a
copious GLOSSARY, and several Useful Tables.
By FRANCIS WHISHAW, C.E., M.Inst.C.E.
36.
Just published, in 8vo., bound, Price 3s. 6d.
THE PRACTICE OF MAKING AND REPAIRING ROADS;
OF CONSTRUCTING FOOTPATHS, FENCING, AND DRAINS;
Also a Method of comparing Roads with reference to the Power of Draught required: with Practical
Observations, intended to simplify the mode of Estimating Earth-work in Cuttings and Embankments.
By THOMAS HUGHES, Esq., Civil Engineer.
37.
With folding Plates, in 4to., Price 3s.
SECTIO-PLANOGRAPHY;
A DESCRIPTION OF MR. MACNEILL'S METHOD OF LAYING DOWN RAILWAY SECTIONS
AND PLANS IN JUXTAPOSITION.
As adopted by the Standing Order Committee of the House of Commons, 1837.
By FRED. W. SIMMS, Civil Engineer.
38.
In 8vo., with several Plates, Price 16s.
A TREATISE ON THE STRENGTH OF TIMBER, CAST IRON,
MALLEABLE IRON, AND OTHER MATERIALS,
With Rules for Application in Architecture, Construction of Suspension Bridges, Railways, &c.; with
an Appendix on the Powers of Locomotive Engines on Horizontal Planes and Gradients.
By PETER BARLOW, F.R.S., &c. &c.
39.
Third Edition, with 28 additional Plates, Edited by PETER BARLOW, Esq., F.R.S., M.I.C.E., in extra
half-morocco, Price £2. 2s.
ELEMENTARY PRINCIPLES OF CARPENTRY, AND ON
CONSTRUCTION.
A Treatise on the Pressure and Equilibrium of Beams and Timber Frames, the Resistance of Timbers,
and the Construction of Floors, Roofs, Centres, Bridges, &c. ; with Practical Rules and Examples. To
which is added, an Essay on the Nature and Properties of Timber; including the Methods of Seasoning,
and the Causes and Prevention of Decay; with Descriptions of the Kinds of Wood used in Building:
also numerous Tables of Scantlings of Timber for different purposes, the Specific Gravities of Materials,
&c. Illustrated by 50 Engravings.
By THOMAS TREDGOLD, Civil Engineer.
)
Digitized by Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
13
40.
In Quarto, 28 fine Plates, Price £1. 18.
TREDGOLD'S ELEMENTARY PRINCIPLES OF CARPENTRY,
AND ON CONSTRUCTION.
SUPPLEMENT TO THE SECOND EDITION.
Sold separately for the convenience of those possessing the former Edition.
Comprising Engravings of Iron and Timber Roofs of Italian Palaces, Churches, Theatres, &c.; of a
Juvenile Prison, Pantheon Bazaar, &c. &c., by Mr. SYDNEY SMIRKE; Iron and Timber Roof, &c. of
Christ's Hospital and St. Dunstan's in the West, by Mr. JOHN SHAW; Timber Roofs of White Conduit
House Tavern and others, by Mr. DUNCAN; Iron and Timber Construction of Croydon Railway Station,
by Mr. Jos. GIBBS; Iron and Timber Roofs of the Trent Water-works, Nottingham, and the Roofs of
the Model Room, the Smithery, and Engine Manufactory, at Butterley, by Mr. Jos. GLYNN with Mr.
MACKENZIE'S elaborate Drawings of the Construction of King's College Chapel, Cambridge. The
whole described by the different Contributors, and edited by PETER BARLOW, Esq., F.R.S., &c. &c.
41.
Royal 8vo., Price 7s. 6d.
AN ESSAY ON THE MODERN SYSTEM OF FORTIFICATION
Adopted on the Rhine and Danube, and followed in all the works constructed since the Peace of 1815,
in Germany. Illustrated by a copious Memoir on the Fortress of Coblentz, and accompanied by
beautiful Plans and Sections of the works of that place.
By Lieutenant-Colonel J. H. HUMFREY, K.S.F.,
Formerly of the Royal Artillery and Royal Staff Corps, and late Commanding Engineer to the Corps of
Cantabria, Author of several Military Works, &c. Long resident in Germany, where he had oppor-
tunities of collecting information from the best sources.
42.
In 8vo., upwards of 500 pages, Price 8s.
AN ELEMENTARY INVESTIGATION OF THE THEORY OF
NUMBERS,
With its Application to the Indeterminate and Diophantine Analysis, the Analytical and Geometrical
Division of the Circle, and several other curious Algebraical and Arithmetical Problems.
By PETER BARLOW, Esq., F.R.S., M.Inst.C.E., and of several other Learned Societies and Academies.
43.
With Plates, 8vo., Price 6s.
A PRACTICAL TREATISE ON THE PRINCIPLES AND PRACTICE
OF THE ART OF LEVELLING,
With Practical Elucidations and Illustrations, and Rules for Making Roads upon the principle of
TELFORD; together with Mr. MACNEILL'S Instrument for the Estimating of Roads, &c.
A work most essential to the Student.
44.
Engraved in aquatinta and coloured, 38 Plates. Quarto. Price £1. 48.
ARCHITECTURAL SKETCHES FOR COTTAGES, RURAL
DWELLINGS, AND VILLAS;
With Plans, suitable to persons of genteel life and moderate fortune, proper for Picturesque Buildings.
By R. LUGAR, Architect.
(
Digitized by
Google
14
WORKS PUBLISHED BY JOHN WEALE,
45.
Large Atlas folio, 17 very finely engraved Plates, Price £4. 14s. 6d.-A few copies only of proofs on
India paper, Price £6. 6s.
SUSPENSION BRIDGES.
A SCIENTIFIC and an HISTORICAL and DESCRIPTIVE ACCOUNT of the SUSPENSION
BRIDGE constructed over the MENAI STRAIT, in North Wales; with a brief Notice of CONWAY
BRIDGE. From Designs by and under the direction of THOMAS TELFORD, F.R.S., L. and E., &c. &c.,
and ALEXANDER PROVIS, Esq., Resident Engineer.
46.
In 8vo., with Plates, Price 12s.
CEMENTS.
A PRACTICAL and SCIENTIFIC TREATISE on the Choice and Preparation of the Materials for, and
the Manufacture and Application of, Calcareous Mortars and Cements, Artificial and Natural, founded
on an Extensive Series of Original Experiments. By M. L. J. VICAT, Chief Engineer of Roads, &c.
Translated from the French, with numerous and valuable Additions, and Explanatory Notes, com-
prehending the most important known Facts in this Science, and with additional new Experiments and
Remarks.
By Captain J. T. SMITH, Madras Engineers.
47.
In 12mo., Price 2s. 6d. in boards.
RULES AND DATA FOR THE STEAM ENGINE,
BOTH STATIONARY AND LOCOMOTIVE;
And for RAILWAYS, CANALS, and TURNPIKE ROADS being a Synopsis of a Course of Eight Lectures
on MECHANICAL PHILOSOPHY; illustrative of the most recent modes of Construction, and an Exposition
of the Errors to which Patentees and others are liable, from their not being acquainted with the
practical departments of Engineering.
By HENRY ADCOCK, Civil Engineer.
48.
In 5 Parts, large oblong folio, with a Letter-press Description in 4to. to each, Price £1. 18. each Part
with the Text.
THE CIVIL ENGINEER AND MACHINIST:
PRACTICAL TREATISES OF CIVIL ENGINEERING, ENGINEER BUILDING, MACHINERY,
MILL-WORK, ENGINE-WORK, IRON-FOUNDING, &c. &c.
By C. J. BLUNT.
CONTENTS.
DIVISION 1.-Boulton and Watt's Portable Steam
wheels and Iron Roofs, by the late THOMAS
Engine, complete, with all the details, in 10
TELFORD; Plans, Sections, and Machinery of the
Plates.
Wemyss Colliery, &c.
DIVISION 2.-Marine Steam Engines and Ma-
DIVISION B.-Bridges and Viaducts, with the
chinery; Steam Corn Mills, &c., complete.
original Specifications of the London and Bir-
DIVISION 3.-Sugar Mills, on horizontal and verti-
mingham Railway, Locomotive and Bogie En-
cal construction; Steam Corn Mills, by MAUDS-
gines of do. in detail, the Goods Waggons,
LAY and FIELD; the Kent and Surrey Sewers,
Tenders, and divers Specifications of Works,
Sluices, &c.; Smith's Forge, and Great Forge
&c. &c., by ROBERT STEPHENSON, Esq. Loco-
Hammer.
motive Engines on the Newcastle and Carlish
DIVISION A.-Sea Entrance Gates, Swing Bridges,
Railway, by GEORGE STEPHENSON, Esq.; the
Canal Bridge, Specifications of the Works, &c.,
Great Western Railway Bridge, &c,, by J.E.
of the Gloucester and Berkeley Canal, Water-
BRUNEL, F.R.S., &c. &c.
Digitized by
Google
(
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
15
49.
Five Livraisons. Plates Atlas folio, with Text in 4to.
LOCOMOTIVE ENGINES AND CARRIAGES.
POPULAR FRENCH WORK.
L'INDUSTRIE DES CHEMINS DE FER, ou Dessins et Descriptions des Machines Locomotives, des Four-
gons d'approvisionnement (Tenders), Wagons de Transport et de Terrassements, Voitures, Diligences,
Rails, Supports, Plates-Formes mobiles, Aiguilles, Machines accessoires, &c. &c., en usage sur les
Routes en Fer, de France, Angleterre, Allemagne, Belgique, &c. &c.
Par MM. ARMENGAUD.
50.
Second Edition, in 8vo, extra cloth boards, 10 Plates, Price 7s. 6d.
PERSPECTIVE SIMPLIFIED;
Containing a new PRELIMINARY CHAPTER, in which the subject is treated in the most plain and easy
manner, for the convenience of readers not acquainted with Geometry.
By Z. LAURENCE, Esq.
51.
In 4to., with Wood-cuts, and 4 fine Engravings by JOHN LE KEUX, Price 7s. 6d.
AN ACCOUNT OF THE ROOF OF KING'S COLLEGE CHAPEL,
CAMBRIDGE.
By F. MACKENZIE, Author and Draughtsman of some of the finest Architectural Works.
52.
In demy 8vo., 3 Engravings, Price 7s. 6d.
MECHANICS FOR PRACTICAL MEN;
Containing Explanations of the Principles of Mechanics; the Steam Engine, with its various Pro-
portions; Parallel Motion, &c.; Tables of the Weight of Cast-Iron Pipes, Strength and Stress of
Materials, &c.
By JAMES HANN, King's College, and ISAAC DODDS, C.E.
53.
4to., Price £1. 18. Revised and corrected.
THE CARPENTER AND JOINER'S ASSISTANT;
Containing Practical Rules for making all kinds of Joints, and various methods of hingeing them
together; for hanging of Doors; for fitting up Windows and Shutters; for the construction of Floors,
Partitions, Soffits, Groins, Arches for Masonry ; for constructing Roofs in the best manner from a given
quantity of Timber, &c. Also Extracts from M. Belidor, M. du Hamel, M. de Buffon, &c., on the
Strength of Timber. Illustrated with 79 Plates.
By PETER NICHOLSON, Architect.
54.
In 8vo., with two large folding Plates of Sections of Roads, Price 2s.
MAKING AND REPAIRING ROADS.
RULES for MAKING and REPAIRING ROADS, as laid down by the late THOMAS TELFORD, Esq.,
Civil Engineer. Extracted, with additions, from a Treatise on the Principles and Practice of Levelling.
By F. W. SIMMS, Surveyor and Civil Engineer.
Google
(
Digitized by
16
WORKS PUBLISHED BY JOHN WEALE,
55.
4to., with Plates. Price 15s.
A TREATISE ON RIVERS AND TORRENTS,
With the METHOD of REGULATING their COURSE and CHANNELS. By PAUL FRISI, Member
of numerous Academies. To which is added, an ESSAY on NAVIGABLE CANALS, by the same.
Translated by Major-General JOHN GARSTIN.
56.
Wood-cuts, 8vo. Price 5s.
SECOND REPORT ON THE LONDON AND BIRMINGHAM
RAILWAY,
Founded on an Inspection of, and Experiments made on, the Liverpool and Manchester Railway.
By PETER BARLOW, F.R.S., &c. &c.
57.
Wood-cuts, 8vo. Price 4s. 6d.
AN ESSAY ON THE CONSTRUCTION OF THE FIVE ARCHI-
TECTURAL SECTIONS OF CAST-IRON BEAMS,
Employed as Girders, Bressummers, and other Horizontal Supports for Buildings, &c.
By WILLIAM TURNBULL.
58.
Third Edition. Folio, with a large Atlas of Plates. Price £4. 4s.
NAVAL ARCHITECTURE;
Or, the RUDIMENTS and RULES of SHIP BUILDING: exemplified in a SERIES of DRAUGHTS
and PLANS with Observations tending to the further Improvement of that important Art. Dedicated,
by permission, to His late Majesty.
By MARMADUKE STALKARTT, Naval Architect.
59.
Three vols. large 4to., numerous fine Plates. Price £3. 3s.
HISTORY OF MARINE ARCHITECTURE.
By JAMES CHARNOCK, F.S.A.
Illustrative of the Naval Architecture of all Nations from the earliest period, particularly British.
Charnock is a work essential to all who study the construction of ships, large and small craft,
whether for war, packet, or mercantile purposes.
60.
Supplementary and Fifth Volume to the Antiquities of Athens, by R. C. Cockerell, Esq., &c.
ANTIQUITIES OF ATHENS AND OTHER PLACES OF GREECE,
SICILY, &c.
Supplementary to the Antiquities in Athens, by JAMES STUART, F.R.S., F.S.A., and NICHOLAS
REVETT; delineated and illustrated by R. C. COCKERELL, R.A., F.S.A., W. KINNARD, T. L. DONALD-
SON, Member of the Institute of Paris, W. JENKINS, and W. RAILTON, Architects.
Imperial folio, uniform with the Original Edition of Stuart and Revett, and the Dilettanti Works
Very finely printed, and with numerous beautiful Plates of Plans, Elevations, Sections, Views, Orna-
ments, &c. In extra cloth boards and lettered, Price £6. 12s.
Digitized by Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
17
61.
Very neatly half-bound in morocco, gilt tops, Price £3. 3s.
ARCHITECTURE OF THE METROPOLIS.
DEDICATED TO SYDNEY SMIRKE, ESQ., ARCHITECT, F.S.A., F.G.S.
A New and Considerably Enlarged Edition, with many Additional Subjects and Plates, of
ILLUSTRATIONS OF THE PUBLIC BUILDINGS OF LONDON,
In Two Volumes 8vo., with 165 Engravings, originally edited by the late AUGUSTUS PUGIN, Architect,
and JOHN BRITTON, F.S.A., &c., and now newly Edited and Enlarged
By W. H. LEEDS.
Manifold as are the publications which represent
them no plans and elevations are to be met with
the various structures of the metropolis, this is
in any other publication, which materially en-
the only work which describes them, not ad libi-
hances the interest of this collection, and it pre-
tum, in views which, even when perfectly correct,
serves to us authentic and tolerably complete
show no more than the general aspect and locality
records of many buildings which no longer exist.
of each building from a certain point, and conse-
Among these are CARLTON HOUSE, illustrated
quently afford no information beyond mere ex-
with several plates, including sections, and a plan
ternal appearance-but exhibits them architec-
of the private apartments; the late ENGLISH
turally by means of plans, elevations, and occa-
OPERA HOUSE; Mr. NASH'S GALLERY, which
sionally both sections and interior perspective
has since been dismantled of its embellishments;
views. Thus a far more complete and correct
and THE ROYAL EXCHANGE.
knowledge may be obtained of each edifice, in its
Among the subjects introduced in this New
entire arrangement in all its parts and dimensions,
Edition will be found the following:-The TRA-
than by pictorial views of them.
VELLERS' CLUB HOUSE-LONDON UNIVERSITY
As studies for the Architect, the subjects con-
-ST. GEORGE'S HOSPITAL-GATEWAY, Green
tained in these volumes strongly recommend them-
Park-Post OFFICE-FISHMONGERS' HALL-ST.
selves,-more particularly so, as of the majority of
DUNSTAN'S, Fleet Street, &c. &c.
62.
Royal 8vo., 18 Engravings, cloth boards, 10s. 6d.
ILLUSTRATIONS OF THE PUBLIC BUILDINGS OF LONDON,
With descriptive Accounts of each Edifice.
SUPPLEMENT:
Containing the NEW SUBJECTS and DESCRIPTIONS by W. H. LEEDS, incorporated in the second
edition, and now sold separate for the accommodation of those possessing the first edition.
Also a few copies in imperial 8vo. for large paper copies of the first edition, Price 15s.
63.
In demy 8vo., cloth boards, Price 9s.
A TREATISE ON THE LAW OF DILAPIDATIONS AND
NUISANCES.
By DAVID GIBBONS, Esq., of the Middle Temple, Special Pleader.
Dedicated to the Honourable Sir John Taylor Coleridge, Knt., one of Her Majesty's Justices of the
Court of Queen's Bench.
64.
One large sheet, very accurately coloured, size within the line of work 251 inches by 181. Price 10s.
GEOLOGICAL STRUCTURE OF ENGLAND, IRELAND, AND
SCOTLAND.
An Index Geological Map of the British Isles constructed from published documents, communications
of eminent Geologists, and personal investigation.
By JOHN PHILLIPS, F.R.S., G.S., Professor of Geology in King's College, London.
Engraved by J. W. LOWRY.
Mounted in a case, Price 13s. ; on black roller, 16s. ; mahogany do., 18s.
Digitized by
Google
18
WORKS PUBLISHED BY JOHN WEALE,
65.
Bathic Architecture.
The following very valuable and interesting Work has been withheld from sale for several years;
the publication price was fixed at £2. 2s., but, as a favourable purchase has been made, the price
is now 16s. in extra cloth boards, and lettered.
A SERIES OF ANCIENT BAPTISMAL FONTS, NORMAN, EARLY
ENGLISH, DECORATED ENGLISH, AND PERPENDICULAR
ENGLISH.
Drawn by F. SIMPSON, Jun., and Engraved by R. ROBERTS.
Large 8vo., containing 40 very beautifully engraved Plates, in the best style of the Art, and the Text
written by an accomplished and talented Gentleman, whose attainments in Architecture and as an Anti-
quarian are well known and appreciated.
A few copies on large paper, Price £1. 88. and only six copies India proofs, with Etchings, at £2. 2s.
66.
One large 4to. The Plates engraved in the finest style of Art. Cloth boards, lettered, Price £1. 10s.
THE MONUMENTAL REMAINS OF NOBLE AND EMINENT
PERSONS,
Comprising the Sepulchral Antiquities of Great Britain, engraved from Drawings by
EDWARD BLORE, Architect, F.S.A.
With Historical and Biographical Illustrations.
CONTENTS.
1. Eleanor, Queen of Edward the First. Westminster
17. John Gower. St. Saviour's Church, Southwark.-
Abbey.-1290.
1408.
2. Effigy of the same.
18. King Henry the Fourth and his Queen. Canterbury
3. Brian Fitzalan, Baron of Bedale. Bedale Church.-
Cathedral.-1412.
1301.
19. Effigy of the same.
4. Aymer de Valence, Earl of Pembroke. Westminster
20. Thomas Fitzalan, Earl of Arundel. Arundel Church.
Abbey.-1324.
-1415.
5. Sir James Douglas. Douglas Church.-1331.
21. Ralph Neville, Earl of Westmorland. Staindrop
6. Gervase Alard, Admiral of the Cinque Ports. Winchel-
Church.-1425.
sea Church.-No date.
22. Archibald, 5th Earl of Douglas. Douglas Church.-
7. Philippa, Queen of Edward the Third. Westminster
1438.
Abbey.-1369.
23. Richard Beauchamp, Earl of Warwick. Beauchamp
8. Effigy of the same.
Chapel, Warwick.-1439.
9. Thomas Beauchamp, Earl of Warwick. Beauchamp
24. Effigy of the same.
Chapel, Warwick.-1370.
25. John Beaufort, Duke of Somerset. Wimborn Minster.
10. Edward, Prince of Wales. Canterbury Cathedral.-
-1444.
1376.
26. Humphrey, Duke of Gloucester. St. Alban's Abbey.-
11. Effigy of the same.
1446.
12. King Edward the Third. Westminster Abbey.-1377.
27. Sir John Spencer. Brington Church.-1522.
13. Effigy of the same.
28. Archbishops Warham and Peckham. Canterbury
14. Thomas Hatfield, Bishop of Durham. Durham Cathe-
Cathedral.-1532.
dral.-1381.
29. Margaret Plantagenet, Countess of Salisbury. Christ's
15. William of Wykham, Bishop of Winchester. Win-
Church, Hampshire.-1541.
chester Cathedral.-1404.
30. Sir Anthony Browne. Battle Abbey.-1548.
16. Effigy of the same.
67.
In folio size, Price £1. 18. in boards.
BRIDGEN'S INTERIOR DECORATIONS, DETAILS, AND VIEWS
OF SEFTON CHURCH, IN LANCASHIRE,
Erected by the Molineux family (the ancestors of the present Earl of Sefton), in the early part of the
reign of Henry VIII.
The Plates (34 in number) display the beautiful Style of the Tudor Age in Details, Ornaments
Sections, and Views. Etched in a masterly style of Art.
Digitized by
Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
19
68.
Royal 4to., very neatly half-bound in morocco, gilt, Price £2. 12s. 6d.
DRAWINGS OF THE FINEST EXISTING SPECIMENS OF
ANCIENT HALF-TIMBERED HOUSES OF ENGLAND,
And of their Details; with an Essay, showing the Classification of the Style, and the Age to which it
belongs.
By M. HABERSHON, Architect.
*** The work contains upwards of Twenty Views, taken from the finest remaining Specimens of this
interesting branch of the Ancient Architecture of England, comprising Manor Houses, Town Resi-
dences, and Cottages, some of which are particularly striking and picturesque; and, in order to give a
more complete illustration of it, such Views are accompanied by Drawings, to a large scale, of Chim-
neys, Tracery, Porches, Doors, Windows, and other Details. To which is added, an Essay, giving a
General Historical View of English Architecture.
69.
With Plates, imperial 8vo., cloth boards, £1. 18.
CLARKE'S ELIZABETHAN ARCHITECTURE.
CONTENTS.
Wimbledon House, Surrey, built by Sir Thomas Cecil,
Brereton Hall, Cheshire, Sir Walter Brereton.
1588.
Holland House, Middlesex, Sir Walter Cope.
Easton House, Essex, Sir Henry Maynard.
Haughley House, Suffolk.
Aston Hall, Warwickshire, Sir Thomas Holt.
Streete Place, Sussex, Dobell.
Grafton Hall, Cheshire, Sir Peter Warburton.
Montacute House, Somersetshire, Sir Edward Philips.
Stanfield Hall, Norfolk, family of Flowerdews.
Westwood House, Worcestershire.
Seckford Hall, Thomas Seckford.
Wakehurst Place, Sussex, Sir Edward Culpeper.
Bramshill House, Hampshire.
Carter's Corner, Sussex.
Fenn Place, Kent, Lord Zouch.
Eastbury House, Essex, Lord Monteagle.
Queen's Head, Islington, Sir Walter Raleigh.
East Mascall, Sussex, Newton.
Chasleton, Oxfordshire, Walter Jones.
Old House, near Worcester, &c.
70.
Sixty Plates, Title-Page printed in colours and gold, elegantly half-bound in morocco, and lettered,
Price £1. 16s.
SPECIMENS OF THE ARCHITECTURE OF THE REIGNS OF
QUEEN ELIZABETH AND KING JAMES I.,
From Drawings by CHARLES JAMES RICHARDSON, GEORGE MOORE, and other Architects, with
Observations and Descriptions of the Plates.
Eighteen Plates illustrate the Old Manor House, the Gardens, Terraces, &c. at Claverton, the Seat of
George Vivian, Esq.-six the Duke of Kingston's Picturesque House at Bradford-and eight the
princely Mansion of Lord Holland at Kensington.
The volume contains examples of Ceilings, Porches, Balustrades, Screens, Staircases, Monuments,
Pulpits, &c. and a rich collection of Facsimiles of Old English Drawings, chiefly of John Thorpe,
the most eminent Artist in Queen Elizabeth's time.
71.
In 8vo., extra cloth boards, and lettered, Price 7s.25 copies are printed on India paper, Price 10s. 6d.
Second Edition, corrected.
HAKEWELL'S ATTEMPT TO DETERMINE THE EXACT
CHARACTER OF ELIZABETHAN ARCHITECTURE,
Illustrated by Parallels of Dorton House, Hatfield, Longleate, and Wollaton, in England; the Pallazzo
della Cancellaria, at Rome.
The Plates (8 in number) consist of compartments of the Pallazzo della Cancellaria, at Rome, by
Bramante, 1495; and Longleate, by John of Padua, 1547. Compartment of the South Front of
Hatfield, 1611, with compartment of Wollaton Hall, 1580; Dorton House, Bucks-a Plan, Screen in
Digitized by
Google
20
WORKS PUBLISHED BY JOHN WEALE,
the Hall Longitudinal Section of the Staircase Transverse Section of the Staircase Chimney-piece
in Queen Elizabeth's room ; Ceiling in the same room ; a front view of the Queen occupies the centre
compartment; the corresponding compartments are filled with the Portraits of her principal Ministers
in profile.
72.
8vo., cloth boards, and lettered, Price 8s.
MOLLER'S GERMAN GOTHIC ARCHITECTURE,
Translated. With Notes and Illustrations by W. H. LEEDS.
73.
In 8vo., with Notes and Illustrations by W. H. LEEDS. Price £4. 4s.
German Bothic Architecture.
MEMORIALS OF GERMAN ARCHITECTURE;
Or, the ARCHITECTURAL ANTIQUITIES OF GERMANY.
By GEORGE MOLLER, of Darmstadt, Architect to the Grand Duke of Hesse.
2 vols., large folio, with 130 Plates, a Description of each Edifice, and an Essay on the Origin and Pro-
gress of Gothic Architecture, with reference to its Origin and Progress in England; in the German
Language, accompanied by an English Translation.
6 The Transition, or Early German, has not yet, 50 far
more will probably appear in a short time. Dr. Moller's
as I know, received much distinct attention. Dr. Moller,
work (Denkmaehler der Deutschen Baukunst) already con-
however, in the course of his valuable Denkmaehler, has
tains excellent specimens of every style of German build-
recently given us excellent representations of the Cathedral
ings, and offers additional interest and beauty in each new
at Limburg, on the Lahn, which is a very admirable speci-
number.' Whewell's Notes on German Churches, pp.
men of this kind and has noticed the intermediate and
28, 29.
transition place which this edifice seems to occupy in the
The Church of St. Catharine, at Oppenheim, near
developement of the German style.'-Whewell's Notes on
Worms, also in part a ruin, is another fine example of this
German Churches, p.25.
style, and has been worthily illustrated in the magnificent
6 There exist, however, several valuable publications, with
work of Dr. Moller.' - Whewell's Notes on German
good plates, on the subject of German Architecture, and
Churches, p. 113.
Several copies of Seventy-two Plates, making Vol. I., have been sold in this country : some copies of
the 2nd Vol. to make up these sets can be had for £2. 12s. 6d.
74.
Royal 4to., with Plates. Price £1. 1s.
PROLUSIONES ARCHITECTONICE;
Or, ESSAYS on Subjects connected with GRECIAN and ROMAN ARCHITECTURE. Illustrated by
Forty Engravings by eminent Artists. Dedicated, by permission, to EARL GREY, K.G.
By WILLIAM WILKINS, A.M., R.A., F.R.S.,
Formerly a Senior Fellow of Caius College, in the University of Cambridge; Professor of Architecture
in the Royal Academy of Arts.
75.
2 vols 4to., upwards of 70 Plates and Wood-cuts, Price £2. 2s.
LETTERS OF AN ARCHITECT FROM FRANCE, ITALY,
AND GREECE;
Or, CRITICAL REMARKS on CONTINENTAL ARCHITECTURE, ANCIENT and MODERN, and
on the CLASSIC ARCHITECTURE of GREECE. Written in a Series of Letters.
By JOSEPH WOODS, F.A.S., F.L.S., F.G.S., &c.
Digitized by
Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
21
76.
8vo., with Plates, Price 7s.
VENTILATION, WARMING, AND TRANSMISSION OF SOUND.
REPORT OF THE COMMITTEE OF THE HOUSE OF COMMONS ON VENTILATION, WARMING,
AND TRANSMISSION OF SOUND,
Abbreviated, with Notes. By W. S. INMAN, Architect, F.I.B.A.
77.
In 8vo., illustrated with a very fine Frontispiece of ST. PAUL'S CATHEDRAL, by GLADWIN. Extra
cloth boards, Price 10s. 6d.
THE PROFESSIONAL PRACTICE OF ARCHITECTS AND THAT
OF MEASURING SURVEYORS,
And Reference to BUILDERS, &c., &c., from the time of the celebrated EARL OF BURLINGTON.
By JAMES NOBLE, Architect, F.I.B.A.
78.
78 very fine Plates, royal folio, neat in cloth boards and lettered, Price £3. 3s.
THE UNEDITED ANTIQUITIES OF ATTICA.
By the Society of Dilettanti. Comprising the Architectural Remains of Eleusis, Rhamnus, Sunium,
and Thoricus.
79.
8vo., with Plates, Price 7s.
COTTAGES AND HOUSES FOR THE PEASANTRY AND
EMIGRANTS.
ELEMENTARY AND PRACTICAL INSTRUCTIONS ON THE ART OF BUILDING COTTAGES AND HOUSES
FOR THE HUMBLER CLASSES.
An Easy Method of Constructing Earthen Walls, adapted to the Erection of Dwelling-houses, Agri-
cultural and other Buildings, surpassing those built of Timber in comfort and stability, and equalling
those built of Brick, and at a considerable saving. To which are added, Practical Treatises on the
Manufacture of Bricks and Lime; on the Arts of Digging Wells and Draining; Rearing and Managing
a Vegetable Garden; Management of Stock, &c. For the use of Emigrants for the better Lodging of
the Peasantry of Great Britain and Ireland; and the Improvement of those Districts to which the
benevolence of Landed Proprietors is now directed.
By WILLIAM WILDS, Surveyor.
The work contains
CHAP. I. The Art of Constructing Houses and Cottages
IV. On the Properties, Uses, and Manufacture of Lime.
with Earthen Walls made easy, being intelligible to all
V. On Well-digging, Draining, Well-sinking, &c.; on
classes, and to the most ignorant in building, with
Fuel, on Gardening; what quantity of Land will keep a
Wood-cuts of tools, plans, and sections, &c.
Family in culinary Vegetables; Pork, Eggs, Milk, and
II. On Bricks, how they are to be advantageously applied
Bread Corn; on the Keeping of Cows, Hogs, Poultry,
in conjunction with rammed earth; rules for selecting
Bees, and Art of making of Candles, Soap, Storing Fruit,
the best earth, &c.
Roots, &c.
III. On the Manufacture and Choice of Bricks.
80.
In 4to. Plates, very neatly coloured, cloth boards and lettered, Price 16s.
A SERIES OF DESIGNS FOR VILLAS AND COUNTRY HOUSES,
Adapted with Economy to the Comforts and to the Elegances of Modern Life, with Plans and
Explanations to each.
By C. A. BUSBY, Architect.
Digitized by
Google
22
WORKS PUBLISHED BY JOHN WEALE,
81.
Second Edition, 4to., Price £1. 1s.
DESIGNS FOR VILLAS AND OTHER RURAL BUILDINGS.
By the late EDMUND AIKIN, Architect.
Engraved on 31 Plates, with Plans and Elevations, elegantly coloured, and an Introductory Essay,
containing Remarks on the prevailing Defects of Modern Architecture, and on the Investigation of the
Style best adapted for the Dwellings of the Present Times. Dedicated to the late Thomas Hope, Esq.
6 Modern Architects profess to imitate antique examples,
which is superior to the details that guide them ? This is
and do so in columns, entablatures, and details, but never
a subject which it may be useful and interesting to pursue.'
in the general effect. Is it that they imitate blindly, and
-Vide Introduction.
without penetrating into those principles and that system
82.
16 Plates, large 4to., Price 16s.
DESIGNS FOR RURAL CHURCHES.
By GEORGE E. HAMILTON, Architect.
83.
Second Edition, in 8vo., illustrated with numerous large folding Plates, Price 12s. 6d.
A POPULAR TREATISE ON THE WARMING AND VENTI-
LATION OF BUILDINGS,
Showing the advantages of the Improved System of Heated Water Circulation, &c. &c. &c.
By CHARLES JAMES RICHARDSON, Architect.
84.
The Sixth Edition, Price 18s. bound.
THE PRACTICAL HOUSE CARPENTER, OR YOUTH'S
INSTRUCTOR;
Containing a great variety of useful Designs in Carpentry and Architecture; as Centering for Groins,
Niches, &c. ; Examples for Roofs, Skylights, &c. ; Designs for Chimney-pieces, Shop Fronts, Door
Cases; Section of a Dining-Room and Library; variety of Staircases, with many other important
Articles and useful Embellishments. The whole illustrated and made perfectly easy by 148 4to.
Copper-plates, with Explanations to each.
By WILLIAM PAIN.
85.
In small 8vo., for a Pocket-Book. A New Edition, with the Government Tables of Annuities.
Price 7s. boards.
TABLES FOR THE PURCHASING OF ESTATES,
Freehold, Copyhold, or Leasehold, Annuities, &c., and for the Renewing of Leases held under Cathedral
Churches, Colleges, or other Corporate Bodies, for Terms of Years certain, and for Lives also, for
valuing Reversionary Estates, Deferred Annuities, Next Presentations, &c. Together with several
useful and interesting Tables connected with the subject. Also, the Five Tables of Compound Interest.
By W. INWOOD, Architect and Surveyor.
86.
12mo., Price 3s. 6d.
A MANUAL OF THE LAW OF FIXTURES.
By DAVID GIBBONS, Esq., of the Middle Temple, Special Pleader.
*** A work purposely written for the use of Builders, House Agents, and House and Land Proprietors.
Digitized by Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
23
87.
Price 2s. 6d., pocket size, cloth boards.
THE BUILDING ACT (at Large), side References.
With Extracts from the Sweeps' Acts; and with Explanatory Notes and Cases.
By A. AINGER, Architect.
88.
8vo., Price 16s.
COMPLETE ASSISTANT for the Landed Proprietor, Estate and House
Agent, Land Steward, Proctor, Architect, &c.
89.
8vo. volume, with a folding Plate, Price 5s.
ON THE SAFETY LAMP,
For Preventing Explosions in Mines, Houses Lighted by Gas, Spirit Warehouses, or Magazines in
Ships, &c. ; with Researches on Flame.
By SIR HUMPHREY DAVY, Bart.
90.
New Edition, 8vo., Price 16s. With 35 Copper-plate Engravings.
A TREATISE ON ISOMETRICAL DRAWING,
As applicable to Geological and Mining Plans, Picturesque Delineations of Ornamental Grounds, Per-
spective Views and Working Plans of Buildings and Machinery, and to General Purposes of Civil
Engineering; with Details of improved Methods of preserving Plans and Records of Subterranean
Operations in Mining Districts.
By T. SOPWITH, M.I.C.E.
91.
Second Edition, with Examples, Price 3s. 6d.
A SET OF PROJECTING AND PARALLEL RULERS,
For constructing Working Plans and Drawings in Isometrical and other Modes of Projection.
Invented by T. SOPWITH.
92.
Price 10s. 6d.
GEOLOGICAL SECTIONS
Of Holyfield, Hudgill Cross Vein, and Silver Band Lead Mines, in Alston Moor and Teesdale, showing
the various Strata and Subterranean Operations. Engraved on three coloured Plates, with De-
scriptions, &c.
93.
12mo., Price 48. 6d.
AN ACCOUNT OF THE MINING DISTRICTS
Of Alston Moor, Weardale, and Teesdale, in Cumberland and Durham; Descriptive Sketches of the
Scenery, Antiquities, Geology, and Mining Operations in the Upper Dales of the Rivers Tyne, Wear,
and Tees.
Digitized by
Google
24
WORKS PUBLISHED BY JOHN WEALE,
94.
In 4to., with 5 Plates, in boards, Price 10s. 6d.
OBSERVATIONS ON THE CONSTRUCTION AND FITTING UP
OF MEETING HOUSES, &c. FOR PUBLIC WORSHIP;
Illustrated by Plans, Sections, and Descriptions, including one erected in the City of York embracing,
in particular, the METHOD of WARMING and VENTILATING.
FURNITURE AND INTERIOR DECORATIONS.
95.
102.
Royal 4to., Price £1. 18.
On 33 folio Plates, engraved in imitation of
CHIPPENDALE'S 133 DESIGNS OF
Chalk Drawings, Price 15s.
INTERIOR DECORATIONS IN THE OLD
ORNAMENTS DISPLAYED, on a full
FRENCH STYLES, for Carvers, Cabinet-
size for working, proper for all Carvers, Painters,
Makers, Ornamental Painters, Brass-Workers,
&c., containing a variety of Accurate Examples
Modellers, Chasers, Silversmiths, General De-
of Foliage and Friezes.
signers, and Architects. Fifty Plates 4to., con-
sisting of Hall, Glass, and Picture-Frames,
103.
Chimney-Pieces, Stands for China, &c., Clock
and Watch Cases, Girandoles, Brackets, Grates,
With 30 Plates, coloured in a superior manner
Lanterns, Ornamental Furniture, and Ceilings.
and -hot-pressed, bound in cloth, and gold
lettered, with a letter-press descriptive list of
96.
the contents, Price £1. 7s.
15 Plates, 4to., Price 10s. 6d.
DESIGNS OF VALANCES AND DRA-
SPECIMENS OF THE CELEBRATED
PERIES, consisting of New Designs for Fashion-
ORNAMENTS and INTERIOR DECORA-
able Upholstery Work. By T. KING.
TIONS of the AGE of LOUIS XIV., selected
This work contains a variety of Valances and
from the magnificent work of Meissonnier.
Draperies of the richest description, adapted
97.
for Dining and Drawing-rooms, with many
novel Designs for Four-post and French Beds.
11 Plates, 4to., Price 7s.
As a limited number of this work is prepared,
CHIPPENDALE'S DESIGNS for
orders are requested as early as possible.
Sconces, Chimney and Looking-Glass Frames,
in the old French style: adapted for Carvers
104.
and Gilders, Cabinet-Makers, Modellers, &c.
46 Coloured Plates, oblong, Price £1.
98.
ORIGINAL DESIGNS FOR CABINET
12mo., Price 4s. 6d.
FURNITURE. By T. KING.
DESIGNS FOR VASES, on 17 Plates.
105.
99.
32 Coloured Plates, oblong, Price £1.
10 Plates, 8vo., Price 4s.
ORIGINAL DESIGNS FOR CHAIRS
DESIGNS FOR CHIMNEY-PIECES
and SOFAS, with MUSIC STOOLS, FOOT
AND CHIMNEY GLASSES, the one above
STOOLS, OTTOMAN SEATS, &c. &c. By
the other, in the times of Inigo Jones and Sir
T. KING.
John Vanburgh.
106.
100.
Part I., large quarto, 16 Plates, Price 12s.
5 Plates, oblong, Price 18. 6d.
THE UPHOLSTERER'S SKETCH-
A BOOK OF ORNAMENTS, suitable
BOOK OF ORIGINAL DESIGNS FOR
for Beginners. By THOMAS PETHER,
FASHIONABLE DRAPERIES. By T. KING.
Carver.
101.
107.
In large folio, 126 Plates, boards, Price £4. 4s.
Price 12s.
ETCHINGS, representing the BEST
THIRTY-SIX NEW, ORIGINAL, AND
EXAMPLES of ANCIENT ORNAMENTAL
PRACTICAL DESIGNS for CHAIRS, adapted
ARCHITECTURE, drawn from the Originals
for the DRAWING and DINING-ROOM,
in Rome. FRAGMENTS of GRECIAN OR-
PARLOUR and HALL. By W. TOMS, junior,
NAMENT. By C. H. TATHAM, Architect.
Carver.
)
Digitized
by
Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
25
108.
114.
Parts 1, 2, 3, 4, complete, 10s. 6d. each, (the
Price £1.
whole £2. 2s.,) containing 84 Plates.
SUPPLEMENTARY PLATES
AN ENTIRE NEW SERIES OF
CABINET AND UPHOLSTERY DESIGNS,
To the work entitled The Modern Style of
intended to embrace every variety of elegant
Cabinet Work Exemplified in New Designs."
and useful Furniture, suited to the Palace or
By T. KING.
Cottage, including the various styles of Greek,
The Supplementary Plates consist of 68 New
Gothic, Louis the 14th, &c. By GEORGE
Designs, on 28 Plates.
SMITH.
109.
115.
Price £1., 4to. post, common paper, 15s., contain-
Price £2., medium 4to., half-bound; common
ing 37 Plates, and 44 pages of letter-press.
edition, £1. 12s. in boards.
THE MODERN STYLE OF CABINET
UPHOLSTERERS' ACCELERATOR,
WORK EXEMPLIFIED IN NEW
Being Rules for Cutting and Forming Draperies,
DESIGNS,
Valances, &c., accompanied by appropriate Re-
marks, and containing a full description of a New
On 72 Plates, containing 227 Designs for Cabinet
System, which will greatly facilitate and improve
Work. By T. KING.
the execution. By T. KING.
116.
110.
Price £1., 42 Plates, on royal 4to., many of which
On 80 Plates, conveniently small for the pocket,
are neatly coloured.
Price £1. 3s.
DESIGNS FOR CARVING AND
DECORATIONS FOR WINDOWS
GILDING,
AND BEDS,
With Original Patterns for Toilette Glasses.
Consisting of 100 Fashionable Designs for Uphol-
By T. KING.
stery Work, with the Varieties of the present Style,
divided into parts. By T. KING.
117.
Price 58., 8vo.
111.
R. MAINWARING'S CHAIR-
Price 15s. coloured, containing 21 Plates, 4to.
MAKERS' GUIDE,
demy, half-bound.
200 Genteel Designs (1766).
MODERN DESIGNS FOR DRAPERY
AND VALANCES,
118.
Displayed in Beds and Windows.
By T. KING.
Large 8vo., Price 7s.
HOUSEHOLD FURNITURE,
112.
In the taste of a century ago, containing upwards
of 350 Designs on 120 Plates.
Just published, 3 Parts, Price £1. 10s.
WORKING ORNAMENTS AND
119.
FORMS,
Price 15s., 18 Plates, on folio demy.
Full size, for the use of the Cabinet Manufacturer,
Chair and Sofa Maker, Carver, and Turner.
SHOP FRONTS AND EXTERIOR
By T. KING.
DOORS,
Displaying the most approved of London execu-
113.
tion, and selected as being those of the best taste
and greatest variety ; drawn to a scale by accurate
2 vols., large 4to., 60 Plates, Price £2. 5s.
measurement, accompanied by the proper Sections
and Plans, with several New Practical Designs :
CABINET-MAKERS' SKETCH
for the use of the Architect, Builder, and Joiner.
BOOK. By T. KING.
By T. KING.
Digitized by
Google
26
WORKS PUBLISHED BY JOHN WEALE,
120.
Ornaments.
GRECIAN ORNAMENTS.
A SERIES of EXAMPLES, in 21 Plates, of GRECIAN ORNAMENT, in royal folio, very finely
engraved from Drawings made by the most celebrated Architects. Price 15s.
CONTENTS OF THE WORK.
Details of the Ceiling of the Propylea, at Eleusis.
Restored Elevation to the Entrance of the Subterraneous
Order of the Antae of the Inner Vestibules, at Eleusis.
Chambers at Mycense, commonly called the Treasury of
Capital of the Antse at large, at Eleusis.
Atreus.
Fragments found at Eleusis.
Marble Stele, in the possession of Mr. Gropius, at Athens.
Tiles and other Details of the Temple of Diana Propylsea,
Terracotta Antefixa, at Athens, and Marble Fragments
at Eleusis.
from Delphi.
Capitals and Profile of the Temple of Nemesis, at Rham-
Pilaster Capitals from Stratonice and Halicarnassus.
nus.
Fragments from Halicarnassus, Teos, and Temple of
Ornamental Moulding, Jambs, Mouldings of Interior Cor-
Apollo, at Branchydæ, near Miletus.
nice, the Painted Mouldings of the Panels of the Lacu-
Entasis of the Columns of the Portico of the Propyleea.
nasia, &c. &c. of the Temple of Nemesis, at Rhamnus.
of the North Wing of the Propylæa.
Details of the Roof, Tiling, &c. of the Temple of Nemesis,
of the Temple of Theseus.
at Rhamnus.
of the Temple of Minerva, or Parthenon.
The Chairs and Sepulchral Bas-reliefs found in the Cella of
of the Choragic Monument of Lysicrates.
the Temple of Themis, at Rhamnus.
of the Columns of the North Portico of the Triple
Athenian Sepulchral Marbles, Capitals, and Triglyphs, at
Temple, termed the Erechtheum.
Delos.
of the Columns of the East Portico of that Temple.
Entablature of the Order of the Peristyle and Roof, Orna-
of the Temple of Jupiter Panhellenius, at AEgina.
ments, &c. of the Temple of Apollo Epicurus, at Bassae.
of the Columns of the Pronaos of the same
Details of Sculptured and Painted Shafts of Columns of the
Temple.
Subterraneous Chamber, at Mycense.
This work is very desirable for Sculptors, Modellers, Masons, (in designing for Monuments, Tombs,
Tablets, &c.) Builders, and Architects. Those who possess the Dilettanti work of the Unedited
Antiquities of Attica, and the Supplementary volume of Antiquities of Greece, Sicily, &c., will not need
this work, as the subjects are selected from them.
VALUABLE ENGRAVINGS ON ARCHITECTURE, CIVIL AND
MECHANICAL ENGINEERING.
121.
124.
LONDON BRIDGE: engraved on Steel,
GLADWIN'S Fine Engraving of the
in the best style, by J. W. Lowry, under the
Patent Self-Acting Slide Lathe, manufactured
direction of B. ALBANO, Esq., C.E., from his
by Messrs. J. WHITWORTH and Co., Man-
Drawing presented to the Institution of Civil
chester. 5s. India paper, 7s. 6d.
Engineers, and made from the Original Draw-
ings and Admeasurement, with permission of
125.
Sir JOHN RENNIE, F.R.S., the Engineer. 1st.
GLADWIN'S Fine Engraving of a Drill-
Part. Plan and Elevation on a large scale, 25
ing and Boring Machine, by Messrs. WHIT-
feet to 1 inch. 15s. On India Paper, £1. 18.
WORTH and Co., Manchester. 7s.
122.
126.
STAINES BRIDGE: a fine Engraving
GLADWIN'S Elevation of STEPHENSON'S
by J. H. LE KEUX, under the direction of
Patents Locomotive Engine, printed on hard
B. ALBANO, Esq., C.E., from his Drawing pre-
paper for colouring. Columbier size. 3s. 6d.
sented to the Institution of Civil Engineers,
and made from the Original Drawings and
127.
Admeasurement, with permission of GEORGE
GLADWIN'S Splendid Engraving of
RENNIE, Esq., F.R.S., the Engineer. 1st. Part.
Plan and Elevation on a scale of 10 feet to
STEPHENSON'S Patent Locomotive Engine.
Large folio, Price 7s.
1 inch. 10s. On India Paper, 15s.
This is a master-piece of Mechanical En-
123.
graving, and may be considered unique in its
execution.
PARIS-BRIDGE OF JENA, 2 fine Prints.
128.
Plan, Elevation, Section, and Details. Draw-
ings made by L. GOLEMBROWSKI, C.E. (Polish
Lithographed Folio Print of the Verte-
Engineer residing in Paris), from admeasure-
brated Train Carriage for Railways, to diminish
ment, by permission of the French Government.
Friction and Concussion. Mr. B. ADAMS,
10s.
Patentee. 2s.
Digitized by
Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
27
129.
Temple of Serapis.
Tomb of Virgil.
Price £1. 8s.
Temple of Jupiter Stator.
Temple of Antoninus and Faustina.
CLERRISSEAU'S Fourteen Plates of
Gate of Cuma.
Engravings, on a large Atlas folio size, of the
130.
following, being a set.
Arch of Pola in Istria.
Gilt frames and glazed, very neat, 118. the pair.
Arch of Trajan.
Temple of Pola in Istria,
PORTRAITS FRAMED AND GLAZED
Temple of Venus.
FOR AN OFFICE.
Amphitheatre of Capua.
Inside of the Temple of Concord.
A Pair of Portraits of GEO. STEPHENSON, Esq.,
Ancient Sepulchre situated in Naples.
Arch of Septimus Severus and of Caracalla.
of Newcastle upon Tyne, and ROBERT STEVEN-
Amphitheatre of Beneventum.
SON, Esq., of Edinburgh, Civil Engineers.
131.
Handsomely engraved on Steel, (size I6 inches by 10} inches,) Price 2s. 6d. plain, 3s. coloured.
A CHART OF THE HARBOUR AND PORT OF
LONDON,
Exhibiting the River Thames and the adjacent Docks from London Bridge to Bugsby's Hole, and
including the Greenwich Railway, the Commercial Railway, and the commencement of the Croydon
Railway.
In this Chart the Low-water Mark, Soundings, Shoals, and other important features, are inserted
from the most recent surveys; and, from the care which has been exercised in indicating correctly the
various Wharfs, Dock-yards, Warehouses, and Factories, on each side of the River, it will be found of
great utility to all persons engaged in nautical or commercial pursuits.
SIR CHRISTOPHER WREN'S
140.
ARCHITECTURE.
WESTMINSTER HALL.
Section from admeasurement by Mr. George Allan,
132. Plan of his First Design of St. Paul's, 18.
(Clerk of the Works to Sir Robert Smirke, Architect to the
133. Elevation and Section of Bow Church, 18. 6d.
late Renovation). Very neatly engraved by Mr. HAWKS-
WORTH. Folio size, 2s. 6d.
134. Interior of St. Stephen's, Walbrook, 18.
135. Section of St. James's Church, Piccadilly, 18.
141.
136. Roof of the Theatre at Oxford, 18.
SECTION OF ST. PAUL'S CATHEDRAL.
137. Plan for the Rebuilding of the City of London, 18.
THE ORIGINAL SPLENDID ENGRAVING by GWYN, of
the SECTION of ST. PAUL'S CATHEDRAL, decorated
138. Elevation, Plan, and Section of the College of Phy-
sicians, London, 18. 6d.
agreeably to the original intention of Sir Christopher
Wren; a very fine large Print, showing distinctly the
139. Elevation of the Tower and Spire of St. Dunstan's
construction of that magnificent Edifice. Price 10s.
in the East, London-Elevation and Section of Chichester
This is a magnificent Plate, the only one of its kind,
Spire, 18. 6d.
showing constructively the genius of Sir Christopher Wren.
The following Prints, 8vo. size, are 6d. each; 4to. size, on India paper, 18. each.
142. Mr. Greenough's Villa. 2. D. Burton.
164. Terraces in the Regent's Park. 2. Nash and D.
143. Catholic Chapel. 2. Newman.
Burton.
144. York Stairs' Water Gate. 1. I. Jones.
165. Council Office, &c. 1. Soane.
145. Somerset House, (Elevations, Interiors, and Views).
166. Bank of England. 3. Soane.
6. Chambers.
167. Law Courts, Westminster. 3. Soane.
146. Society of Arts. 1. Adam.
168. House of Lords, &c. 3. Soane.
147. College of Physicians. 2. Wren.
169. Colosseum, Regent's Park. 1. D. Burton.
148. Newgate. 1. Dance.
170. Hanover Chapel. 1. Cockerell.
149. Church of St. Peter le Poor. 1. Gibson.
171. Temple Bar. 1. Wren.
150. East India House. 1. Jupp.
172. House of Mr. Nash, &c. 2. Nash.
151. Ashburnham House. 2. 1. Jones.
173. Belgrave and Eaton Squares. 2.0 Nash.
152. Church of St. George. 3. Hawksmoor.
174. Mr. Kemp's Villa. 2. Kendall.
153. Church of All Souls. 1. Nash.
175. London, Southwark, and Waterloo Bridges. 6.
154. Westminster Hall. 2. Nash.
Rennie.
155. Banqueting House. 1. I. Jones.
176. Bridge of Blackfriars. 1. Mylne.
156. Mansion House. 1. Dance, &c.
177. Bridge of Westminster. 2. Labelye.
157. County Fire Office. 1. Abraham.
178. King's Entrance, House of Lords, Section and In-
158. University Club House. 1. Wilkins and Gandy.
terior Views. 3. Soane.
159. Tower of Bow Church. 1. Wren.
179. Plan and Interiors of St. Stephen's, Walbrook. 2.
160. Westminster Abbey Church. 6. Wren.
Wren.
161. Hall, Christ's Hospital. 1. Shaw.
180. Plan and Interiors of Temple Church. 3. Wren.
162. Carlton Palace. 5. Sir R. Taylor.
181. Plans, Elevation, and Section of Custom House,
163. College of Physicians and Union Club House. 2.
London. 2. Laing.
Sir R. Smirke.
182. Plan and Elevation of Uxbridge House. Vardy.
Digitized by Google
28
WORKS PUBLISHED BY JOHN WEALE,
183. Plans, Elevations, Views, and Sections of St. Paul's
201. Plan, Elevations, Interiors, and Sections of G
Cathedral. 8. Wren.
Garden Theatre. 6. Sir Robert Smirke.
184. Elevations and Sections of St. Martin's Church. 3.
202. Plan and Elevation of Sir John Nash's House. Nash
Gibbs.
203. Plan and Transverse Section of St. James's, Picca
185. Plan, Section, and Elevation of the Queen's Theatre.
dilly. Wren.
2. Nash and Repton.
204. Interior of Freemasons' Hall. Sandby.
186. Plan and Elevation of the Diorama. Pugin and
205. Plan, Elevation, and Sections of St. Luke's Church,
Morgan.
Chelsea. 2. Savage.
187. Plan, Elevation, and Interior View of Haymarket
206. Elevations, Sections, and Plan of St. Pancras
Theatre. Nash.
Church. 3. Inwood.
188. Plan, Side Elevation, and Interior of Westminster
207. Plan and Elevation of All Saints Church, Poplar
Abbey. 2.
Hollis.
189. Plan, Elevation, Section, and Interior of St. Mary
208. Elevation and Section of St. Dunstan's in the East
Woolnoth. 2. Hawksmoor.
Wren.
190. Plan, Elevation, and Section of St. Philip's, Regent
209. Elevation and Section of Bow Church. Wren.
Street. 2. Repton.
210. Plan and Elevation of St. Marylebone Church.
191. Plan and Elevation of Bethlem Hospital. Lewis.
Hardwicke.
192. Plan and Elevations of Burlington House. Lord
211. Plan, Sections, and Interior of the Roman Catholic
Burlington and Colin Campbell.
Chapel, Moorfields. 3. Newman.
193. Elevation and Sections of St. Bride's Church. 2.
212. Plan, and Garden Front of the British Museum
Wren.
(Old). Pouget.
194. Interiors of Sir John Soane's House. 2. Soane.
213. Plan and Elevation of the Horse Guards. Kent.
195. Plan, Elevation, and Section of St. Paul's, Covent
214. Plan and Elevation of the Villa of James Burton,
Garden. Inigo Jones.
Esq. Burton.
196. Elevation of the Royal Exchange. 2. Jerman.
215. View of the East side of Belgrave Square. Basevi.
197. Plan and Elevation of the Russell Institution.
216. Plan, View, Sections, and Interiors of Drury Lane
198. Interior of the Mansion of Thos. Hope, Esq. 2. Hope.
Theatre. 6. B. Wyatt.
199. Plan, Elevation, and View of the Library of the
217. View of the Interior of the English Opera House.
London Institution. 2. Brooks.
Beazley.
200. Plan, and Transverse and Longitudinal Sections of
218. View of the Interior of the Amphitheatre, West-
King Henry 7th's Chapel. 2. Begun 1502.
minster Bridge.
219. View of the Five Elliptical Arch Bridge across the
231. Geometrical Elevation of the West Front of the
Tweed at Kelso. Constructed by the late John Rennie,
Cathedral of St. Paul's, London, before the fire; St.
Esq., Civil Engineer. Large print, 5s.
Stephen's, Vienna; Strasburg, Cologne, the Tower of
220. View of the Centering of Blackfriars' Bridge, by R.
Mechlin, and the Great Pyramid of Egypt, to one scale,
Mylne. Engraved by the celebrated Piranési. Large
folio print, 58.
print, 4s. 6d.
232. Plan of Westminster Hall and the adjacent Law
221. View of the Progress of the First Arch of New
Courts, 18.
London Bridge, with Centering, 18. 6d.
233. View of the West Front of the Propyles at Athens,
222. View of the Menai Suspension Bridge. By W. A.
folio, 18. 6d.
Provis, Esq., C.E., &c. Fine large print, India, 10s.
234. Map of Attica with part of Boeotia, improved from
223. View of the Cast Iron Bridge across the Galton
the observations of recent travellers, particularly by Captain
Canal. By R. Bridgens. Large size, 48. 6d. India proofs, 6s.
Smith, R.N., 2s. 6d.
224. View of Hammersmith Suspension Bridge. Finely
235. Portraits of Eminent Architects and Engineers, men
engraved, large size. 58.
who have done honour to Britain. Engraved in the best
225. Plan and Elevation of Shrewsbury Bridge, 1s. 6d.
style by superior artists, folio and 4to. sizes, £1. 18. the
226. Dr. George Moller's very Elaborate Detailed Plates
Set:
of the Cathedral of Cologne, on nine very large sized sheets,
1. Sir Christopher Wren.
showing the minutest detail to a large scale: this very fine
2. James Stuart.
structure is nearly coeval with St. Stephen's Chapel, Glas-
3. Nicholas Revett.
gow Cathedral, and other Edifices of the best age of Archi-
4. Sir William Chambers.
tecture in this Country. With a text, small folio, in the
5. James Watt.
German language, £4. 4s.
6. Humphrey Repton.
227. Mr. Britton's Views of the West Fronts of 14
7. Thomas Telford.
English Cathedrals, folio size, 88.; acquatinted, 10s. 6d.
8. Thomas Tredgold.
228. Mr. Britton's Series of Picturesque Views of the
236. Transverse Section of the Temple of Jupiter Olym-
Interior of 14 Cathedrals, with a Border of Architectural
plus at Agrigentum, folio size, 18. 6d.
and Sculptural Ornament, folio size, 8s.
237. Mr. Blair's Drawing of a Corinthial Capital, lithe-
229. Vardy's Perspective View of the Gothic Hall,
graphed, large size, 2s. 6d.
Hampton Court, finely engraved, folio, 5s.
238. Mr. Cheffin's large Lithographed Print of the Lts.
230. Mr. Coney's View of the Interior of the Cathedral at
don and Birmingham Railway Entrance Front of the
Milan, fine large print, 5s.
London Station, 58.
239.
Fine large print, 5s.
SHEER DRAUGHT OF HER MAJESTY'S STEAM SHIP OF
WAR " MEDEA,"
Built by Oliver Lang, Esq. at Woolwich first commanded by Captain H. Austin in the Mediterranes
for nearly four years, and since on the North American station by Captain Nott.
Digitized by
Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
29
PREPARING FOR PUBLICATION IN THE COURSE OF
THE YEAR 1840.
240.
THE PUBLIC WORKS OF THE UNITED STATES,
CONSTRUCTED BY EMINENT AMERICAN ARCHITECTS AND ENGINEERS;
Consisting of Plans, Elevations, and Sectional Details of all the principal Improvements of the States.
By WILLIAM STRICKLAND, Architect and Engineer,
EDWARD H. GILL, and HENRY R. CAMPBELL, Engineers.
THE FOLLOWING SUBJECTS ARE PREPARING
Plan, Elevation, and Sections of the Bank of the
Plan, Elevation, and Sections of the United States
United States, Philadelphia.
Naval Asylum, near Philadelphia.
Plan, Sections, and Details of a Locomotive Steam
Plan of the Aqueduct over the Allegheny River, at
Engine, as constructed by M. W. Baldwin,
Pittsburg, Pennsylvania.
Philadelphia.
Plan, Elevation, and Sections of a Canal Lock,
Plan, Elevation, and Section of the double outlet
with improved gates, Sandy and Beaver Canal,
Lock on the Schuylkill Canal at Plymouth,
Ohio.
Pennsylvania.
Plan, Elevation, and Sections of the Exchange
Plan, Elevation, and Sections of the Schuylkill
Buildings at New York.
Viaduct on the Columbia and Philadelphia
Plan, Elevation, and Sections of the Eastern Peni-
Railroad, Pennsylvania.
tentiary at Philadelphia.
Plan, Elevation, and Sections of a Timber Dam,
Plan of the Reservoir Mound and Gates, with
on the Sandy and Beaver Canal, Ohio.
Details, on the Schuylkill Canal, near Pottsville,
Plan, Elevation, and Sections of the United States'
Pennsylvania.
Mint, Philadelphia.
Plan, Elevation, and Sections of a Cut Stone Aque-
Plan, Elevation, and Sections of the Schuylkill
duct being constructed on the line of the New
Permanent Bridge, Philadelphia.
York Water-works.
Plan, Elevation, and Sections of the Philadelphia
Plan, Elevation, and Details of the Troy and Sara-
Exchange.
toga Viaduct and Draw constructed over the
Plan, Elevation, and Sections of the Philadelphia
Hudson River, New York.
Gas-works.
Plan, Elevation, and Sections of the Bridge over
Plan, Elevation, and Sections of the Stone Via-
the Delaware River at Trenton, New Jersey.
duct over the Schuylkill River at Phoenixville,
Plan, Elevation, and Sections of a Stone and
Penusylvania.
Timber Lock, as constructed on the Schuylkill
Plan, Elevation, and Details of a Locomotive
Canal, Pennsylvania.
Steam Engine, as constructed by H. R. Camp-
Plan and Details of a Hudson River Steam Boa
bell.
for Passengers.
Plan, Elevation, and Section of the Philadelphia
Plan and Details of the Delaware Breakwater at
County Prison.
the entrance into the Bay of Delaware.
Han, Elevation, and Sections of a Cut Stone
Plan of the Timber Dam constructed across the
Aqueduct, constructed over the James River,
Swatara Union Canal, Pennsylvania.
Virginia, on the James River and Kanawha
Plan, Elevation, and Section of the Stone Viaduct
Improvement.
at the " Horse Shoe Bend," Allegheny Portage
Plan, Elevation, and Section of a Canal Bridge.
Railroad, Pennsylvania.
Plan, Elevation, and Sections of the Philadelphia
Plan of a Burden Car with Eight Wheels, as used
Alms-house.
on the Pennsylvania Railroad.
Plan, Elevation, and Sections of the Girard Col-
Plan, Elevation, and Sections of the Towing Path
lege for Orphans, Philadelphia.
Bridge, constructed over the Schuylkill River at
Ban, Elevation, and Sections of the Fairmount
Manayunk, Pennsylvania.
Bridge, Philadelphia.
Plan, Elevation, and Sections of a Steam-boat
lan, Elevation, and Sections of the Philadelphia
Lock, as constructed on the Kentucky River,
Water-works, with a Map of its location.
Kentucky.
lan, Elevation, and Details of an improved Eight-
Plan and Details of a Floating Dry Dock, now in
wheeled Day and Night Passenger Car, as
use on the Mississippi River.
used on many of the Railroads in the United
Plan, Elevation, and Sections of a Timber Bridge,
States.
as constructed by Col. S. H. Long.
Digitized by
Google
30
PREPARING FOR PUBLICATION BY JOHN WEALE,
Sections and Details of the various Rails used in
Ohio Canal.
the United States.
Plan of a Lock of 30 feet lift, constructed on the
Plan, Elevation, and Sections of a Cut Stone
Lehigh Canal, Pennsylvania.
Aqueduct, constructed on the Chesapeake and
The Plates will be engraved by Mr. JOHN LE KEUX in his best style, and to be sold in the separate
Divisions of A, Architecture,
B, Mechanical Engineering,
C, Civil Engineering.
To be published on fine Imperial folio paper, in Parts of 20 Plates, faced by a particular Description
of the Subject. Price £1. in England, and 5 dollars in the States.
241.
THE PUBLIC WORKS OF GREAT BRITAIN,
VOL. II.
To be published in Parts of 20 Plates, engraved by Mr. JOHN LE KEUX and the best Engravers; each
Plate to be faced by a particular Description of the Subject. Price £1. each Part.
The following are some of the very important subjects chosen from the highly scientific works of
George Leather, Esq., C.E., of Leeds.
Cast Iron Aqueduct over the River Calder at Stanley
A Drainage Culvert and a Warping Sluice.
Ferry, near Wakefield.
A set of Lock Gates, both geometrically and isome-
Goole Docks and Locks.
trically projected.
Goole Lock Gates, with the machinery for opening and
Double acting Cloughs and Drawing Geer, Collars
shutting them.
and Anchors, Pivots and Steps, Forebay Defenders,
Goole Bascule or Hoist Bridge.
and other Iron-work connected with the Locks.
Hull Hoist Bridge.
Lock and Bridge Keepers' Houses.
Aire and Calder Navigation.
Dunham Bridge,-Details, Elevations, &c.
Goole Canal.
Hunslet Bridge, Leeds.
River Don Navigation.
Astley Bridge.
General Plan of Aire and Calder Navigation, from
Monk Bridge, Leeds.
Leeds and Wakefield to its junction with the Goole
Victoria Bridge, Leeds.
Canal at Ferrybridge.
Gott's Bridge, Leeds.
Do.
do. from Ferrybridge to Goole, with
Thorp Hall or Waterloo Bridge, near Leeds.
the Docks at the latter place.
Stockton and Hartlepool Railway.
General Transverse Section of the Canals, with the
Public Road Bridge under.
side walls, &c.
Occupation Bridge under.
Two examples of Locks,-a Flood Lock and a Fall Lock.
Do.
do. (iron).
Two Stone Bridges-one square, another askew.
Sea Embankment at Stranton.
One Swivel Bridge.
Nocton, &c. Drainages.
These will form 50 well-occupied Plates.
The following, in continuation, of other eminent Engineers, are also in preparation.
St. Katherine's Docks-Form of Shoes used for Bay Piles
Pile Driving.
of Coffer-dam.
Bute Ship Canal-Travelling Crane.
Form of Shoes used for Sheeting
Winch, Pinion Wheel, Barrel.
Piles.
Tilting Waggons.
Abutment for Swivel Bridge.
Inner Basin, Masonry construction, &c.
Dock Gates.
Communication Locks.
Plans of Coffer-dam (2).
Hollow Quoin of Entrance Lock.
Transverse Section of Coffer-dam.
Swivel Waggon-Stone Waggon.
Truss of the Roof over the Long Room, Custom House,
Counterforts, Sections.
London.
Dock Gates, &c.
Coal Jetty at Coffin's Wharf, Cardiff.
Foundry Cranes.
Taff Vale Railway Culverts.
Plan and Section of the Great Sea Lock and Sluice at
Pug Mill, Screw Jacks, Wheel Barrows, Draw Crabs,
Lowestoft.
Tram Plates.
Port-Glasgow Wet Dock Lock Gate.
Weir for Bromley Mill.
Swing Bridge between outer and inner Basins of the
Telford's Timber Turn Bridge on the Grand Surrey Canal.
Eastern Docks, Custom House, London.
Tewkesbury Severn Bridge.
Outfall at the N. W. corner of Cardiff Castle.
Centering for Balloter Bridge across the River
Bridge at northern entrance to Cardiff Castle.
Dee, Aberdeenshire.
Bridge at N. W. corner of Cardiff Castle, across Feeder of
Splendid Drawings of various Cranes.
Bute Ship Canal.
Middlewich Branch of the Ellesmere and Chester Canal.
Newport Road Bridge across Feeder of Bute Ship Canal.
Cross Section of Culvert for conveying the Feeder under the
Crane at Harrison's Wharf, London, capable of raising
Glamorganshire Canal and Merthyr Road, and longitu-
five tons, cost £135.
dinal Section.
Digitized by
Google
ARCHITECTURAL LIBRARY, 59, HIGH HOLBORN.
31
242.
In 8vo., with Plates, a Second Edition of
A PRACTICAL TREATISE ON LOCOMOTIVE ENGINES
UPON RAILWAYS;
The construction, the mode of acting, and the effect of Engines in conveying heavy loads the means of
ascertaining, on a general inspection of the Machine, the velocity with which it will draw a given load,
and the results it will produce under various circumstances and in different localities; the proportions
which ought to be adopted in the construction of an Engine, to make it answer any intended purpose
the quantity of fuel and water required, &c. with Practical Tables, showing at once the results of the
Formulæ: FOUNDED UPON A GREAT MANY NEW EXPERIMENTS made on a large scale, in a daily
practice on the Liverpool and Manchester, and other Railways, with different Engines and Trains of
Carriages. To which is added, an APPENDIX, showing the expense of conveying Goods by means of
Locomotives on Railroads.
By COMTE F. M. G. DE PAMBOUR.
243.
A New Edition, with Additions, by G. RENNIE, Esq., C.E., F.R.S.
PRACTICAL ESSAYS ON MILL-WORK AND OTHER
MACHINERY.
On the Teeth of Wheels, the Shafts, Gudgeons, and Journals of Machines ; the Couplings and Bearings
of Shafts; disengaging and re-engaging Machinery in Motion; equalizing the Motions of Mills
changing the Velocity of Machines in Motion; the Framing of Mill-Work, &c.; with various useful
Tables.
By ROBERT BUCHANAN, Engineer.
Revised, with Notes and Additional Articles, containing new Researches on various Mechanical Subjects,
By THOMAS TREDGOLD, Civil Engineer.
Illustrated by Plates and numerous Figures. 2 vols. 8vo.
244.
4to., Price £1. 18. Corrected and enlarged.
THE CARPENTER'S NEW GUIDE.
Being a complete Book of Lines for Carpentry and Joinery, treating fully on Practical Geometry,
Soffits, Brick and Plaster Groins, Niches of every description, Skylights, Lines for Roofs and Domes;
with a great variety of Designs for Roofs, Trussed Girders, Floors, Domes, Bridges, &c. Copper-
plates : including some Observations and Calculations on the Strength of Timber.
By P. NICHOLSON.
245.
Fourth Edition, improved and enlarged. 8vo., Price 12s. boards.
A PRACTICAL ESSAY ON THE STRENGTH OF CAST IRON
AND OTHER METALS;
Intended for the Assistance of Engineers, Iron-Masters, Millwrights, Architects, Founders, Smiths,
and others engaged in the Construction of Machines, Buildings, &c. Containing Practical Rules,
Tables, and Examples, founded on a Series of new Experiments ; with an extensive Table of the
Properties of Materials. Illustrated by Eight Plates and several Wood-cuts.
By THOMAS TREDGOLD Livil Engineer.
Google
@
Digitized by
32
PREPARING FOR PUBLICATION BY JOHN WEALE.
246.
Four Plates. Third Edition, Price 8s. boards.
A TREATISE ON MILLS;
In Four Parts. Part First, on Circular Motion Part Second, on the Maximum of Moving Bodies,
Machines, Engines, &c. ; Part Third, on the Velocity of Effluent Water Part Fourth, Experiments on
Circular Motion, Water-Wheels, &c.
By JOHN BANKS, Lecturer on Experimental Philosophy.
247.
In Imperial folio, about 25 Plates, engraved and lithographed in the best style.
MR. HOPPER'S DESIGNS FOR THE NEW HOUSES OF
PARLIAMENT.
Consisting of Plans, Elevations, and Perspective Views of the Interior. Only a limited number will be
printed.
248.
REVUE GENERALE DE L'ARCHITECTURE ET DES TRAVAUX PUBLICS.
(Annals of Architecture and Public Works.)
AN ARCHITECT AND ENGINEER'S JOURNAL,
Edited by CE'SAR DALY, Architect.
Geology, Stereotomy, Machinery.
Mansions, Private Houses, Agricultural Buildings
Foundations, Masonry. Carpentry, Iron-work.
Gardens.
Decoration, Furniture, Warming, Ventilation.
Roads, Bridges, Canals, Public Works, &c. &c.
Each number of this Journal is arranged under four distinct heads, History, Theory, Practice, and
Miscellanies. The first comprises every thing relating to Architectural Antiquities, &c. ; the second
consists of Memoirs entirely theoretic, relating to the different branches of Architecture and Engineer-
ing; the third contains practical Essays on the different Elements of the Science of Building and
Engineering, and descriptions of the principal Public Works and Architectural Undertakings carried on
in the two Continents the fourth, under the title of Miscellanies, comprises Reviews of Books con-
nected with the subjects treated in the Journal, News, Correspondence, Variations in the Values of
Shares in Public Works, Lists of New Patents, &c. &c. &c. The Journal thus addresses itself at
the same time to Architects and Engineers, who will find in it the fruits of the studies and investiga-
tions of men very eminent in their different departments, and will be apprised of all new inventions
and discoveries, experiments and publications, connected with the art of building; to Antiquaries.
who will find in it the solution of many difficult questions, which required the investigation of men
uniting the practice of Architecture with the knowledge of history; and to Proprietors, who will be
furnished with Models of every description of Urbane and Rural Buildings. A regular correspondence
has been established with the principal Architects and Engineers in Europe and America.
The Work will be published Monthly, in small folio, double columns, with beautiful type cast
expressly for the purpose, on fine satin paper, by the first printers in Paris. Each Number will contain
64 columns, with numerous beautifully executed wood-cuts, and from three to four engravings, or
lithographs printed in colours.
CONTENTS OF NO. I.
INTRODUCTION, par M. César Daly.
Bitumes et de leurs divers emplois, par M.
HISTOIRE-De l'Architecture Bysantine, par M.
Polonceau, Inspect. div. des Ponts et Chaussées.
Albert Lenoire.-Musée historique d'Architec-
-Notice sur les Constructions en Briques crues
ture, par M. Tournal.
du Midi de la Russie, par M. Potier, Lieut.-Gén.
THE'ORIE-Des Ponts Suspendus, par M. A. A.
du Génie en Russie.
Boudsot.
ME'LANGES-Bibliographie: Compte-Rendu du
PRATIQUE-Notice sur un nouveau Système de
livre de M. Teisserenc sur les Travaux publics
Charpente en bois et en fer, par M. Camille
en Belgique et les Chemins de fer en France,
Polonceau.-Pont sur James-River, à Richmond,
par M. C. D.-NOUVELLES:-le Tunnel de la
en Virginie, par M. Michel Chevalier.-Des
Tamise, par M. Polonceau.-Archéologie.
Paris, PAULIN ET HETZEL: London, WEALE.
