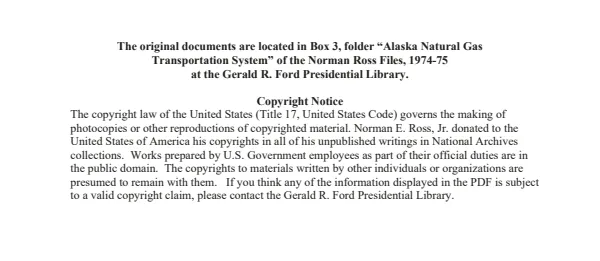

The original documents are located in Box 3, folder "Alaska Natural Gas
Transportation System" of the Norman Ross Files, 1974-75
at the Gerald R. Ford Presidential Library.
Copyright Notice
The copyright law of the United States (Title 17, United States Code) governs the making of
photocopies or other reproductions of copyrighted material. Norman E. Ross, Jr. donated to the
United States of America his copyrights in all of his unpublished writings in National Archives
collections. Works prepared by U.S. Government employees as part of their official duties are in
the public domain. The copyrights to materials written by other individuals or organizations are
presumed to remain with them. If you think any of the information displayed in the PDF is subject
to a valid copyright claim, please contact the Gerald R. Ford Presidential Library.
tory
ALASKA NATURAL GAS
TRANSPORTATION SYSTEM
]
Draft Environmental Impact Statement
EXECUTIVE HIGHLIGHTS
ALASKA
CANADA
UNITED
STATES
MEXICO
JUNE 1975
OF THE INTERIOR ERIOR S
U.S. DEPARTMENT OF THE INTERIOR
WASHINGTON, D.C. 20240
GERALD B.FORD
March
3.
1849
EXECUTIVE HIGHLIGHTS
Alaska Natural Gas Transportation System
Draft Environmental Impact Statement
INTRODUCTION
A major oil find on the North Slope of Alaska was proven in 1968.
A 200 square mile area known as the Prudhoe Bay Field contains an estimated
26 trillion cubic feet of natural gas both in solution in the oil and as
PRUDHOE BAY
free gas. Following confirmation of the oil-gas discovery, the Alyeska
Pipeline Service Company was formed to construct and operate an oil
CANNING RIVER) BAY
CAMDEN BAY
pipeline. Applications for permits and rights-of-way for the oil line
KAKTOVIK an RICHARDS ISLAND
MACKENZIE PARSONS LAKE
were tied up in litigation until the matter was settled in November 1973,
INUVIK
by the passage of amendments to the Mineral Leasing Act of 1920, which
FORT McPHERSON
included the Trans-Alaska Pipeline Authorization. Congress authorized
OTRAVAILLANT LAKE
can
as
and directed the Federal Agencies to issue the necessary permits and
NORTHWEST
TERRITORIES
FORT SIMPSON
rights-of-way for the construction of the oil line (TAPS). Actual
pipeline construction began in the Winter of 74-75.
It is estimated that 1/3 of the natural gas is in solution with the
oil and 2/3 is in a gas cap on top of the oil reservoir. Therefore, gas
CANADA
will be produced when the oil wells are put into operation. Natural gas
CAROLINE JCT.
can be reinjected into the oil field, utilized (or marketed), or wasted
by flaring (burning gas in the open atmosphere). Since Alaska State law
OKINGSGATE
MONCHY
prohibits flaring of gas, that option is closed. Natural gas will be
EASTPORT
MORGAN
reinjected as the oil field becomes active until a reservoir analysis
can be made. Significant quantities of gas will be available from the
Prudhoe Bay Field, about one year after the oil operation starts.
DELMONT
A consortium of 27 companies has proposed construction of a 6,280-mile
pipeline for the transportation of this gas from Prudhoe Bay to markets
UNITED
STATES
in the 48 conterminous States. The oil producers have entered into
negotiating agreements with members of the consortium for the gas. These
DELA
oil producers would gather, chill, compress, and deliver available gas
to the consortium. Gas would be delivered to a metering station at the
start of the gas pipeline at a temperature of 25° Fahrenheit and a pressure
of 1,600 p.s.i.g. (pounds per square inch gauge).
The gas pipeline, in terms of dollars, is reported to be the largest
MEXICO
privately financed project in the world. Based on early 1975 estimates
the cost of construction would be $9.6 billion. Terminal points of the
proposed pipeline will be Antioch, California; Cajon, California; and
Delmont, Pennsylvania.
