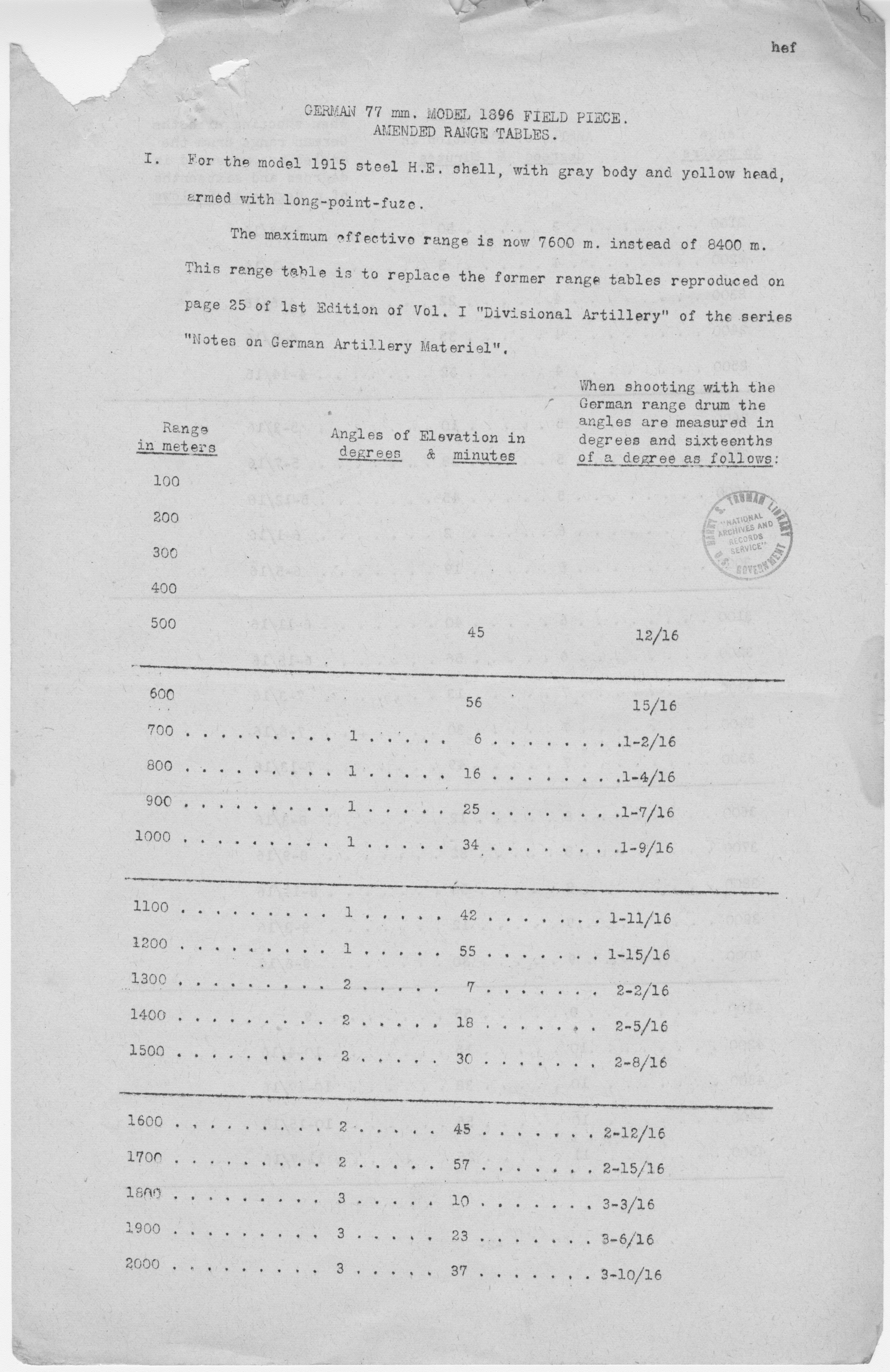

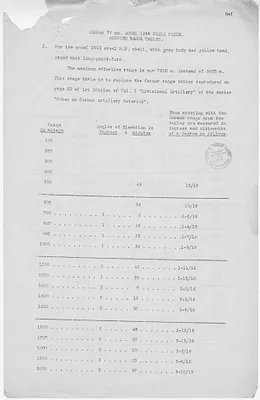

GERMAN 77 mm. MODEL 1896 FIELD PIECE.
AMENDED RANGE TABLES.
I.
For the model 1915 steel H.E. shell, with gray body and yollow head,
armed with long-point-fuze.
The maximum offectivo range is now 7600 m. instead of 8400 m.
This range table is to replace the former range tables reproduced on
page 25 of 1st Edition of Vol. I "Divisional Artillery" of the series
"Notes on German Artillery Materiel".
When shooting with the
German range drum the
angles are measured in
Range
Angles of Elevation in
degrees and sixteenths
in meters
degrees & minutes
of a degree as foll ows
100
es
200
2
RECORDS
SERVICE"
300
Cs
400
500
45
12/16
600
56
15/16
700
1
6
.1-2/16
800
1
16
.1-4/16
900
1
25
.1-7/16
1000
1
34
.1-9/16
1100
1
42
1-11/16
1200
1
55
1-15/16
1300
2
7
2-2/16
1400
2
18
2-5/16
1500
2
30
2-8/16
1600
2
45
2-12/16
1700
2
57
2-15/16
18AD
3
10
3-3/16
1900
3
23
3-6/16

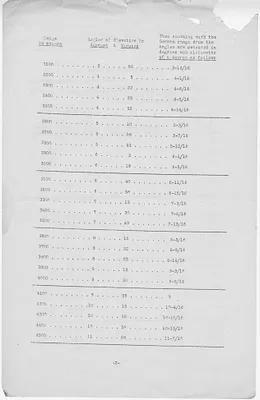

2000
3
37
3-10/16
