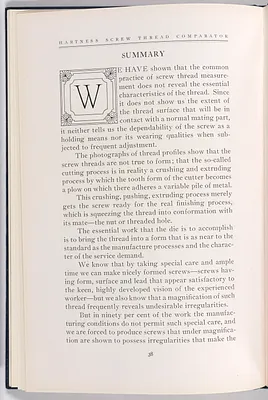

HARTNESS
SCREW THRED COMPARATOR
SUMMARY
E HAVE shown that the common
G
0
practice of screw thread measure-
ment does not reveal the essential
W
characteristics of the thread. Since
it does not show us the extent of
the thread surface that will be in
contact with a normal mating part,
it neither tells us the dependability of the screw as a
holding means nor its wearing qualities when sub-
jected to frequent adjustment.
The photographs of thread profiles show that the
screw threads are not true to form that the so-called
cutting process is in reality a crushing and extruding
process by which the tooth form of the cutter becomes
a plow on which there adheres a variable pile of metal.
This crushing, pushing, extruding process merely
gets the screw ready for the real finishing process,
which is squeezing the thread into conformation with
its mate-the nut or threaded hole.
The essential work that the die is to accomplish
is to bring the thread into a form that is as near to the
standard as the manufacture processes and the charac-
ter of the service demand.
We know that by taking special care and ample
time we can make nicely formed screws-screws hav-
ing form, surface and lead that appear satisfactory to
the keen, highly developed vision of the experienced
worker-but we also know that a magnification of such
thread frequently reveals undesirable irregularities.
But in ninety per cent of the work the manufac-
turing conditions do not permit such special care, and
we are forced to produce screws that under magnifica-
tion are shown to possess irregularities that make the
38
