HARTNESS S CREW THREAD COMPARATOR

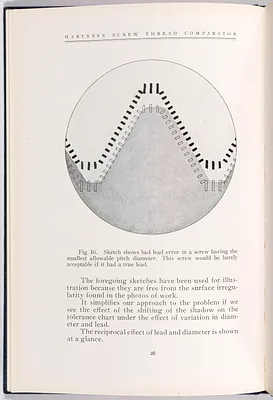

Fig. 16. Sketch shows bad lead error in a screw having the
smallest allowable pitch diameter. This screw would be barely
acceptable if it had a true lead.
The foregoing sketches have been used for illus-
tration because they are free from the surface irregu-
larity found in the photos of work.
It simplifies our approach to the problem if we
see the effect of the shifting of the shadow on the
tolerance chart under the effect of variation in diam-
eter and lead.
The reciprocal effect of lead and diameter is shown
at a glance.
28
