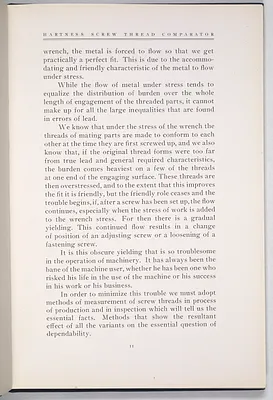

H A R T N E S S S C R E W THRAD COMPARATOR
wrench, the metal is forced to flow SO that we get
practically a perfect fit. This is due to the accommo-
dating and friendly characteristic of the metal to flow
under stress.
While the flow of metal under stress tends to
equalize the distribution of burden over the whole
length of engagement of the threaded parts, it cannot
make up for all the large inequalities that are found
in errors of lead.
We know that under the stress of the wrench the
threads of mating parts are made to conform to each
other at the time they are first screwed up, and we also
know that, if the original thread forms were too far
from true lead and general required characteristics,
the burden comes heaviest on a few of the threads
at one end of the engaging surface. These threads are
then overstressed, and to the extent that this improves
the fit it is friendly, but the friendly role ceases and the
trouble begins, if, after a screw has been set up, the flow
continues, especially when the stress of work is added
to the wrench stress. For then there is a gradual
yielding. This continued flow results in a change
of position of an adjusting screw or a loosening of a
fastening screw.
It is this obscure yielding that is SO troublesome
in the operation of machinery. It has always been the
bane of the machine user, whether he has been one who
risked his life in the use of the machine or his success
in his work or his business.
In order to minimize this trouble we must adopt
methods of measurement of screw threads in process
of production and in inspection which will tell us the
essential facts. Methods that show the resultant
effect of all the variants on the essential question of
dependability.
