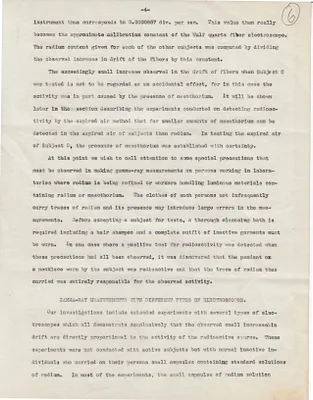

-4- 6 instrument thus corresponds to 0.0000857 div. per sec. This value then really becomes the approximate calibration constant of the Wulf quartz fiber electroscope. The radium content given for each of the other subjects was computed by dividing the observed increase in drift of the fibers by this constant. The exceedingly small increase observed in the drift of fibers when Subje et o was tested is not to be regarded as an accidental effect, for in this case the activity was in part caused by the presence of mesothorium. It will be shown later in the section describing the experiments conducted on detecting radioac- tivity by the expired alr method that far smaller amounts of mesothorium can be detected in the expired air of subjects than radium. In testing the expired air of Subject C, the presence of mesothoriun was established with certainty. At this point we wish to call attention to some special precautions that must be observed in making gamma-ray measurements on persons working in labora- tories where radium is being refined or workers handling luminous materials con- taining radium or mesothorium. The clothes of such persons not infrequently carry traces of radium and its presence may introduce large errors in the mea- surements. Before accepting a subject for tests, a thorough cleansing bath is required including a hair shampoo and a complete outfit of inactive garments must be worne In one case where a positive test for radioactivity was detected when these precautions had all been observed, it was discovered that the pendant on a necklace worn by the subject was radioactive and that the trace of radium thus carried was entirely responsible for the observed activity. MEASUREMENTS WITH DIFFERENT TYPES OF ELSCTROSCO^ES. Our investigations include extended expariments with several types of elec- troscopes which all demonstrate conclusively that the observed small increaseSin drift are directly proportionel to the activity of the radioactive source. These experiments were not conducted with active subjects but with normal inactive in- dividuals who carried on their persons small ampoules containing standard solutions of radium. In most of the experiments, the small ampoules of radium solution
