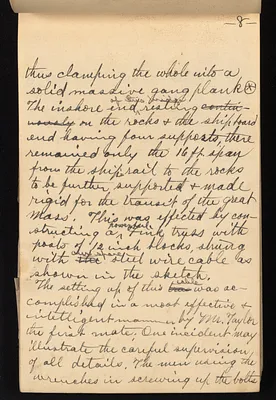

Page image
OCR
8-
thus clamping the whole into a
solid massive gang, planko
The inshore end of stays resting contin-
morally on the rocks & the shiptoard
remained only the 16 ft span
end having four supports, there
from the shippail to the rocks
to be further, supported + made
rigid for the transit of the great
mass, , This was effected by con-
structing a rowers truss with
posts duy of 12 inch blocks, shring
with wire cable as
shown in the sketch.
cable
complished in a moot effective +
The setting up of this trow was ac-
mammer by Mr. Taylor
the first mate, One incident may
illustrate the careful supervision
of all details. The men using the
wruches in screwing up the bolls
